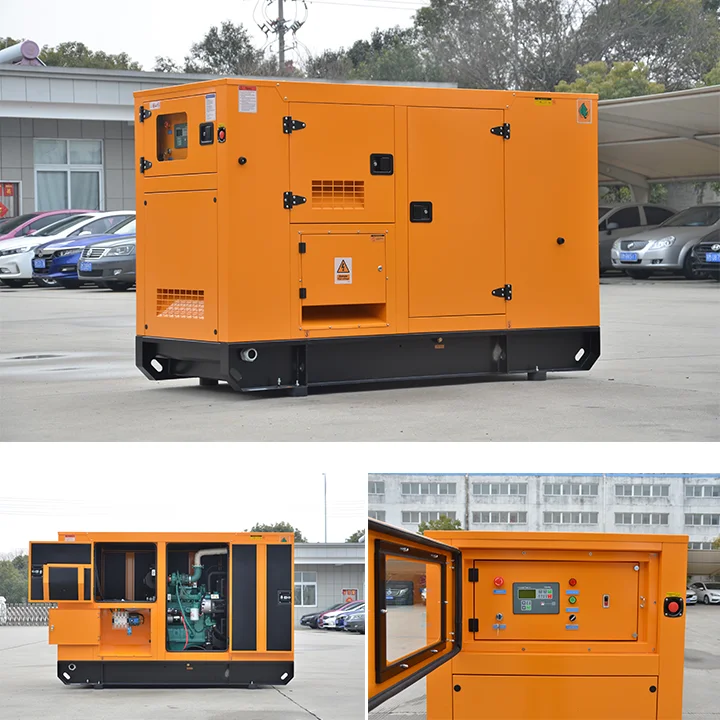

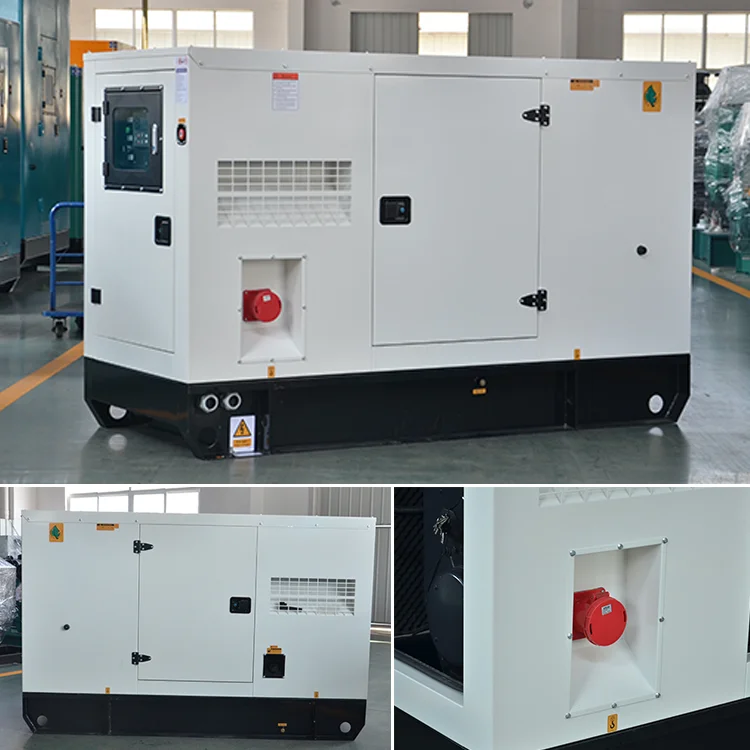

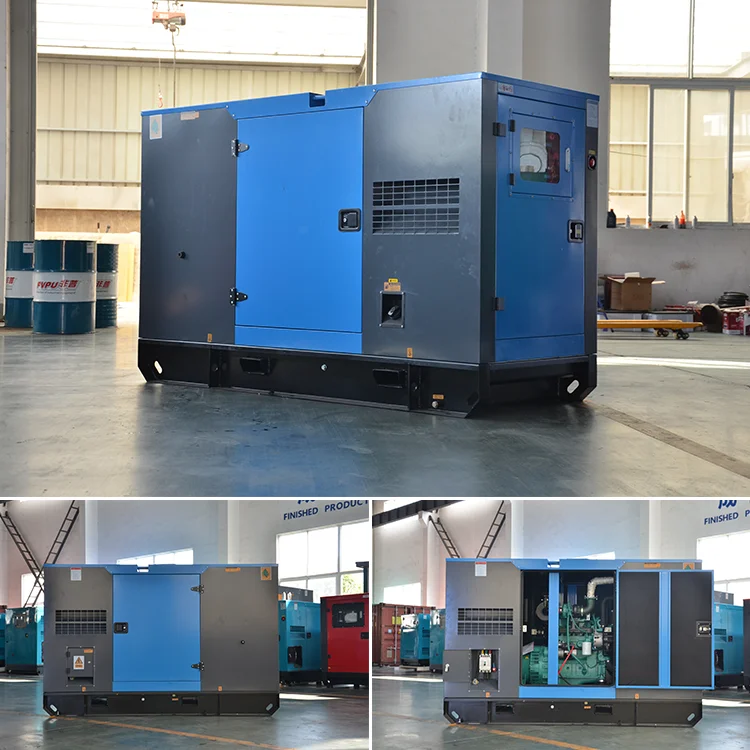

27kva silent type generator 22kw Yangdong diesel generator with silent canopy

Product Overview

Description

Diesel generator Details
Model	JHYD-22GF
Power	22KW
Frequency	50HZ
Voltage	380/220v(voltage can be customized)
Optional Type	Open/trailer
Size of Sillent type	2200*900*1460mm
Weight of Silent type	1050kg
With Diesel Engine
Brand&model	Yangdong Y490D
Prime Power	26kw@50hz
Cylinders	4 in line arrangement
Bore*Stroke	102*118mm
Displacement	3.857L
Fuel Consumption at 100% Load	207g/kw.h
Speed Governor	Mechanical
With Alternator
Optional Brands	Stamford/Leroy Somer/Mecc Alte/Marathon
Exciter type	Single bearing,brushless,Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Insulation Grade	H
Protection Grade	IP23
With Controller
Optional brands	Deepsea/ComAp/Smartgen



Jiangsu Jianghao generator Co.,Ltd, located in Taizhou city,Jiangsu Province,which is near Shanghai port.We have modern assembly workshop to produce diesel generator sets.Jianghao devote itself into researing,maufac-

ruing and installing superb diesel generator sets ,power range from 2kva to 4000kva,include silent type,mobile    type,container type,mobile power station,multiple parallel,remote control and so on.As the ideal emergency standby power equipment,diesel generator sets are widely used in industrial and mining enterprises,

communication,army,ports,highway,railway,hotels etc places. With the compelling quality and service,Jianghao has built a good reputation with customers in the area of diesel generator sets,our products are exported to over eighty countries and regions,over 70 millions USD in the year 2019.
