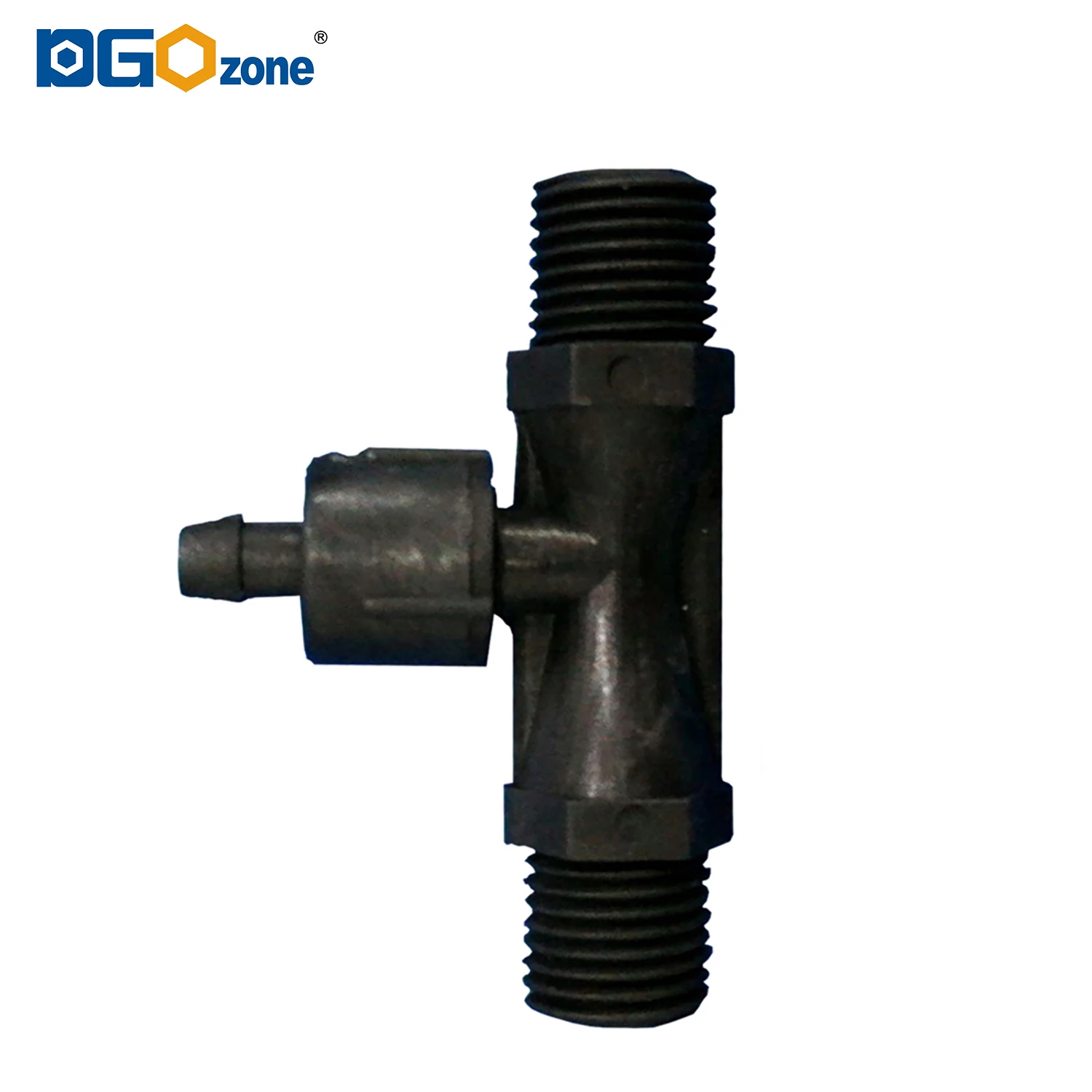

1/4 PVDF Вентури озоновый смеситель для воды, оросительные аксессуары, озоностойкие форсунки

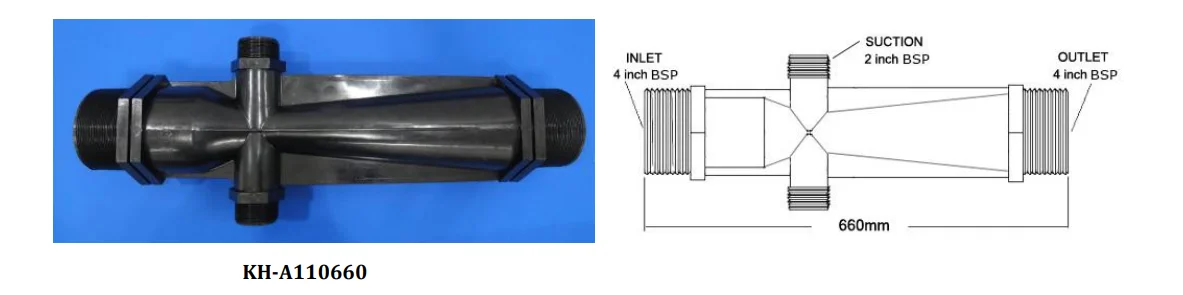

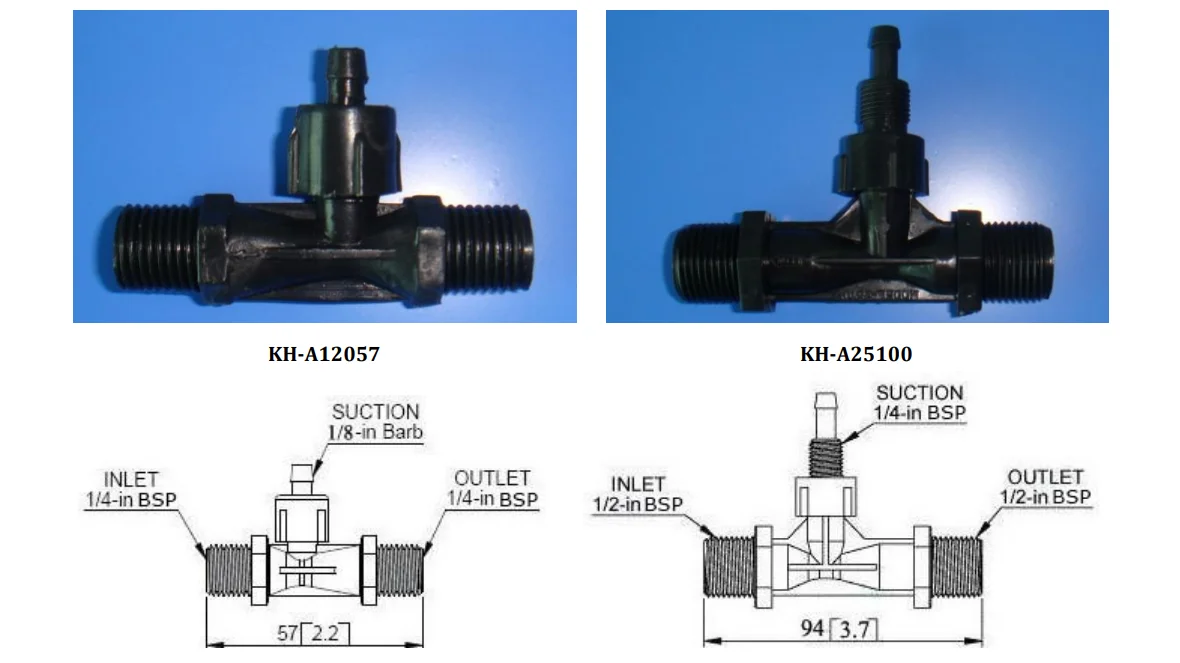

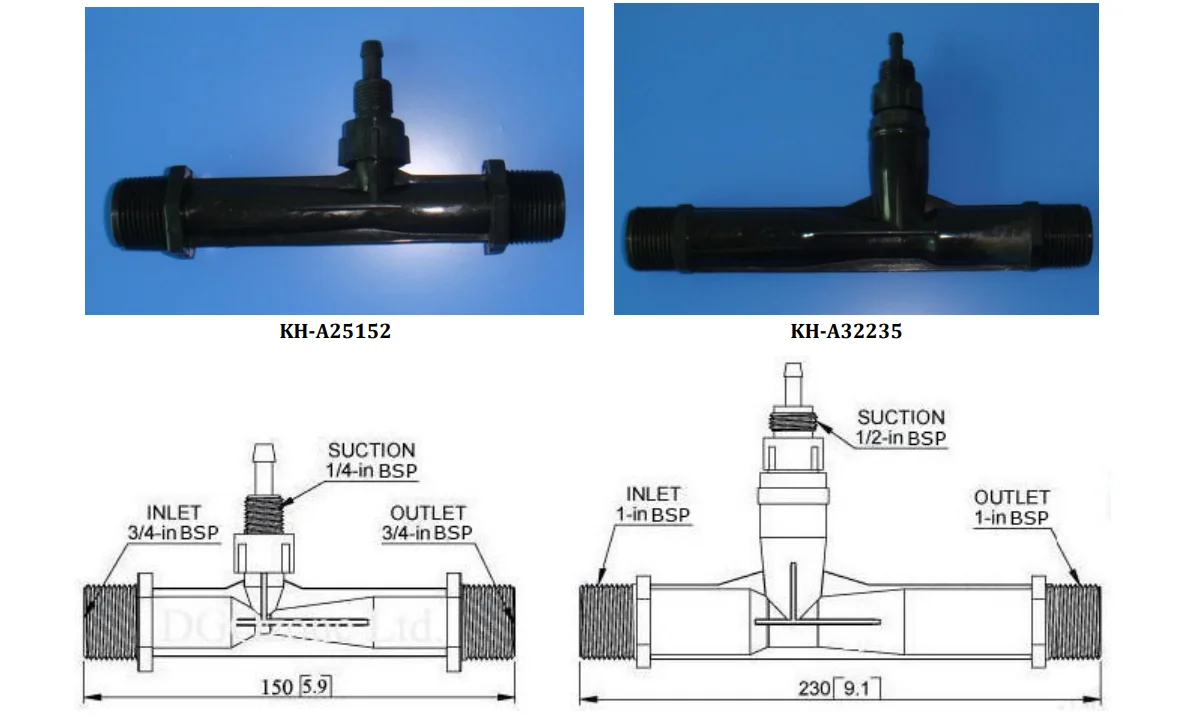

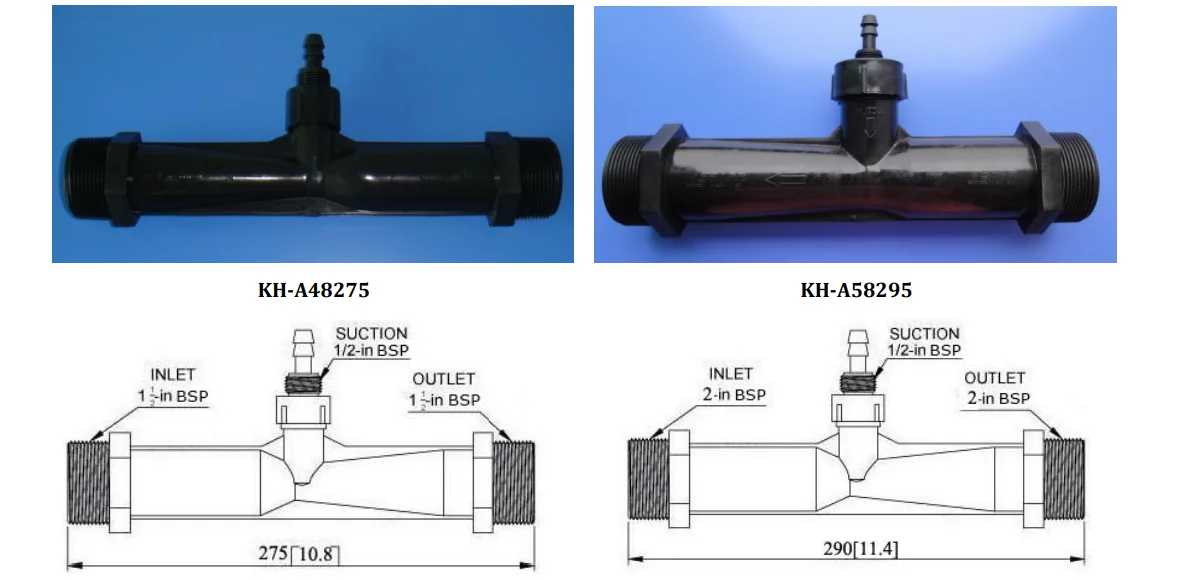

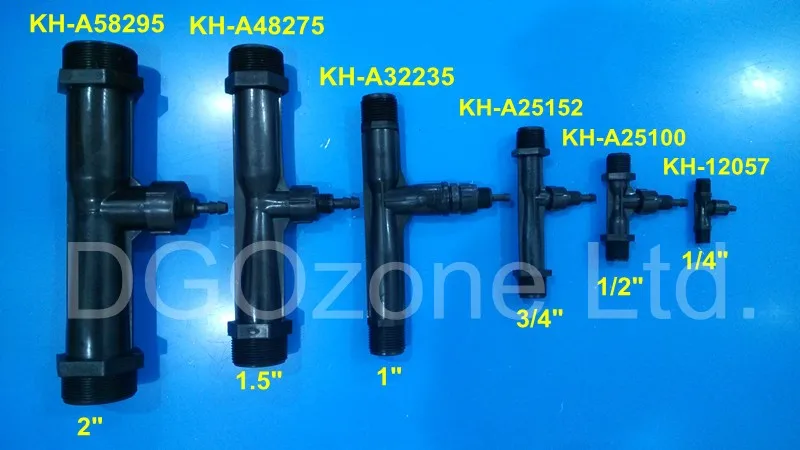

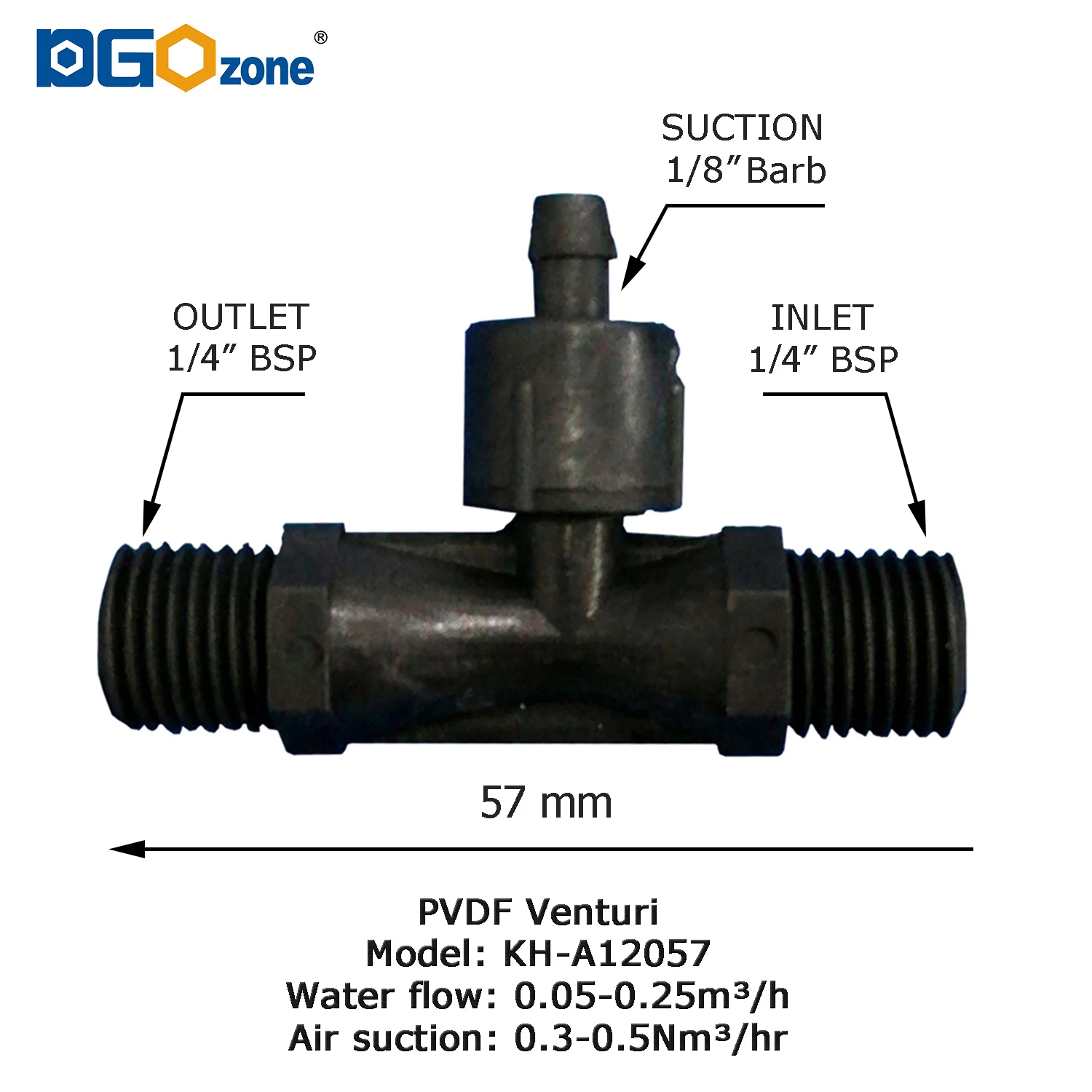

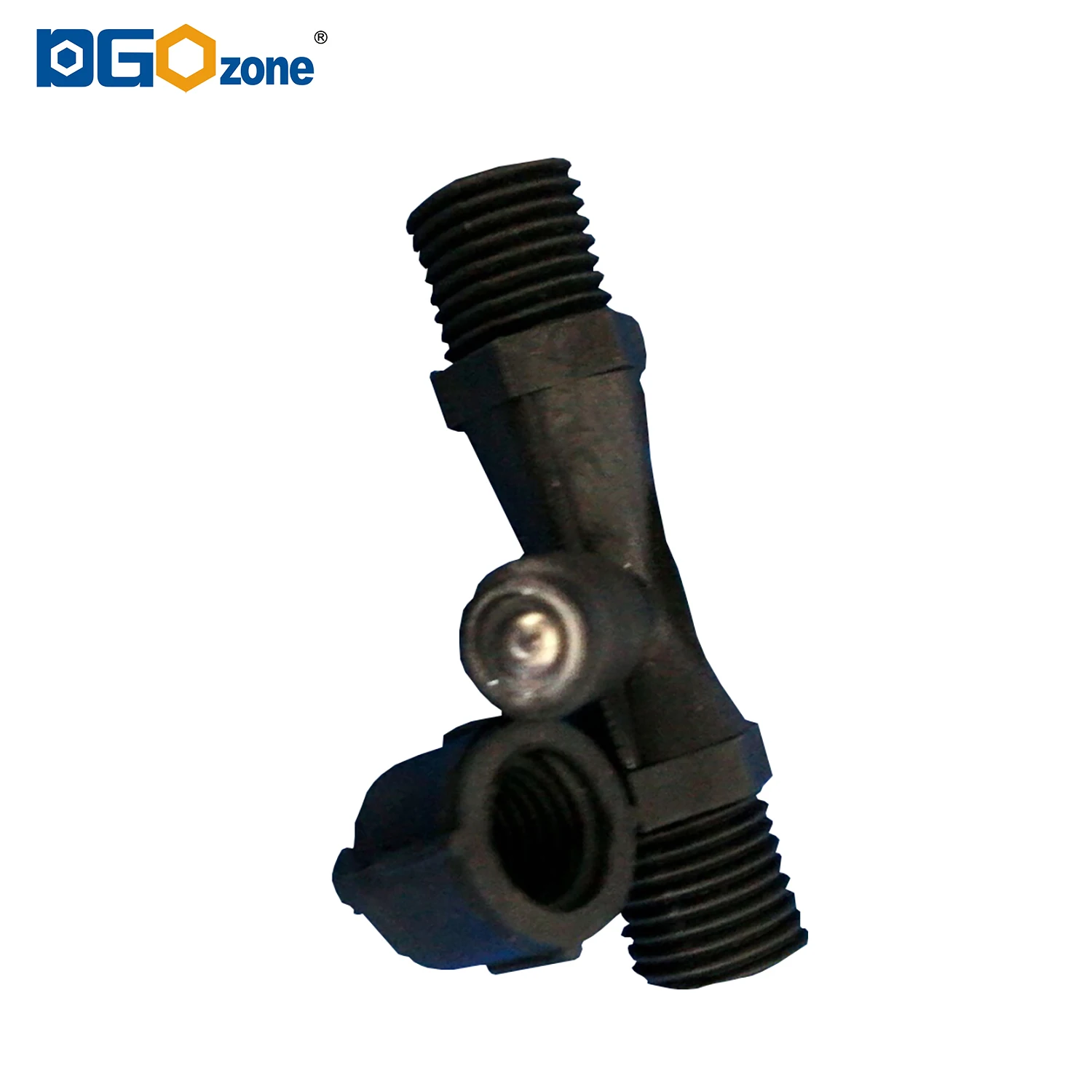

We provide ozone resistant venturi tube(ozone and water mixer/ozone injector), whose length are from 57mm to 660mm.

1)Capacity: 0.1-0.25 CMH
2)Water Inlet & Outlet Connection: 1/4-in BSP
3)Suction Port: 1/8-in Barb

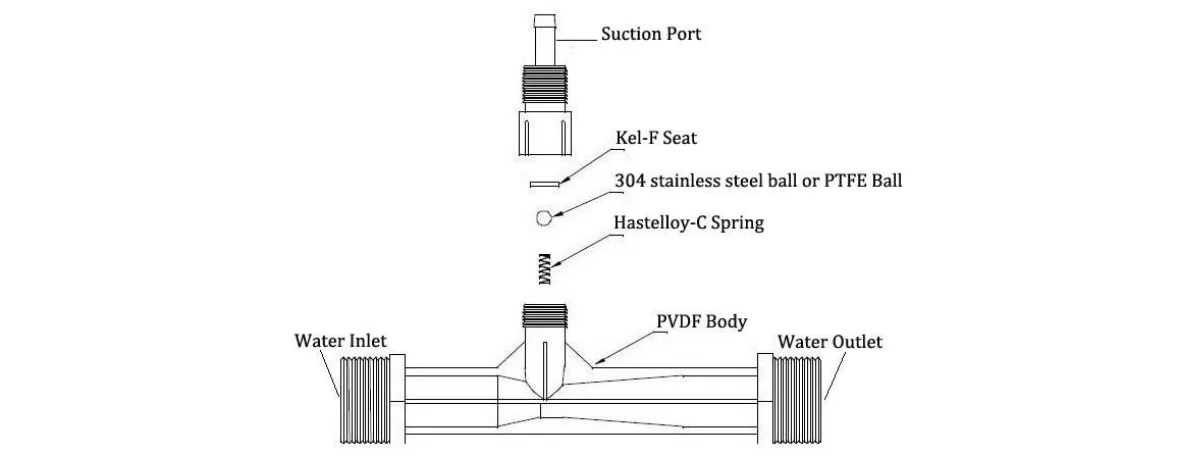

4)Construction Material: PVDF body, 304 stainless steel ball, Kel-F seat, Hastelloy-C spring
5)Check Valve: Included - in the suction port
6)Supply Water Requirement: Water temperature between 0℃-60℃, water PH value between 5-11

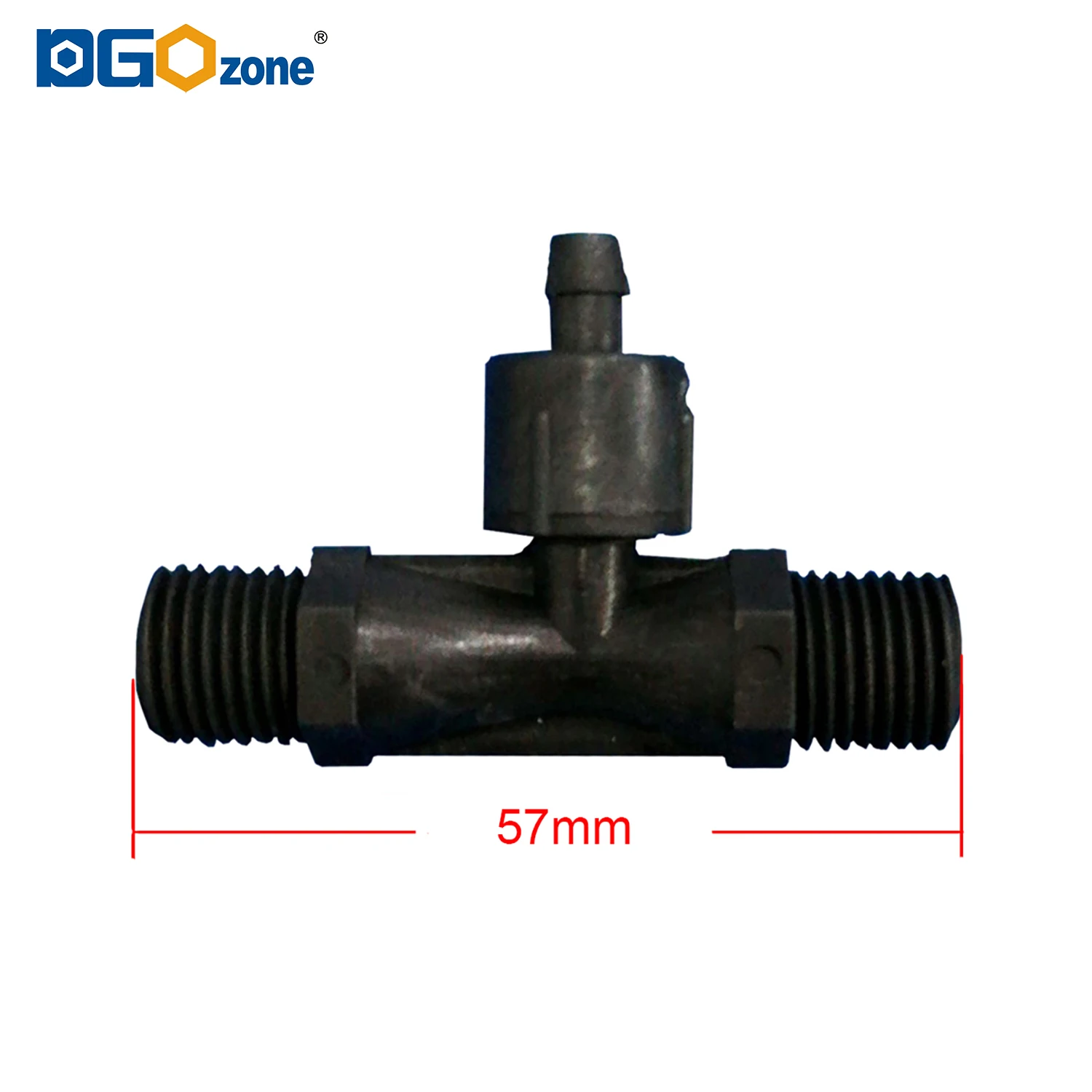

7)Length: 2.2" (57 mm)
8)Net Weight: 0.05-lb (0.02 kg)
9) Air suction capacity (Nm3/hr): 0.3-0.5
10) Water flow (L/h): 50-250

1) No moving parts
2) Durable PVDF construction
3) Completely ozone compatible
4) Check valve included in injection port
5) Quick installation

This ozone venturi is designed to be used with an ozone generator for water treatment. It is excellent for ozone mass transfer. Molded PVDF & rugged construction ensure years of life. Ozone suction port quickly transfers ozone gas into water stream under pressure.

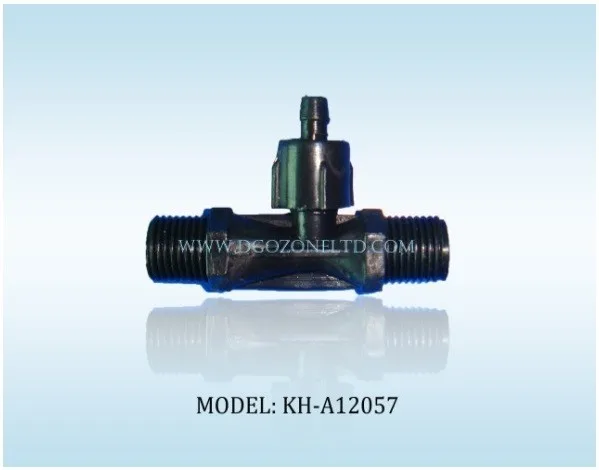

          Remark: We use 304 stainless steel ball for KH-A12057. For other Models, we use PTFE ball.

Located in the east of China, Shanghai. DGOzone Ltd. is one technical listed company, who professionally designs, develops, distributes ozone generators for civilian and industrial air and water treatments.

DGOzone majors in ozone generator units, ozone generator machines and accessories. Ozone generator units include ceramic plate ozone generator units and ceramic tube ozone generator units. The accessories cover venturi, check valve, air dryer and so on. Our ozone generator units are certificated through CE and RoHS, honored by nice clients from home and abroad, which are widely used in houses, hotels, schools, offices, mansions, swimming pools, food factories, bottled water fill lines and fields of medical treatment and public health.

Much respect is paid to the talent and much to science and research of ozone high-tech and environmental protection materials by DGOzone. Most effort is made on meeting requirements of different customers with positive service, quality products and favorable prices. OEM service offered, Design service offered, Buyer label offered.

Ozone is 100% eco-friendly and chemical-free, leaving no chemical residue or harmful byproducts. For the benefit of worldwide people and the environment, now DGOzone is doing best to be well positioned as an Efficient, Excellent and Entire supplier in this wonderful sector.

Now DGOzone has been one of the biggest exporter for ozone generators and accessories in China. Besides, DGOzone is also one of the biggest donator in national ozone fields to China Pavilion in Expo 2010 Shanghai.

DGOzone Ltd. has a direct and strategic cooperation with DHL, 60% OFF via DHL Express Shipping. This will make all buyers benefit from low shipping cost.

Meanwhile, other shipping ways are available such as FedEx, UPS, TNT, EMS, China Post or Sea. Just let us know which one is best for you, we do all the left work.

Q: Are you a trading company or a manufacturer ?
A: We are a manufacturer.

Q: How long is your delivery time?
A: Generally it is 5-10 days if goods are on stock. if not, according to quantities, it takes 15-20 days .

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer samples free of charge but the buyer needs to pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=10,000USD, 100% in advance. Payment>=10,000USD, 30% T/T in advance, 70% before shipment.
