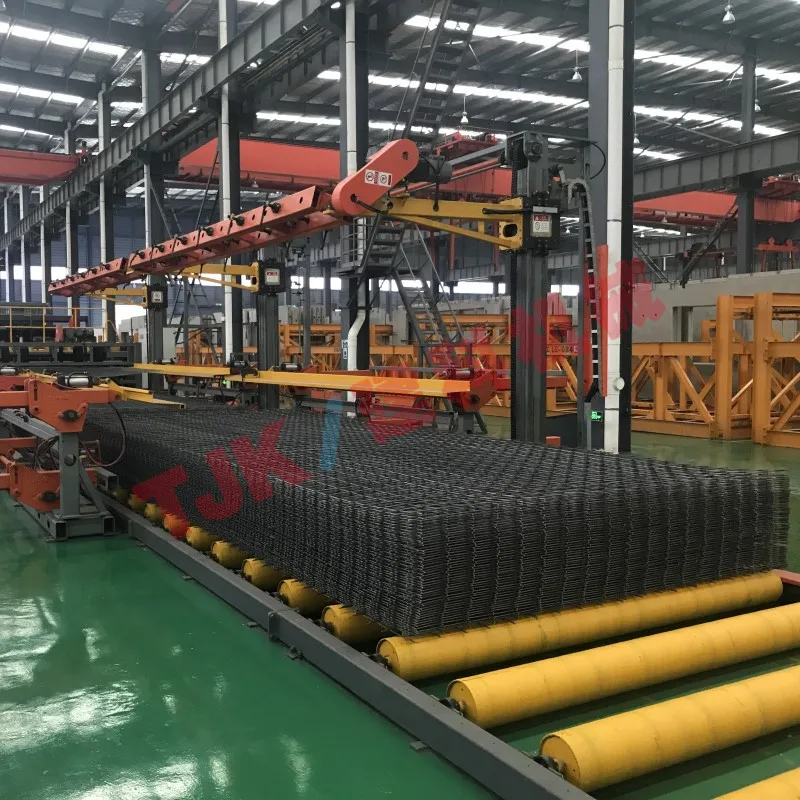

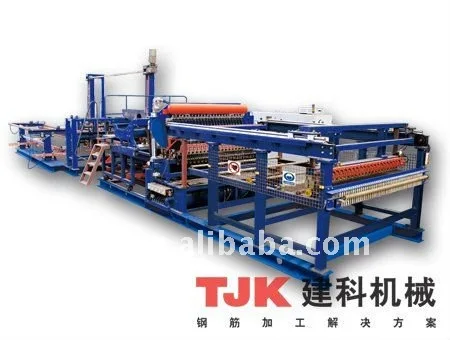

steel wire mesh welding machine

Product Overview

Description



now  we have the  ability to product  three specifications of  mesh welding machine



including  building ,  livestock and fence

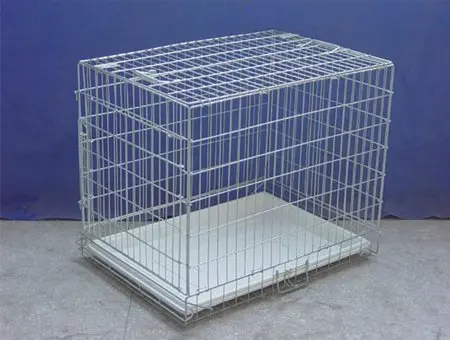

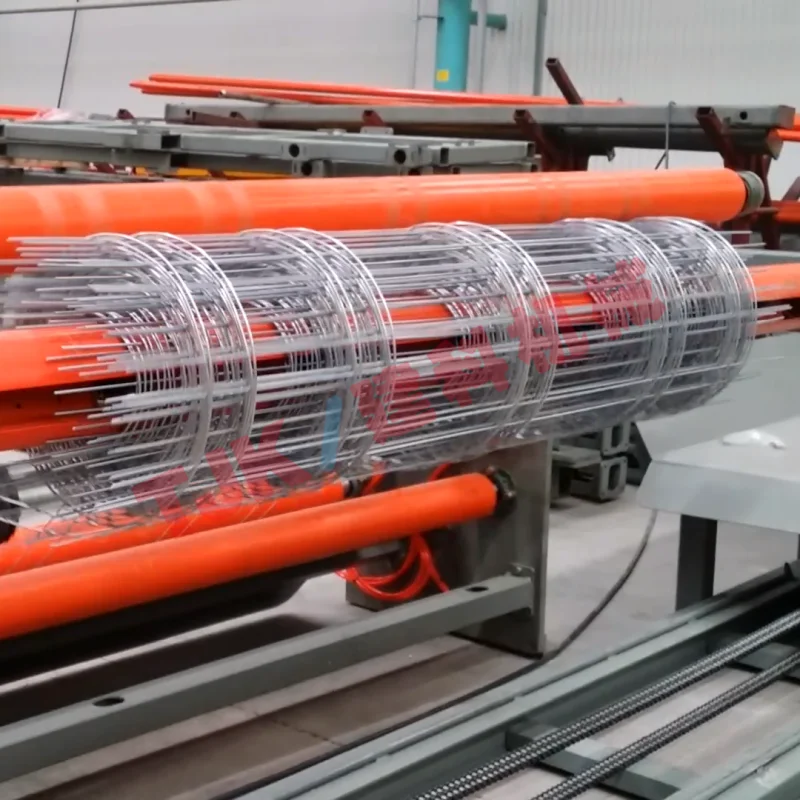

Products Introduction : The steel wire mesh welding line may produce livestock breeding mesh and suitable for producing small specification of mesh and small diameter of wire processing , with quickly, accurate and reliable welding.

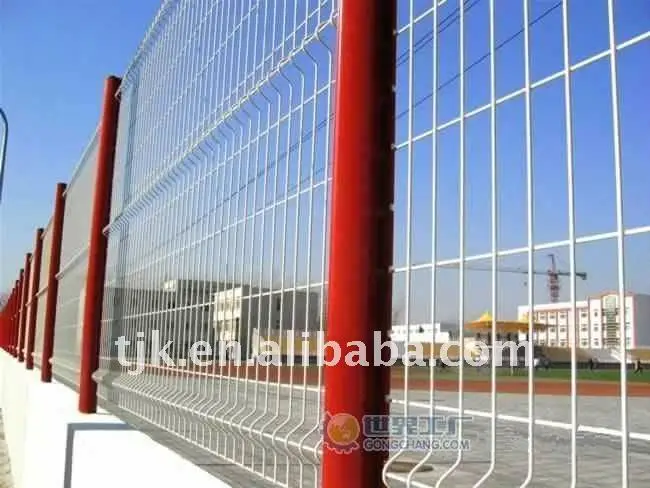

for the fence

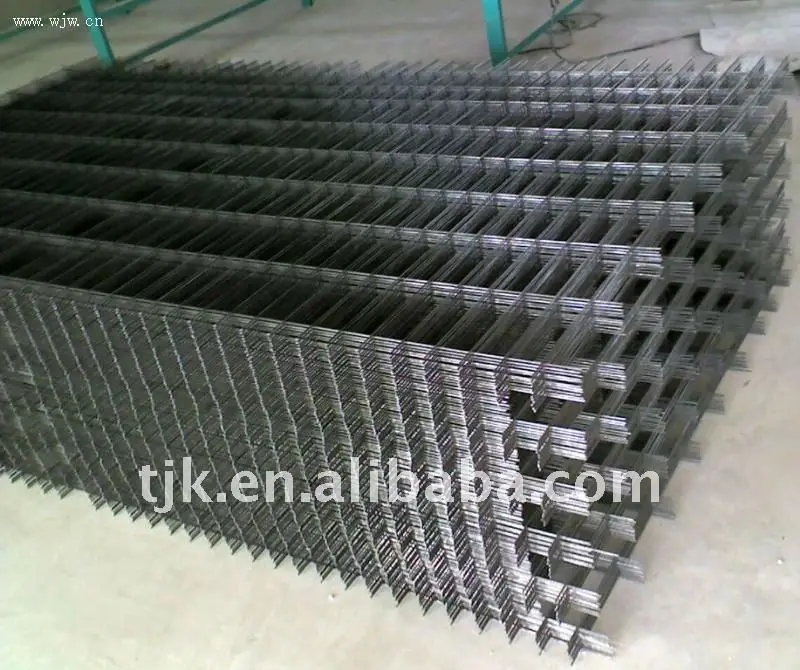

for  the building

CHARACTERISTIC



1,CNC wheel-step design to provide high accurate mesh grid (patent).

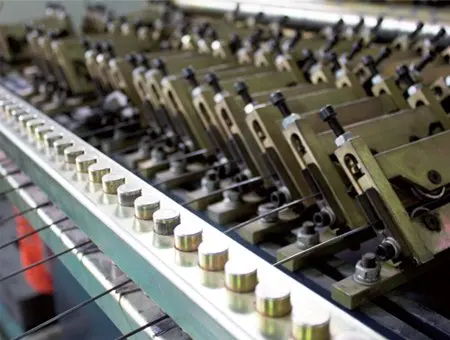

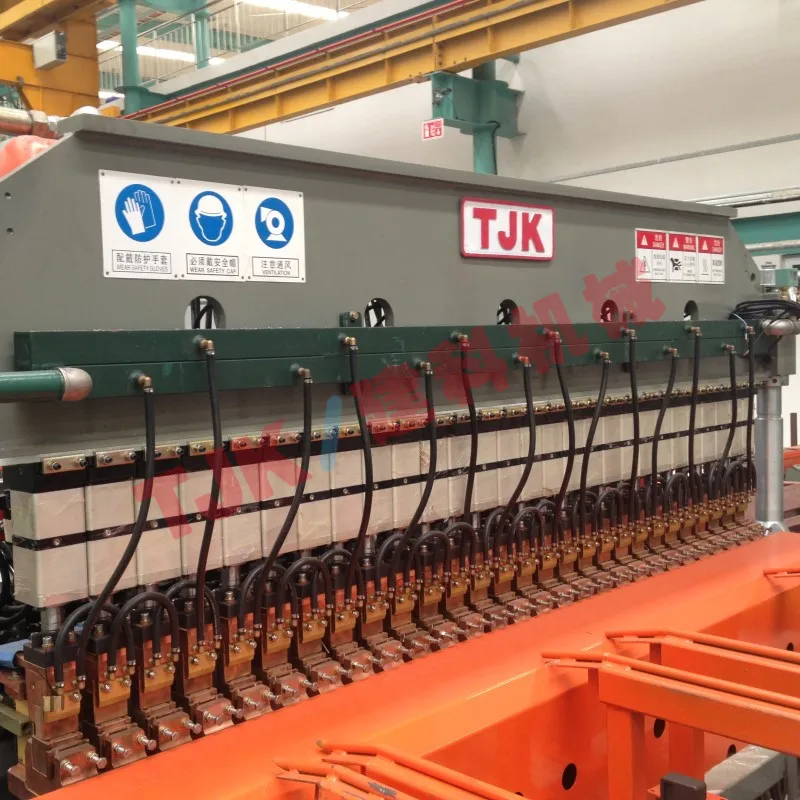

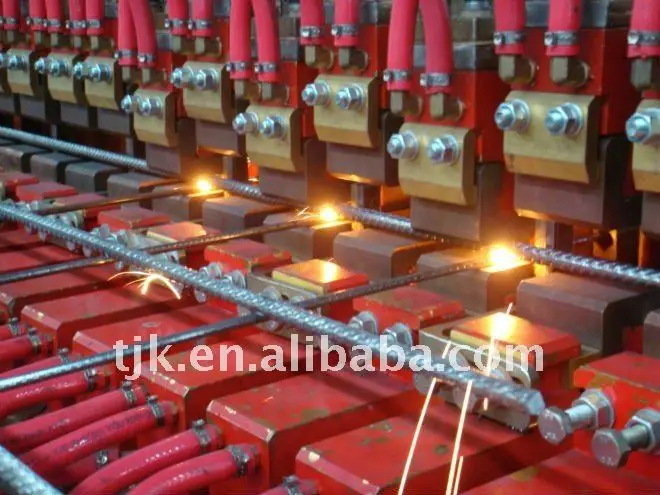

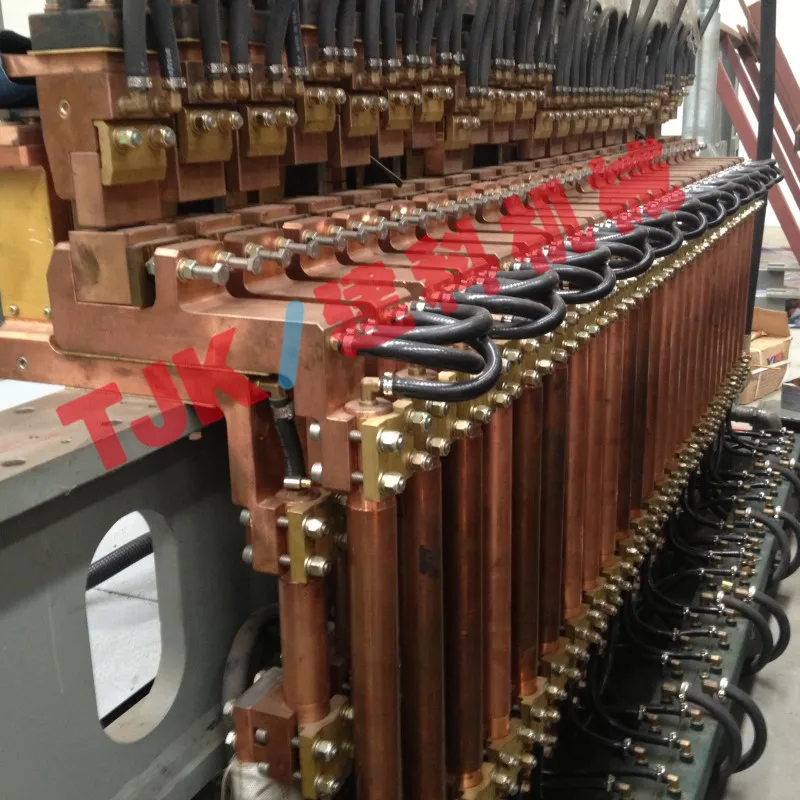

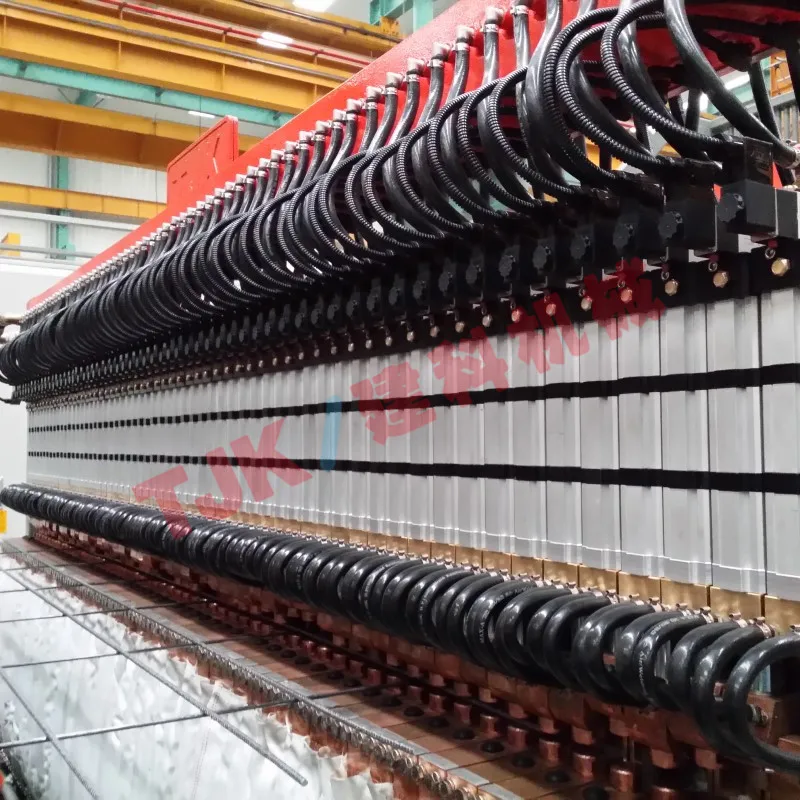

2,Electrode lift system to extend electrode life (patent).

3,Line wire loop and balance system to ensure wire mesh accuracy.

4,Line wire vertical straightening system to provide high quality (patent).

5,Unique high speed air cylinder used on welding electrode to provide high reliability.

6,Welding pressure steplessly adjustation to apply multiple wire diameter (patent).







7,High speed mesh cutting system, 120 times per min.

8,Automatically high speed cross wire feeding system(patent).

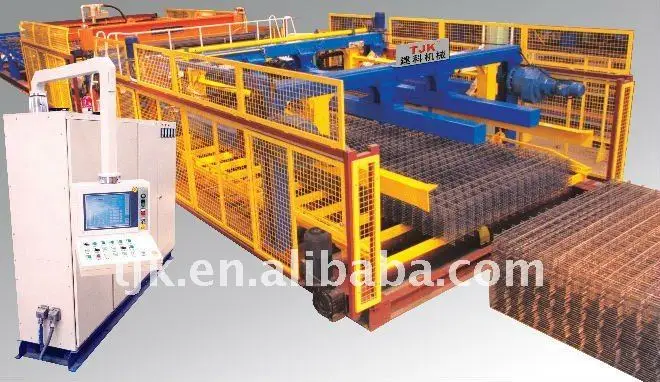

9,Automatic mesh turning, stacking and conveying system.

10,Direct circuit to enhance welding quality (patent).

11,Control systems: YASKAWA, SCHNEIDER, MOLLER.







TECHNICAL DATA



Model	GWC-900XM		GWC-1200XM		GWC-1500XM
Installed power(kva)	5*25		6*25		7*25
System coltagte(v)	380V 50Hz		380V 50Hz		380V 50Hz
Control voltage(v)	24V		24V		24V
Power cable cross-sectional area	3*70mm²+1*25mm²		3*95mm²+1*35mm²		3*120mm²+1*50mm²
Max.mesh width	900		1200		1500
Line wire spacing	≥25mm steplessly adjustable
Cross wire spacing	≥20mm steplessly adjustable
Wire diameter(mm)	1.8-3	1.8-3		1.8-3
Max.welding capacity	3+3	3+3		3+3
Max.wlding speed(time/min)	30-60	30-60		30-60
Max.welding spot nos.(group)	18	18		18
Pressed air(MPa )	≥0.5	≥0.5		≥0.5
Wire feeding method	Pre-cut/off-coil
Caterconer accutracy	≤2	≤2		≤2
Raw material	Cold drawn wire,stainless wire,galvanized wire





TJK Machinery Co.,Ltd. is Chinese largest manufacturer in reinforcing steel and wire processing machinery ,which has passed quality certification of ISO9001-2000 system ,TUV and CE certification. Based on our industrial experiences and professional engineering team, TJK is able to provide professional solutions of reinforcement processing industry for clients .The company owns independent intellectual rights registered over 300 technical patents, which have further strengthened TJK leading position in reinforcement processing industry.

TJK is a leading manufacturer for Reinforcement Steel Processing Machines: Stirrup bending, Cut & Bend, Mesh Welding, Cage Welding, Lattice Girder and Tunnel Lining, Tunnel segment machines etc.

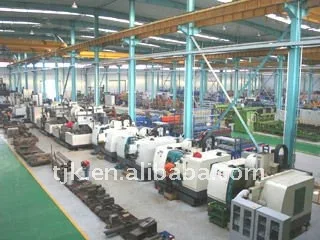

 Founded in 2002, TJK was listed in Shenzhen Stock Exchange in 2020, Stock Code: 300823. we have a total build up factory area of 270,000 square meters which located in Tianjin, China and have more than 600 employees. We enjoy more than 85% of the domestic market share, and we have operated in more than 102 countries and regions.

 At TJK, innovation focuses on customer needs. Our strength lies in offering more suitable, more flexible and more competitive solutions for the customers all over the world in time.





if  you are  interested in our goods  , pls  contact us asap and  send us your normal inquiry



we will do our best to serve  for you
