Ro security filters, generally set before the pressure vessel to remove the turbidity of a degree above the tiny particles, the follow-up process to meet the requirements of the water; sometimes set up at the end of the entire water system to prevent small particles (such as broken the resin) into the finished water.

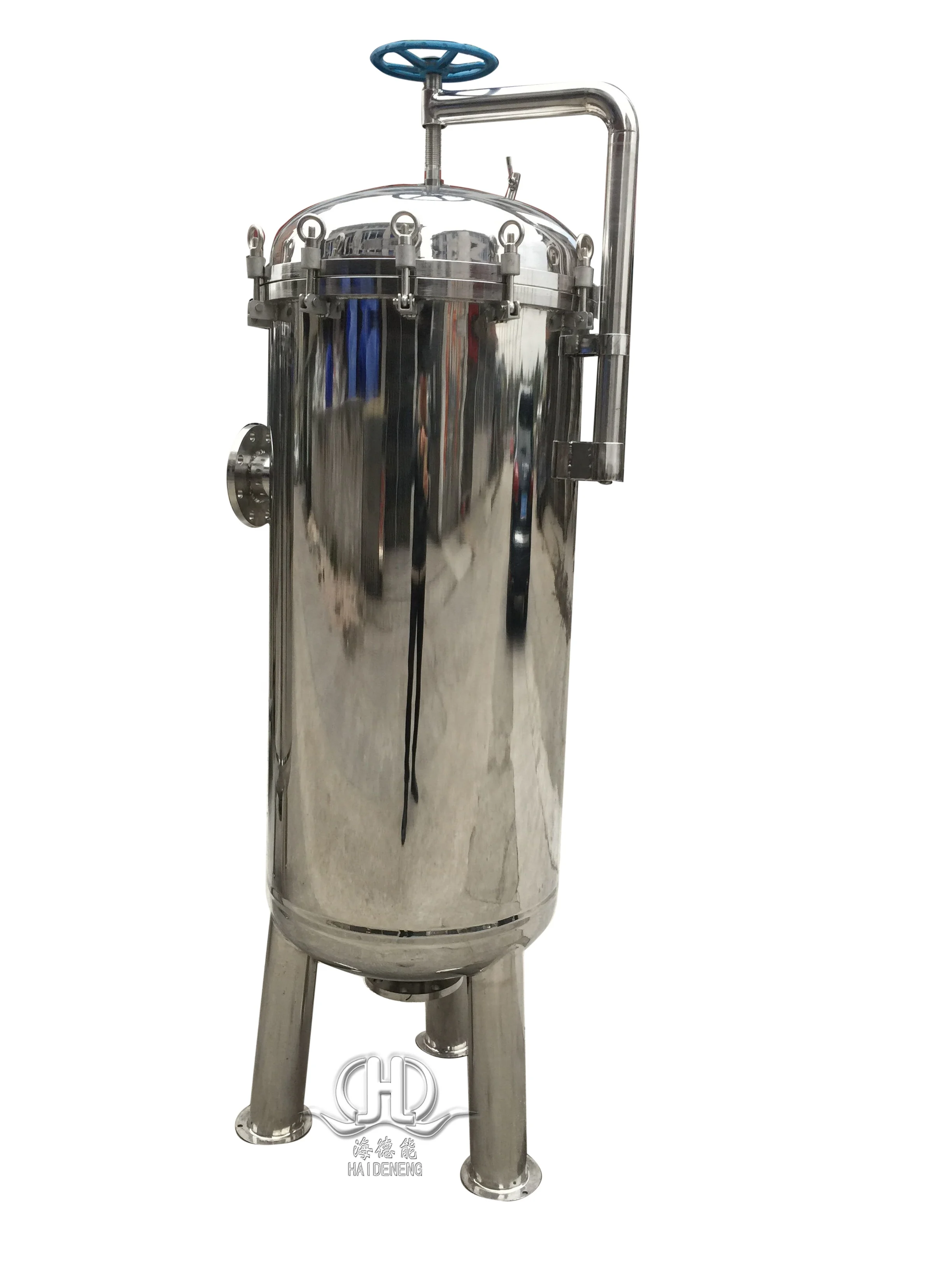

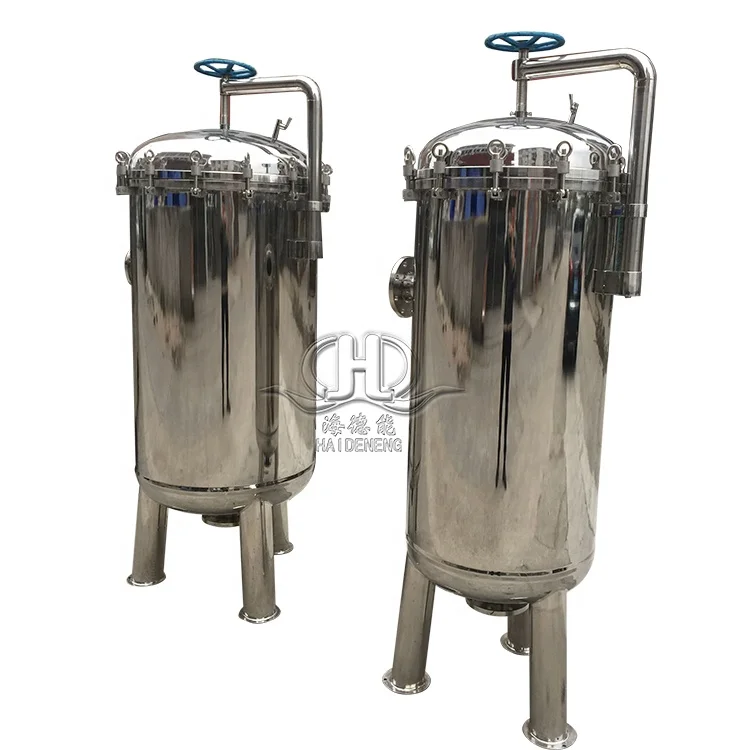

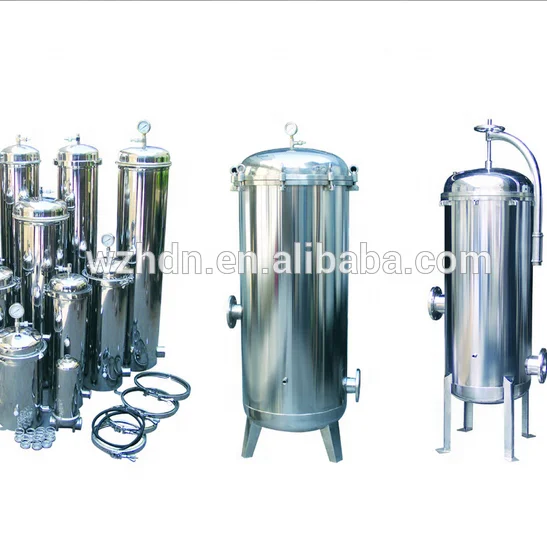

ro security filter (also called precision filtration device) mostly used to make stainless steel shell, internal loading filter cartridges (for example PP cotton), mainly used in the multi-media after pretreatment filtration, reverse osmosis, ultrafiltration membrane filtration equipment before. By the multi-media filter is used to filter the fine material (e.g., quartz sand small activated carbon particles, etc.) to ensure that the damage to the water filtration accuracy of the filter element and the protective film is not large particulate matter. Precision built-in filter cartridge filtration device accuracy class can be divided into 0.5us, 1us, 5us, 10us, etc., depending on the make have occasion to use different filtering accuracy to ensure the safety and ensure the accuracy of the water level membrane elements.
2. Ro security SS filter characteristics
Ro security filter has the following characteristics:
Able to effectively remove suspended solids in the liquid, rust, etc..
Can withstand high filtration pressures.
The unique structure makes deep mesh filter has a higher tolerance slag load capacity.
Filter elements made of various materials are available to suit a variety of fluid filtration needs.
3.Ro security filter technical data :
Security filter technical parameters
Design pressure: 0.75-1.6Mpa
Design temperature: 20 ℃ ~ 120 ℃
Seal Type: O-ring and flat washer
Seal Material: dingqin rubber, silicone, Viton standard, the standard configuration for silicone seal
Interface Type: dental mouth, clamps, GB, HG, DIN, ANSI, JIS standard flange
Applicable filters: flat and 222 and 226 socket filter
1, nanofiltration (NF), ultrafiltration (UF), reverse osmosis (RO), electrodialysis (EDI) systems and terminal security filter filtration;
2, pharmaceutical injection, infusion, eye drops, herbal liquid such as filtration, biological agents, extraction, purification, concentration;
3, electronics, microelectronics, semiconductor industry with high water pre-filtration, terminal filtration;
4, oil field injection water, boiler feed water, chemical reagents, liquid organic products, high purity chemicals, drugs and other dense filter;
5, purified drinking water, mineral water, fruit juice, tea drinks, health drinks filtration;
6, liquor, wine, beer, wine and other wine filtration, draft beer sterilization filter (replace pasteurization);
7, production and domestic wastewater treatment and water recycling process pretreatment filtration or security filtering;
8, others such as bio-engineering, oil refining, dyeing, textile industry, water supply and wastewater treatment, scientific research and experimental filtration
. Appearance, small size, large filter area, small resistance, long life
Product description
What is RO (Reverse Osmosis) ? Reverse osmosis (RO) is a water purification technology that uses a semipermeable membrane to remove ions,molecules, and larger particles from drinking water. it could apply to both industrial processes and the production of potable water.
Typical RO Processing: Feed water pump- Sand filter--Active carbon filter -Softener -Cartridge filter- High-pressure pump- RO system 1. Feed water pump: provide the pressure to sand filter /active carbon filter/ softener 2. Sand filter: Get rid of turbidity, suspended solids, organic impurities and colloid etc. 3. Active Carbon filter: Remove the color, free chloride, organic matter and harmful matter etc. 4, Softener; Get rid of calcium, magnesium and bicarbonate ions in original / source water, reduce water hardness. 5. Cartridge filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity. 6. High pressure pump: Provide the high pressure to RO membrane (at least 2.0 Mpa). 7. RO system: main part of pure water treatment plant. The desaltation rate up to 99%, capable of removing over 99% of ions, bacterias, particles and organics.
System capacity changes significantly with water temperature and feed TDS,for higher TDS,a water analysis must be provided and could result In modifications to the system.Our reverse osmosis system are mostly custom designed specifically for you water treatment requirements by our experienced engineers
FAQ
Q1: Are you manufacturer or trading company? A1: We are the most professional manufacturer in China, and we have more than 20years experience in the water treatment..
Q2: What is your business scope? A2: Drinking water, Medicine, Food, Beverage, Dairy, Chemical and cosmetic industries etc.
Q3: How could we confirm the details of the products? A3: WZHDN will provide all technical support for you to confirm,and the drawings also send you for free if we get your company information.
Q4: How long the warranty will be? A4: 1 Year warranty.
Q5: How about the installation? And what if the machine goes down? A5: There are two options:a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. b. On-line service will be provided.Its easy to install and debug.
Q6: What is the payment terms? A6: Usually we main make the FOB and T/T.
Q7: Can we become your distributor in our country? A7: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
