8 Channel 5V DC Relay Module Solid State G3MB 202P High Level SSR AVR DSP for Ardu

Product Overview

Description

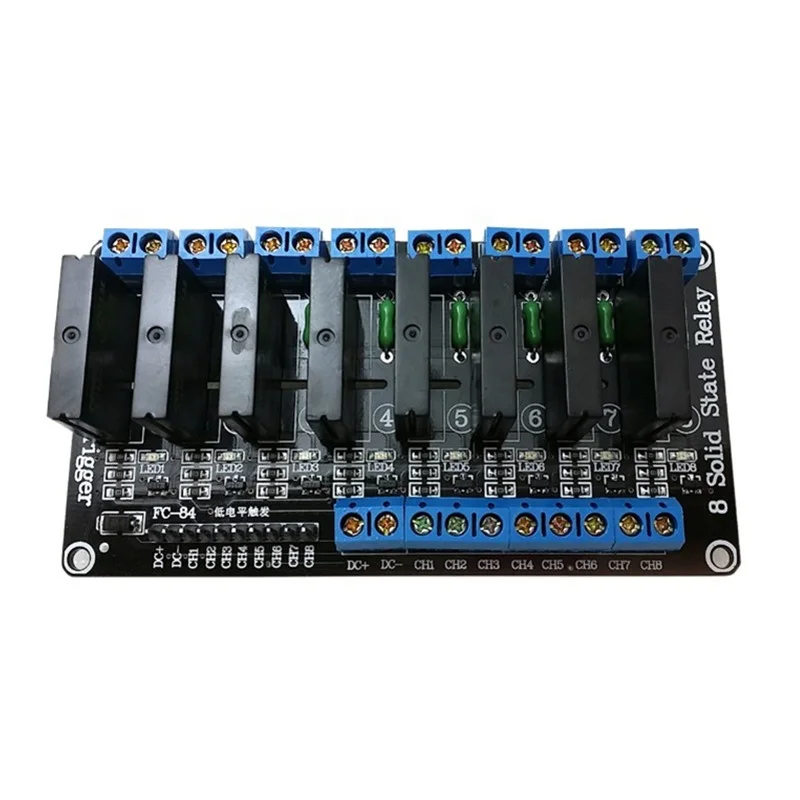

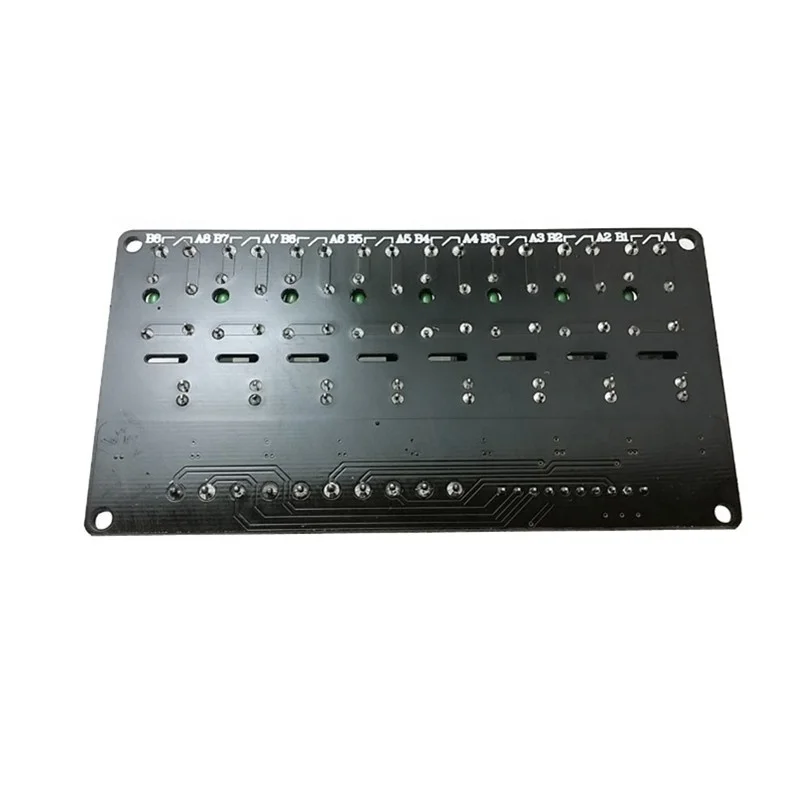

8 Channel 5V DC Relay Module Solid State G3MB-202P High Level SSR AVR DSP for Ardu

5V Omron solid state relays 240V 2A, output with resistive fuse 240V 2A.
Input power supply: 5V DC (160MA)
Input control signal voltage:
(0-2.5V low state relay OFF)
(3.3-5V state high relay ON)

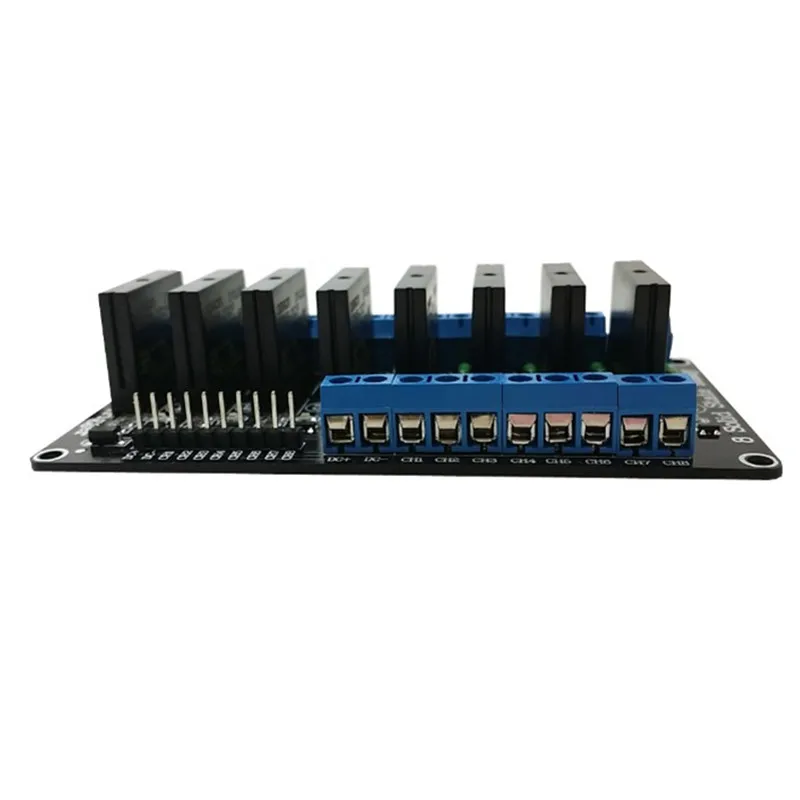

Blue KF301 terminal connection control line is more convenient.

Module interface:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: Relay Module signal triggering end (high level trigger effective)

Note: Power must be DC voltage and need to be consistent with the voltage relay


Package Included:
1 X 8 Channel 5V Solid State Relay Module
