TAP BRASS CERTRIDGE FITTING

Specifications

1.High-tech prove high quality
2.Varied design
3.rich OEM experience
4.Strict administation
5.Reliable raw material

We mainly produce metal products,brass cartridges,

faucet fittings,brass valves, angle valves, PP-R pipe fittings and sanitary ware.

We already have 20 years of operational experience,

strong technical force and a sophisticated marketing system

Technique index ¶meter

◊Usage elucidation

Max. turn angle			90°				Max. temperature				90°
Relation between pressure and flow rate
Pressure(Mpa)	0.05	0.1		0.15	0.2	0.25		0.3	0.35	0.4		0.45	0.5
Average flow rate	16.8	22.9		28.0	32.5	36.0		38.7	40.6	42.4		43.3	47.6
Fitting method	Screw connecting G3/4 "

◊Performance test

The strength test	Static pressure 3.5Mpa		Torque test		≥15Nm
Left and right rotation torque Nm when static pressure is zero			0.15-0.25Nm
Sealing test	Static pressure	Air	High pressure	1.0Mpa
			Low pressure	0.02Mpa
		Cold water	High pressure	2.5Mpa
			Low pressure	0.05Mpa
	Dynamic pressure		0.3Mpa
Life test	500,000 open and close cycles

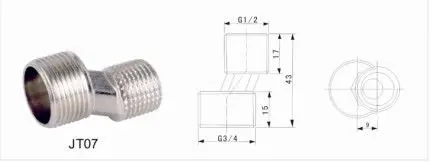

Designsketch & Struction draft:

US $0.92-$1.00
