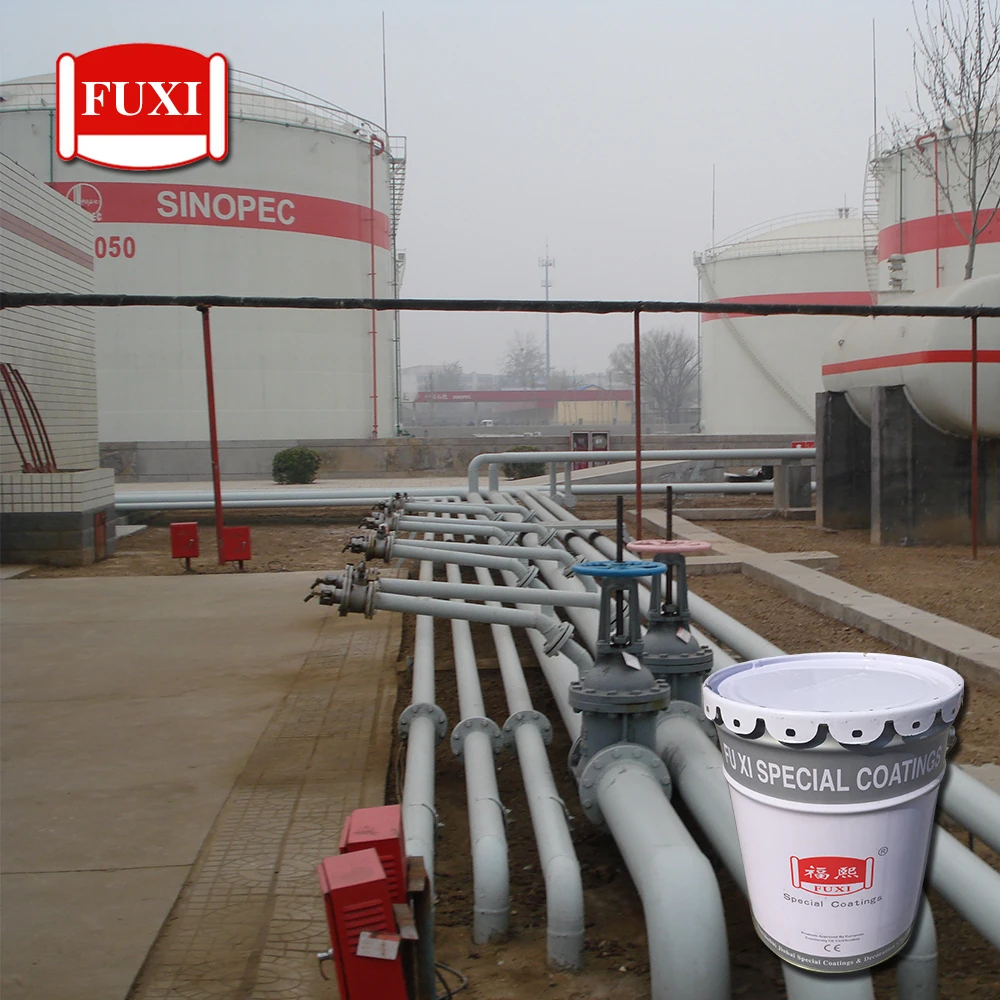

Epoxy Phenolic Anticorrosive Primer Paint with CE certificate

Share on (60241452969):


Price:

Quantity:


Product Overview

Description


TKEH-703 Epoxy Phenol Anticorrosive Primer

(used for kinds of chemical engineering storage tank inside)

Operative norm: HG/T3656-99

Product Description

-_01.jpgCharacteristics:

1. Excellent resistance of crude oil,oil,aliphatic solvent, resistance of brine,abrasion,attack property.

2. Also good resistance of many chemical medicine, thick coating property while construction.



Usage:

Mainly used for oil hold of oil tanker and coating of organic solvent or brine cabin, also can be used for storage tank inside  anticorrosion which needs resistance of chemicla,brine,solvent.

Technical Data


Technical Parameter

Drying Time & Coating Intervals

Mixing ratio: Main agent/ Firming agent=85/15(by weight)

Standard film thickness: Dry: 50μm/coat

Academic spreading rate: 0.12kg/ m2/50μm

Solid contents: 68%

Humidity requirement: below 85%

Temperature            -10   0     10     20   30

Dry to touch hrs            4    2.5    2     1.5   1

Dry semi-hard hrs        36    24   14     10   8

Min interval hrs            36    24   14     10   8

Max interval  d



 Substrate Treatment



 Remove rust,oxide skin and shop primer, reached ISO Sa2.5 grade





Matching



Applicable substrate: Unpainted steel



Applicable upper coatings: Epoxy Phenol Anticorrosive Finish



Certifications



Engineering case

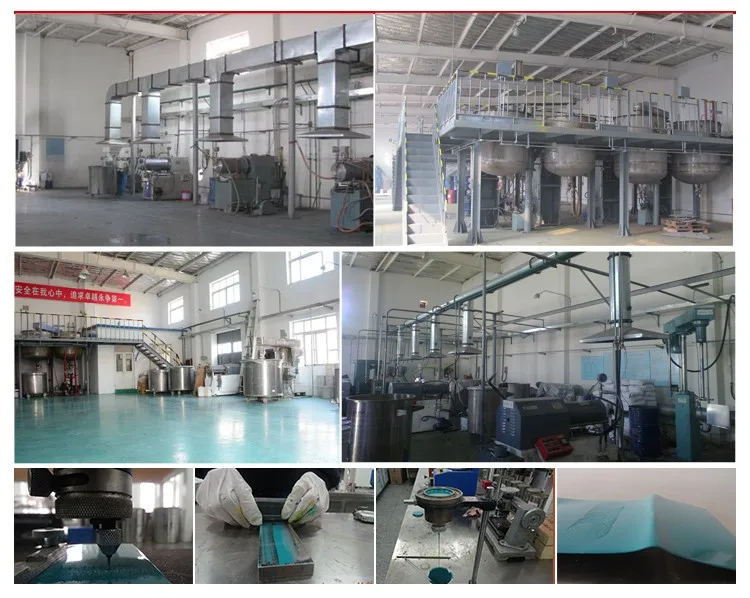

Production Flow
