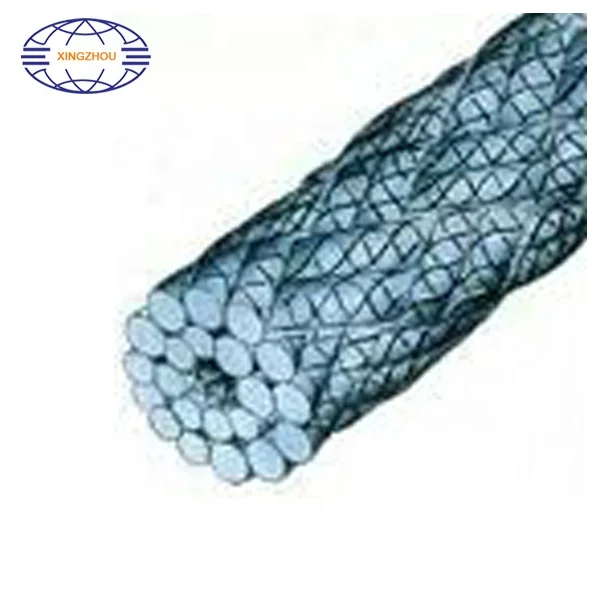

Polyamide Fibre Braided Paper Carrier Rope without Core
- Category: Packaging Rope >>>
- Supplier: Jiangsu Xingzhou Industrial And Mining Equipment Co. Ltd.
Share on (60241469728):
Product Overview
Description
Product Description
Paper Carrier Rope
Item No. | UNO(Coreless) |
| Features | - High safety factor - Multi choices for colour coding - Low elongation and Low abrasion - Anti-high temperature and wear-resistant |
| Performance | Strong, Safe and Durable |
| Compliance Standard | EN 1492-1:2000 |
| MOQ | 500 Meters |
| Warranty | 2 Years |
| Payment | L/C, T/T, Western Union |
| Packing Details | Iron Pack |

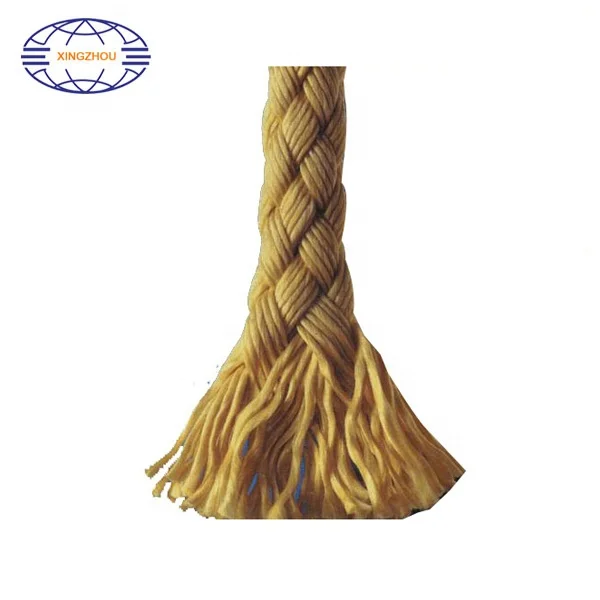

Paper Carrier Rope is made by fine fiber for carrying the paper during the paper making. The paper carrier rope is made of multifiament polyamide fibre with special impregnation-super coating, featured with low elongation and low abrasion. It has 8-straid braided structure, anti-high temperature and wer-resistant. By using a ultra high temperature heat setting process, the maxium of rope-stretch is taken out.
Jiangsu Xingzhou Industrial & Mining Equipment Co., Ltd. is a specialized papermaking equipment producer, such as paper carrier, paper sling, rolled paper lifter, paper cutting tape. Xingzhou has experience in papermaking sevice industry for more than thirty years with the perfect products and high quality service. The products have been exported to more than twenty countries all over the world.
Special attention to: The way of joint can directly affected the life of the paper carrier rope. Please use the paper carrier ropes strictly according to the joint guideline.
Technical parameter of the paper carrier rope
The nominal diameter (mm) | Min strength of breaking (N) | Elongation of breaking (%≤) |
8 | 10800 | 30 |
10 | 14700 | 30 |
12 | 16700 | 30 |
14 | 18080 | 30 |
16 | 22000 | 30 |
POWERLINE UNO
Technical parameters
Type | Diameter 8mm 5/16’’ | Diameter 10mm 23/64’’ | Diameter 12mm 15/32’’ | Diameter 14mm 35/64’’ | Diameter 16mm 5/8’’ |
weight (g/m) | 48 | 56 | 62 | 68 | 76 |
breaking strength (kg) | 2000 | 2800 | 4000 | 5100 | 6000 |
material | Polyamide66(PA66) | ||||
impregnation | Multi-component intensive impregnation | ||||
stabilisation | (UHT) ultra-high thermo-stabilisation plus supercoating | ||||

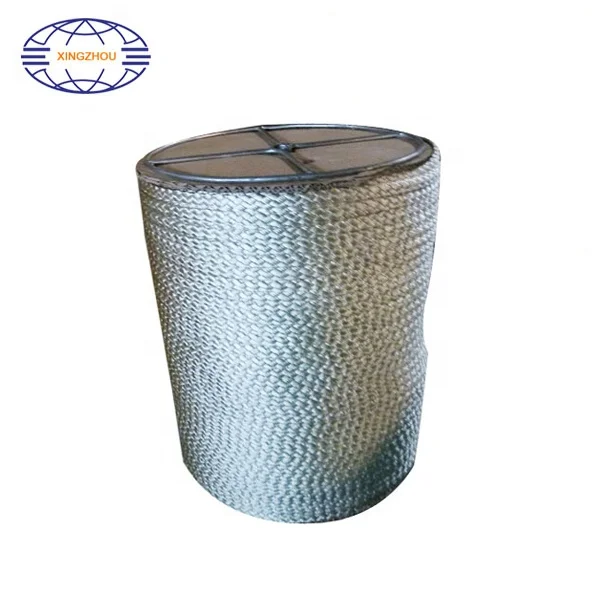

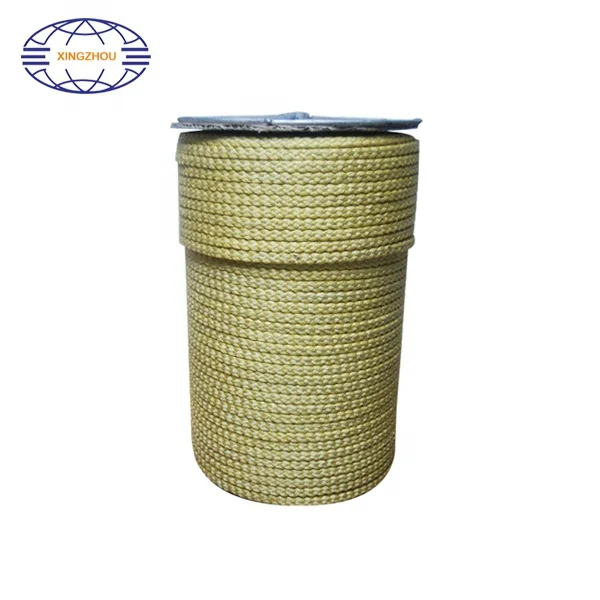

metres/ft per spool | 500m | ||||
colours | Standard colours-white, yellow, red, green, blue | ||||
