JBF ZA Machinery seals brand name sewing machine with heating bag slip
- Category: >>>
- Supplier: Shanghai Jinbao Packaging Machinery Co. Ltd.
Share on (60242009157):
Product Overview
Description

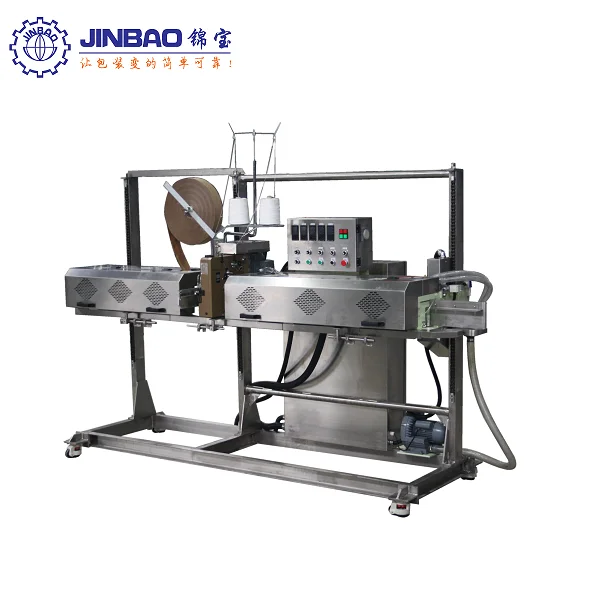

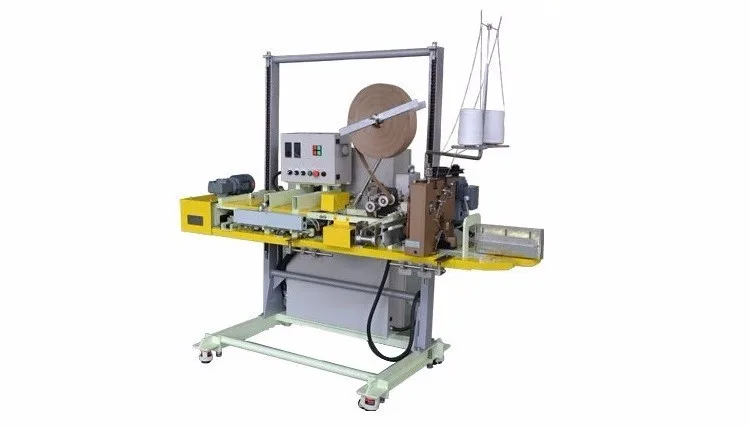

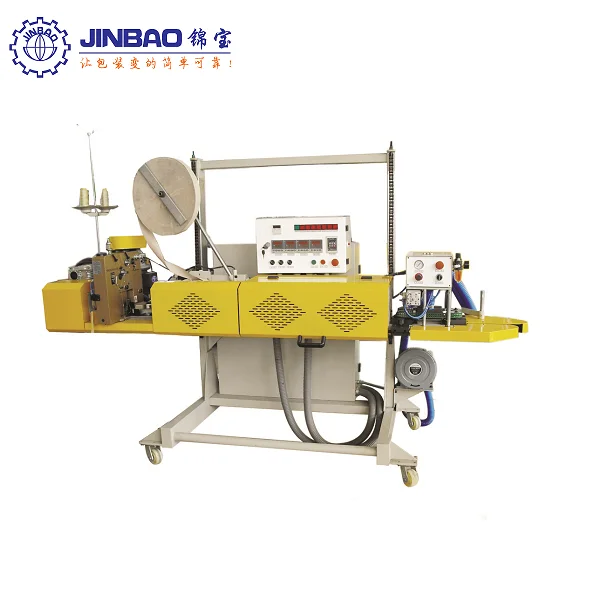

JBF-ZA Machinery seals brand name sewing machine with heating bag slip
Product Description
JBF-Z series automatic heavy-duty plastic bags sealing performance quality, efficient, continuous seal thick PE or PP plastic bags, and paper-plastic composite bags, plastic bags; widely used in chemical raw materials, pharmaceutical raw materials, food, feed and food packaging industries.
This series based on bags of different materials, thickness, and production capacity, select the applicable JBF-ZA, JBF-ZB, ZBF-ZC other models.
This series with PTFE (TEFLON) sealing tape, the surface smooth, easy adhesions, sealing quality. Device is equipped with a dust collector bag and trimming device, packaging sealing aesthetics and stability.
Supply JBF-ZB heat seam pack type heat sealing machine for three-layer paper bag lined with PE and the heat pack bag!
| Main features | |
| One-lined closure of paper bag | Trimming, stitching, heat-sealing(linner PE), and heatseal-tape sealing can be done all at on-lined and automatic process. |
| Simple adjustment and high performance | Easy to install and simple to maintain. Efficient and automatic to operate. Advanced technique embodled in its function. |
| Eight standard models for a wider application | Wider choice to suit bag specifications and products. Eight standard models plus otional items are available. |
| Easy control of heater bar temperature | Easy to adjust temperature and pressure of heater bar, so that no extra time required when to change bag thickness. |
| High level of sealed and stitched closure | Superior at a sift, dust, and insect proof. Products filled in bag can be completely protected. |
| Technical requirement | |
| Packing bag type | 3 layer paper bag, PP Lamination Bag, tape cover bag |
| Sealing type | sewing and heat sealing |
| Packing speed | 7-10 m/min |
| Voltage | AC380V/50HZ |
| Power | 5.5KW |
| Machine weight | 500KGS |

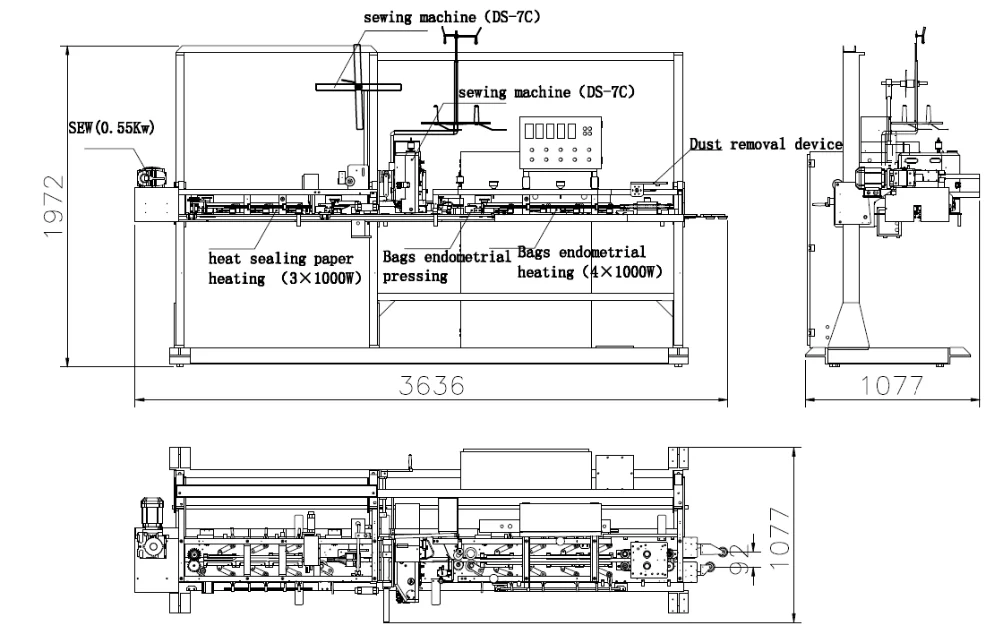

| Machine Dimension | 3050*1125*1880MM |

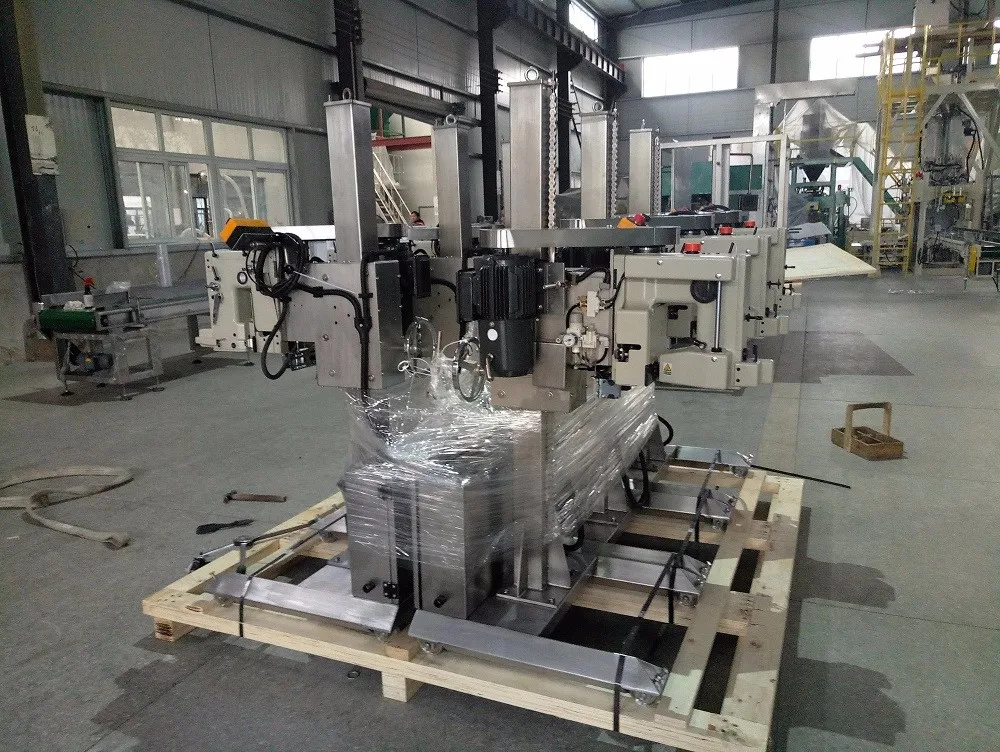

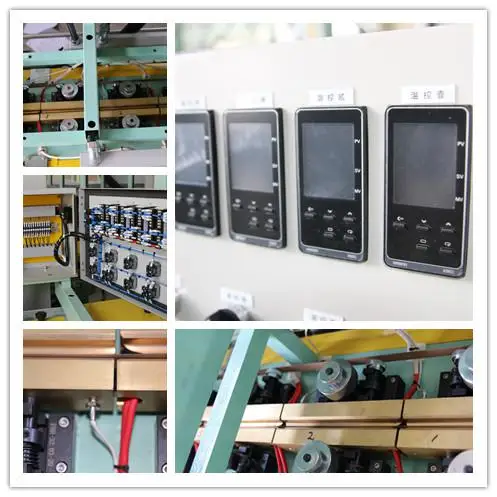

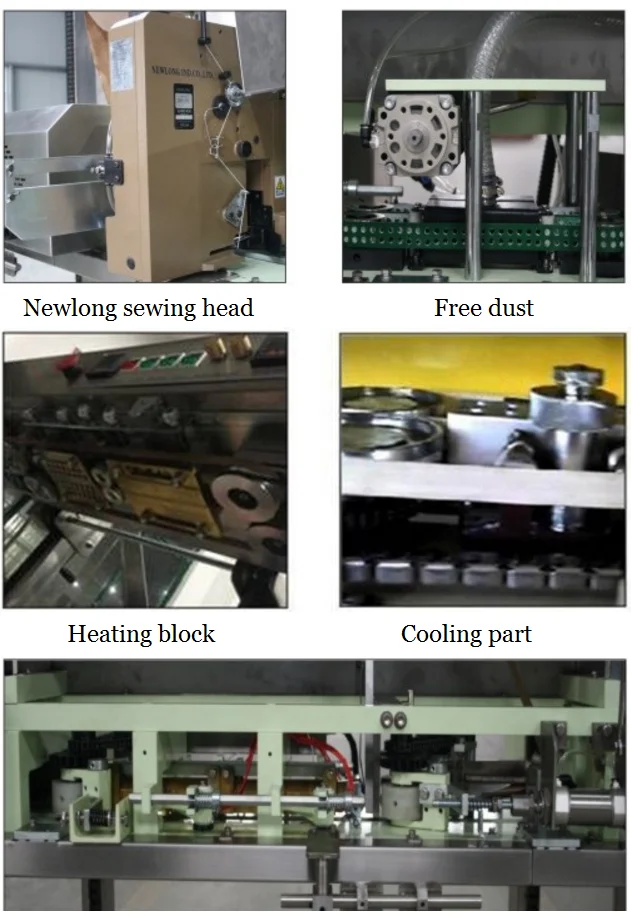

Detail Pictures
Application

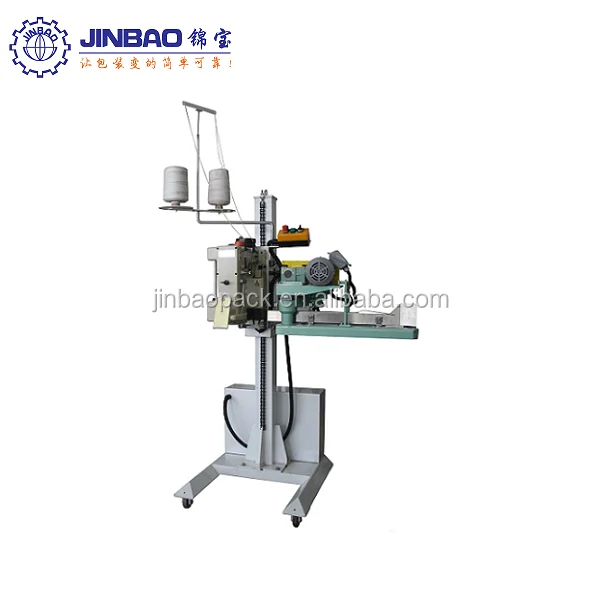

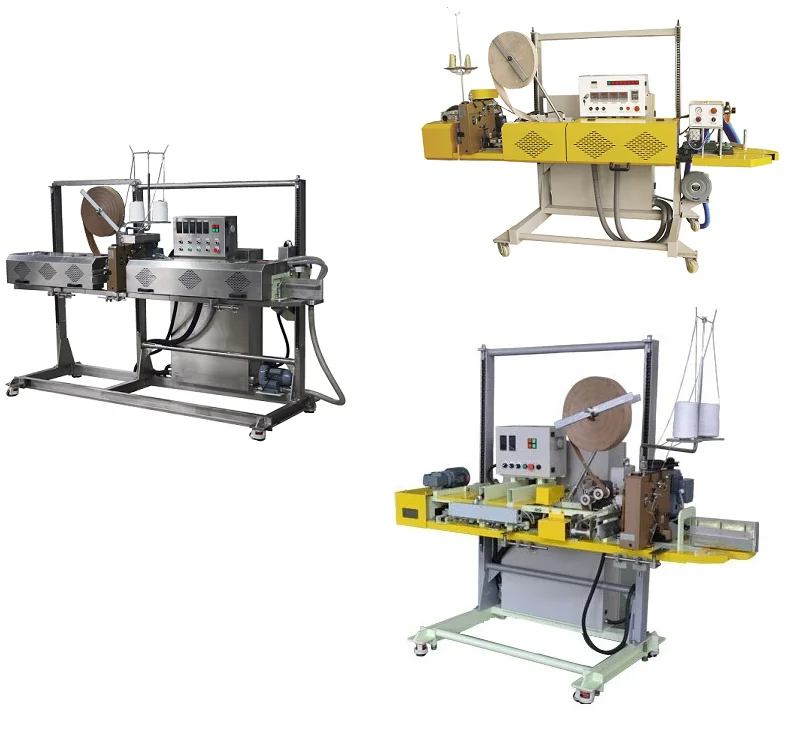

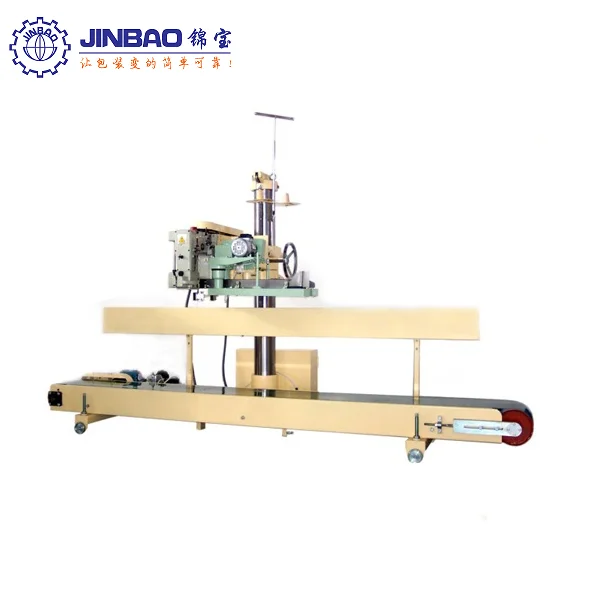

Other sewing machines

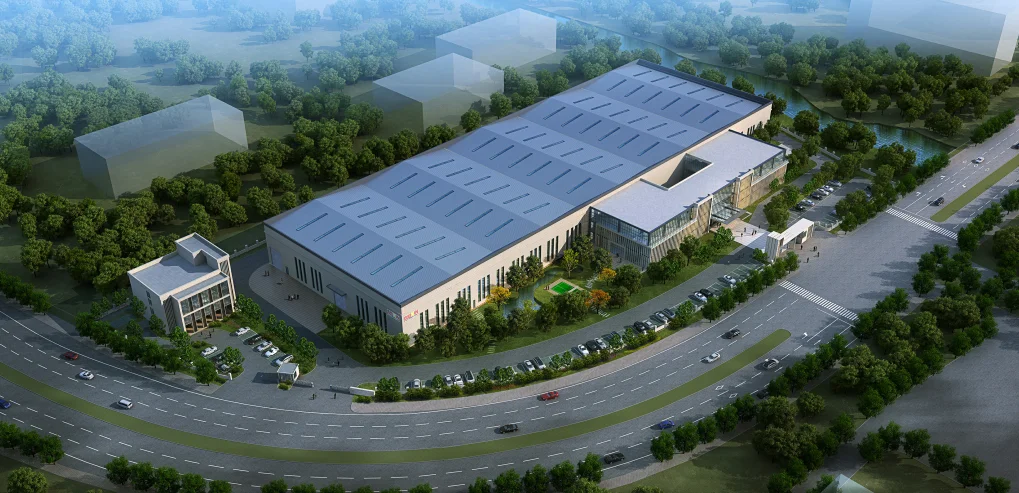

Company Information
Shanghai Jinbao Packaging Machinery Co., Ltd specializes in the production and sale of packaging machine, packaging and palletizing line, big bag automatic weighing packaging production line, particle packing machine, powder packing machine, automatic mixing packaging production line, according to customer requirements the specific system. The products are widely used in chemical, fertilizer feed, pesticide, washing powder, seeds, grain, food, medicine, spices, tea, building materials and other industries, and exported to the Middle East, Southeast Asia, North America, Northern Europe and other more than 10 countries and regions.
