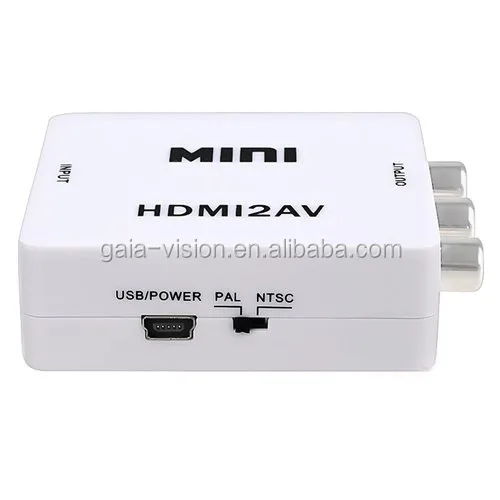

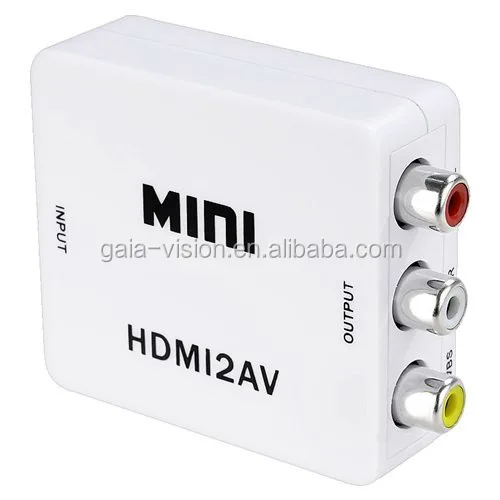

HDMI2AV Converter Mini Size HDMI to AV Converter Full HDCP 1080P hdmi converter adapter

 HDMI to CVBS signal converter , you can convert digital signals to HDMI AV (CVBS) composite video signal and the FL / FR stereo audio signals , allowing customers to HDMI high-definition audio and video signals are converted into ordinary television , VHS video player Green , DVD recorders , etc. can receive CVBS signal ( standard definition 480i, 576i,) supports NTSC / PAL are two different formats

 Input HDMI signal format : 480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz, 720p50/60Hz, 1080i50/60Hz, 1080p50/60Hz.
Output signal: CVBS (1.0Vpp), S-Video (Y: 1.0Vpp, C: 0.3Vpp).
The output video format: PAL, NTSC.
The output video signal impedance: 75 Ohms .
Compatible with HDCP protocol.
Power supply: USB powered , such as insufficient power supply
Technical Specifications:
1 ) Hardware conversion , plug and play , no software drivers
2 ) compatible HDMI1.3
3 ) Support NTSC and PAL output formats
4 ) one HDMI input ; AV output a set ; one stereo output ;
A. Input Terminal: -------------- HDMI x 1 input;
B. Video output terminal: ------------ VIDEO x 1 Output
C. analog audio output terminals --------- L / R x 1 Output
AV Video output: 480I, 576I (optional)
Audio output: left and right channels (L / R)
Dimensions: 66 x55x20mm

1. Input ports: 1xHDMI.

2. Output ports: 1xRCA (Yellow,White,Red)

3. Dimensions(mm):   66(D)x55(W)x20(H)

4. Wight (g): 40

5. HDMI Input Resolution:

640x480@60Hz,800x600@60Hz,

1024x768@60Hz,1280x720@60Hz,

1280x1024@60Hz,1360x768@60Hz,

1600x1200@60Hz,1920x1080@60Hz,

480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,

720p50/60Hz,1080i50/60Hz,1080p50/60Hz.

Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.

Delivery:
1. Sample within 1-3 days
2. Wholesales Orders : 5-10 days according various quantities
3. OEM 10-20 days after receiving your sample confirmation and payment.

Warranty:
1. One year warranty.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
