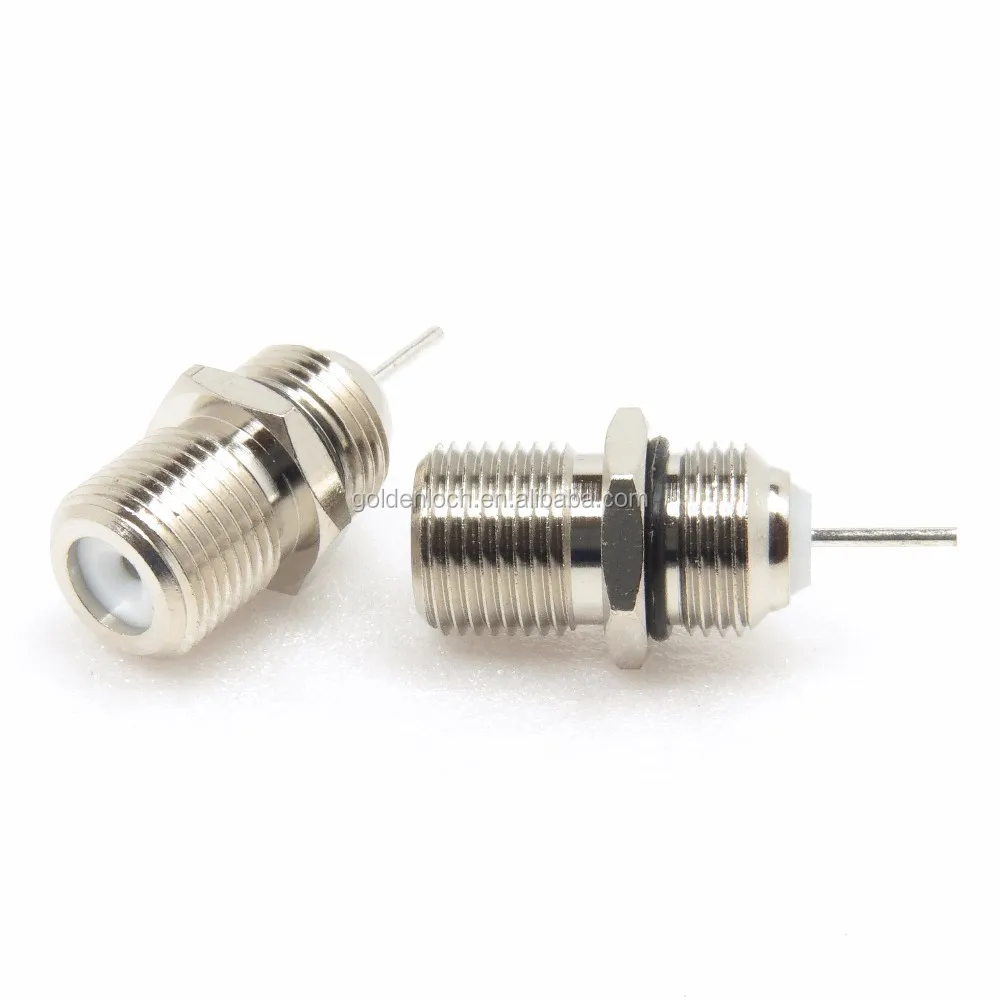

F Connector Female Bulkhead Receptacle

Product Overview

Description

F Connector Female Bulkhead Receptacle

1. ISO 9001 & IATF 16949 certified
2. RoHS & REACH compliant

3. Made in Taiwan





Features:

1. Excellent insertion/withdrawal characteristics


2. Multiple PCB mount types


3. BeCu contact is available from 0.55~1.02mm center conductor sizes


4. Zinc ally body available

Applications:

1. CATV


2. Set Top Boxes


3. Cable Assemblies


4. Cable Modems

Electronical Specifications

Impedance	75Ω
Frequency Range	DC-1 GHz
Return Loss	30 dB @ DC-1 GHz
RF-Leakage	100 dB min. @ 1 GHz





Material Specifications

Parts Name		Material	Finish
Center Contact	Male	Brass	3u" Gold or Bright Tin per requirement
	Female	BeCu, P. Bronze or Brass	Bright Tin
Body, Metal Parts		Brass or Zinc Alloy	Nickle or Tin per requirement
Insulators		PTFE, P.P. or POM	None
Crimp Ferrules		Copper or Brass	Nickle or Tin per requirement

Note: Other Material/Finish is available on request
