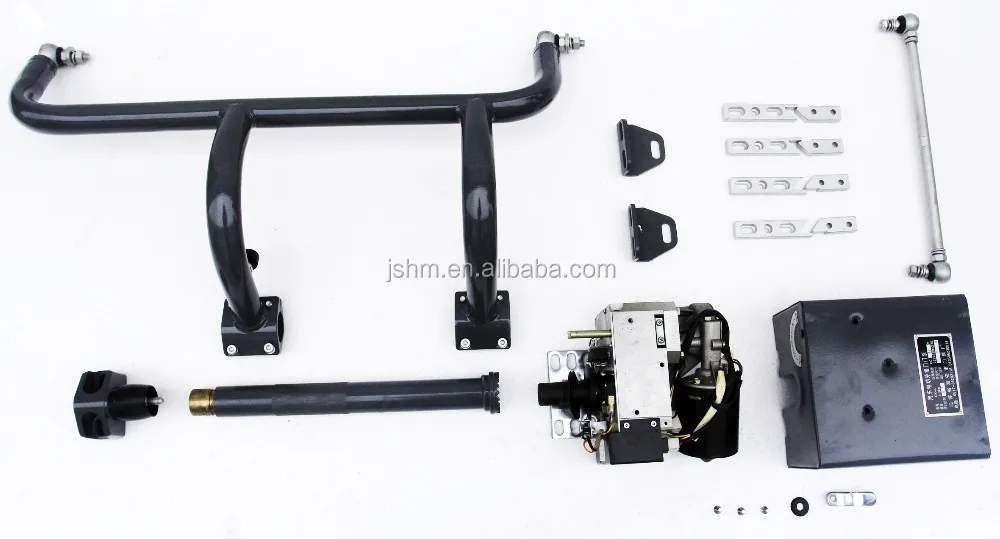

Electric Folding Bus Door Mechanism Bifolding City Bus
Product Description

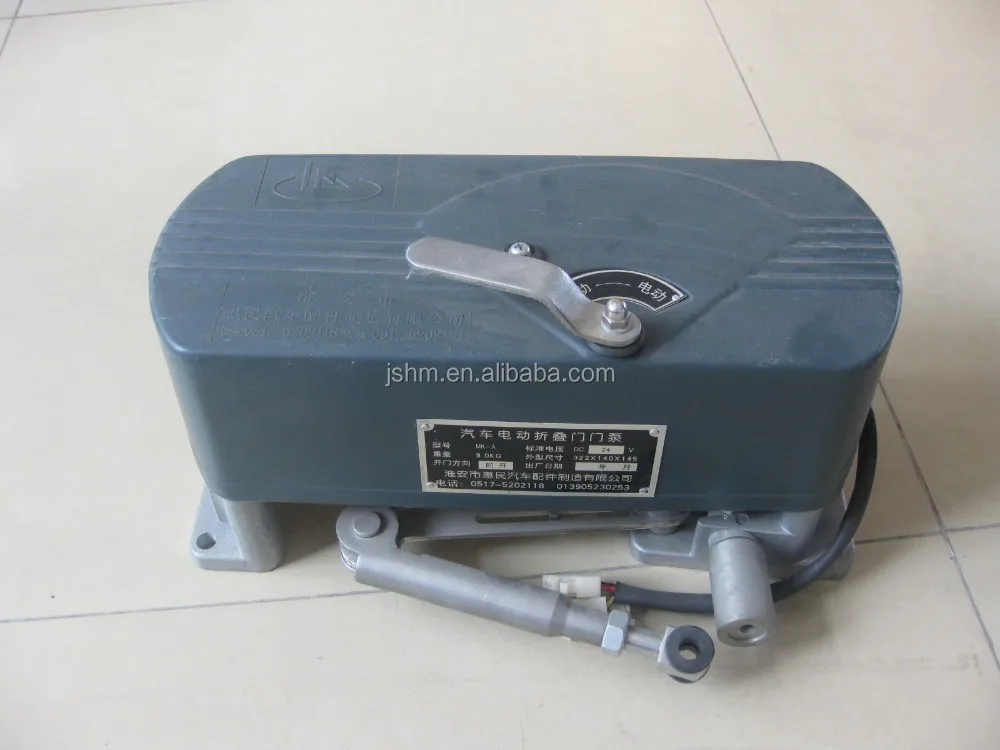

MK-A Electric Bi-fold Bus Door Operator is an open-close drive mechanism for bus bi-fold doors, which we introduce and improve the Japanese technology. Bus Door Opening Life Cycle, more than 600, 000times
Characters:
Whole frame design. Superior performance and excellent durability. It can be used in the extremely hot and cold weather areas.
NO.
ITEM
SPECIFICATION
1
Rated Voltage
DC12V
DC24V
2
Motor Power
100W
120W
100W
120W
3
Max. Current
18A
20A
12A
13.5A
4
Push force
1000N
1250N
1000N
1250N
5
Open Direction
Forward/Backward
6
Open/close Time
1.5~2.5S
7
Anti-clamp force
30N<fj<50N
8
Ambient Temp.
-40°C~+80°C
9
Weight
9kg
Application: It is widely used for the city bus and mini-bus that have no air sources.
Other bus door system information: We can provide the optimum door system/bus door mechanism/ bus door opener for any vehicle (buses). Such as automatic bus door mechanisms for buses & coaches, bus door panels for buses & coaches, pneumatic steps for buses, electric rearview mirrors, luggage door, electrical wheelchair ramps for low-floor buses, BRT platform doors, Platform Screen Door.
Company Information
Jiangsu Huimin is the No.1 manufacturer in China for various bus door systems. Also we are the No.1 supplier in China for different bus companies in China such as Yutong, Kinglong, Golden Dragon, and the best supplier for overseas companies such as TATA MOTORS LTD, ZIYE DAEWOO BUS CORPORATION.
No matter what kind of vehicle door you want , we can provide you the free solutions.
As long as the drawings provided from you, we are sure that we can solve your questions.
We have passed the Certifications: ISO9001,ISO/TS16949,ISO14001 etc. Our quality is out of concern.
