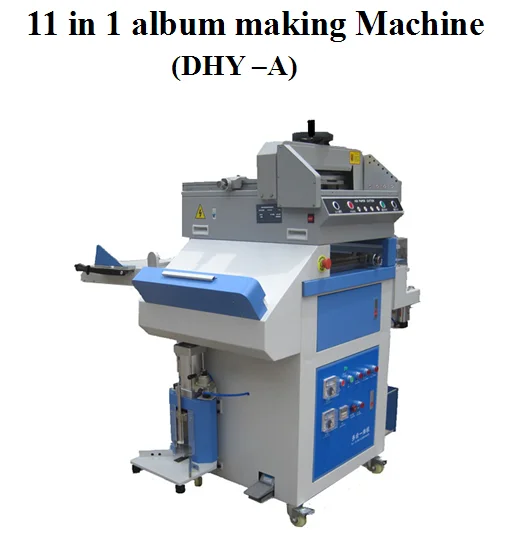

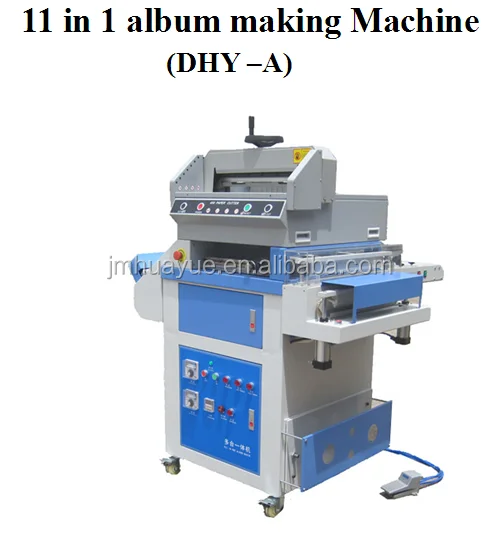

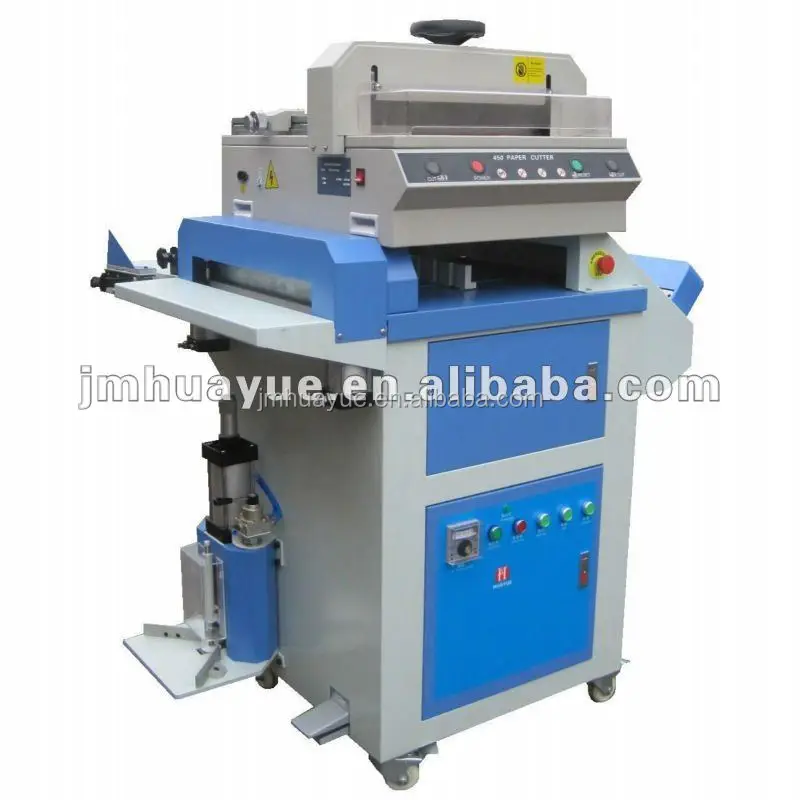

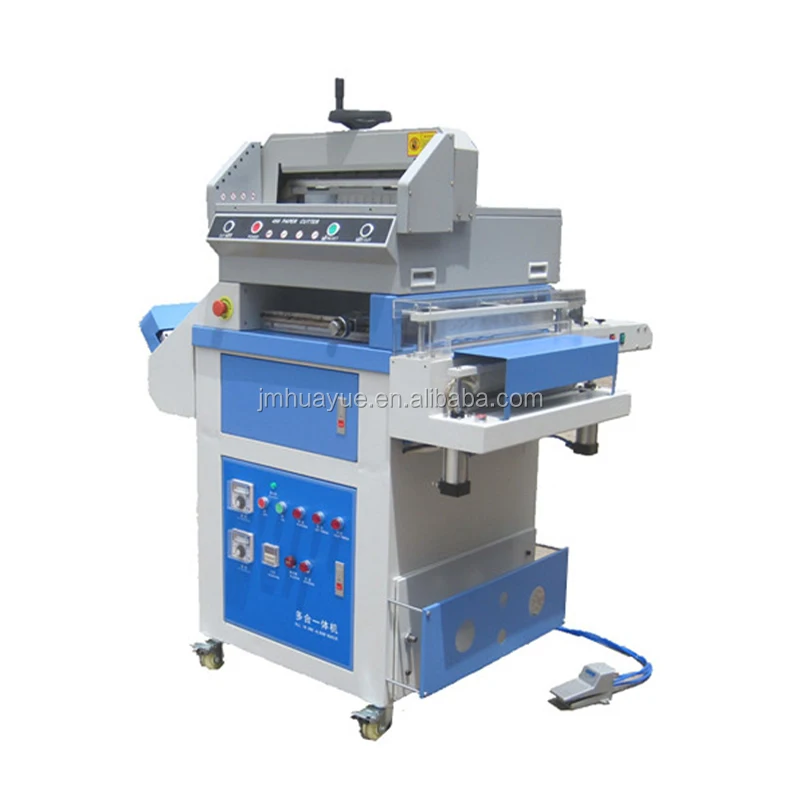

DHY A 11 in 1 album book binding machine

Share on (60242287373):


Price:

Quantity:


Product Overview

Description





































































11 in 1 DHY-A

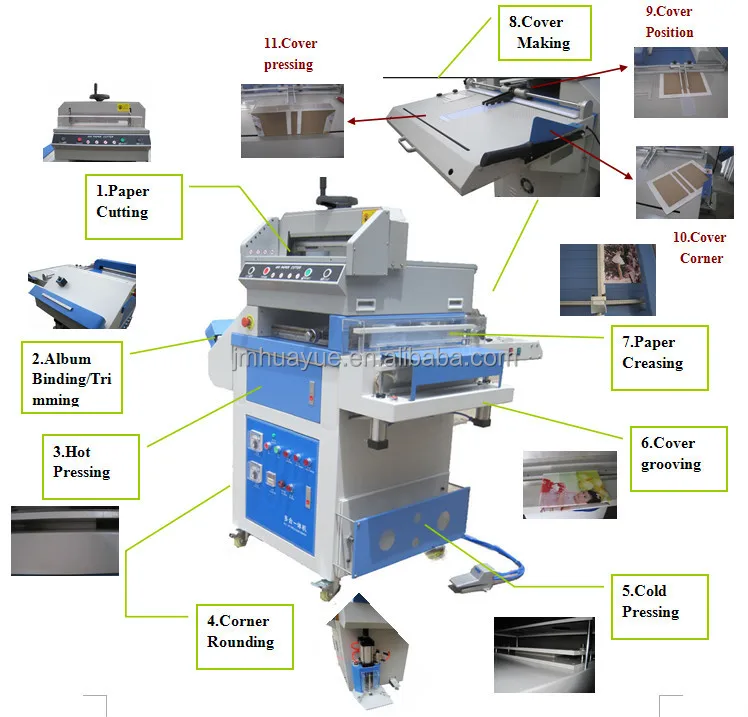

The DHY-A 11 in 1 album book binding machine is used for making photo album, menu and more. The Heat and cold pressing corner cutter photo album making machine includes 10 functions. Creasing, trimming, hot press, cold press, paper cutting, corner rounding and cover making.cover cutter,cover position and the air compressor . It operates easily and works highly effective.





1. Temperature uniform and shorten the drying time


2. Not to change the album's shape


3. Adjustable pressure


4. Small space , contineous ,operation ,increasing efficiency


5. Fine pressing marks , not to hurt the photos




Specification














































































































Model



DHY-A



Max working width



550mm



Creasing mark thickness



0.8/1.2/1.5mm



Creasing way



Pneumatic



Trimming length



540mm



Trimmng thickness



70mm



Trimming way



Pneumatic



Hot pressing height



285mm



Hot pressing length



460mm



Hot pressing width



550mm



Temperature



55-110°C



Cold pressing height



300mm



Cold pressing length



600mm



Cold pressing width



50mm



Max cutting size



450x450mm



Min cutting size



50mm



Max cutting thickness



40mm



Pushing paper



Manual operation



Corner cutting thickness



60mm



Angle size



R3-R8



Corner cutting way



Pneumatic



Max cover area



580mm x 370mm



Thickness of paper board



0.5-6mm



Thickness of backbone



0-6cm



Way of counterpoint



Light






For the country which use power supply in 110V, we will send you one power transformer together to 110V with the machine and you can use it. But buyer need to pay extra USD250.

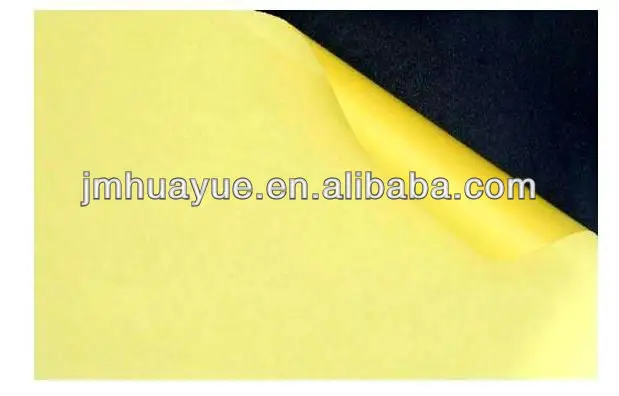

Consumables:  PVC Sheet




















































Model



PVC-1



Color



Black ,white



Double-side Adhesive



Yes



MOQ



500 sheets



Standard Size



21*31cm, 27*38cm, 31*45cm, 21*21cm, 26*26cm, 31*31cm, 41*41cm, 19*19cm, 14*19cm, 15*21cm, 16*16cm



Customized Size



Yes



Standard Thickness



0.5mm,0.6mm,0.8mm,1.0mm,1.5mm



Package Kind



Carton



Delivery Time



9 Working days against payment

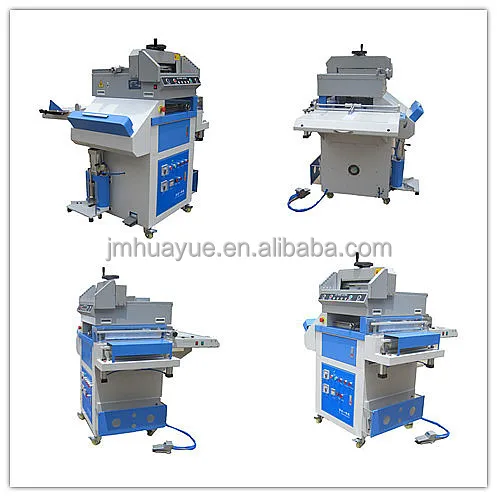

Machine details







ten in one





Products make by this machine:


 013in1 1


Company details

showroom2  company1  (1)_


workshop


Payment




Customers can choose the payment terms you accept.



Shipping




Because the machine is very heavy, it is always transported by ocean shipping. The ocean shipping cost depends on the destination port and package size. Port to port.





We arrange the local shipment,which’s easy for you to control the transportation cost. If your own forwarder in China can help you to handle the export ,we also accept the factory price(EXW.)





If you need the machine very urgently. We can also ship by air and express. We have good cooperations with them, this saves your shipping cost and guarantee your goods safe.Please contact for the shipping cost.



**Please note: Import duties, taxes and charges are not include in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your local custom office to know the details.


Warranty


  • One year warranty from you receive the item.

  • We will provide free replacement part in warranty. (Eliminate vulnerable and artificial damage.) But any warranty shipping cost is responsible by buyer.

  • Installation labor is your responsibility. (We have detailed instrution of parts replacing.)

  • For the sales service of our product, we will provide free technical support of equipment lifelong.
