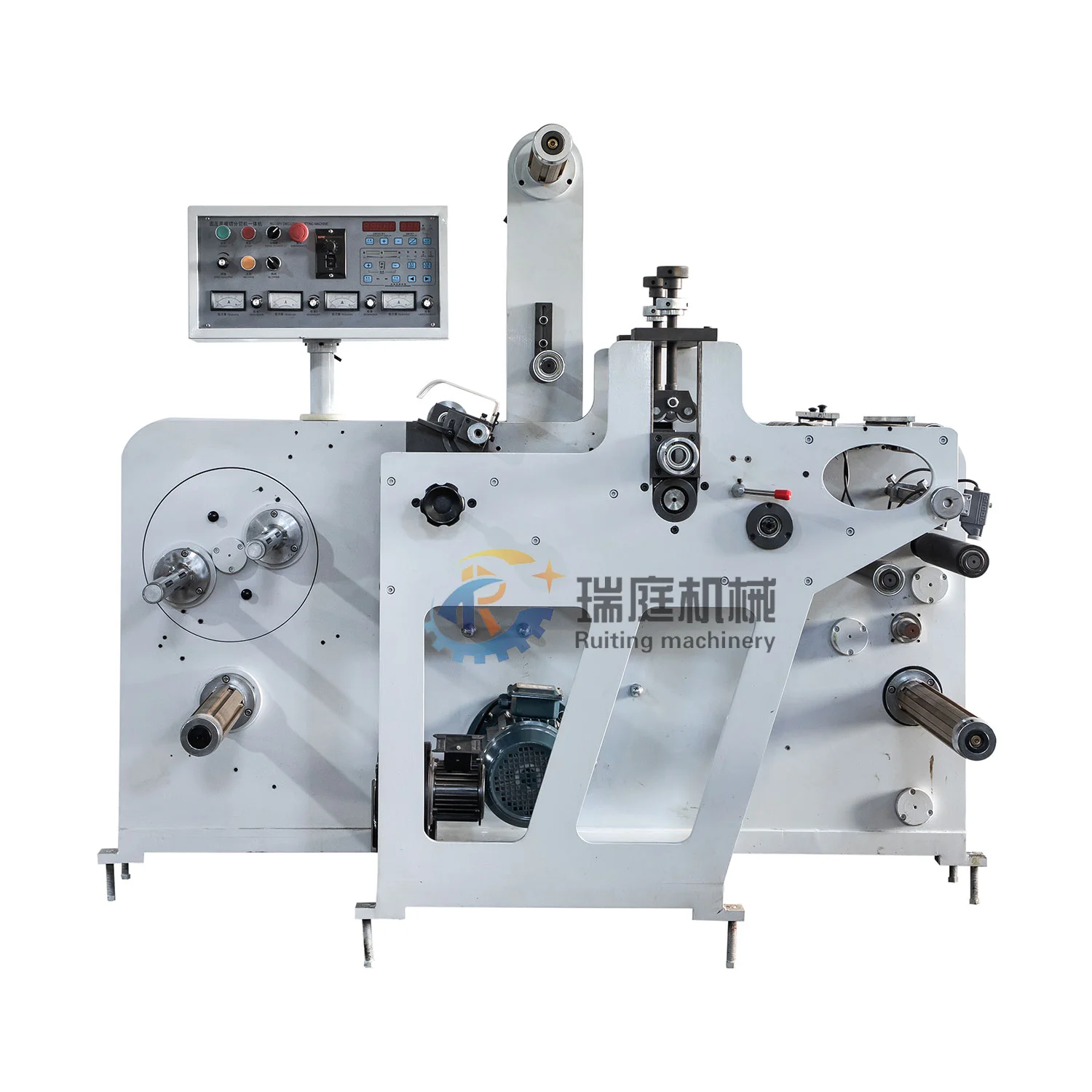

RTQ 320B semi automatic fully rotary label die cutting machine with slitter turrent rewind
- Category: >>>
- Supplier: Ruian Ruiting Machinery Co. Ltd.
Share on (60242523185):
Product Overview
Description
rotary label die cutting machine with 2 stattion
This machine is a new product with rotary die-cutting function.
It equipped with high accurate rotary die-cutting system.

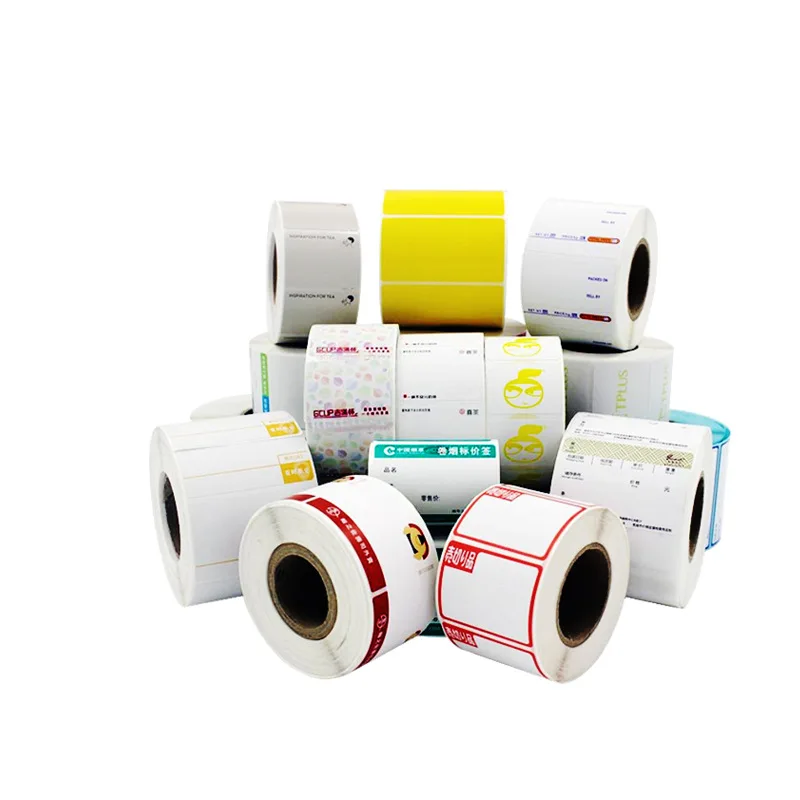

This machine is suitable for blank adhesive lables.
Die-cutting, slitting can be finished in one process.

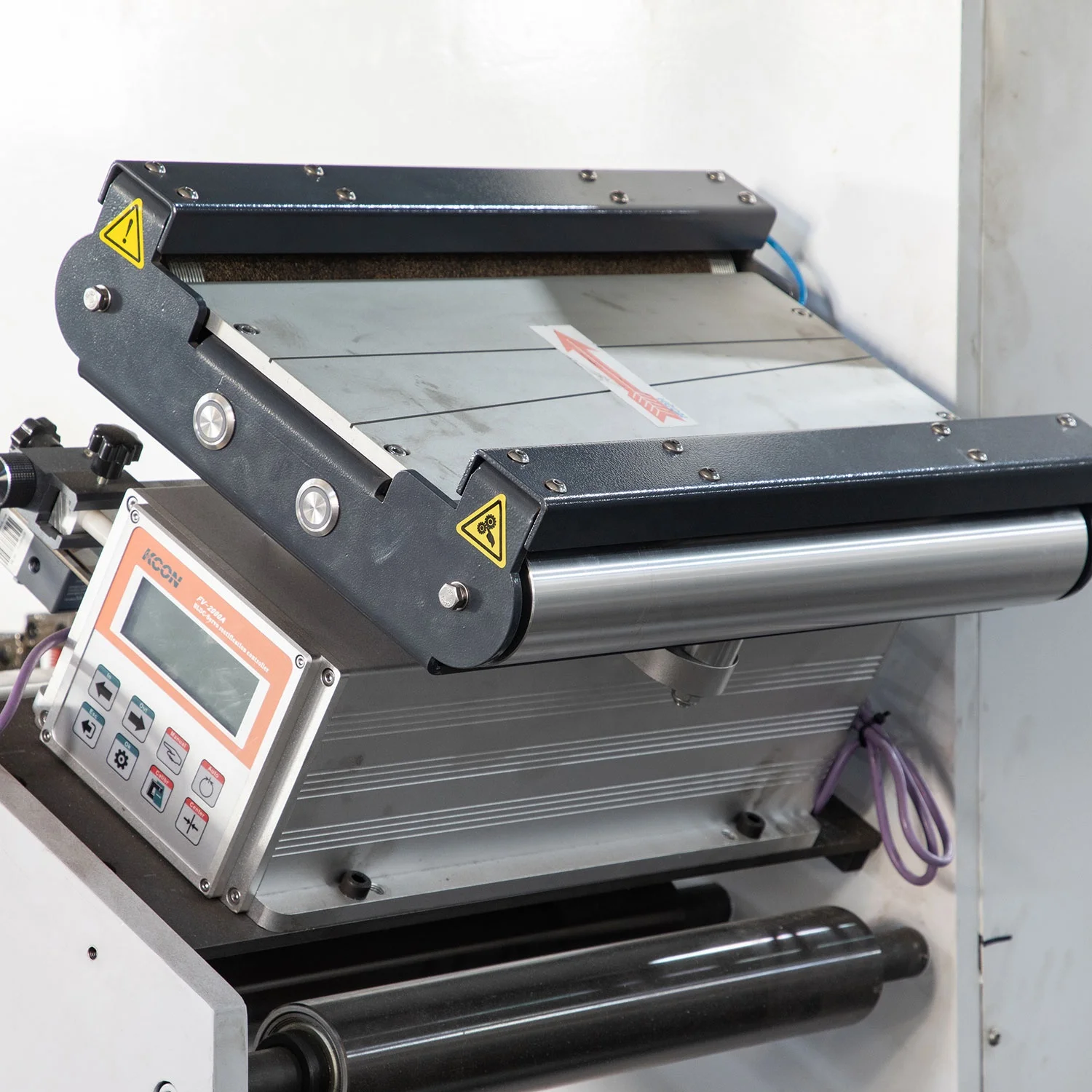

It has the function of automatic meter counting, automatic stopping, web guiding by photoelecric eyes.
The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.
Standard configuration
1. One slitting station

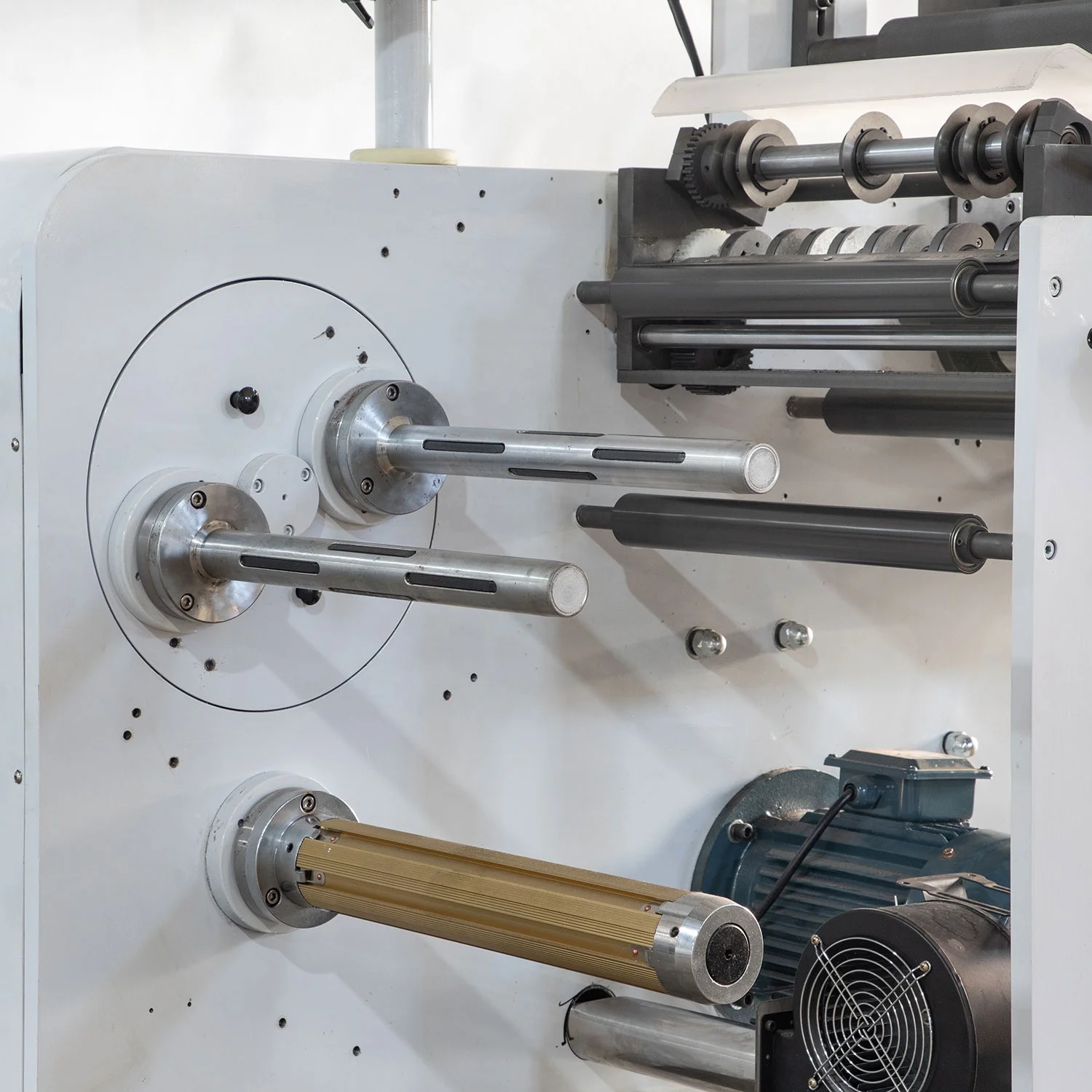

2. With 1pc 3"unwinding shaft, 2pcs 3"rewinding shafts
3. With meter/number counter

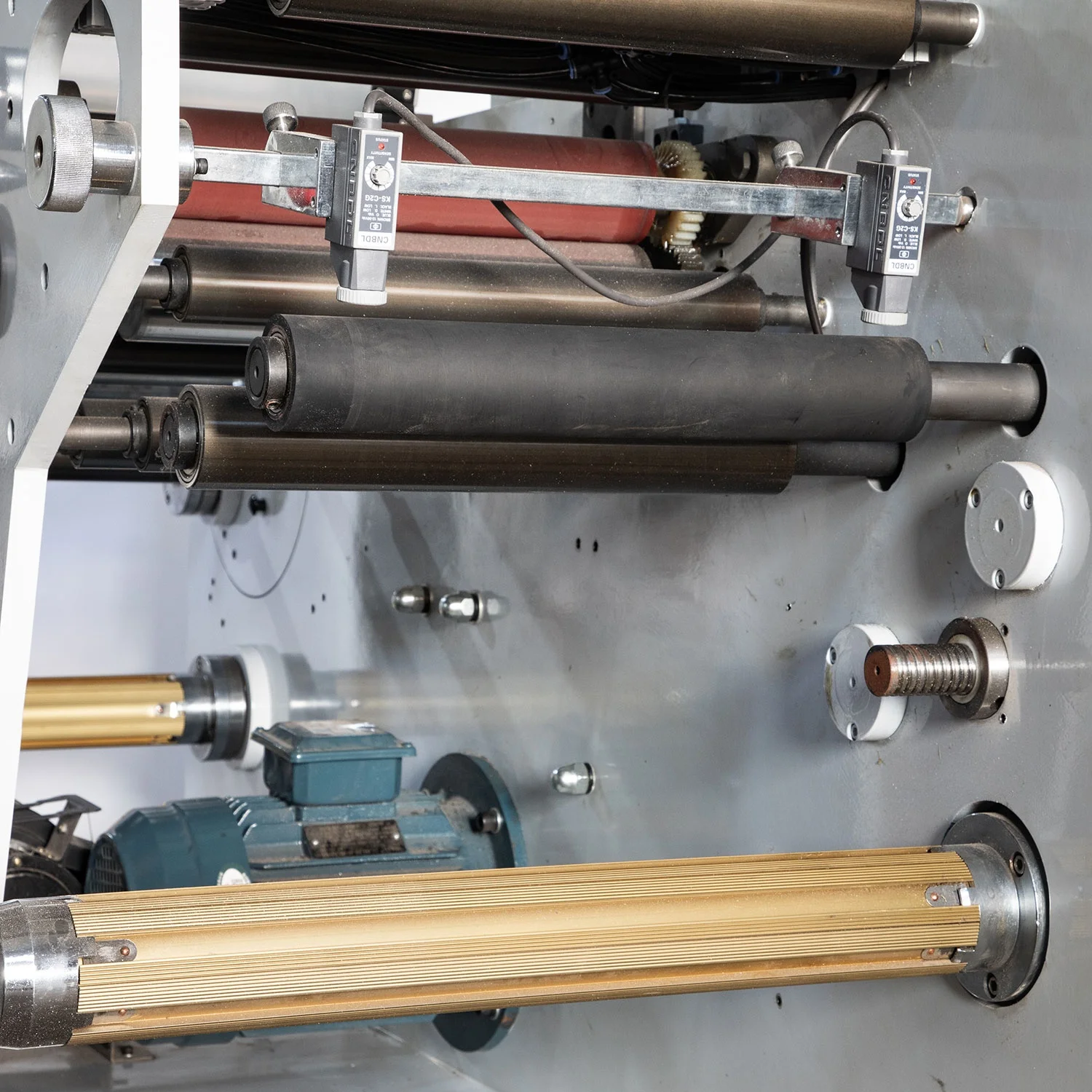

4. With two photoelecric eyes

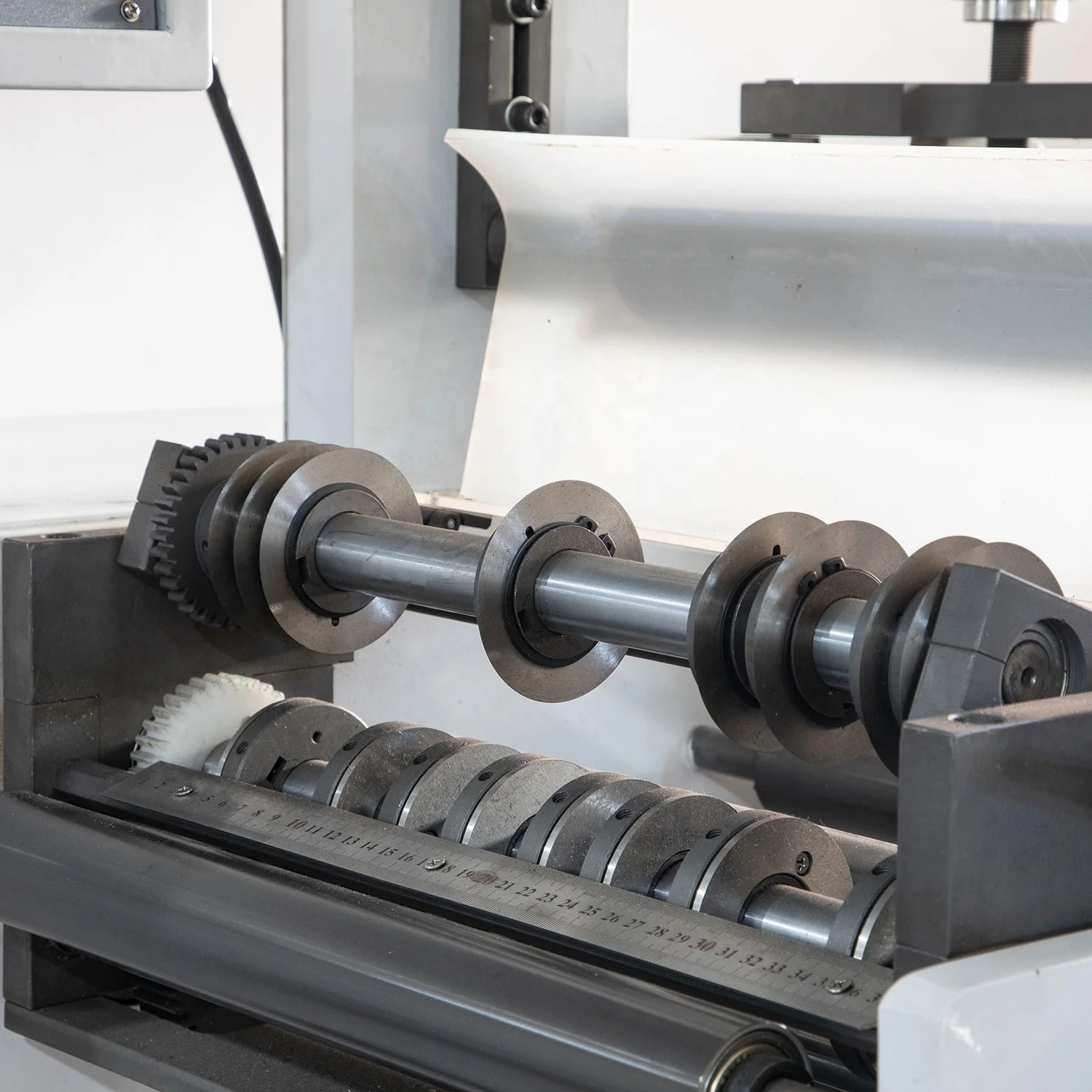

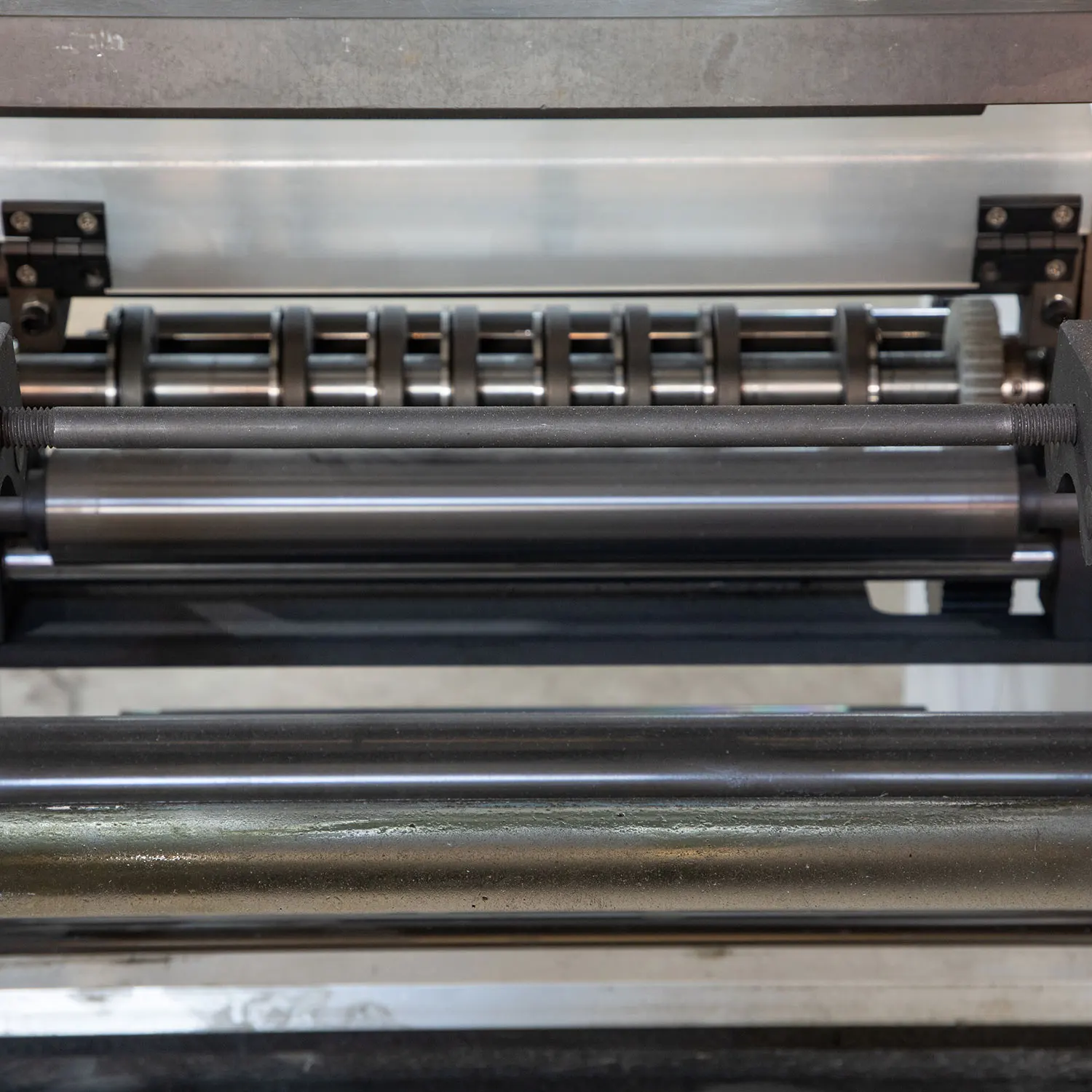

5. With 8pcs rotary knife
6. One magnetic brake, two magnetic clutches
2. With 1pc 3"unwinding shaft, 2pcs 3"rewinding shafts
3. With meter/number counter
4. With two photoelecric eyes
5. With 8pcs rotary knife
6. One magnetic brake, two magnetic clutches
Slitting speed | 70m/min |
Die-cutting speed | 70m/min |
Max.web width | 320mm |
Die-cutting length | 178mm-470mm |
Max. unwinding diameter | 500mm |
Max. rewinding diameter | 500mm |
Overall dimensions | 1.8m*1.3m*1.5m(L*W*H) |
Machine weight | 800KG |
