CNC Busbar Fabrication machine for cutting bending punching holes and slots of all sizes
- Category: >>>
- Supplier: Jinan Jingpeng Cnc Machinery Co. Ltd.
Share on (60242714490):
Product Overview
Description
Busbar bending machine, cnc bending machine
Product Description

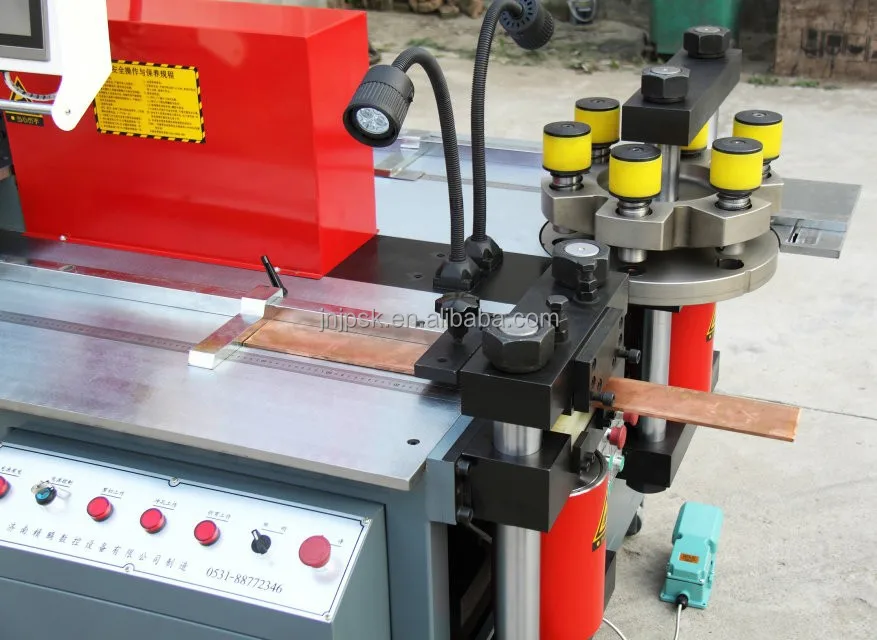

Appearance of the machine:
Working Units:
Bending,punching and cutting,independently.

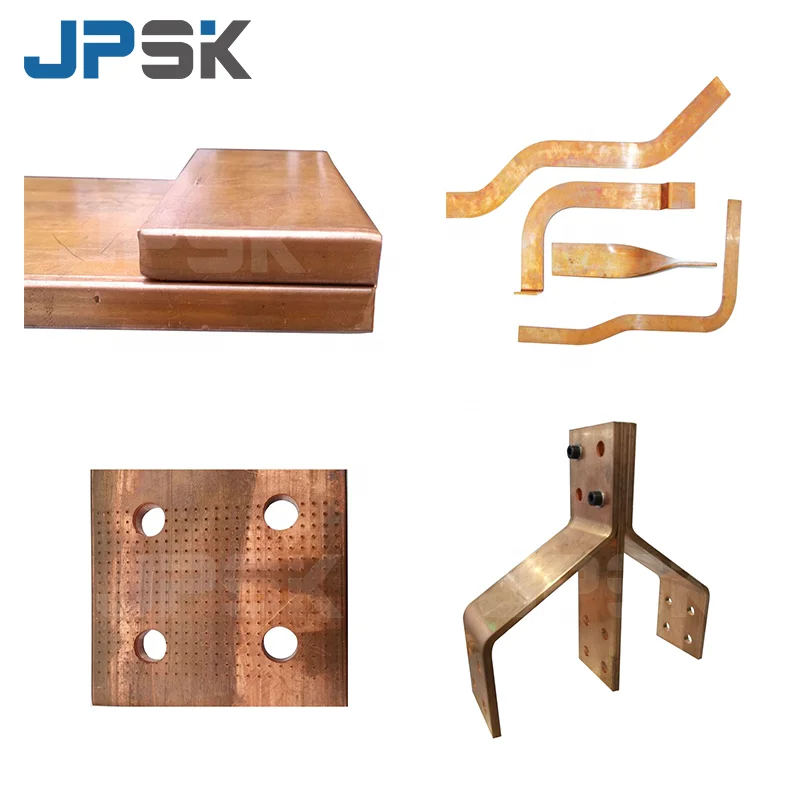

Material Processed:
Brass / Copper busbar, Aluminum busbar.
Functions:
1. bending at vertical and horizontal direction.
2. punching for round and oblong hole.
3. cutting busbar.
4. special for embossing, knurling, twisting, cable joints pressing.
Features:
1. Low maintenance ,longer service life.
2. The cut surface is smooth and neat, no droop, no burrs, no waste.

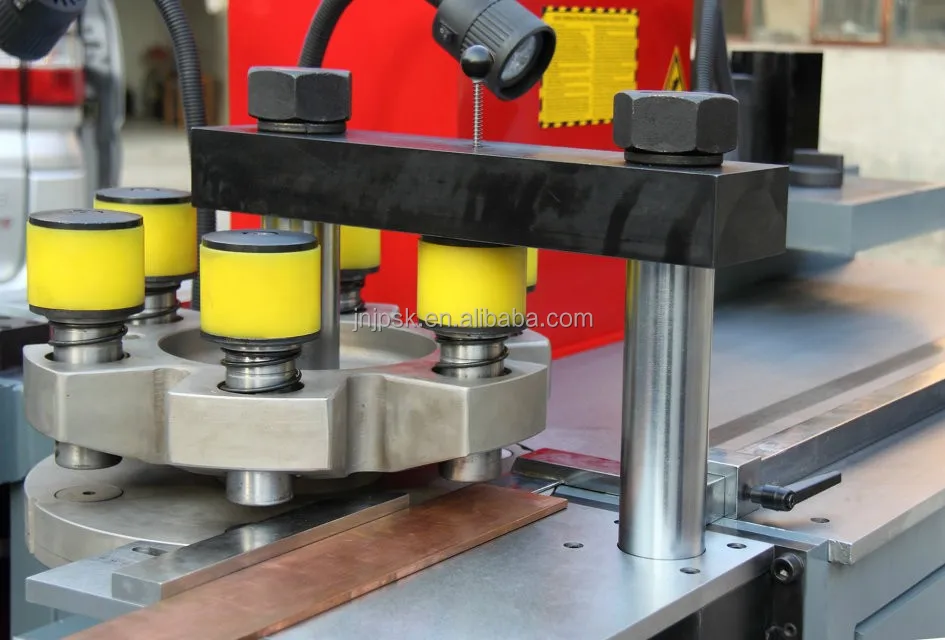

3. Rotary turret punch unit installed 6 dies, less replacing, high efficiency.
4. three work positions can be used at the same time.
5. Controlled by PLC, bending precision at ±1 degree and repeat degree at ±0.3 degree.
6. Easily to be moved with four castors.
7. Manual button and foot switch are optional.
8. Adjustable working stroke.
9. on users requirement, special mold for special shape.
Details of Each Working Units:
Details parameters of each working unit:
| Function | Item | MODEL | |||
| JPMX-303SK | JPMX-503SK | JPMX-303ESK | JPMX-503ESK | ||
| Punching | Max. Punching Force (KN) | 300 | 500 | 300 | 500 |
| Punching Diameter Range (MM) | Ø4.3-Ø25 | Ø4.3-Ø34 | Ø4.3-Ø25 | Ø4.3-Ø34 | |
| Max. Thickness (MM) | 12 | 16 | 12 | 16 | |
| Max. Width (MM) | 150 | 200 | 150 | 200 | |
| Shearing/Cutting | Max. Shearing Thickness (MM) | 12 | 16 | 12 | 16 |
| Max. Shearing Width (MM) | 150 | 200 | 150 | 200 | |
| Honrizental Bending | Max. Bending Force (KN) | 300 | 500 | 300 | 500 |
| Max. Thickness (MM) | 150 | 200 | 150 | 200 | |
| Max. Width (MM) | 12 | 16 | 12 | 16 | |
| Vertical Bending | Max. Width (MM) | 100 | 120 | 100 | 120 |
| Max. Angle (Degree) | 90° | 90° | 90° | 90° | |
| Out Dimension | MM | 1670*1200*1200 | 1800*1500*1300 | 1770*1400*1300 | 1980*1550*1460 |
| Power | KW | 3*4kw | 3*5.5kw | 3*4kw | 3*5.5kw |
| Weight | KG | 1200kg | 1750kg | 1360kg | 2200kg |
| CNC Precision | Bending Precision | ±1° | ±1° | ±1° | ±1° |
| Repeat Bending Precision | ±0.3° | ±0.3° | ±0.3° | ±0.3° | |
CNC hydraulic busbar processing machine operation:
Busbar Cutting / Shearing

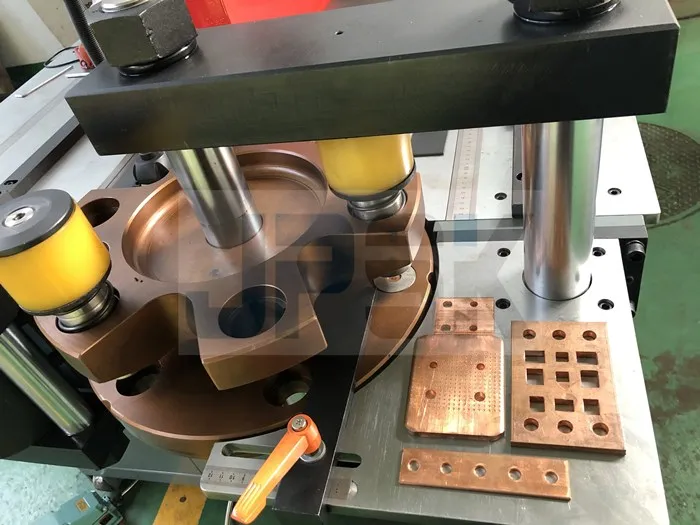

Busbar Punching
Busbar Horizental Bending
![1113633555_671[1]](http://g02.s.alicdn.com/kf/HTB1GYwnHpXXXXX1XFXXq6xXFXXXh/205866644/HTB1GYwnHpXXXXX1XFXXq6xXFXXXh.jpg)
Packaging & Shipping
Packaging:
Machine will be sprayed and wrapped with plastic water proof film and then in standard export wooden box.
Our Services
1. Independent quality control department, 3 times of quality checking;
2. 100% percent of pass before shipping
3. one year of warranty
One year for product warranty except for spare parts. Before the end of warranty, if any, parts broken naturally, not sabotaged intentionally, we will change the parts free of charge, but the broken parts have to be sent back to us .We will provide a lifelong technology service to solve any problems for you.
Our advantage:
1. we can do the designs according to the customers' requirement.
2. we can do OEM as per customer’s requirement.
3. we are the factory, we can offer you high quality with the most competitive price.
4. we can offer your a good after-sell service.
5. we have strong professional technical team.
6. We can make delivery within 7 days after receiving your deposit.
Company Information
Our certificate: ISO9001:2008, CE
FAQ
1. What is your payment terms:
40% TT as deposit, balance be paid when goods are ready for loading before shipment.
2. What is your delivery time?
Usually within 7 days after the deposit.
3. What is your requirement for exclusive / sole agent?
We are looking for sole agent in world market.
We need to test the credit and the monthly quantity of the importers.
If the importer credit is good and reliable. And the monthly order quantity meet local market demand. We will come to further association.
