Automatic textile winding machine pirn yarn winder textile machinery

Product Overview

Description

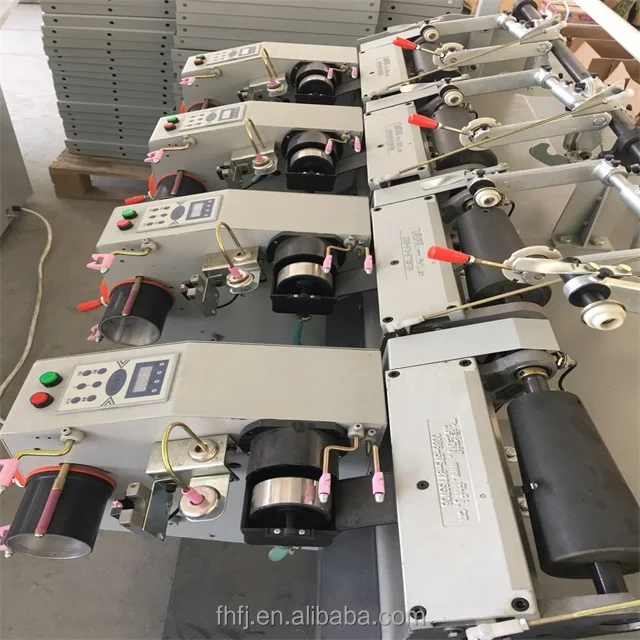

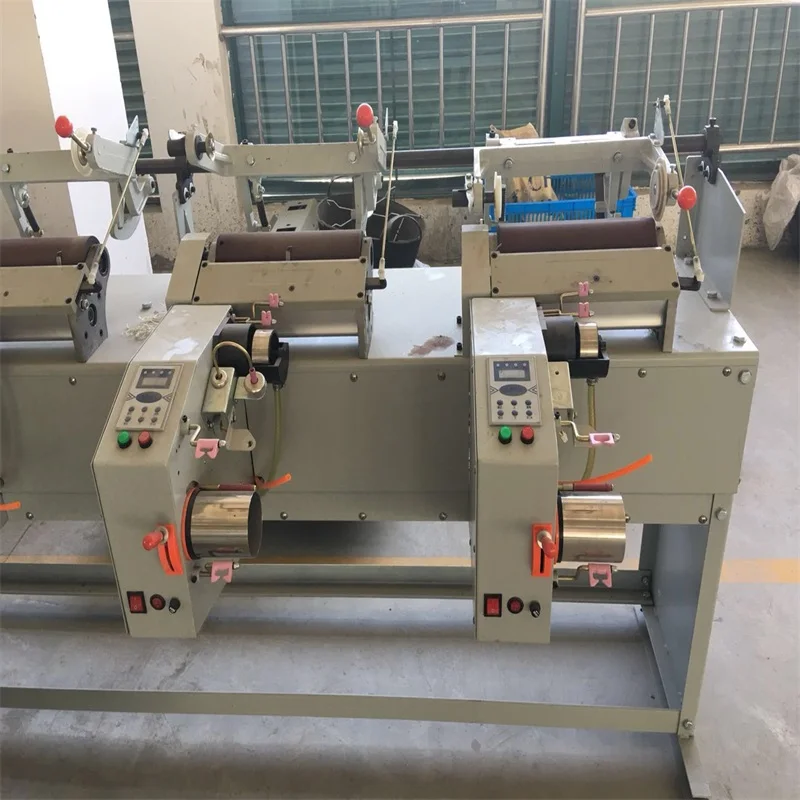

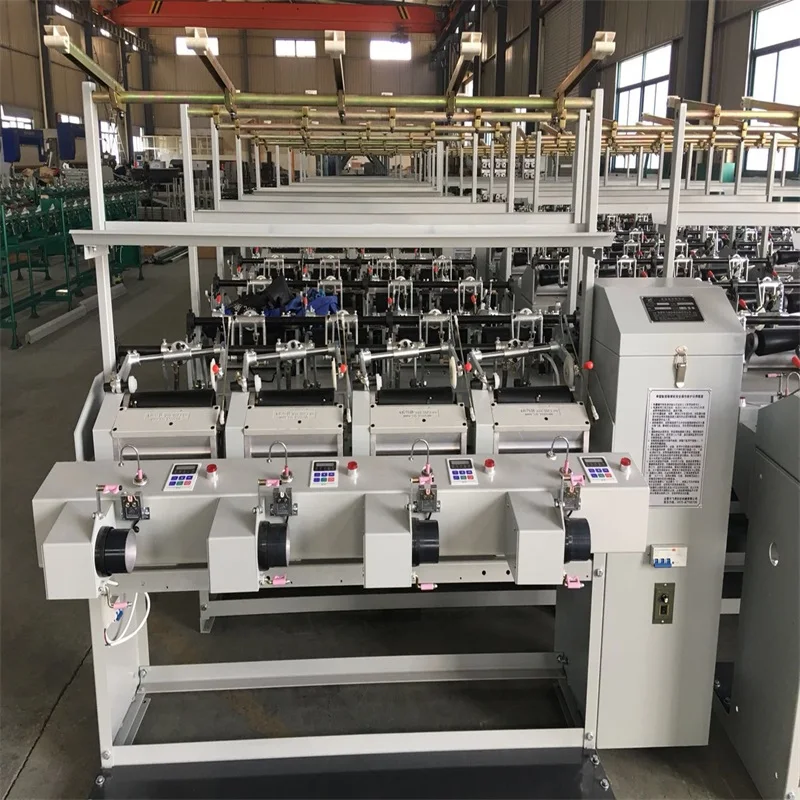

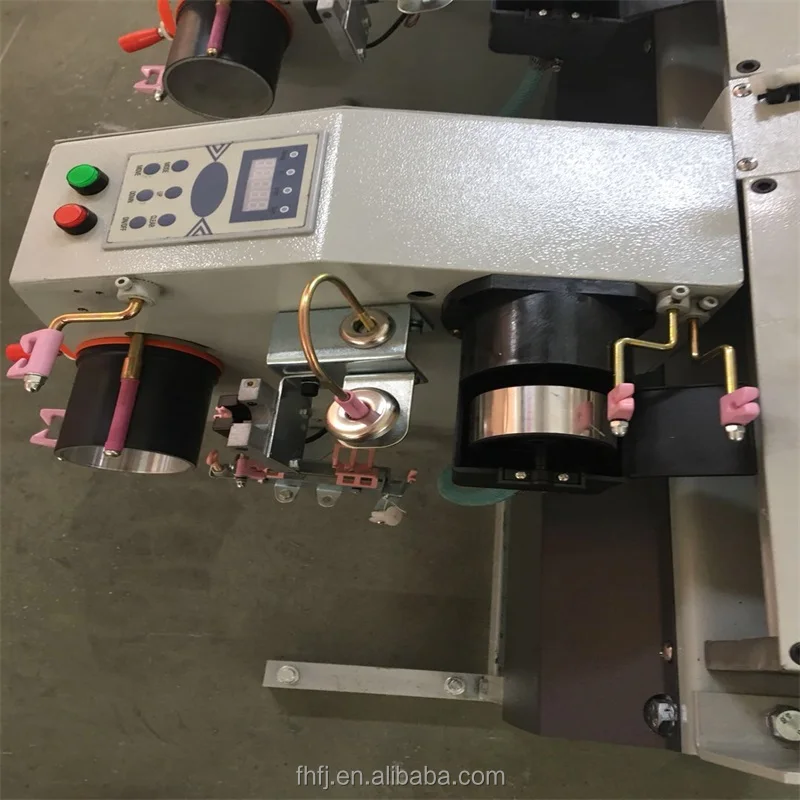

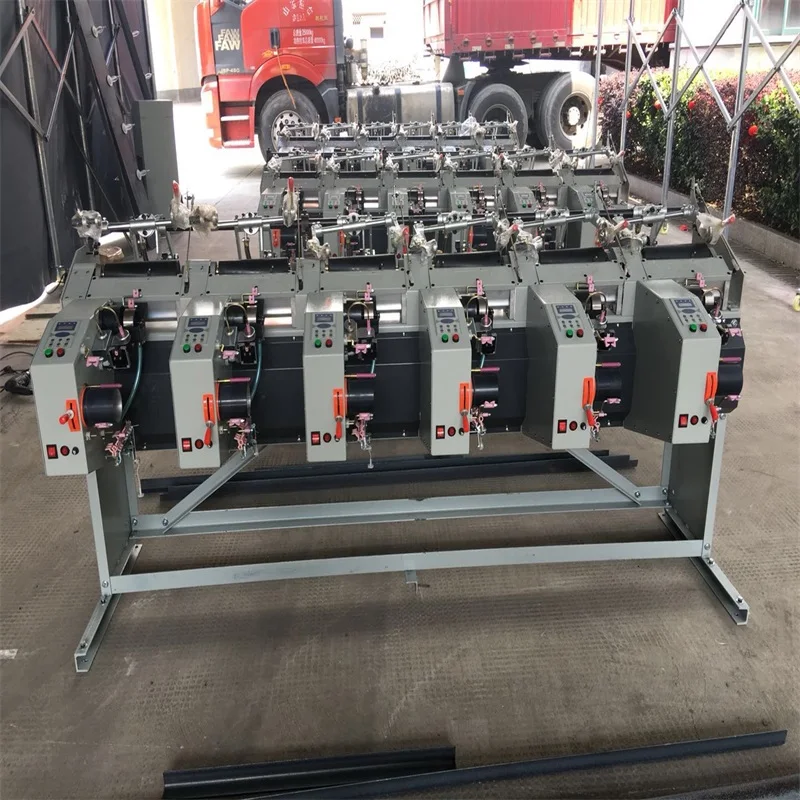

FHTDTK-A yarn winding machine

Product description

The model is especially suitable for chemical fiber, yarn, rope skein such as state complex cylinder pipe ,state. As the machines with computer control system; individual spindle control; oil automatically come on; edge device; anti- -stack; auto-stop of break yarn; Fixed-length control; Super feed wire; Slow -starting with adjustable; Yarn speed is adjustable; Yarn tension-controlled device and other advanced technologies, to ensure the high quality of the machine:

Its characteristics: Across the line speed; A one -off form; even tension; forming beautiful.



Product name	250g Hank To Cone Yarn Winding Machine
Number of spindles	24(Foreign trade 6 spindles/group),48, 96 (Optional)
Spindle gauge	360 mm
Layout	Single side or double side
Power Supply	220V 50HZ single phase (Optional)
Spindle power	120w/spindle
Winding speed	500-600m/min(Speed adjustable)
Max. yarn diameter	≤220mm
Friction roller specification	flat bobbin Φ 80mm×220mm or cone Φ 80mm×220mm taper 3.5° (Optional)
Control	computer

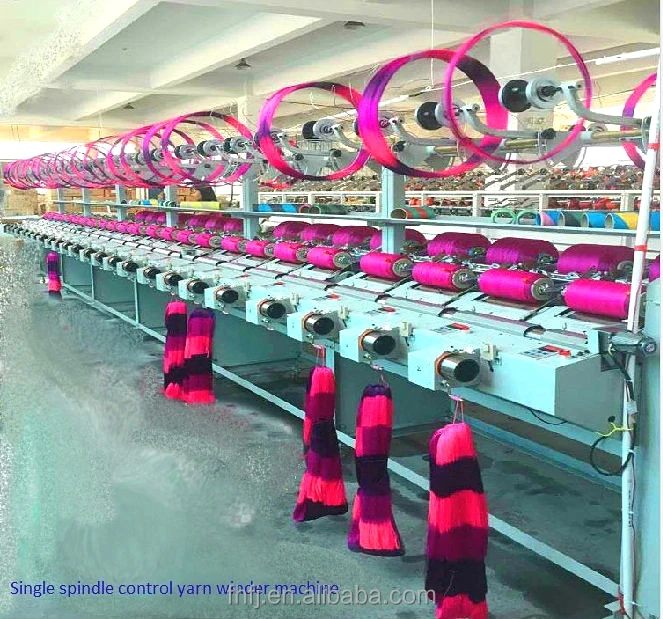

Driving	Individual,single spindle single control
Electronic Anti-Stack	Inverter control
Dimensions	L 1454 x W 690 x H 1700 mm ( 4 spindles)
Weight	205kg/group



FAQ

Q1: If we have problem on machine or production, can you help us?

A: Yes, no problem. We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.  If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide long life service for the machine.

Q2: When can I expect delivery of my item?

A: All items are dispatched within one week if have stock. Production time will be one month.

Q3: Warranty

A: There is a usual one-year guarantee for machine. Except for quick-wear parts.





2)automatic stop of yarn break, dead line control,

3)slow start(startup time is adjustable), adjustable of speed of cross yarn,

4)electric over-feed device, Single-spindle oil device,

5) Anti-stacked device, Closing edge device .keep even in External elastic yarn, so as to achieve one uble the increase production efficiency .

It can reduce the technical requirements of the operator as well as facilitate employment.
