Motion Sensor 12v Motion Detector Automatic Infrared PIR Sensor 12V 180 Degree Rotating Outdoor Timer Light Switch

Product Overview

Description

 Motion Sensor 220V 110V Motion Detector Automatic Infrared PIR Sensor 220V 180 Degree Rotating Outdoor Timer Light Switch





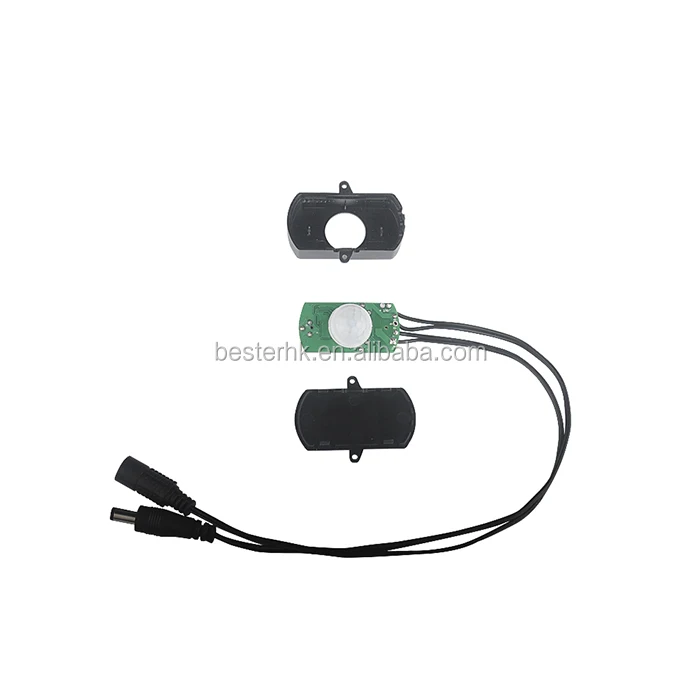

Product Name: PIR sensor

Item:  BS010





Welcome to use 12v mini pir motion sensor switch (BS010) !







motion sensor switch  Instruction



PIR(Passive infrared) Motion sensor is pyroelectric device can detect human movement by detecting Infrared ray emitted by human body. Operating voltage is 5~35VDC, and output voltage is equal to input voltage. High sensitivity, easy for installing. Widely used on the Motion-activated lighting, LED strips Security System, automatic sensory device and more.







motion sensor switch  Specifications



Model No.	BS010	BS010L
Description	Passive Infrared Sensor
Operating voltage	DC 5V~35V
Output voltage	Equal to input voltage
Load current	<3A
Static power loss	≤ 50 uA
Delay time	Default setting 15sec(2~360 Seconds is adjustable)
light sensor	no	yes
Light sensitivity		default setting 20lux,10~300lux adjustable

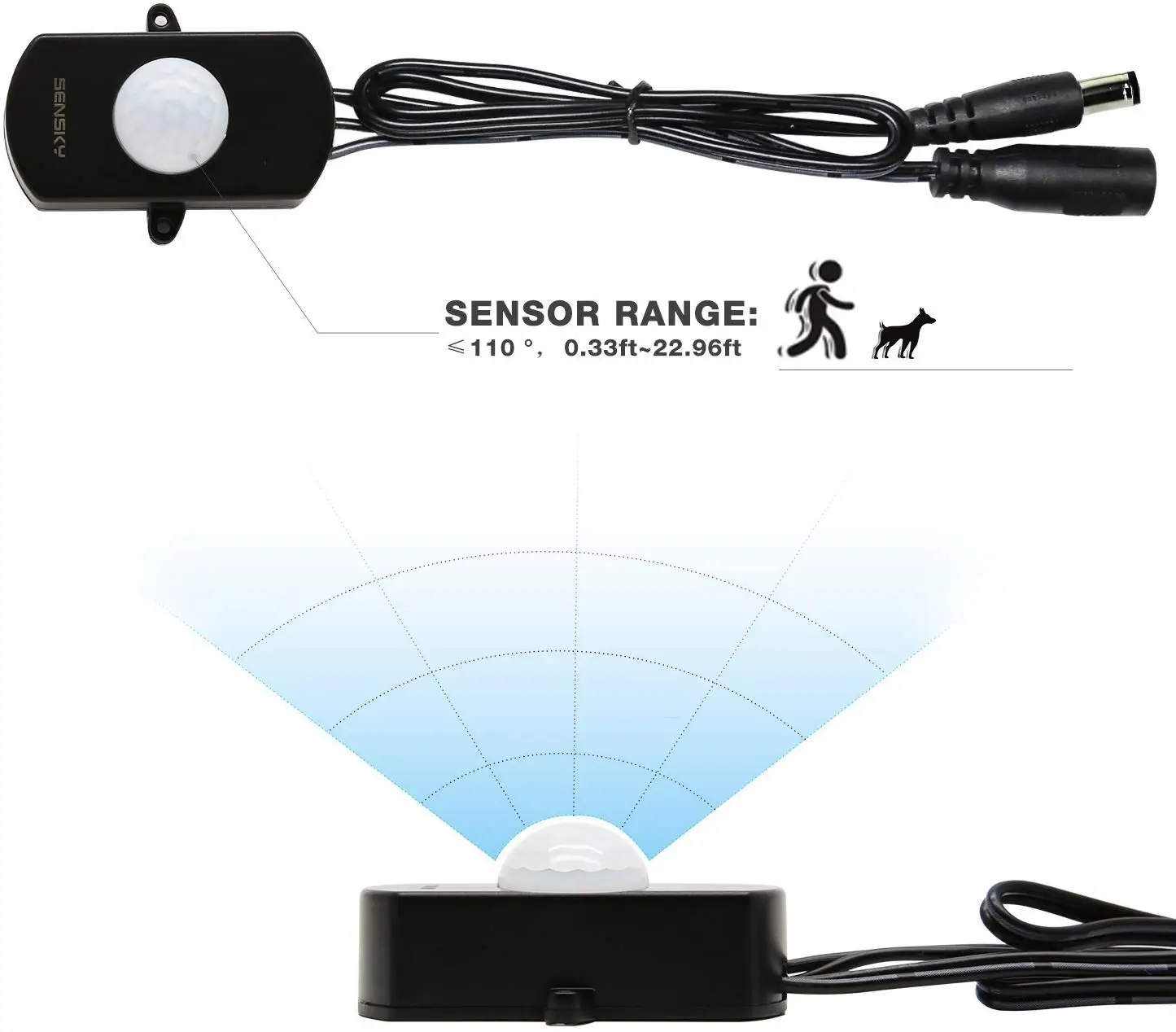

Detecting range	≤ 110 degrees cone angle, ≤5M-7M (0~5M is adjustable)
Trigger way	continuous triggering
Blockade time:	0 seconds

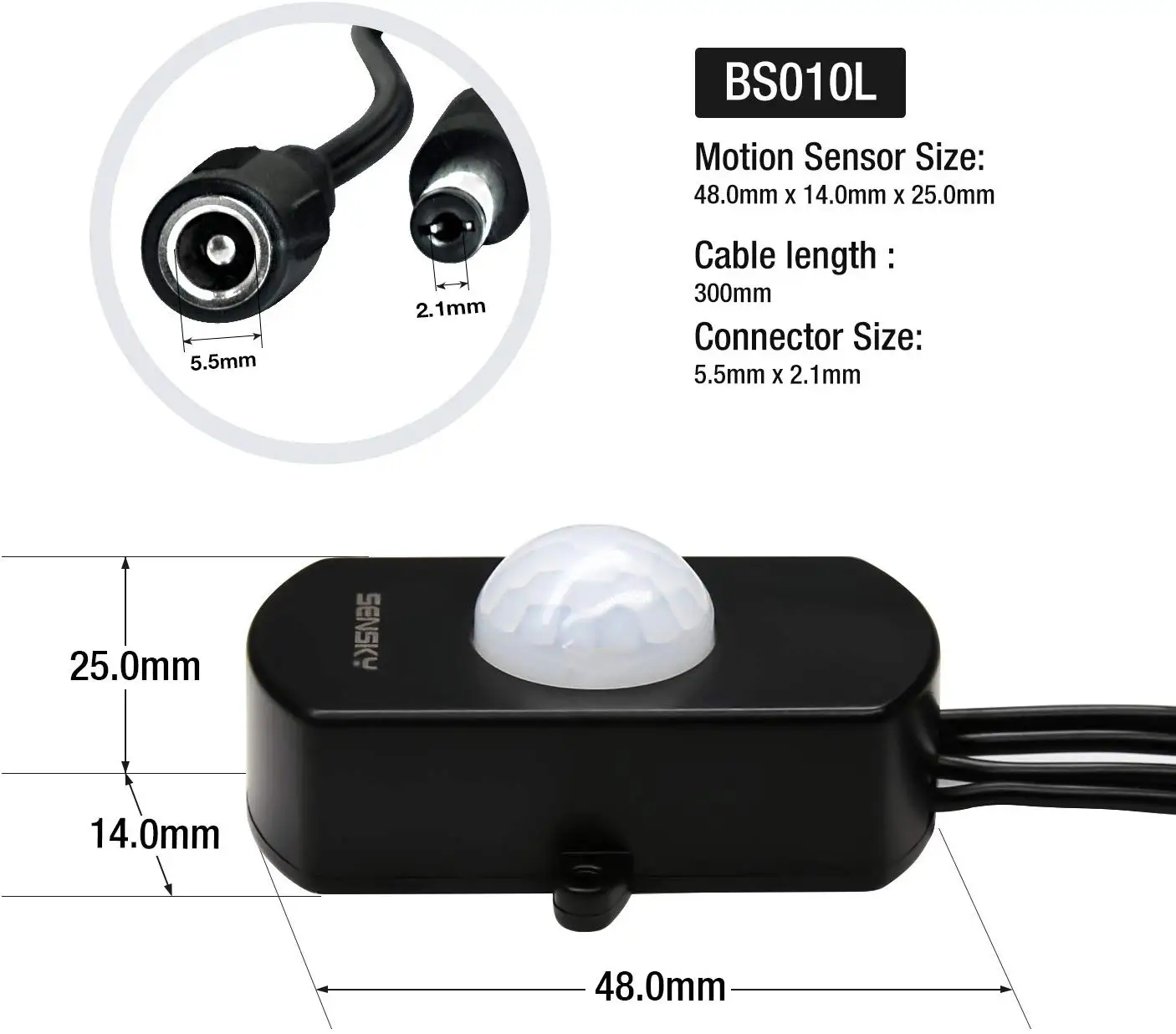

size	48*25*14 mm

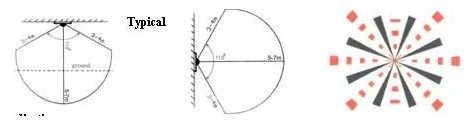

motion sensor switch Detect angle

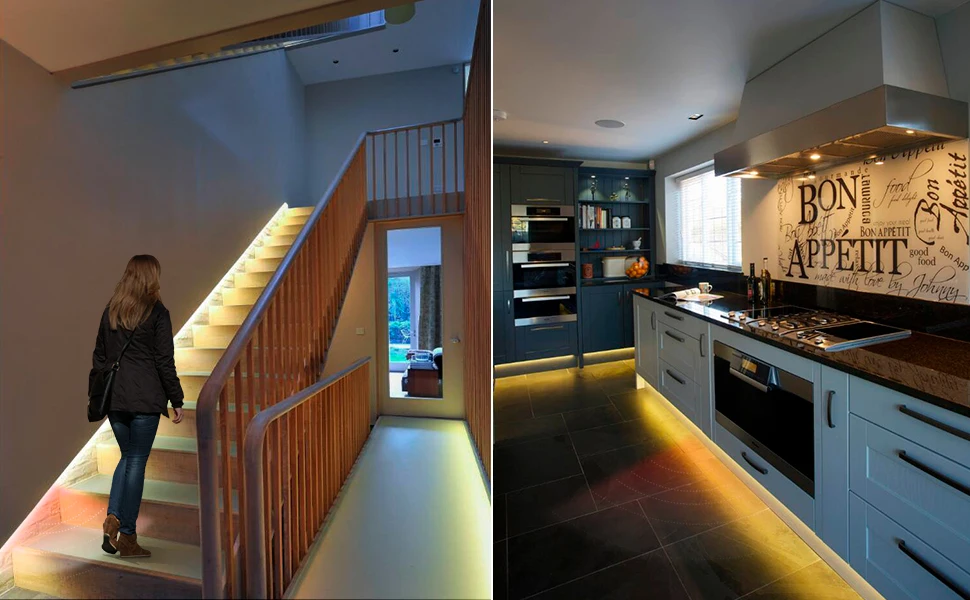

motion sensor switch Application

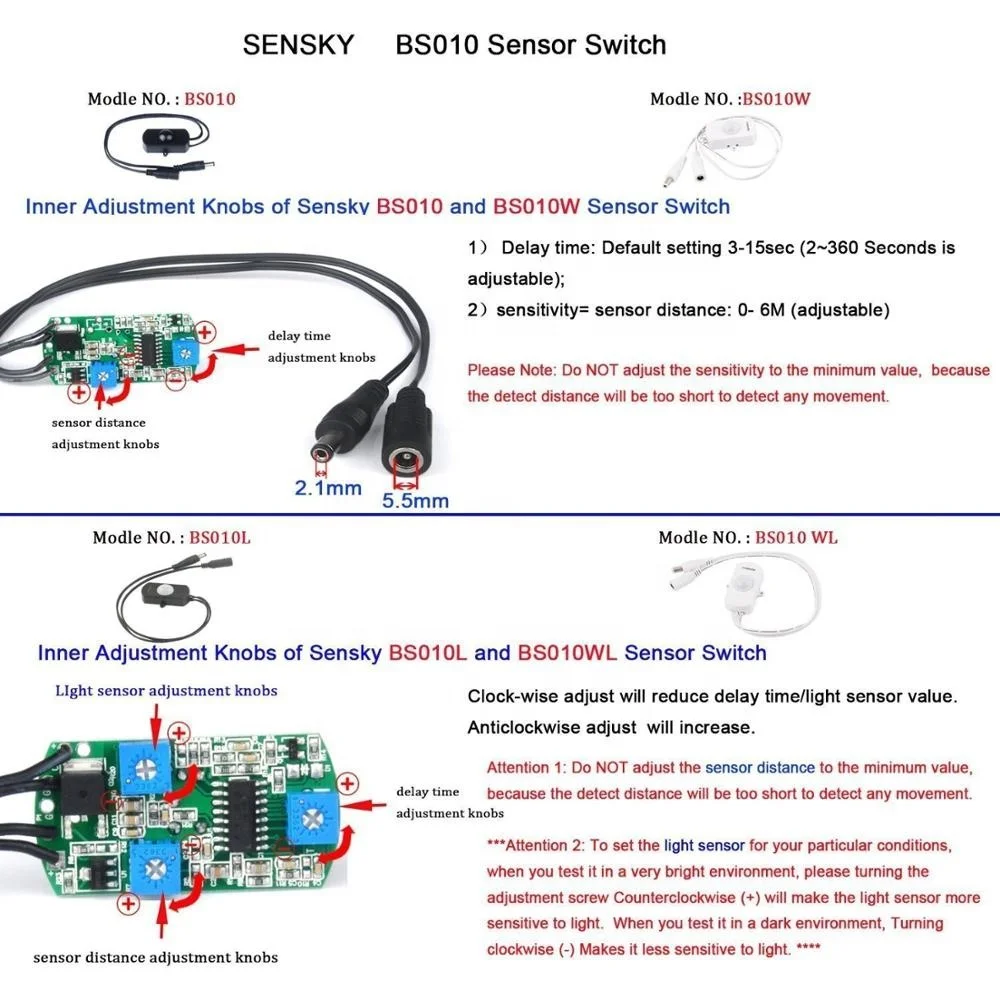

  Clock-wise reduce the delay time and light sensor value

 Anticlockwise increase the delay time and light sensor value



  mini switch Functions and Features

 motion sensor switch Functions and Features



1.    Automatic Induction: When people enter into the range of induction, it will output a voltage equal to input voltage, after the delay time, it will output 0V; during the delay time if motion detected, the delay time will reset, and start a new delay time.

2.    Light sensor control function(for BS010L):It will trigger only in the darkness when environment brightness less than 20lux, otherwise, it’s will not triggered even motion detected.



motion sensor switch notes

1.    Don’t exposed to direct sun light or lighting, big wind, near a heater or air condition.

2.    Don’t fix it at a place where there are obstructing material (eg. Glass, dense clothes) which IR cannot get though.

3.    Don’t fix it in strong shock or vibration environment.

4.    The PIR Sensor requires a ‘warm-up’ time in order to function properly, about 10s to1min,depend on the delay time; during this time, the signal triggered by the module is not stable, after one minute, it will be ready.

5.    The sensitivity for left-right direction is better than up-down direction, make sure the installation direction is left-right.
