DK 320G Model Label Slitter Rewinder Machine with Rotary Die Cutting

Product Overview

Description

DK-320G Slitting  Machine With Rotary Die Cutting Station





Product Description:

This label slitter rewinder machine with die cutting unit is a new developed slitter machine,

It is equipped with high accurate rotary die-cutting system. It can finished die-cutting,laminating(option),

slitting in one precess.It has the functin of automatic meter counting,automatic stop, web guiding.

This machine has the characteristic of compact structure,fast speed,high efficency,easy operation,

accurate slitting and steady running etc. Model 450G is also available for choice.



Technical Specification:
1) Main Structure and Features:

a. This machine is the necessary auxiliary equipment for blank label converting.
b. The machine used for narrow width reel label material die cutting and slitting.
It added one station of rotary die cutting on the basis of DK-320 label slitting machine.
c. Automatic meter counting and number counting.
d. Photocell tracking in unwinding unit.

2) Main technical specifications:



Slitting speed	75m/minute
Rotary die cutting speed	60m/minute
Rotary die cutting circumference	177-476mm
Max width of material	320mm
Max unwinding diameter	500mm
Max rewinding diameter	480mm
Overall dimensions	1.95 (L)×1.2(W)×1.75(H) Meter
Weight	About 960kg

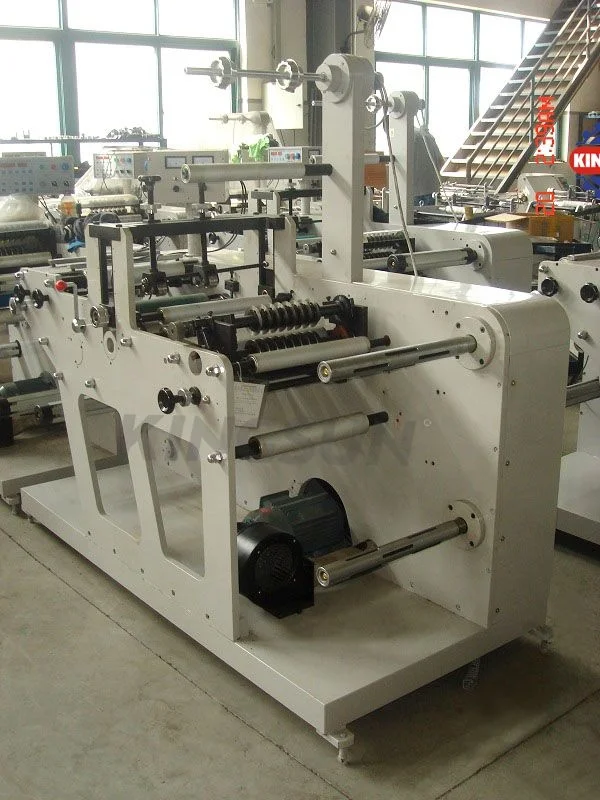

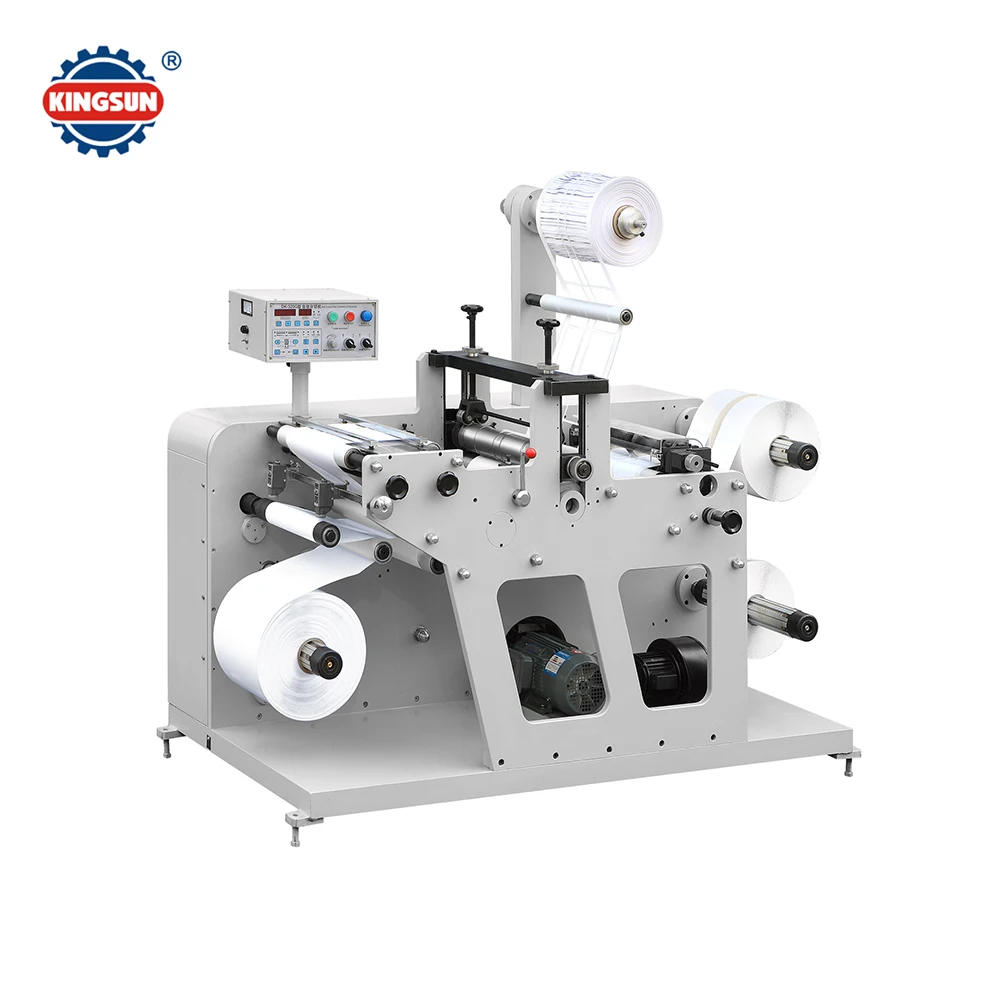

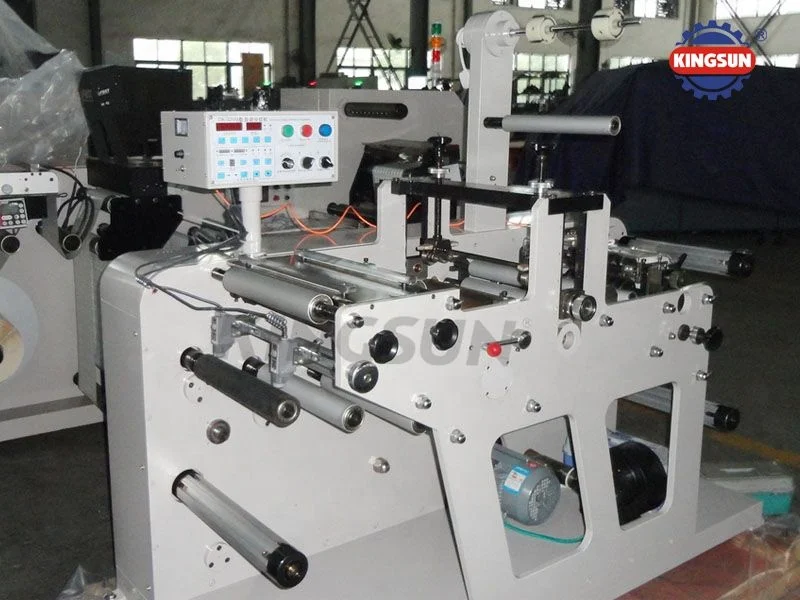

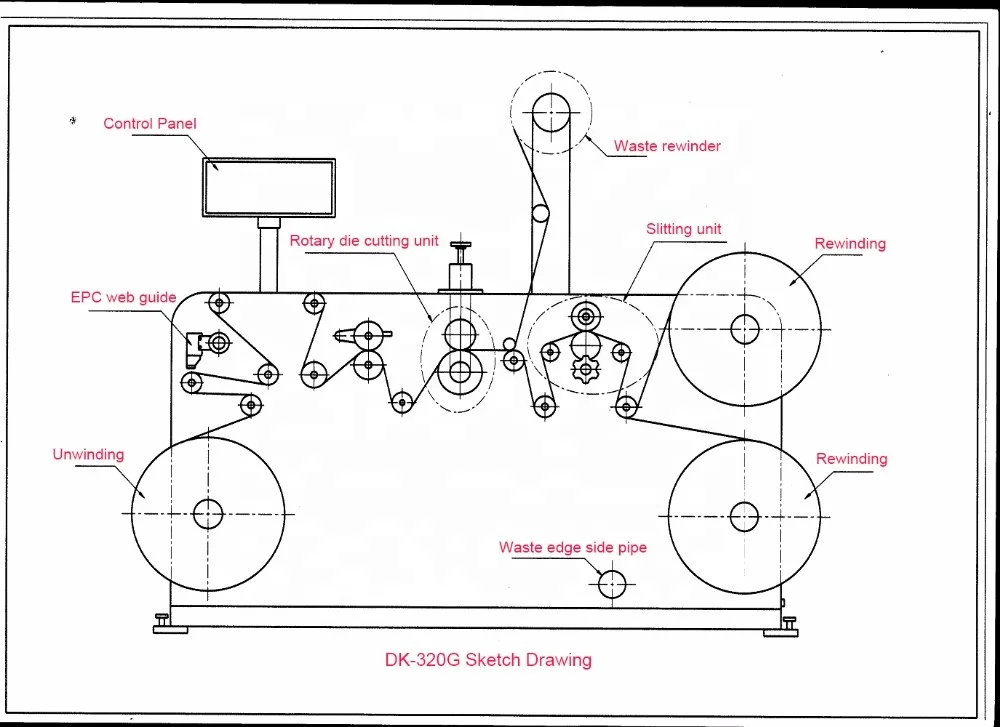

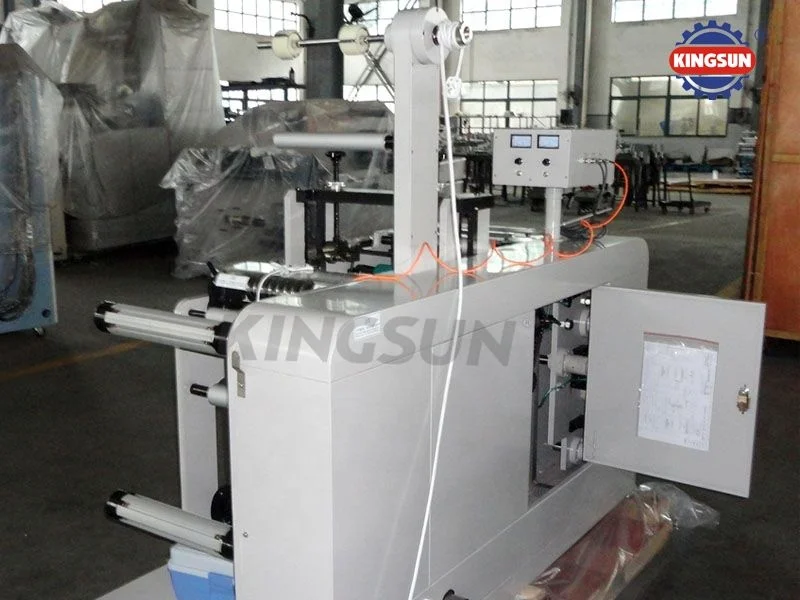

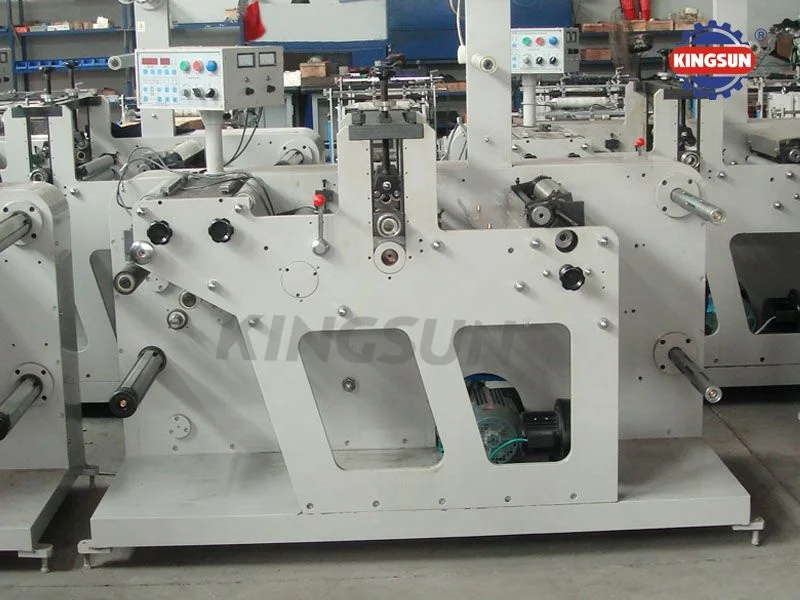

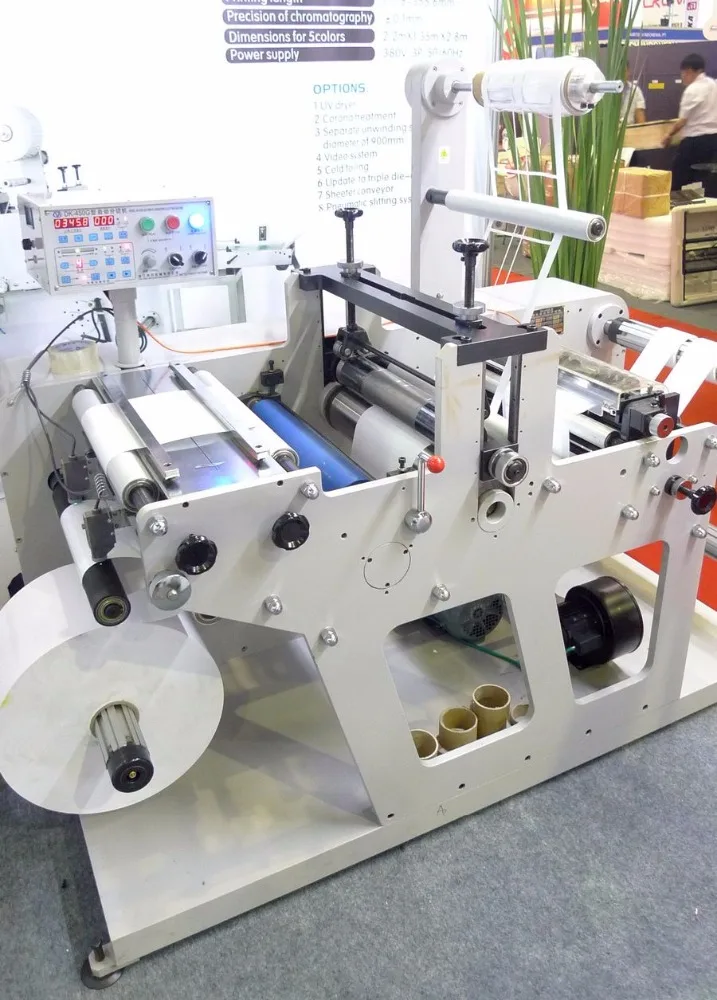

Photo:
