4 Ports,8 Ports Desktop Audio Video KVM Switch

Share on (60243719102):


Price:$145.00 - $165.00

Quantity:


Product Overview

Description



Product Description

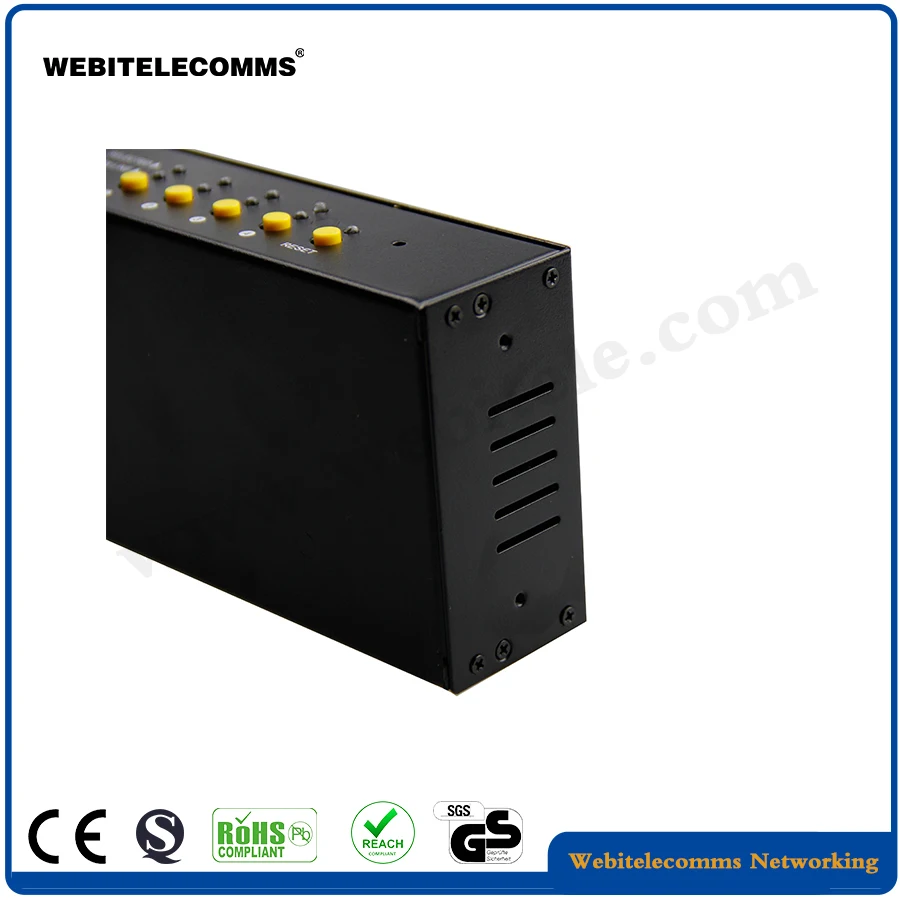

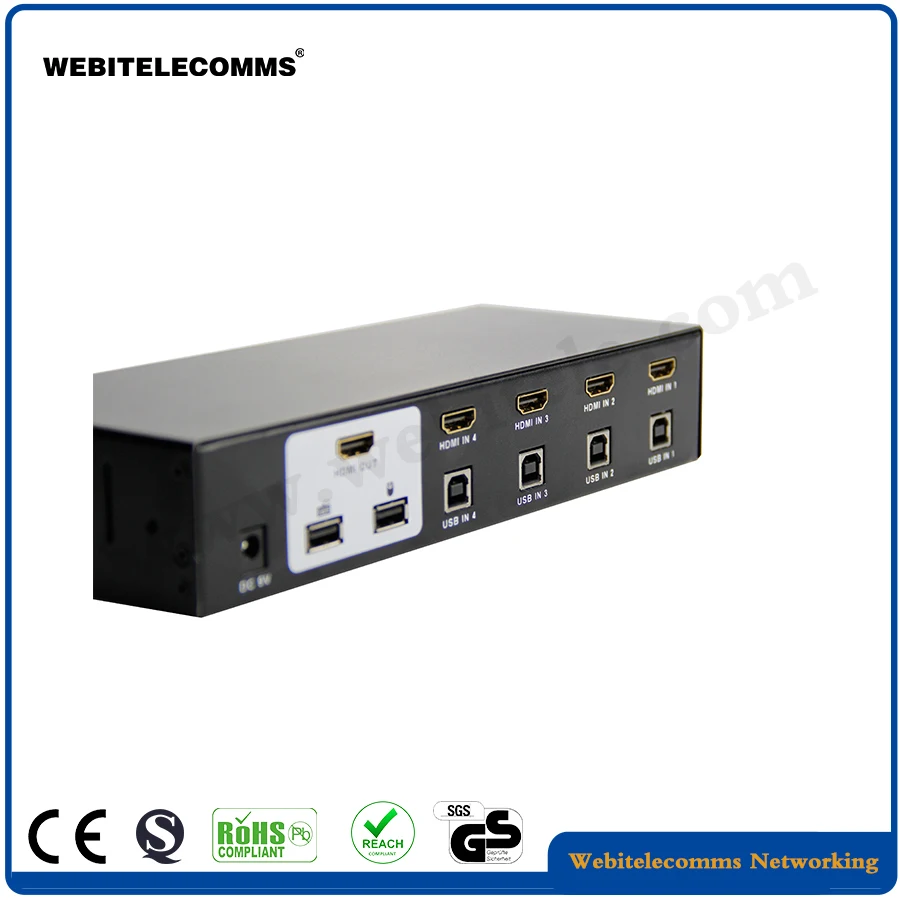

 4 Ports,8 Ports Desktop Audio Video KVM Switch


Products Description:





You can control 2,4,8pcs or other media devices which support Audio Video output and USB Keyboard and mouse input with only 1 set of keyboard,mouse and monitor, support hot plug and don’t need to install any driver. It is easy to switch devices by panel keys, remote control and keyboard hot key command.





Features:





Using one set of keyboard, mouse and monitor to control 2,4,8pcs host devices.


With extra standard USB port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to PC.


Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices.


Support auto switching among all devices so as to monitor the devices in specified time interval.


Support keyboard hot keys to control the KVM switch


Available to use keyboard without any delay after switch host devices.


Support resolutions up to 3840*2160@30hz


Support Unix/Windows/Debian/Ubuntu/Fedora/Mac OS X/ Raspbian/Ubuntu for Raspberry Pi and other Linux based system


Support IR control, easy to control KVM by remote control




















































































































Model No.



WB-HKS0401A1U



Technical



Audio Video+ KVM



Resolution



Max. 3840x2160@30Hz



Transmission Distance



Input: up to 10 meters-24AWG


Output: up to 10 meters-24AWG



Bandwidth



3Gbps

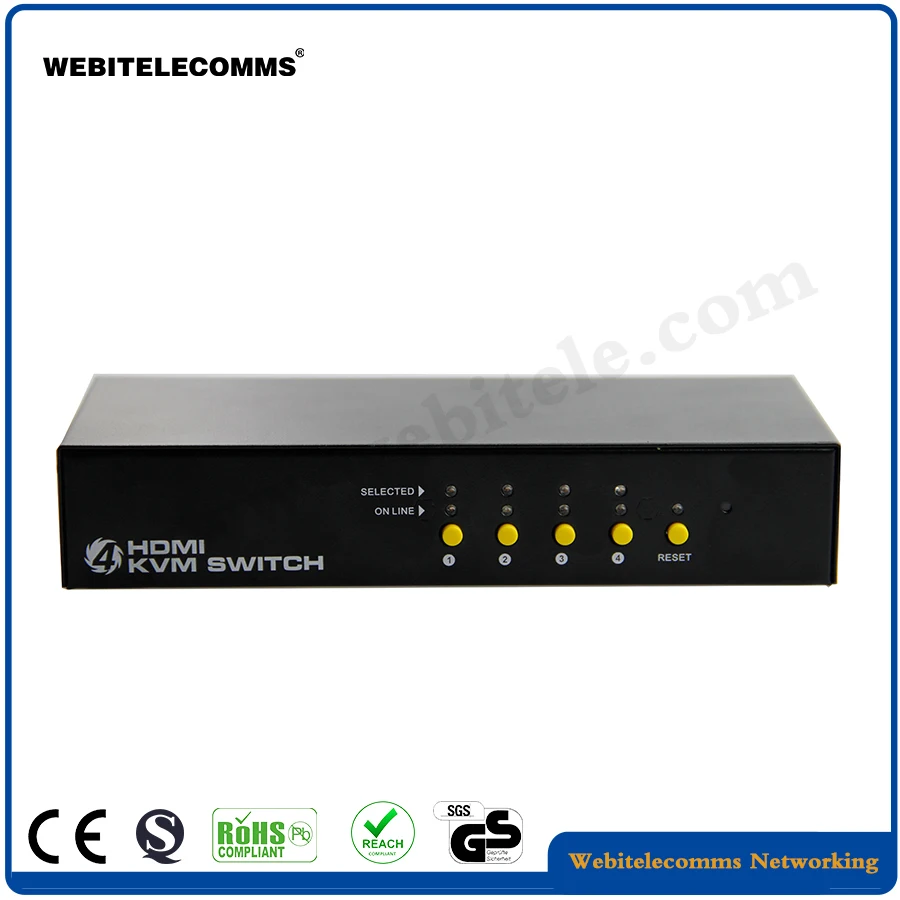

Port selection



Front panel buttons



Yes







Keyboard hotkeys



Yes







IR remote control



Yes







Mouse gesture



Yes



Auto Scan



Supported



Scan interval



1~250 Seconds



Beep Sound



On/Off



OSD



No



Supported OS



Unix/Windows/Debian/Ubuntu/Fedora/Mac OS X/ Raspbian/Ubuntu for Raspberry Pi and other Linux based system



Console ports



Keyboard emulation



1 x USB Type A







Mouse emulation



1 x USB Type A







Extra USB device sharing port



1 x USB Type A







Video & Audio



1 x HDMI Type A

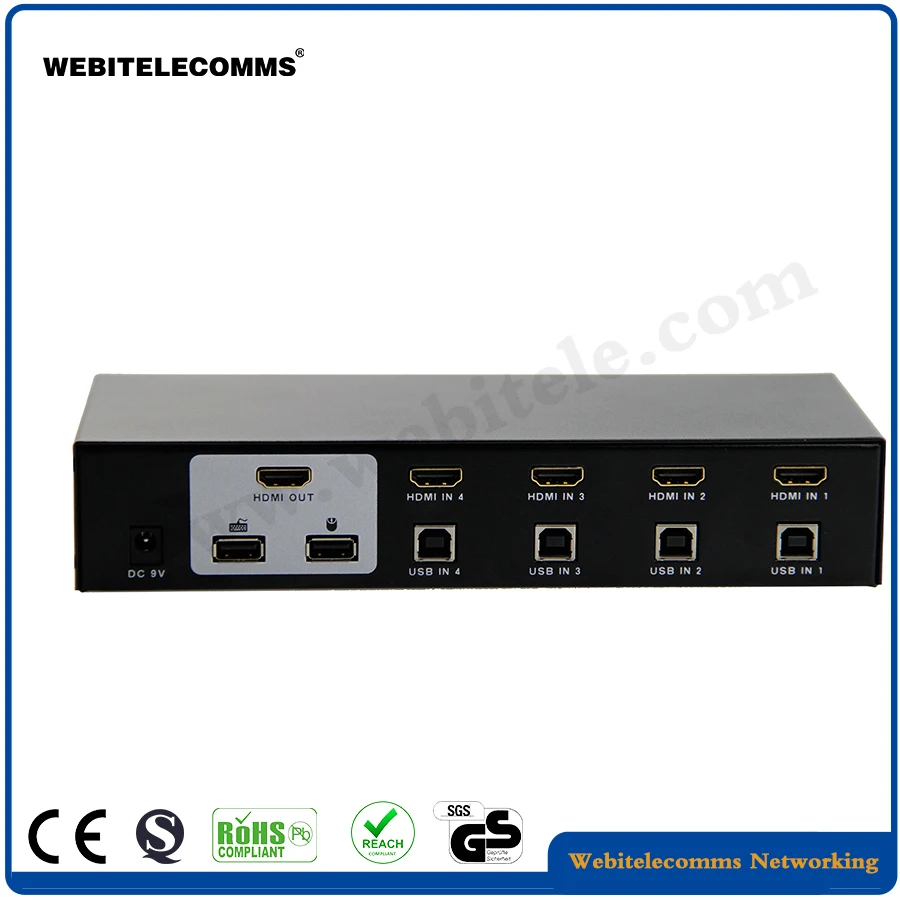

System ports



USB Data



2 x USB Type B







Video & Audio



2/4/8 x HDMI Type A



Product Dimensions



115 (L) x 62 (W) x 25 (H) mm



Item Weight



0.4kg



Power



DC 5V 1A



Operating/Storage
Temperature



0 to 70 degree / -40 to 85 degree



Operating Humidity



10 to 90% RH






Finished Products










Packaging


 .jpg








Workshop & Machines


.jpg





Certificate







Our Services


WEBIT not only takes pride in the quality of our products, but also in the security we give our customers by standing behind them with a complete warranty. We put our products through rigorous performance tests throughout their production cycle before they reach our customers. Knowing to expect the unexpected, we ensure our customer’s satisfaction with a standard and extended warranty.


Standard Warranty


One year limited warranty on WebiT Products(Except man-made,natural disaster,special environmental corrosion).


Extended Warranty


3-Year limited warranty on WebiT Products, upon registration for extended warranty.


Standard and Extended Warranty Terms/Conditions


WebiT guarantees that all Products are free of production defects and will honor warranty claims except where:
1 Product has been altered in such way as to affect the Product.
2 Product has been subject to negligence by Buyer.

3 Product has not been used in accordance with normal practices and/or the recommendations.
4 Product has been destroyed by natural disaster,special environmental corrosion


NOTIFICATION OF DEFECTS. Buyer shall notify WebiT in writing within 30 days of discovering a defect. Failure to do so, will disqualify the Product from its warranty.

WARRANTY LIMITATIONS. Upon receiving notice of defective Product, WebiT will negotiate with buyer how to handle the defects,compensation,replacement or refund the purchanse price in new business.

Both WebiT & the Buyer agree that this warranty and all legal action between each other shall be construed under and governed by the rules of the China Busines Council in the buyer's country.





FAQ


Who is WebiT?


Since 2003 XEBIT (WebiT's HQ) was built, WebiT has grown considerably to become a leading supplier of integrated cabling products in China. We owe our success to vast and diversified range of indoor/outdoor 19’'cabinets,PDU and other cabling products,professional
production technology,expert knowledge of the markets and a reputation for superior customer satisfaction.


With the unique location advantage of Ningbo port,WebiT has exported to over 30 countries.Though under the increasing competitive pressure in the global market,we keep looking for new opportunities and challenges.


Why Choose WebiT Co.,Ltd?


1.Innovative and complete solution provider
2.Professional and timely technical support
3.Comprehensive certificate authentication
4.Strict testing and packing section
5.Stocks available
6.OEM/ODM production service
7.Perfect after-sales service
8.1 year warranty period after sales(except man-made,natural disaster,special environmental corrosion)
