Water pump controller / water flow timer / DC 12V water pump timer / DC 12V water flow controller / DC 12V water motor time controller/ timer delay
Product Description
Main function:

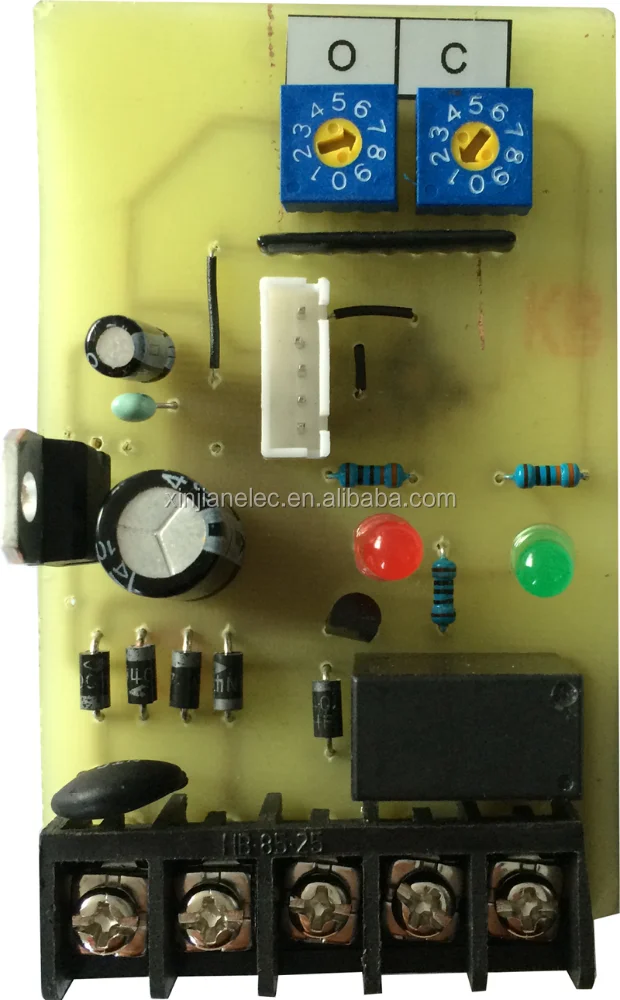

Model DP5 is a timer, on and off time can be programmed. It can output a signal for water pump or water valve.
Green indicate light shows output, and red indicate light shows power on.
Control logic:
After energize the controller, controller output on signal for motor, and release the signal after preset value (switch 1). Restart motor after preset time (switch 2), it’s a auto work cycle.
Technical Parameter:
Power: DC 12V
Physical: operating temperature:-25℃~55℃
Operating humidity: 10%~90%
Output capability: 3A@DC12V
ON time: 0-9 S
OFF time: 0-9 Min
Measurement: 5 x 8 cm
Packaging & Shipping
10 pcs packed in one carton.
