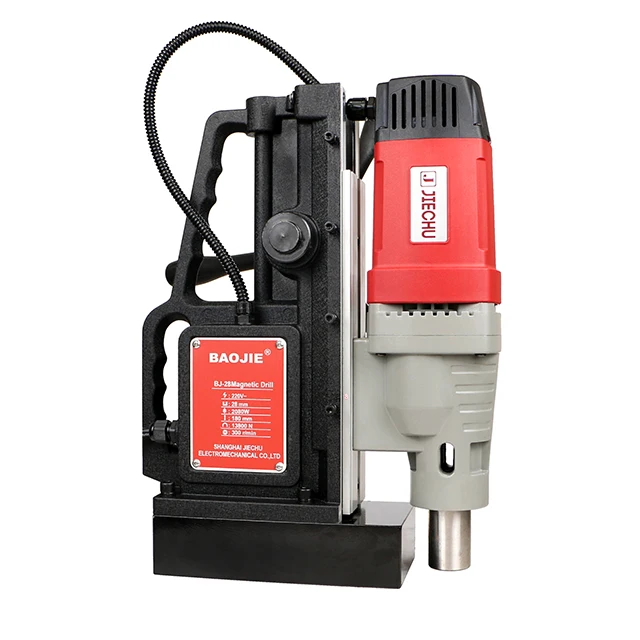

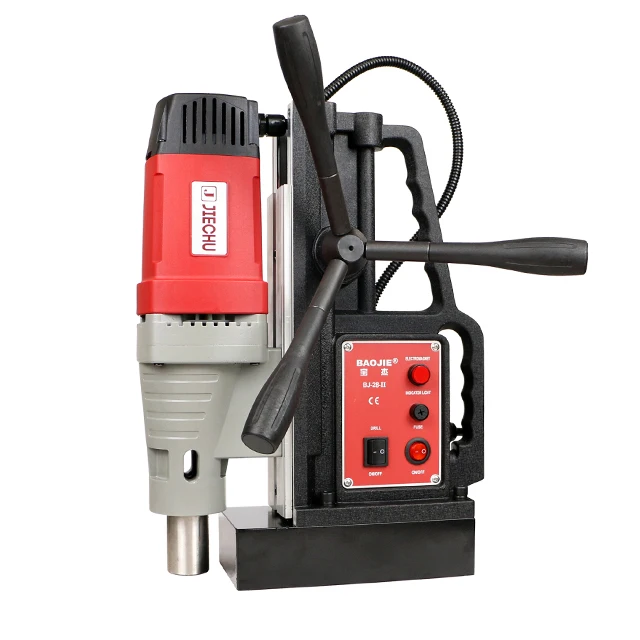

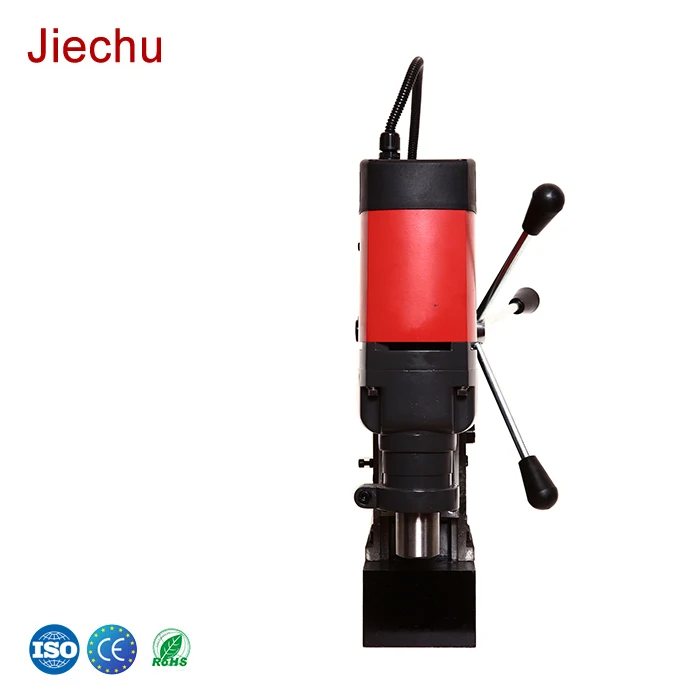

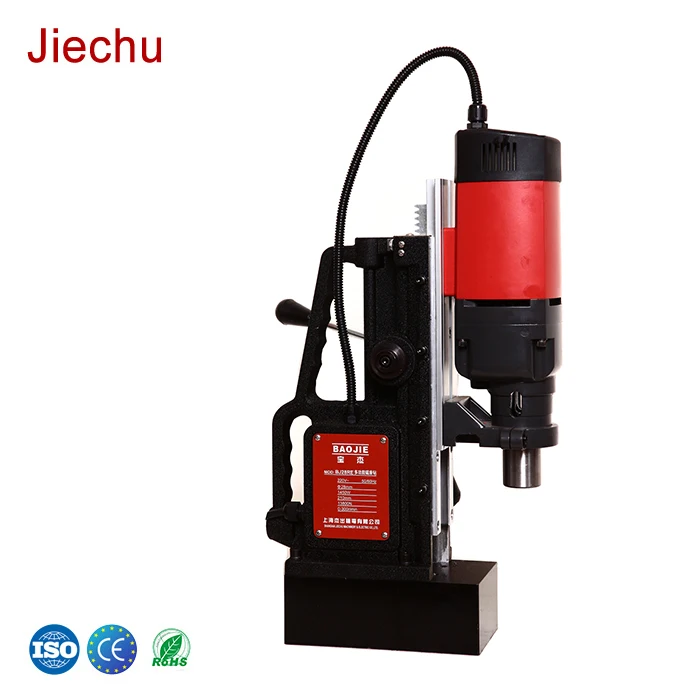

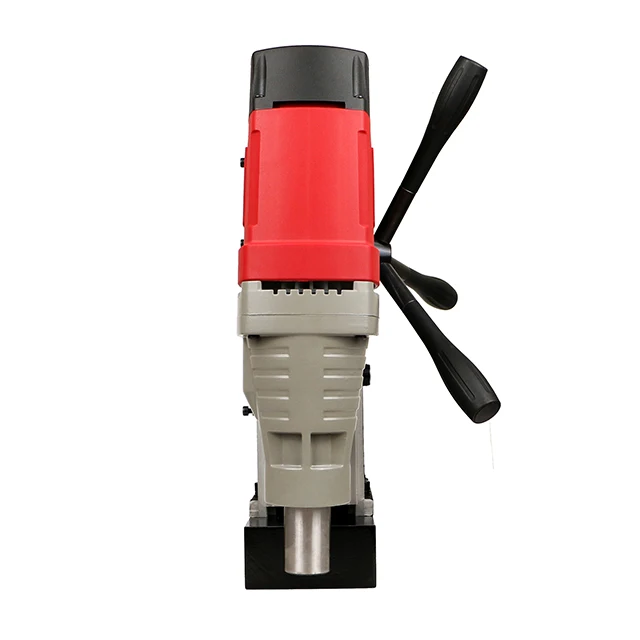

28mm BJ 28RE new machine japan quality magnetic core drill machine for drilling steel
- Category: >>>
- Supplier: Shanghai Jiechu Electromechanical Co. Ltd.
Share on (60244293605):
Product Overview
Description
28mm new machine japan quality magnetic drill for drilling steel

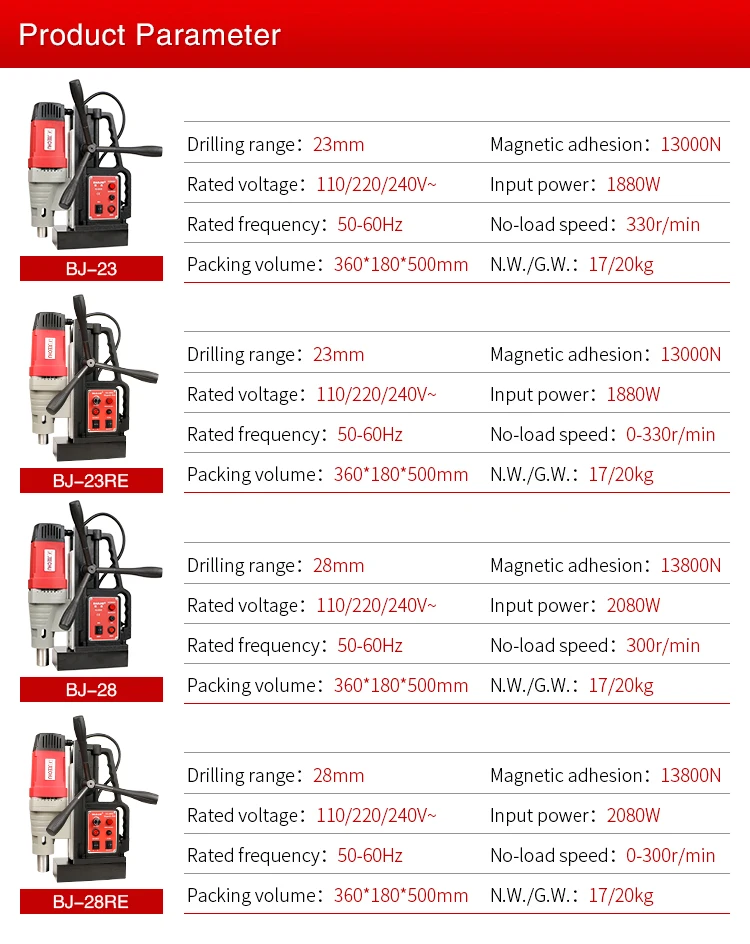

| No. | Model name | Max drilling range | Rated voltage (V) | Rated frequency (Hz) | Rated input power (W) | No-load speed (r/min) | Magnetic adhesioin (N) | dimension (mm) | weight (kg) |
| 1 | BJ-13 BJ-13RE | 13mm | 110/220/240 | 50-60 | 1280 | 790, 0-790 | 11000 | 350*170*350 | 11.5 |
| 2 | BJ-16 BJ-16RE | 16mm | 110/220/240 | 50-60 | 1380 | 680, 0-680 | 11500 | 350*170*350 | 13 |
| 3 | BJ-23 BJ-23RE | 23mm | 110/220/240 | 50-60 | 1880 | 330, 0-330 | 13000 | 365*170*485 | 24 |
| 4 | BJ-28 BJ-28RE | 28mm | 110/220/240 | 50-60 | 2080 | 300, 0-300 | 13800 | 365*170*485 | 25 |
| 5 | BJ-32 BJ-32RE BJ-32RCE | 32mm | 380v | 50-60 | 1700 | 280, 150/280, 75/150/280 | 14500 | 510*250*600 | 50 |
| 6 | BJ-38 BJ-38RC BJ-38RCE | 38mm | 380v | 50-60 | 1830 | 250, 135/250 70/135/250 | 15500 | 510*250*600 | 50 |
| 7 | BJ-49 BJ-40RC BJ-49RCE | 49mm | 380v | 50-60 | 2000 | 220, 120/220, 65/120/220 | 16500 | 510*250*600 | 50 |
| 8 | BJ-60 BJ-60RC BJ-60RCE | 60mm | 380v | 50-60 | 2750 | 205, 105/205, 30/105/205 | 19500 | 510*250*700 | 54 |
| 9 | BJ-80 BJ-80RC BJ-80RCE | 80mm | 380v | 50-60 | 2850 | 185, 95/185, 50/95/185 | 20000 | 510*250*700 | 54 |
| No. | Product mode | Max drilling range | Rated voltage (V) | Rated frequency (Hz) | Rated input power (W) | No-load speed (r/min) | Magnetic adhesioin (N) | dimension (mm) | weight(kg) |
| 1 | BJ-2800E | 28mm | 110/220/240 | 50-60 | 1480 | 0-680 | 13000 | 350*170*400 | 15 |
| 2 | BJ-3800E | 38mm | 110/220/240 | 50-60 | 1620 | 0-650 | 14500 | 350*170*400 | 15 |
| 3 | BJ-6800E | 68mm | 110/220/240 | 50-60 | 1720 | 0-580 | 15800 | 410*185*490 | 24 |
| 4 | BJ-7800E | 78mm | 110/220/240 | 50-60 | 1880 | 0-550 | 16500 | 410*185*490 | 24 |
| 5 | BJ-9800E | 98mm | 110/220/240 | 50-60 | 2080 | 0-520 | 16800 | 410*185*490 | 27.2 |
| 6 | BJ-1280E | 128mm | 110/220/240 | 50-60 | 2180 | 550/750/0-750 | 17000 | 410*185*490 | 27.2 |
