HCVAC pvd process chroming coating machine pvd coating,chrome sputtering vacuum plating machine,vacuum chrome plating machine
- Category: >>>
- Supplier: Guangdong HuiCheng Vacuum Technology Co. Ltd.
Share on (60244308271):
Product Overview
Description
Product Description

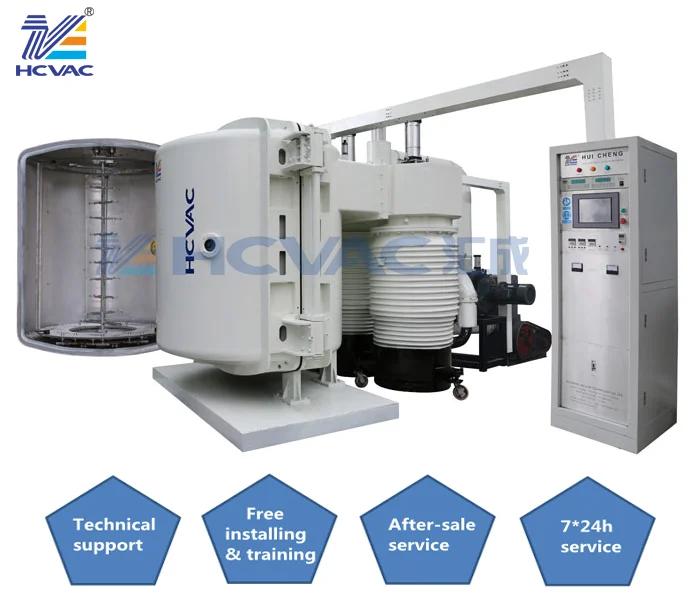

The machine use Vacuum metallizing technology match with Painting line to get all kinds of color metallic finishing on Products.We can do Turnkey Project for customers including Vacuum PVD coating, UV Automatic Painting line.
| Technology |
The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Thermal Resistance Evaporation Coating Technology: Thermal vacuum deposition is one method for fabricating thin films under a high vacuum environment also addressed as "thermal evaporation method". With this method, an electron beam (e-beam) or resistive heating is usually used to evaporate the desired material inside the vacuum coating chamber, which then adheres to a substrate placed above it. This method can classified as a form of PVD, which stands for physical vapor deposition, and is suitable for fabricating high-quality thin films with thicknesses on the order of nanometers on glass, plastic, films, metals, and almost any other kind of material.
| Features |
Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
Applied industry: Widely used in automotive, audio and varinous small appliances, computers, clocks and watches, toys cell phones reflective Cup, cosmetics toys tableware sanitary shoe heel, ABS, PS, PP, PC, PVC, PET, nylon,metal, Boli, glass, ceramics, TPU, etc.
Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, wiredrawing,raindrop ect.
Coating color: gold, silver, red, blue, green, purple,rainbow color ect.
| Mode | ZZ-1214 | ZZ-1416 | ZZ-1618 | ZZ-1820 |
| Dimension (D*H) | 1200*1400mm | 1400*1600mm | 1600*1800mm | 1800*2000mm |
| Film type | Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc | |||
| Power source | Thermal evaporation power, ion bombard power, RF power | |||
| Vacuum chamber structure | Vertical double/single door, horizontal single door, pump system postposition | |||
| Ultimate vacuum | 8.0*10-4Pa | |||
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump +Holding pump | |||
| Pump time | Pump from atmosphere to 5.0*10-2,<=6 minutes | |||
| Workpiece motion mode | Public rotation/ Frequency control | |||
| Control mode | Manual/Automatic all in one mode, Touch screen + PLC | |||
| Remark | We can design the dimension of the equipment according to customer’s special technique requirement. | |||
Stainless steel chamber:
Carbon steel chamber:
UV curing line:

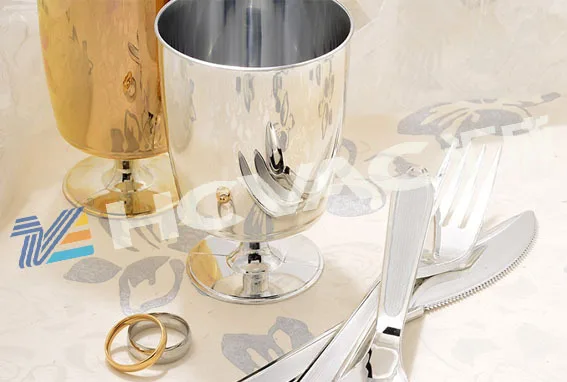

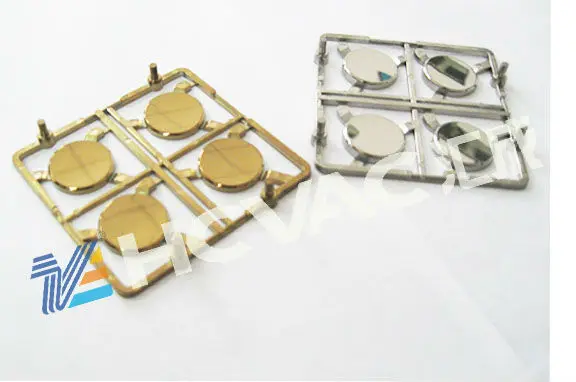

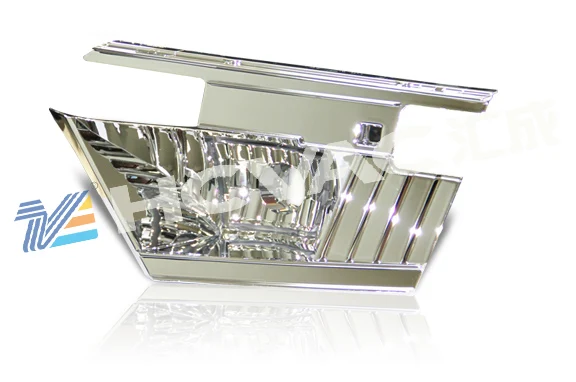

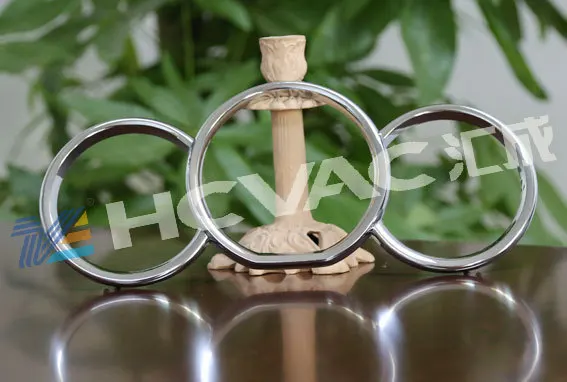

| SAMPLE PHOTOS | |
Company Information
Guangdong Huicheng Vacuum Technology Co., Ltd. is a high-tech enterprise specialized in the R& D,
production, and marketing kinds of Vacuum coating machine and related products. We start in this field in 2006, and already install machines more than 40 countries.
production, and marketing kinds of Vacuum coating machine and related products. We start in this field in 2006, and already install machines more than 40 countries.
Factory workshop:
Certifications
Packaging & Shipping
Successful Case
Advantages
Why Choose HCVAC system?
· Over 3000 plants installed worldwide
· Quick cycle times
· High production capability with low energy consumption
· More up time due to ease of loading/unloading and low maintenance
· High productivity with only a single operator
· Steel process chambers, built to last
· Eco-friendly
· Space saving design
· PVD option available on all plants
· 1 year component warranty and 25 years minimum guaranteed working life
· Complete global network of consulting, engineering and renowned after sales service
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
ISO 9001 standard to ensure the quality can meet the customer’s requirements.
Contact us
More information about our vacuum coating machine,pls do not hesitate to contact:
Contact person: Mandy Liu
Phone No./whatsapp: +8613825755941
Skype: liuyingyu7
Email: mandy(at)hcvac.com
