Best sell speaker dual 5 inch line array active line array

Product Overview

Description





DESCRIPTION and APPLICATION:

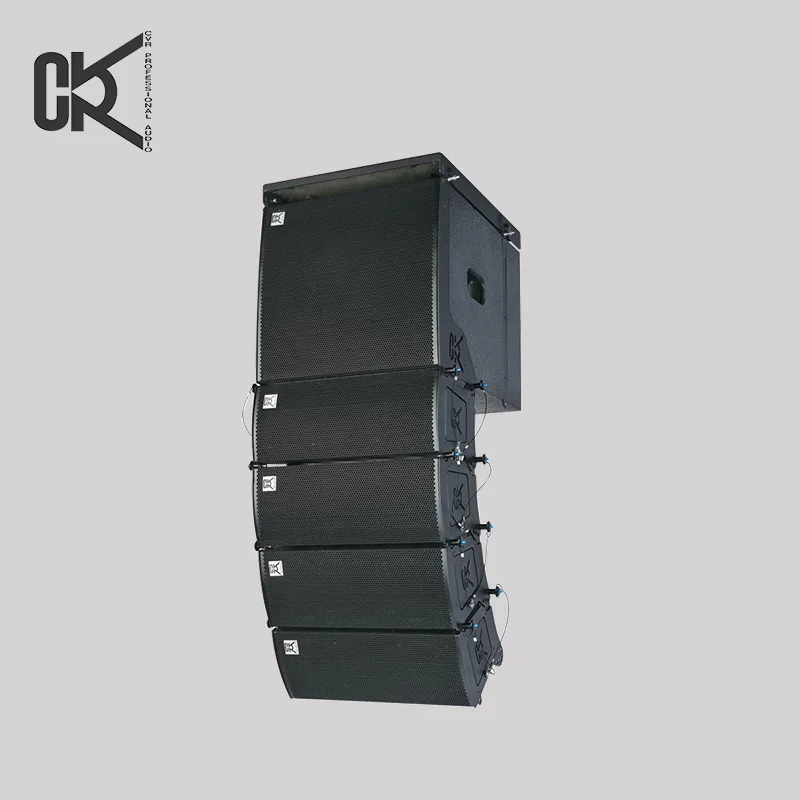

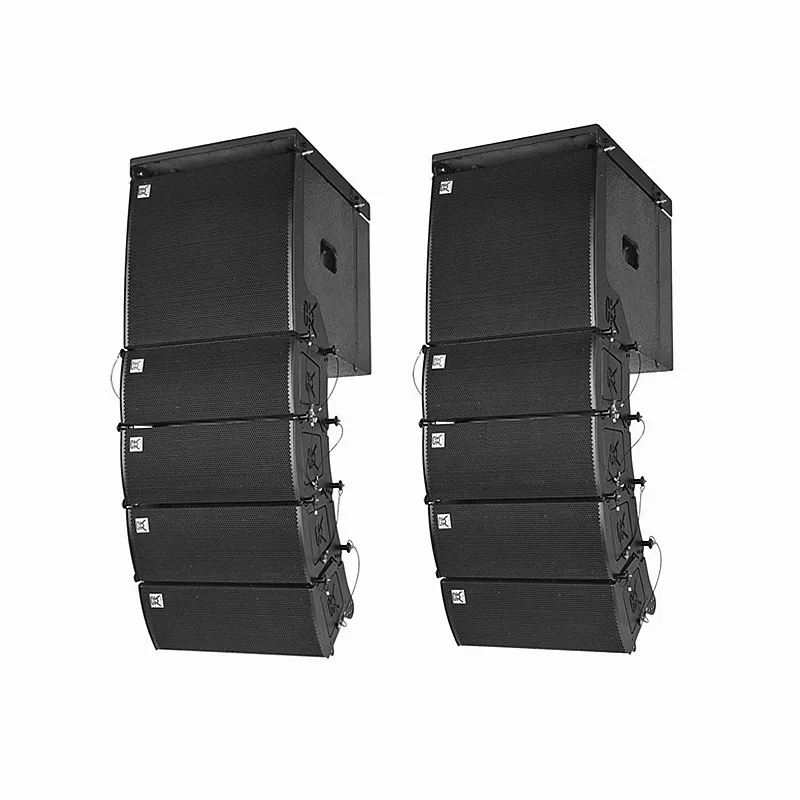

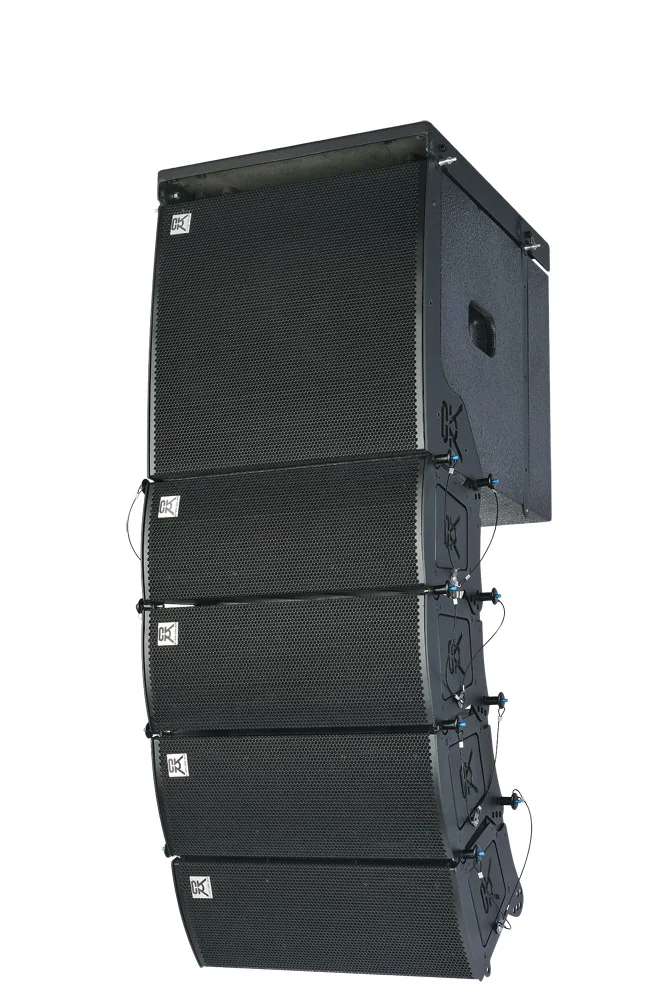

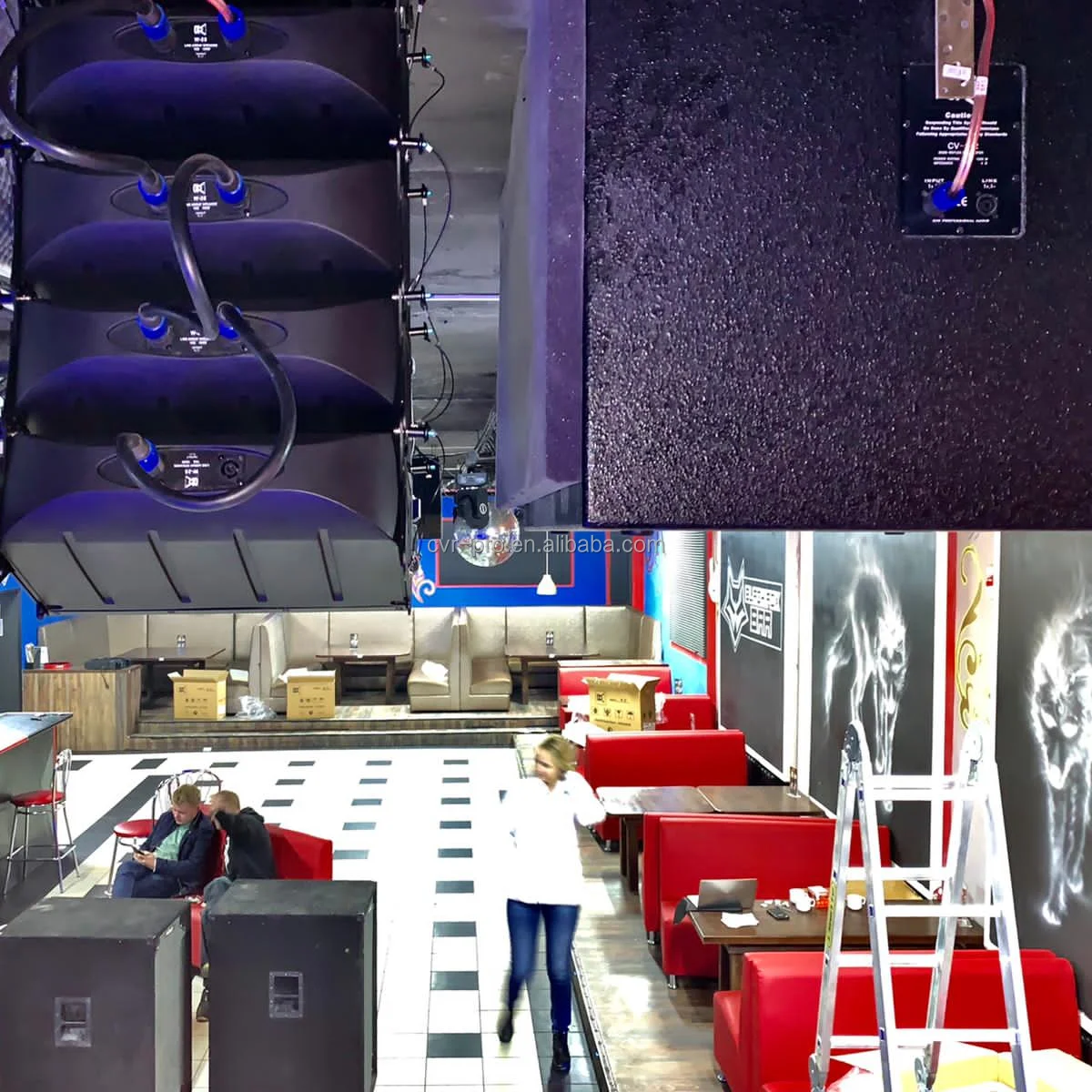

        W-25 is a line array system which is made of two 5" woofers, a 1.4" compression driver and high performance low distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required, a W-25 will integrate seamlessly with W-12P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-25 is very versatile and scalable for a wide range.
      W-12P is a dedicated high performance sub-bass system designed to augment the low frequency output of W-25. The W-12P features a highly efficient power amp module and incorporate DSP. This efficient design enables the flown combination of W-12P and W-25.The physical dimensions of W-12P are identical to the W-25 and it's equipped with the same proprietary rigging system.It's features with two 10 inch woofer with magnet structure and suspensions engineered for maximum.

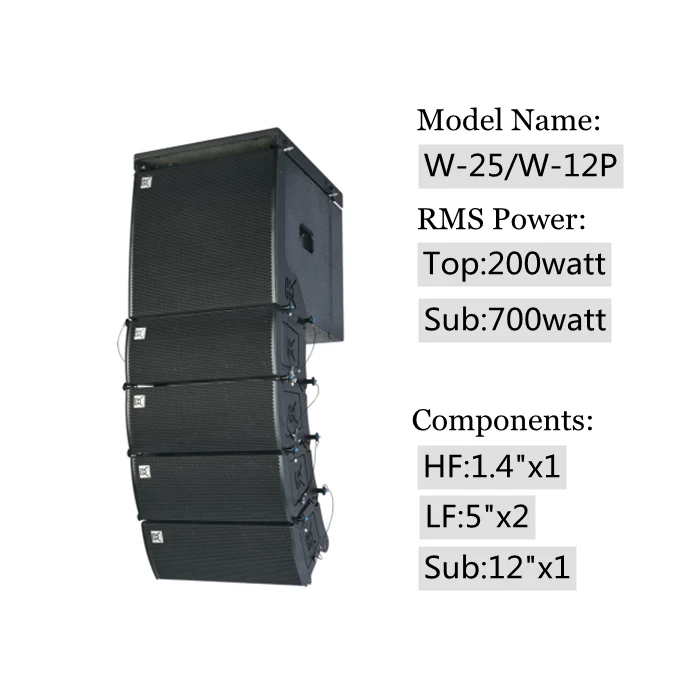

Model	W-25
Type	Two-way line array system
Frequency Response	80Hz-20KHz±3dB
Power capacity	200W(RMS)800W(PEAK)
Sensitivity	91dB(1W/1M)
Max SPL	110dB(PEAK/1M)
Drivers	LF 2×5"(135mm)woofer with 25mm (1in) coil
	HF 1×1.4"neodymium compression driver with 34mm titanium diaphragm
Nominal impedance	16 ohm
Coverage	110ºH×9ºV
Connectors	2×NL4MP speakon
Dimensions	410×163×248mm(W×H×D)
Packing Dimensions	610×25.5×47.5mm(W×H×D)/0.07cbm
Enclosure Material	HDPE
Net weight	6.5kg
Gross weight	14.5kg



Model	W-12P
Type	Line array subwoofer system
Frequency Response	50Hz-600Hz±3dB
Power capacity	700W(RMS)2800W(PEAK)
Sensitivity	97dB(1W/1M)
Max SPL	127dB(1W/1M)
Drivers	1×12"(310mm)woofer with 100mm (4in) coil
Nominal impedance	8 ohm
Connectors	2×NL4MP speakon
Finish	Textured paint
Enclosure Material	Plywood
Dimensions	408×392×494mm(W×H×D)
Packing Dimensions	490×480×575mm(W×H×D)/0.13CBM
Net weight	27.5kg
Gross weight	29.5kg



Power Amplifier Specification
Amplifier type	Switching mode amplifier,class D circuit
Power Output(RMS)	2X600W/4ohm    2X900W/8ohm
Other functions	DSP Built-in
Weight	6.0kg

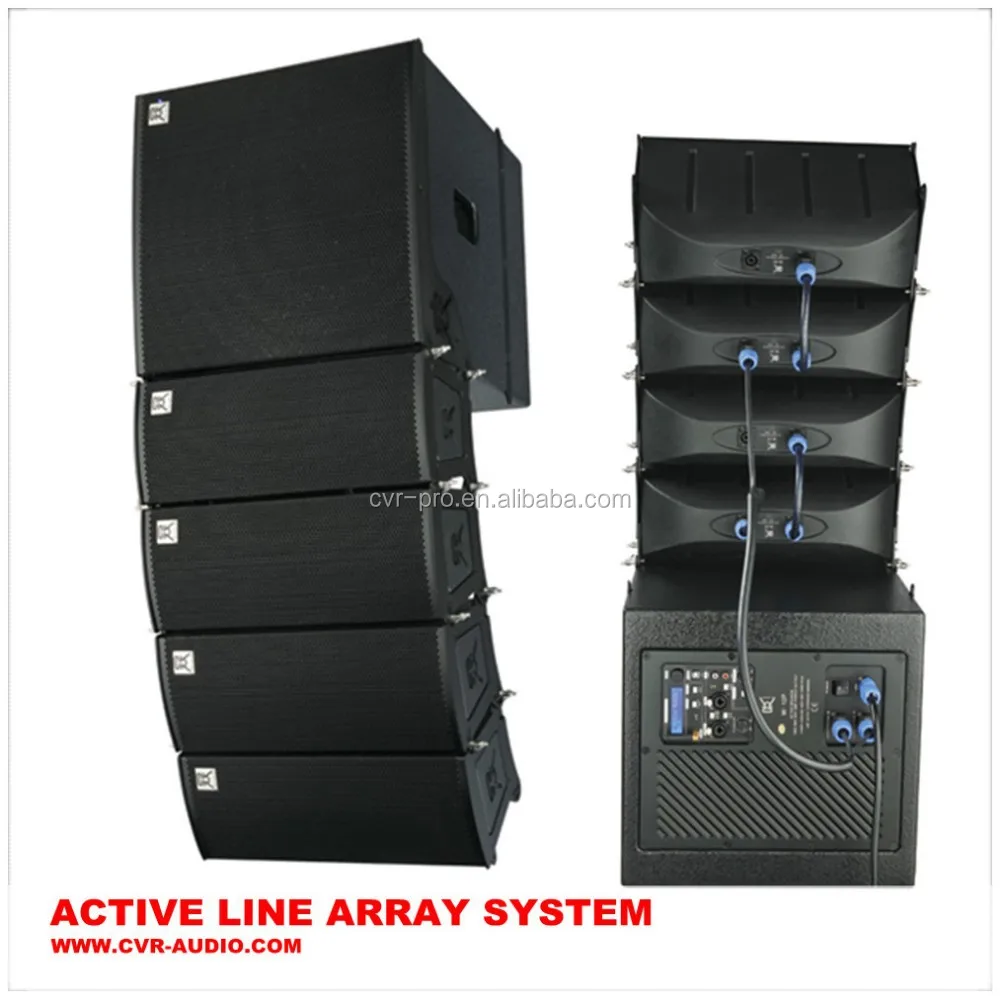

Configuration	The amp moduie is built inside W-12P,Which is designed to power 4/W-25+1/W-12P
