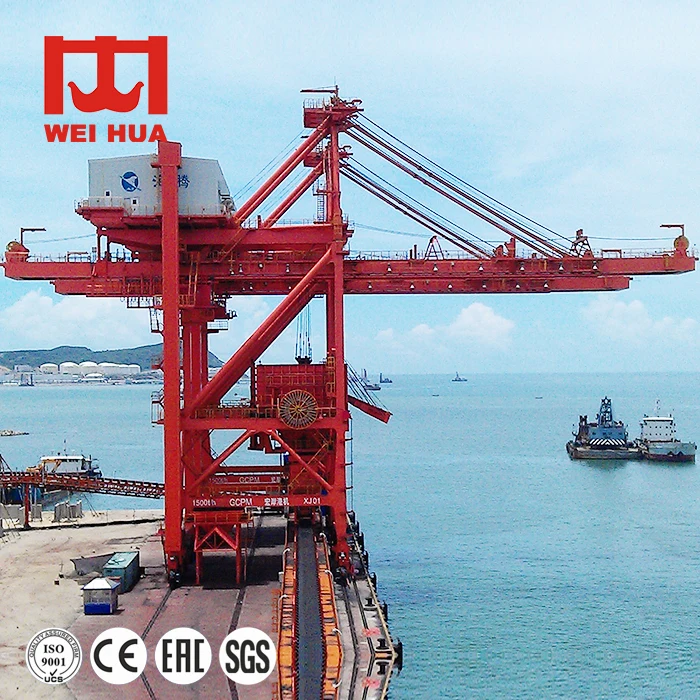

high frequency Quay crane, port crane expert, unload ship crane
Product Description
Quayside container cranes (abbreviation STS, QC), mainly composed of steel, lifting structure,tilt mechanism, crane traveling mechanism, trolley traveling mechanism, machine room, lift containerspreader, electrical equipment and other necessary safety and auxiliary equipment.
Depending on the type of trolley, the model is divided into traction, semi-traction, self-propelled, withthe adoption of PLC control systems and CMMS automatic-fault monitoring and diagnostic functions,there is sufficient communication and lighting. The steel is divided into single, double boxstructure,the girder structure and H-type gantry structure.

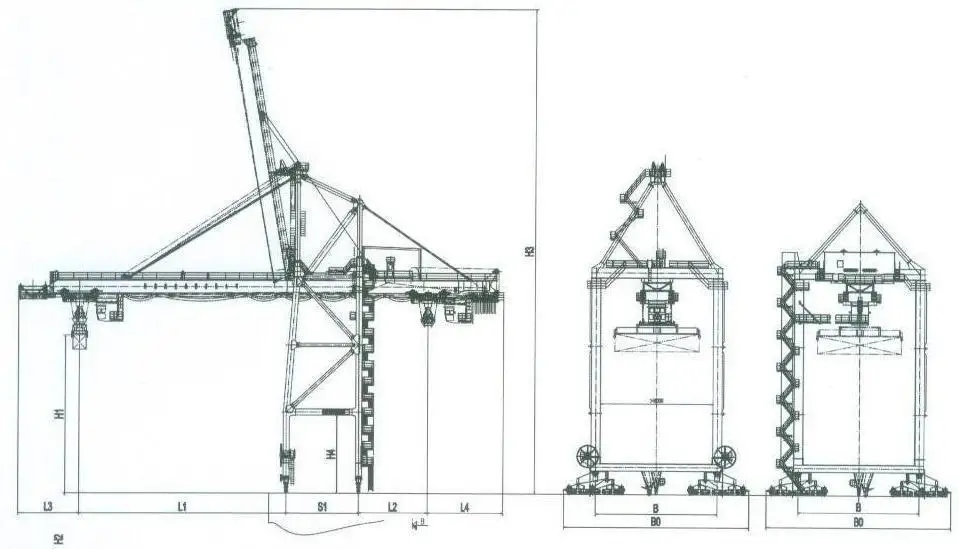

Drawings
Technical parameter
Capacity(under spreader)
t
30.5
35
40.5
50
65LT
Duty
A7
A7
A8
A8
A8
Span
m
10.5
10.5
22
22
22
Base
m
16
16.5
16.5
18
18
lifting height(above rail)
m
16
22
28
38
48
lifting height(below rail)
m
26
16
14
14
14
hoisting speed (full load)
m/min
50
46
50
70
70
hoisting speed (only spreader)
m/min
100
90
100
150
150
trolley traveling speed
m/min
150
120
160
220
320
gantry traveling speed
m/min
45
45
45
45
45
Boom hoisting time (one way)
min
6
6
5
5
5
Total Power
kW
~650
~650
~920
~1400
~1800
max wheel load (duty)
kN
320
480
560
650
850
crane rail
QU80
QU80
QU100
QU120
QU120
Power supply
3-phase AC (50 or 60Hz)

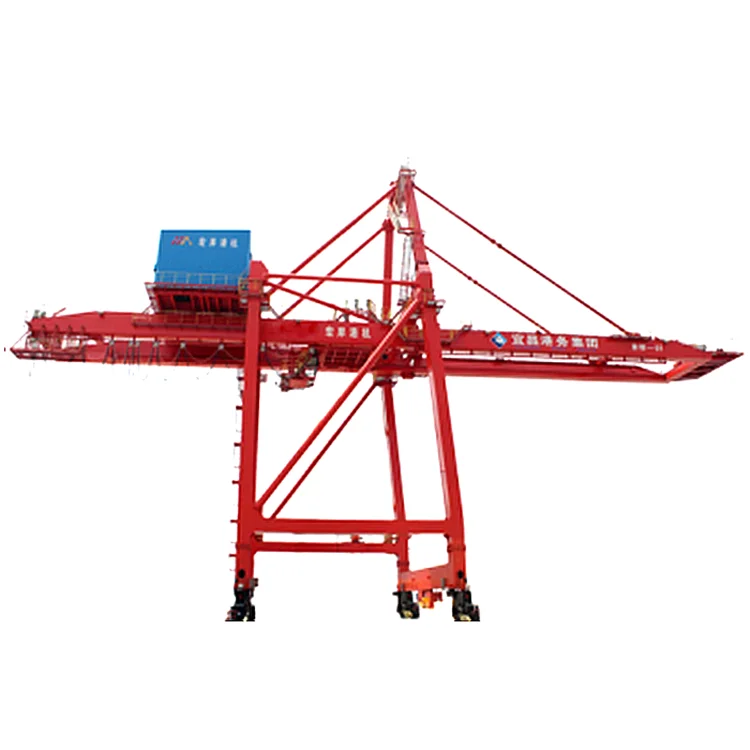

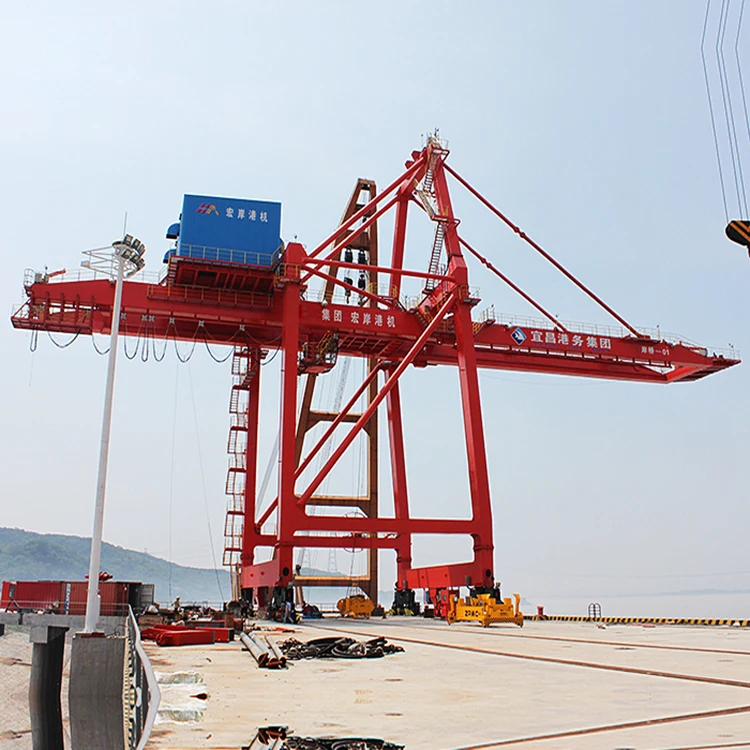

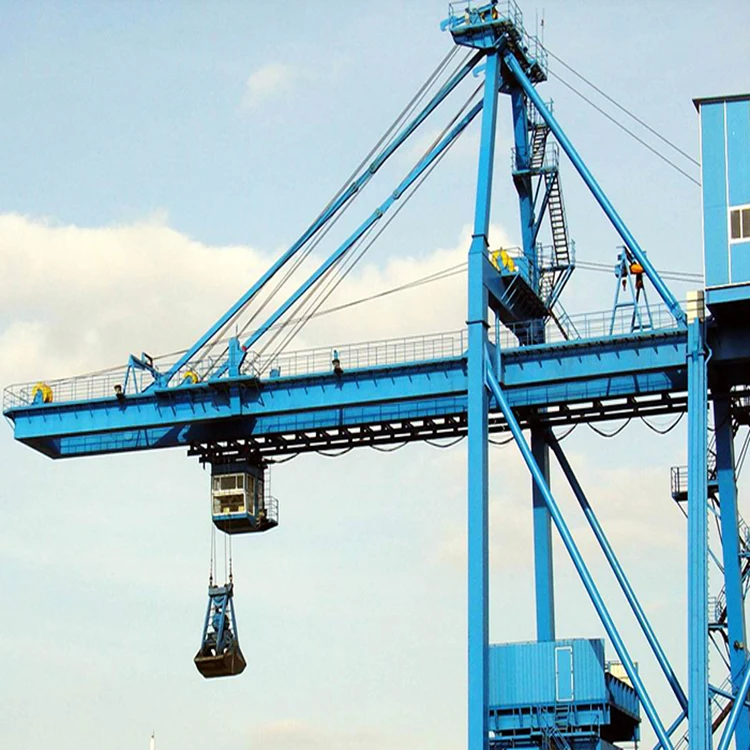

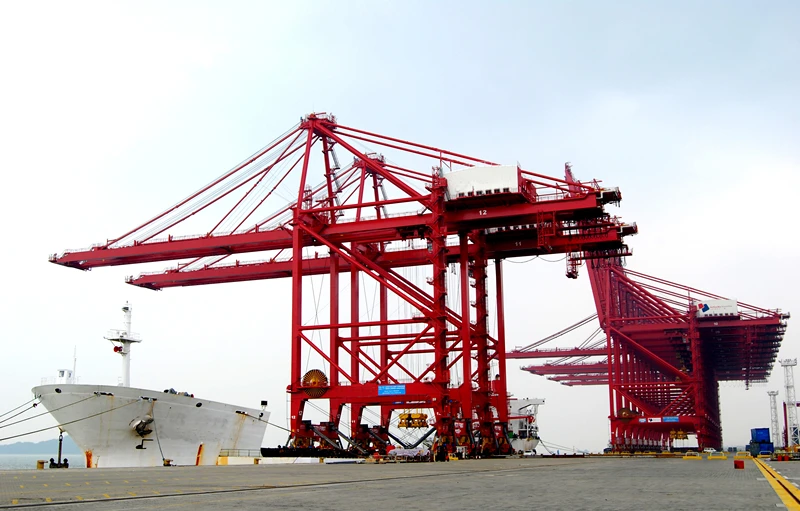

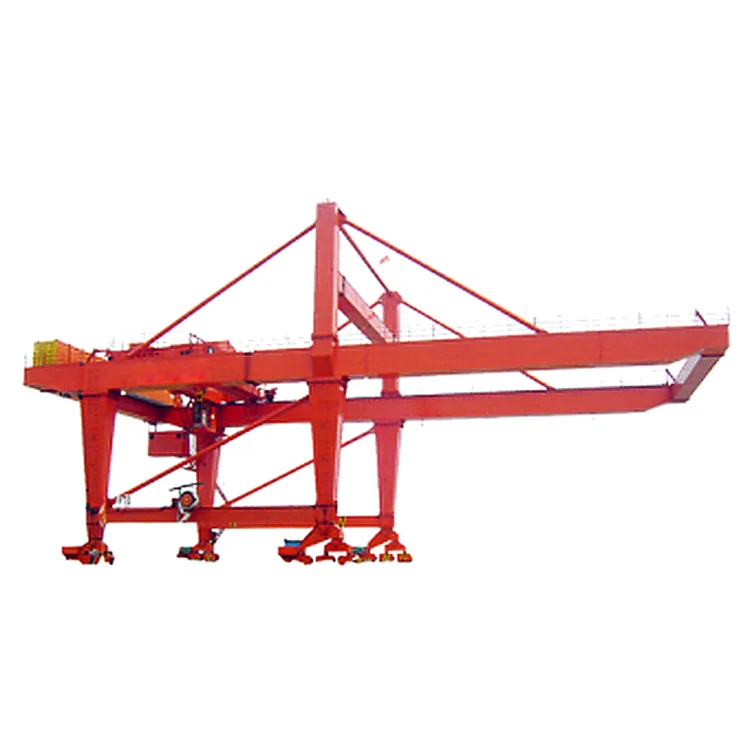

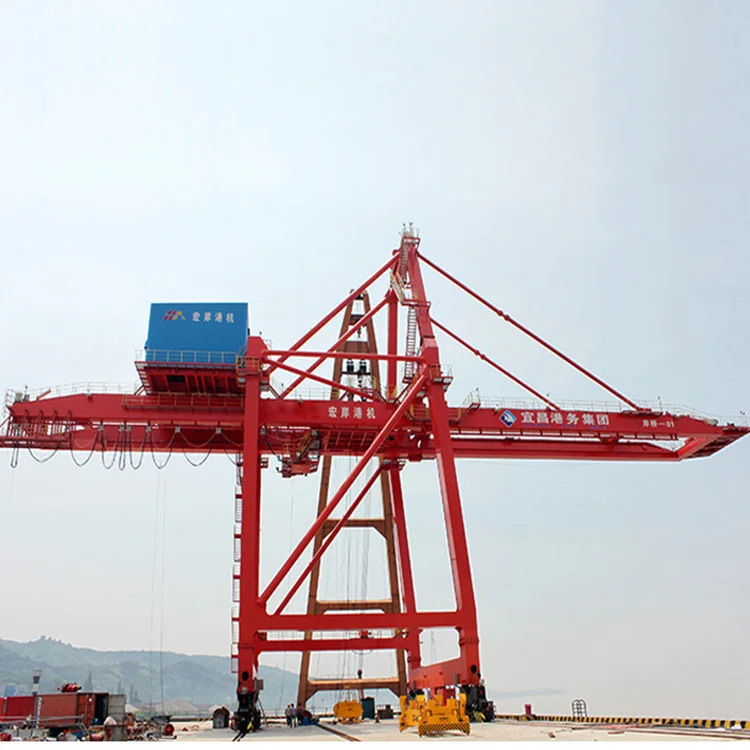

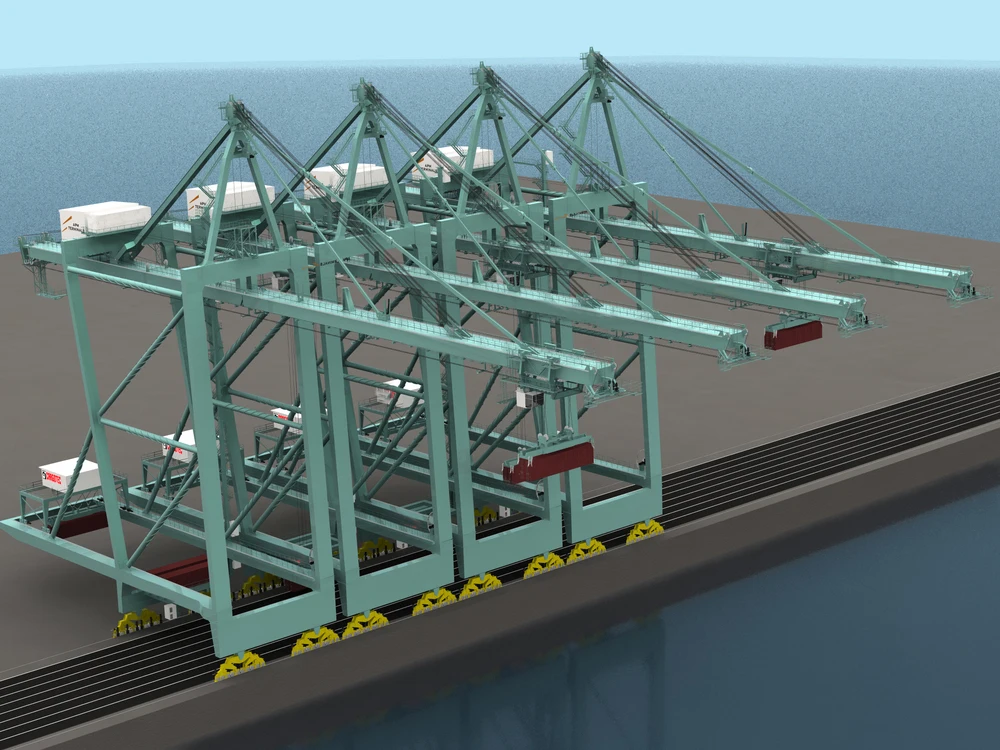

Picture Show
Main Products
The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
Quality Control
WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. Weihua has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. Weihua has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.
Company Information
From 1988 to the present, WEIHUA Group started from an area of less than 3 acres, 100000 yuan investment in the workshops to the current development of The employees is more than 6800, the whole coverage production base of large crane is 3420000 square meters. WEIHUA annual sales reached 1 billion yuan in 2006. Won social-wide recognition and praise by credit management and good service, took the lead go through the ISO9001 quality certification in the local area and same industry by its strict quality management and stable product manufacturing quality, WEIHUA initially forms the enterprise culture, enterprise image and widely brand influence with Weihua characteristics.
Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.
Packaging&Delivery
FAQ
1. What's the information should I provide when inquiry? More details or drawings, better. A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated. 2. How many operating methods for my selection? Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons C: cabin(space capsule seat) control with joystick. Choose any type as you like. 3. Can this type work in hazardous environment? Sure! We can customize for you, acid proof or explosion proof, no problem for that. 4. Can you provide the serious lifting tools? Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement! 5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country. 6. Safety device Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
