Price of cutter suction sand dredging machine/dredger
- Category: >>>
- Supplier: Qingzhou Yongli Mining And Dredging Machinery Co. Ltd.Qingzhou Ltd.
Share on (60245393524):
Product Overview
Description
Product Description

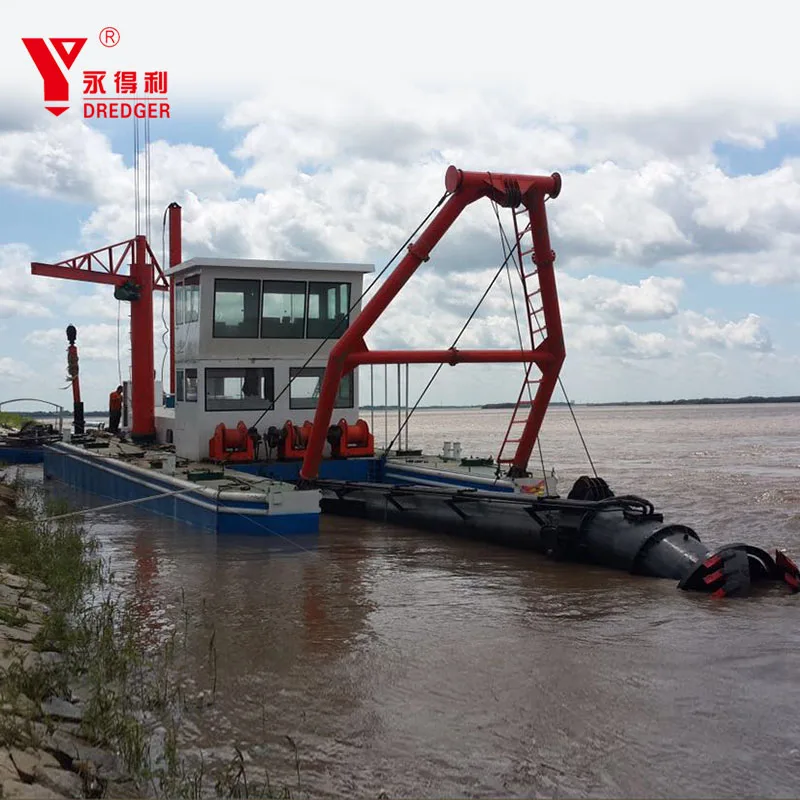

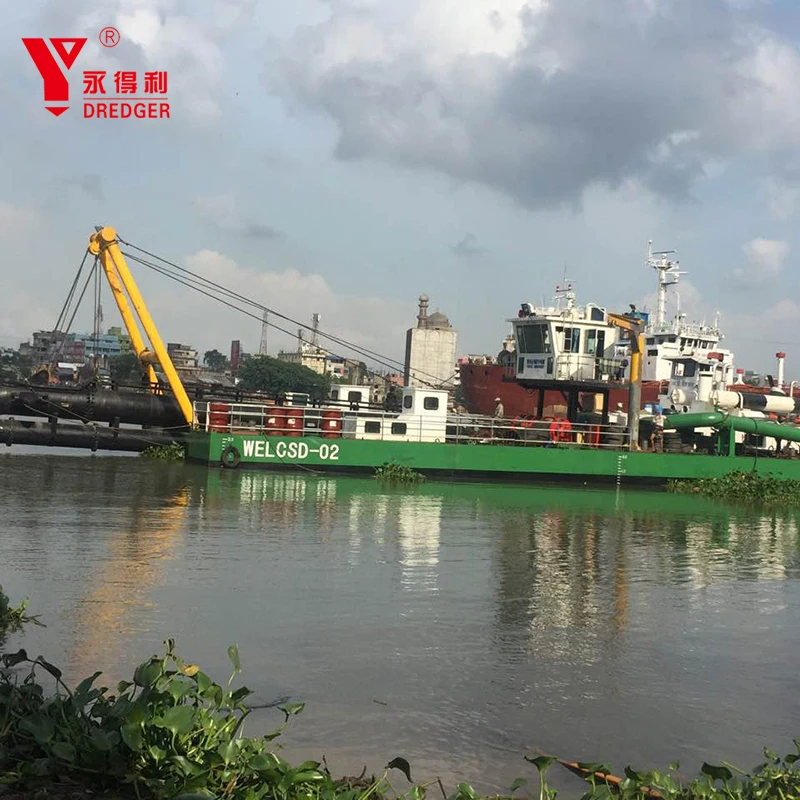

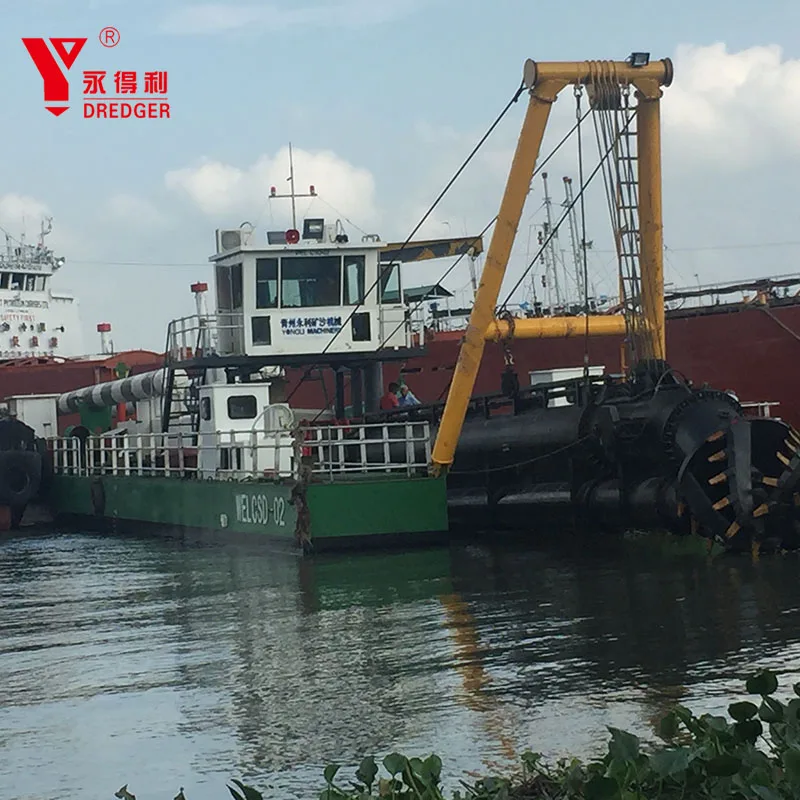

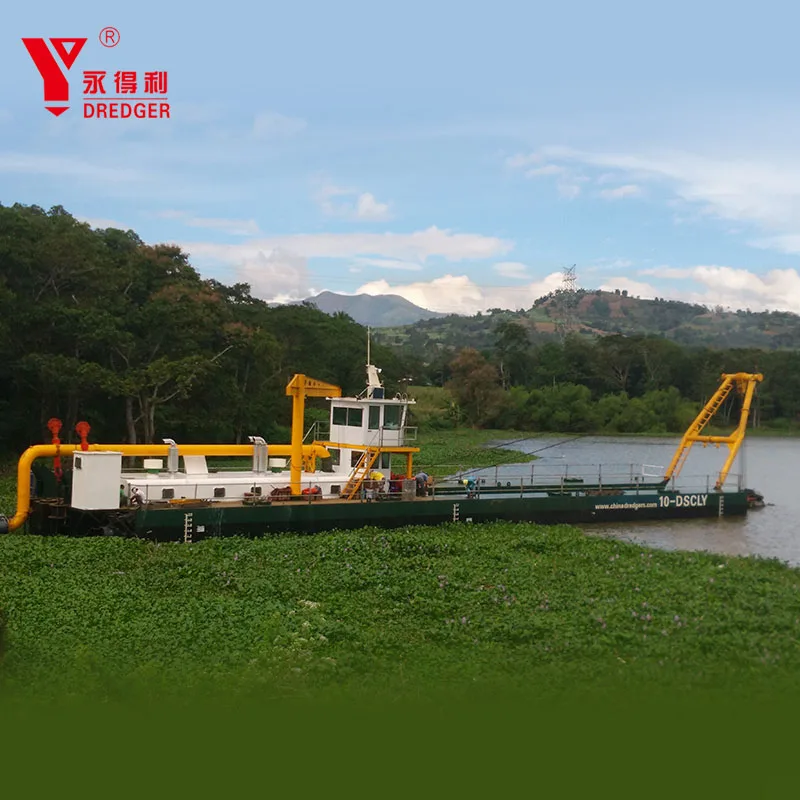

Price of cutter suction sand dredging machine/dredger
1. It could used in inland waterways, lakes, coastal areas for projects of desilting and sand dredging.
2. Customized according to dredging depth, working capacity and discharge distance.
3. It is of dismountable structure, and can be divided into mechanical, semi-hydraulic, all-hydraulic types according to the different operating methods.
4. Dredging pump is driven by main diesel engine placed in main central pontoon, and auxiliary engine provides power to winches, spud and lighting system.
2.Technical parameters
Model | Depth (m)
| Discharge distance (m)
| Flow (m³/h)
| Power (kw)
| Suction/Discharge Dia. (inch) |
YLJ-500 |
1~25 |
≤1000 |
500 |
150~300 |
8/6 |
YLJ-1000 |
1~25 |
≤1000 |
1000 |
200~500 |
10/8 |
YLJ-2000 |
1~25 |
≤2000 |
2000 |
300~600 |
14/12 |
YLJ-3000 |
1~25 |
≤3000 |
3000 |
500~900 |
16/14 |
According to customer requirements, we can provide different specifications and types of products .
3. Product Details

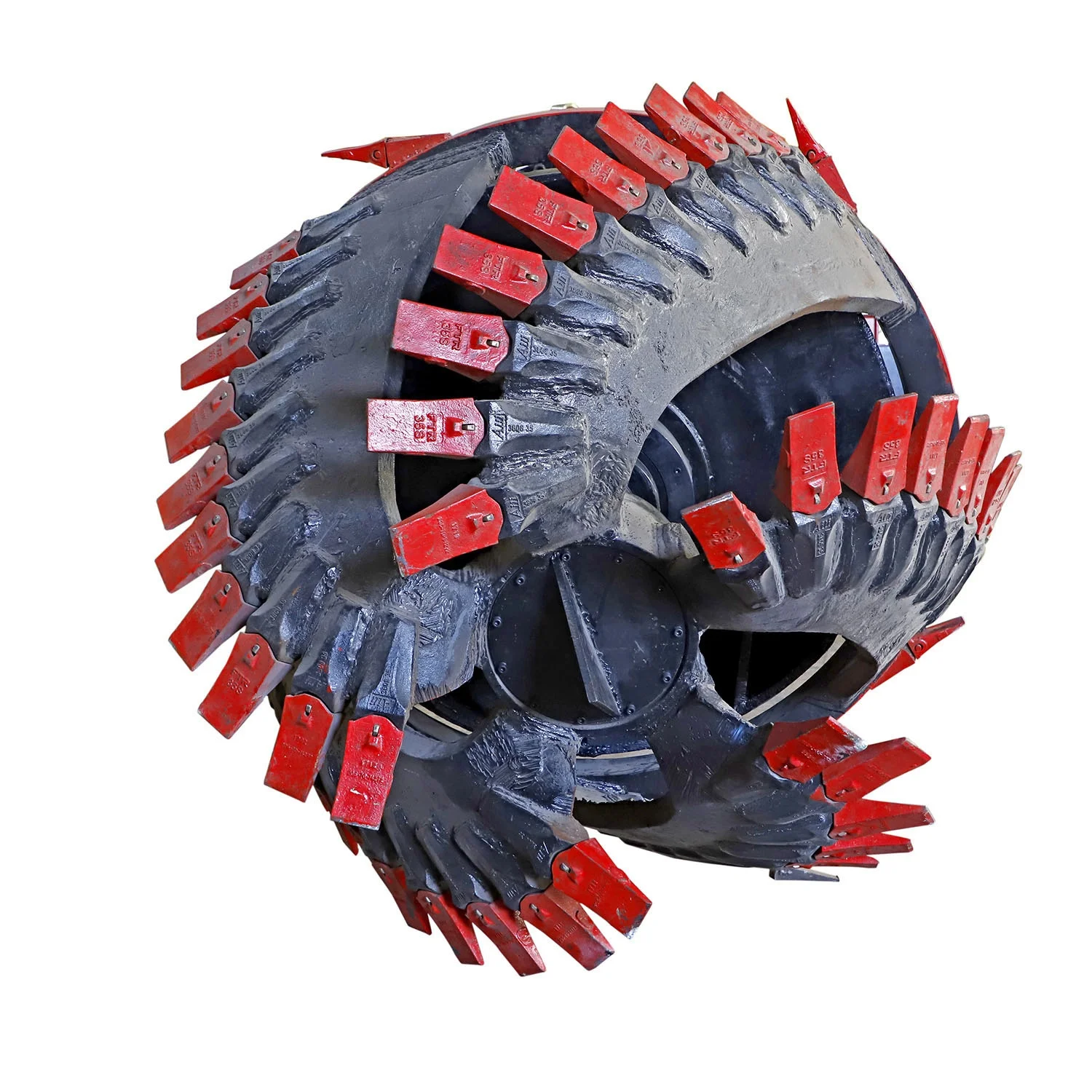

a.Cutter head

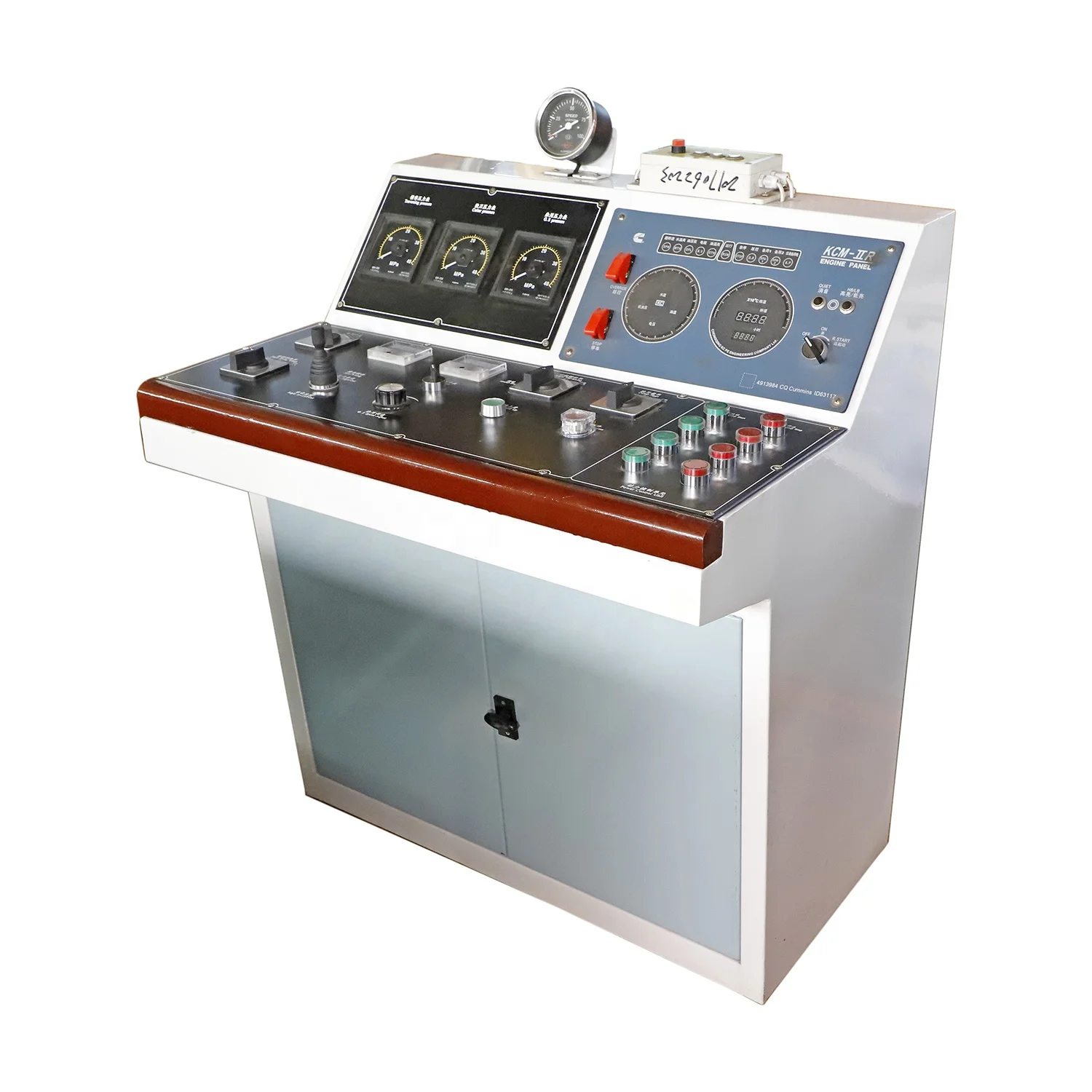

b.Control pannel

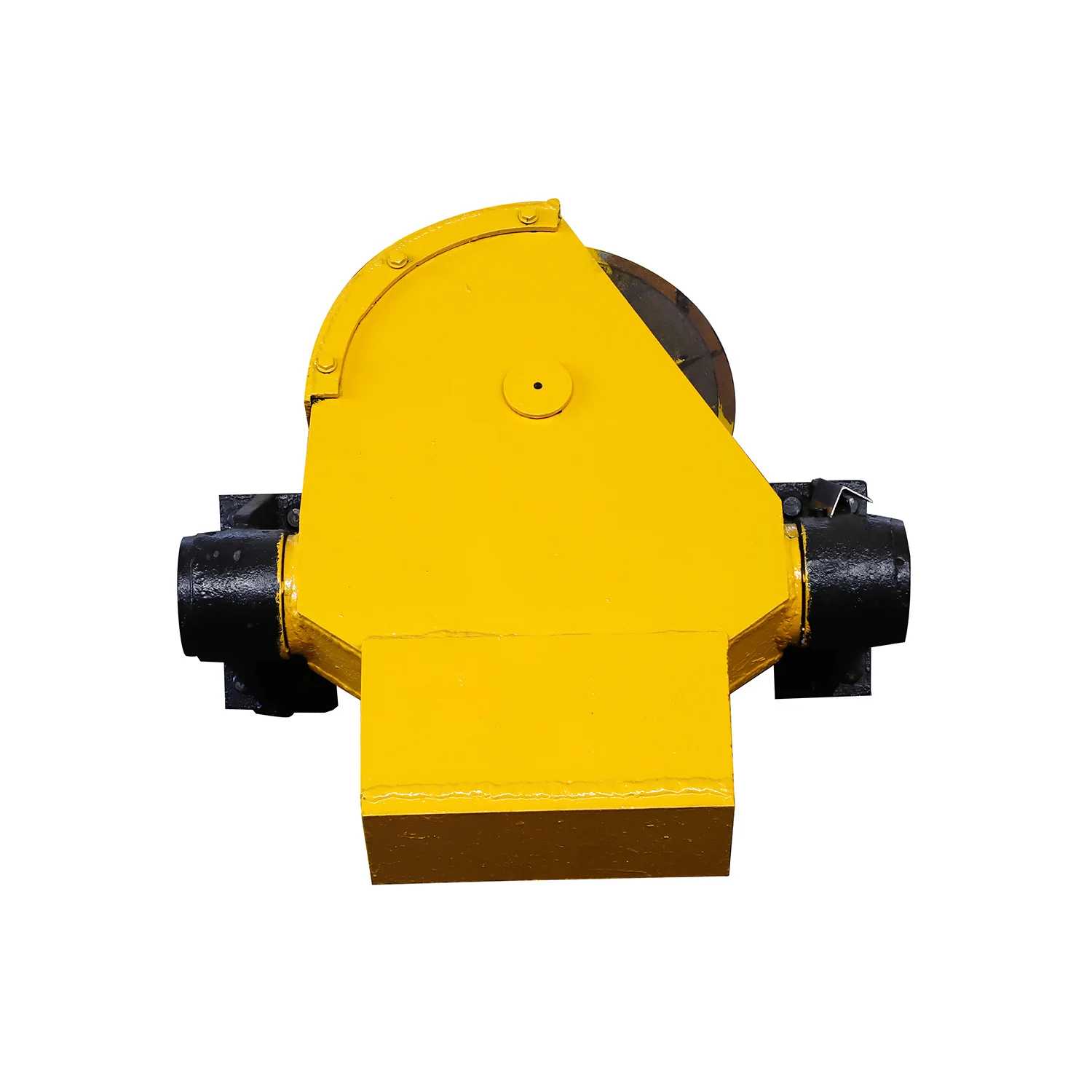

c.Swing Pulley

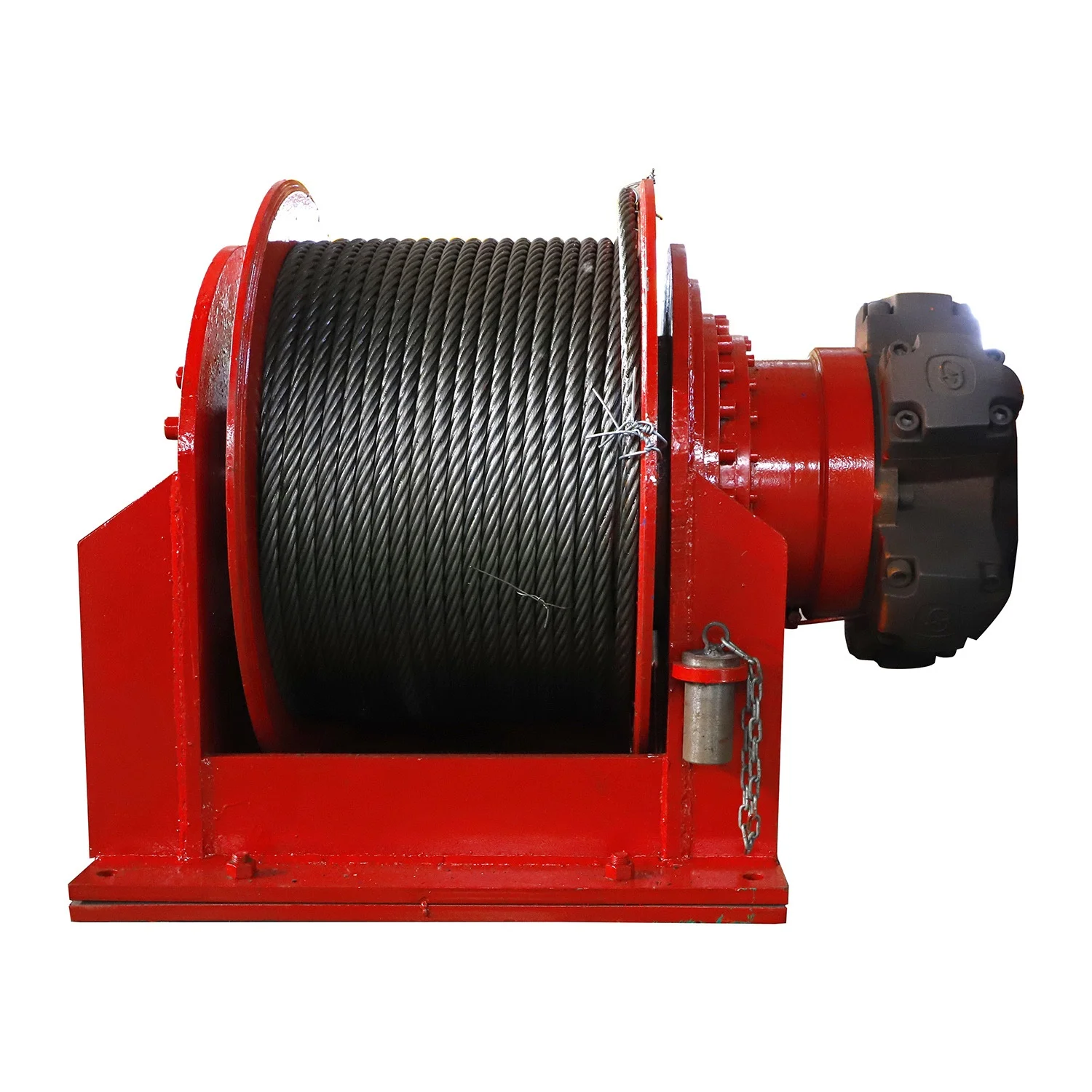

d.Hydraulic winch
4.Choose our reasons
QingZhou YongLi specializing in the production of dredger, dredging vessels, dredgers, cutter suction dredger, Is the leader of national soft mining machinery industry, set the dredger, gold rush ship, gold machinery, equipment research, development, production of professional mechanical design, installation, commissioning services integrated manufacturing company.
Over the years, by virtue of a strong, successful build yodlee series of products by the people's Republic of China State Administration of Quality Supervision Inspection and Quarantine of the signature and approval, and passed the ISO9001-2008 quality system certification .
Our Services
1.We will design and produce the dredger and other products based on the detailed requirements of the customer's.
2. We can send our engineers to help you with the installation,trial operation,trainning and maintenance.
3. We supply one year's warranty except the wear spare parts.
4. We have one pcs of after-sales office in Dhaka,Bangladesh. We can do the long-term after-sales service work.
