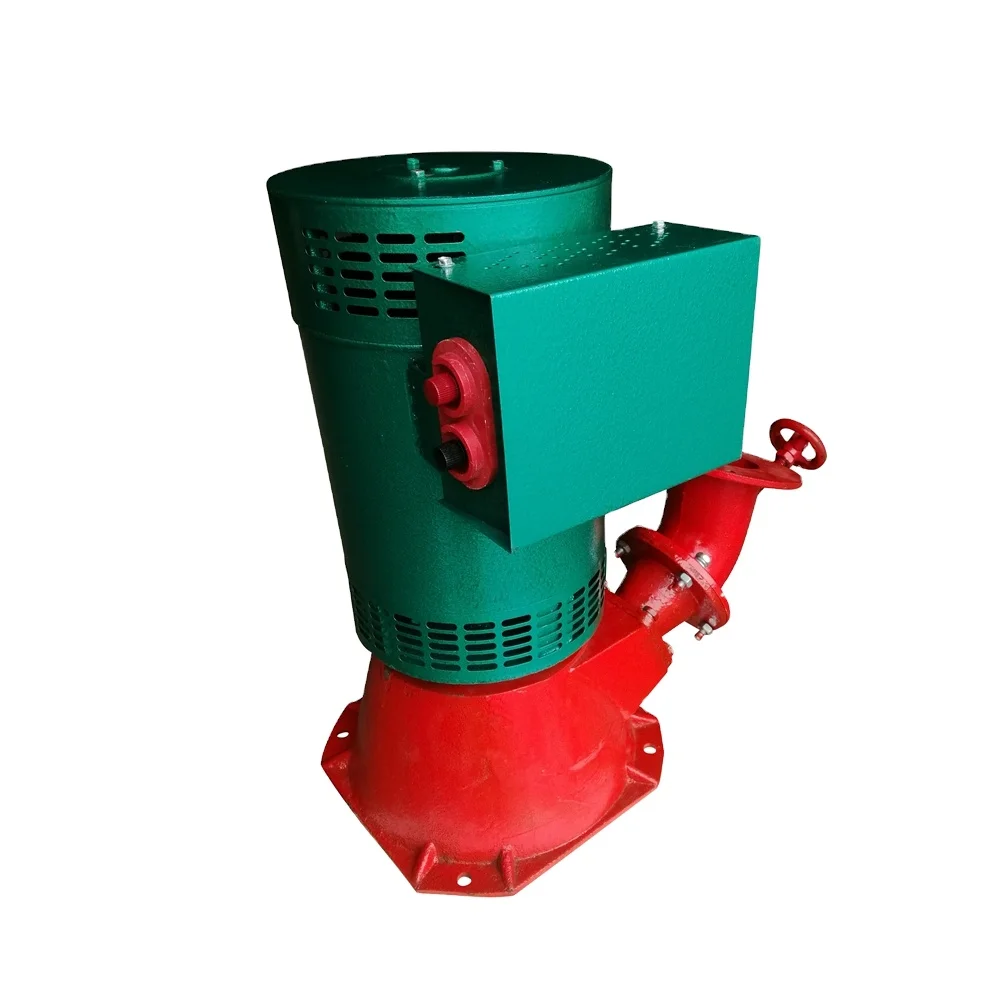

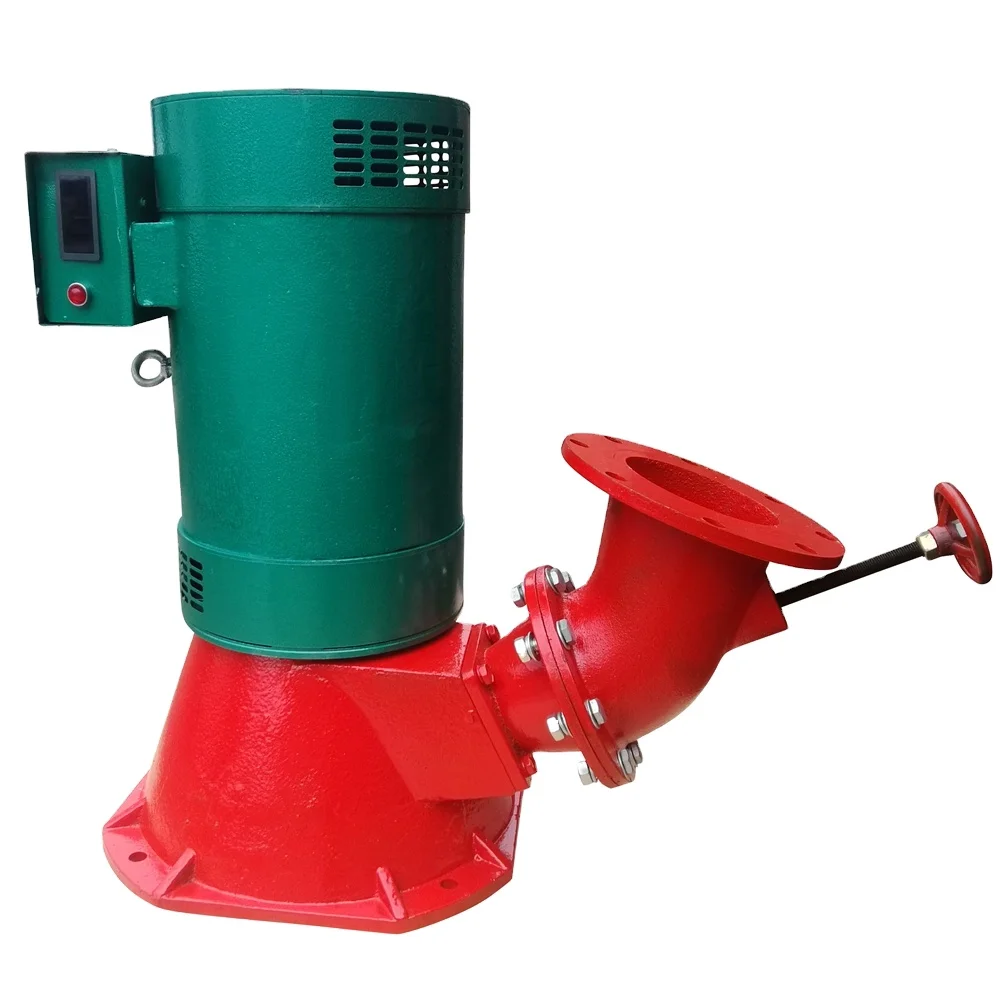

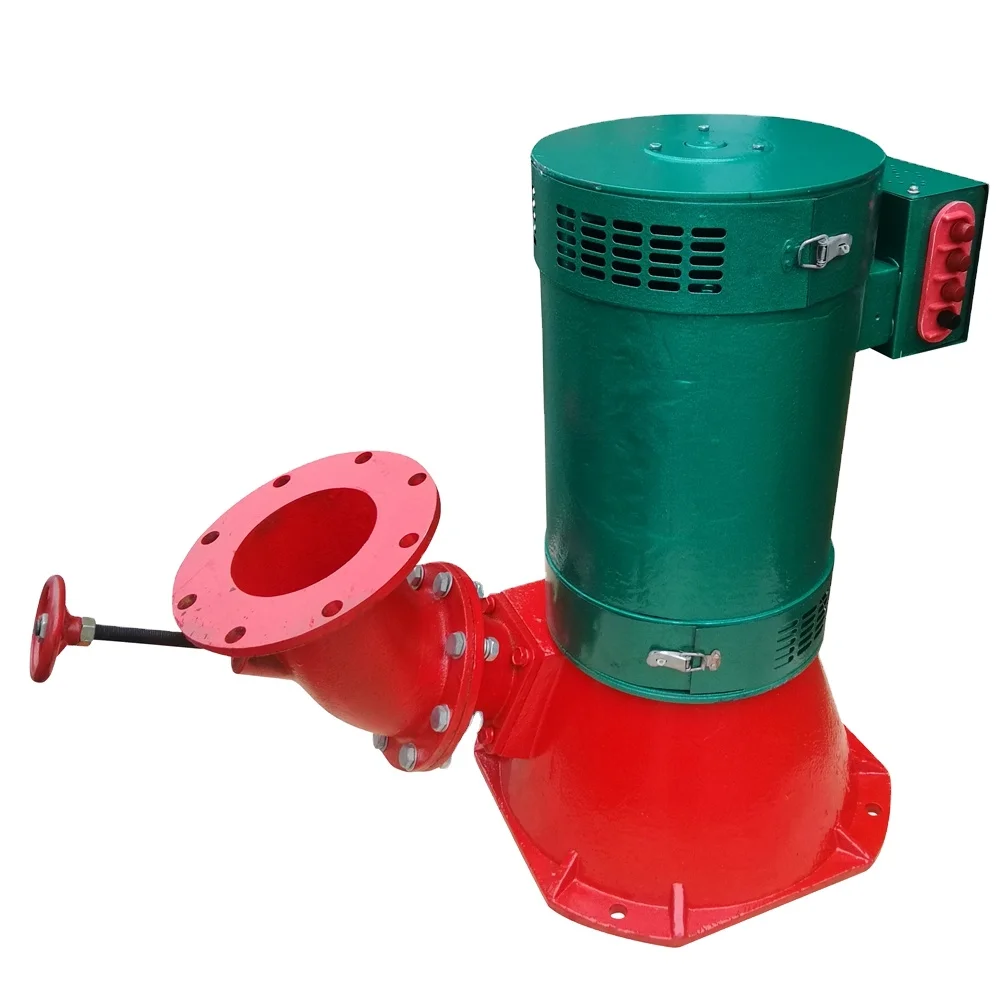

600W 5KW Mini Water Turbine Generator Excitation hydro turbine for home
- Category: >>>
- Supplier: Chongqing Royway Machinery Co. Ltd.
Share on (60245457492):
Product Overview
Description
600W-5KW Permanent Magnet Mini Water Turbine Generator For Home

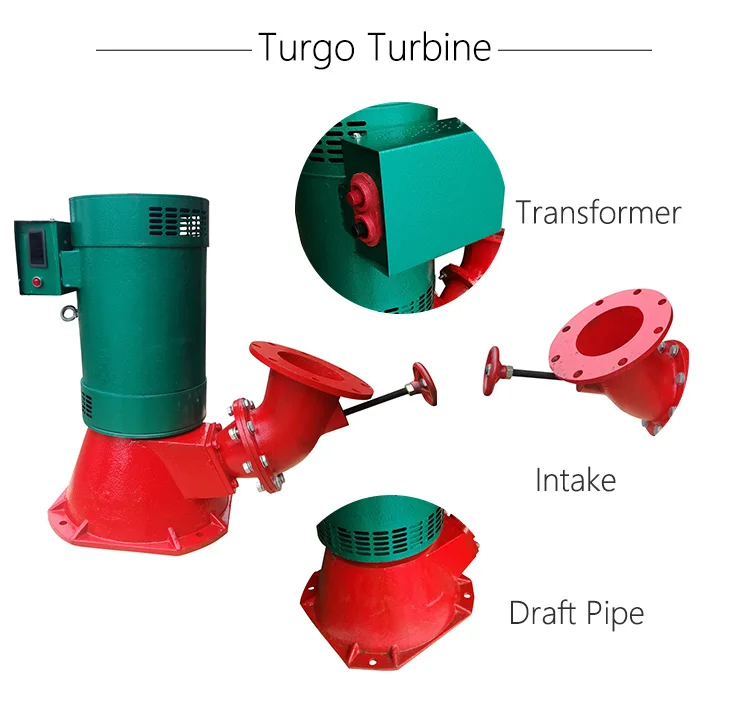

Turgo/Inclined Jet turbine generator series:

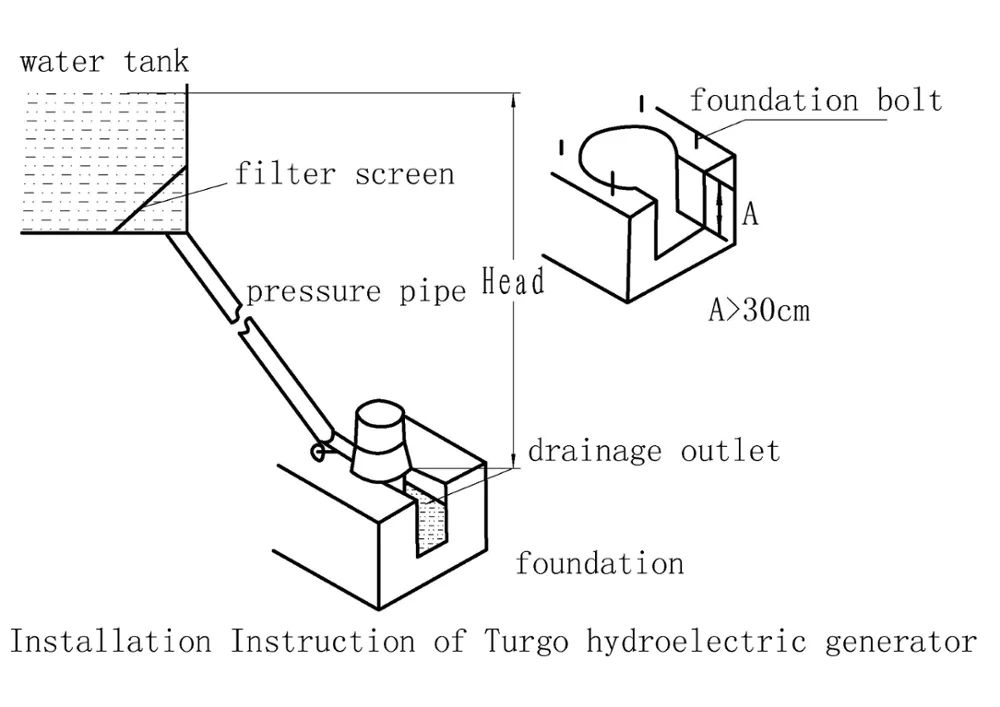

Turgo turbine generator unit primarily applies to water head 20-100 m. It is installed easily for use pipe installation. Mainly two types: horizontal and vertical, horizontal has a simple structure, easy maintenance and lower plant height, reducing the advantages of excavation depth. Vertical units with a plant area of small size, multiple nozzles can be installed on a wheel, high speed. |
Subject | 5kw turgo turbine | ||
MODEL | CJ-5 | HEAD(m) | 15-30 |
POWER | 5KW | FLOW(m3/s) | 0.005-0.05 |
SPEED(RPM) | 750 | PAYMENT | TT |
MOTOR | Excitation | DELIVERY TIME | 15days |
VOLTAGE(V) | 230/400 | SIZE(cm) | 55×53×98 |
GW(KG) | 140 | Bearing | |
Inlet pipe (mm) | 150 | Frequency(HZ) | 50/60 |
Warranty | Three years |
| |
Chongqing Royway Machinery Co.,Ltd.
1)We are mainly responsible for handing the export affairs of our group company.
2)We are a manufacturer, we have our own factories and export right.
Advantage:
1. Low MOQ: It can meet your promotional business very well.
2. OEM Accepted: We can produce any your design.
3. Good Service: We treat clients as friend.
4. Good Quality: We have strict quality control system .Good reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Check below for more information on placing an order
1. Inquiry-Professional quotation. |
2. Confirm the price, lead time, artwork, payment term etc. |
3. Freedom sales send the Pro forma Invoice with freedom seal. |
4. Customer make the payment for deposit and send us Bank receipt. |
5. Initial Production Stage-Inform the clients that we have got the payment, and will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time. |
6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party Inspection. |
8. Clients make payment for balance and Freedom Ship the goods .Also can accept payment term-Balance against B/L Copy Or L/C payment Term. Inform the tracking number and check the status for clients. |
9. Order can be say “finish” when you receive the goods and satisfy with them. |
10. Feedback to Freedom about Quality, Service, Market Feedback & Suggestion. And we can do better. |
