Straw burning boiler /biomass burning boiler/coal burning boiler
- Category: >>>
- Supplier: Henan Yuanda Boiler Corporation Ltd
Share on (60245799790):
Product Overview
Description
Straw burning boiler /biomass burning boiler/coal burning boiler
Our boiler advantage
Technical datasheet
| Boiler model | Rated capacity | Rated pressure | Rated steam temp. | Exhaust gas temp. | Design effiency | Fuel type | Fuel consum. | Weight | Dimension |
| Ton/h | Mpa | ℃ | ℃ | % | kg/h | Ton | mm | ||
| DZL1-1.0-AII | 1 | 1.0 | 184 | 109 | >82% | Coal
| 187 | 15.2 | 5230*2000*2780 |
| DZL2-1.25-AII | 2 | 1.25 | 194 | 131 | 375 | 23.8 | 5950*2400*3150 | ||
| DZL4-1.25-AII | 4 | 1.25 | 194 | 140 | 758 | 27 | 6829*2620*3524 | ||
| DZL6-1.25-AII | 6 | 1.25 | 194 | 139 | 1125 | 40 | 8170*3180*3804 | ||
| DZL8-1.25-AII | 8 | 1.25 | 194 | 135 | 1508 | 45 | 8130*3300*3950 | ||
| SZL10-1.25-AII | 10 | 1.25 | 194 | 152.7 | 2149.3 | 24 | 7654*3180*3526 | ||
| SZL12-1.25-AII | 12 | 1.25 | 194 | 148.7 | 2399.7 | 37 | 9258*3294*3524 | ||
| SZL15-1.25-AII | 15 | 1.25 | 194 | 149.86 | 2568.4 | 24.7 | 11010*3300*2200 | ||
| SZL20-1.25-AII | 20 | 1.25 | 194 | 147.4 | 4266.9 | 25.97 | 16680*6200*8420 | ||
Notice: 1.For place limited, we can list all models. For more specifics, please contact us directly. 2.For place limited,this table only shows pressure 1.0Mpa(10bar and 1.25Mpa(13bar), we also manufacture boiler 0.4Mpa(4bar),0.7Mpa(7bar),1.6Mpa(16bar) and 2.5Mpa(25bar). 3.The parameters are for reference, we have been improving our technology. If the technology is improved, please refer to the data showed on drawing. | |||||||||

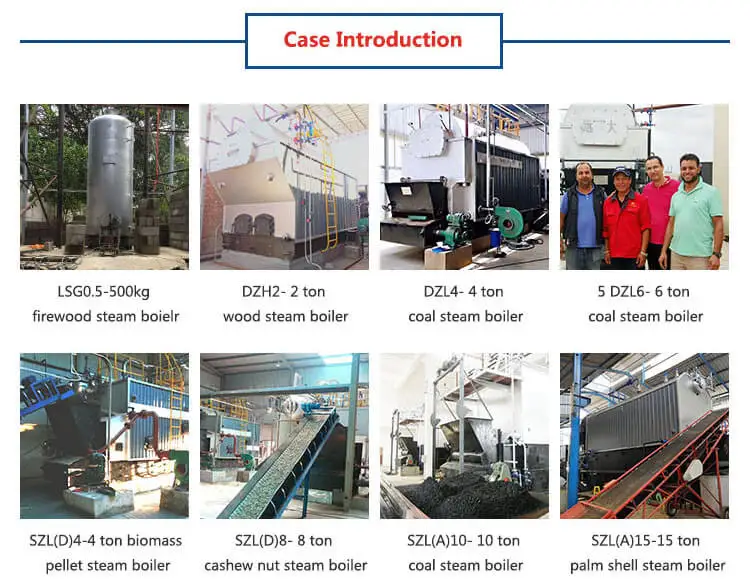

Our cases

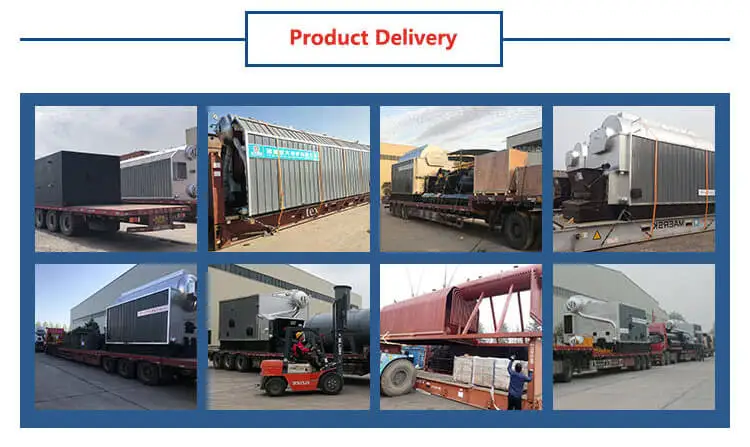

Packaging & Shipping
1. Nude packaging for boiler mian part and wood box packaging for boiler accessories.
2.Normally we use 20 container, 40container or 20 flat rack container and 40 flat rack container to load it.
3.All goods will be reforced after packing into containers.
4. We have stable and experienced shipping company to cooperate. They will confirm the safty of the goods.
5. Shipping way is different according to customer's country. Mostly by sea. Some country by train.
Our Services
Pre-sale service:
We help customer choose the best boiler model according to different requirements of various industry. Before delivery we will provide foundation drawing, layout drawing, boiler room layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.
After-sale service:
1.provide full range of original spare parts.
2.Engineers abroad installation and commissioning service is available.
3.Our engineers will held a training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
Company Information
Henan Yuanda Boiler Co., Ltd,established in 1956. Locates in Xihua County of Henan Province, is one of the enterprises which firstly obtained boiler manufacturing license in China from 1983. We have A-Class license for boiler manufacturing, D-Class license for pressure vessels, and certifications for boiler installation, commissioning and maintenance. We are a high-tech enterprise integrating manufacturing, designing, engineering and servicing gas, oil, coal,biomass,wood and solid waste fired steam,hot water and thermal fluid(hot oil) boilers.
Our company participated in the drafting of national boiler standards, and has more than 60 patents, passed ISO9001: 2015 Quality Management, ISO14001: 2015 Environmental Management, OHSAS18001: 2007 Occupational Health And Safety Management System Certification.
For more than 60 years, our company focus on R&D and production of high efficiency, energy saving and environmental protection boilers.Our products are well-known in domestic markets and were exported to 86 countries and regions. With installations of more than 100,000 projects across all industries worldwide, Yuanda Boiler is recognized for the high code standards, innovative engineering and design, Energy Star rating, and renewable, sustainable solutions and operational efficiency.
Our company keep the business philosophy of "Quality Oriented, Sincerity Promoted" to create greater value for customers and make greater contributions to the society.
Company Target : Be Century-old Enterprise, Create International Brand!
