China Manufacturer Citronella Oil Distillation Plant for Essential Oil

Product Overview

Description

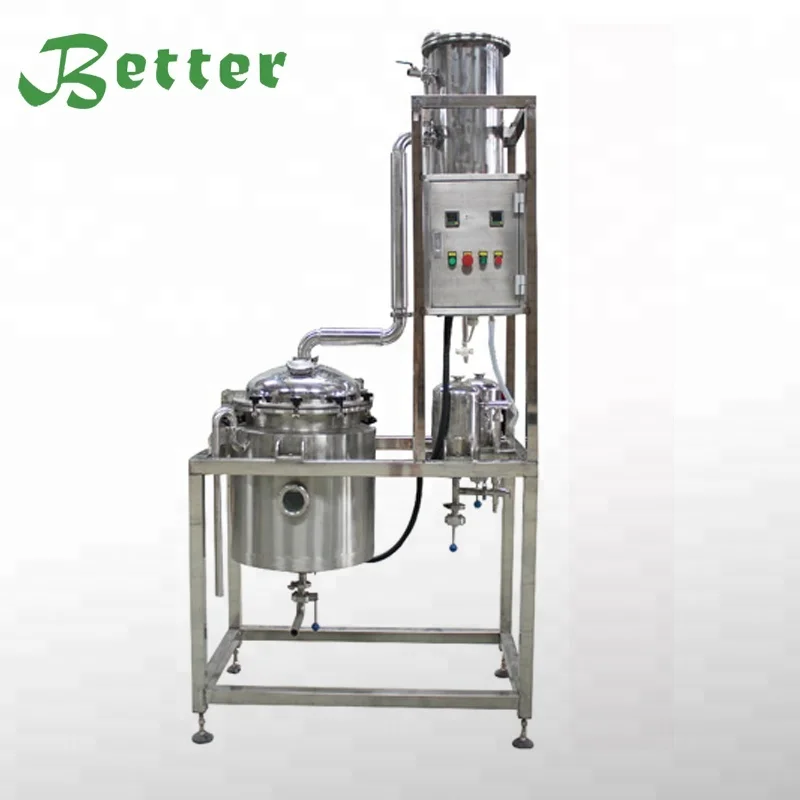

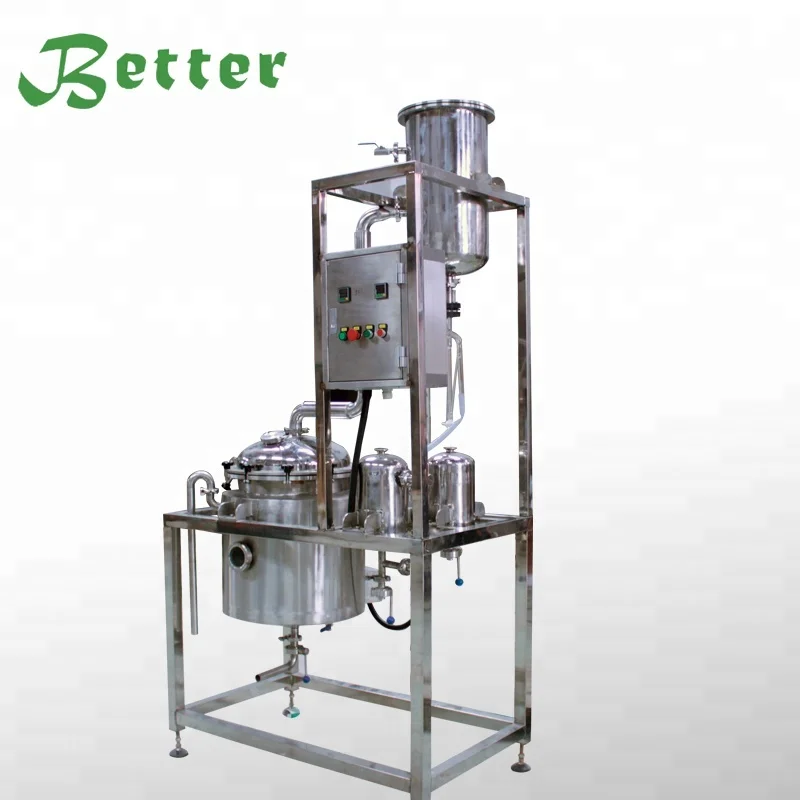

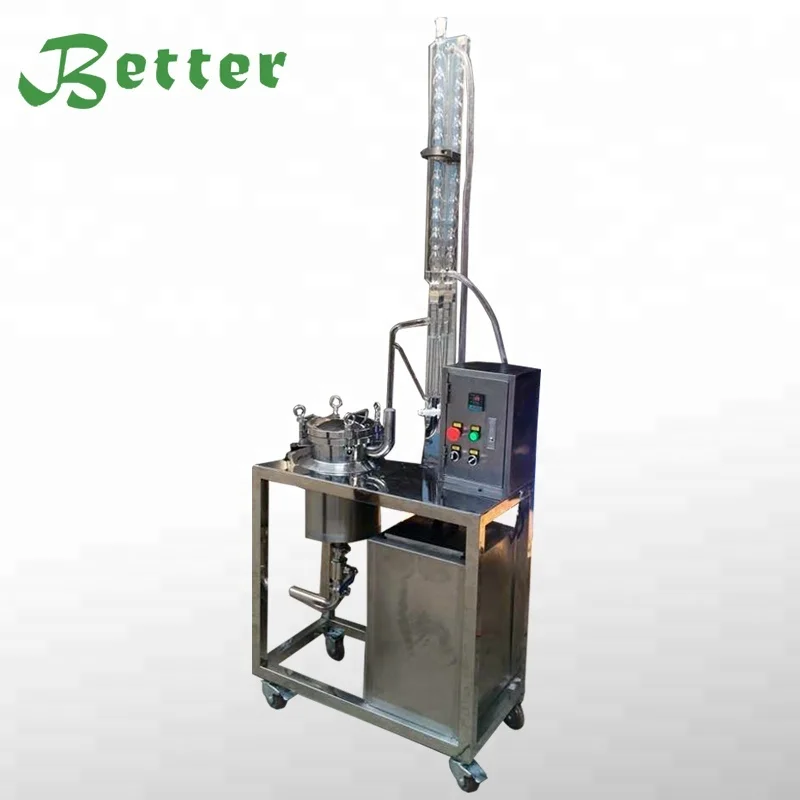

EC20 Citronella Oil Distillation Plant (20L)



1.Brief introduction of  Citronella Oil Distillation Plant :



BETTER EC20  essential oil distilling equipment is popular in production of Chinese medicines,health products,biological drugs,cosmetics and food .This essential oil Distill equipment uses technology and chemical separation,can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from palnts.



Part List of  Citronella Oil Distillation Plant

• Extracting tank
• Oil-water separator
• Receiver
• Oil cooling system
• Plate distillation system
• Vacuum system
• Frame
• Pipes
• Valves
• Digital temperature sensor.

2.Chracters of  Citronella Oil Distillation Plant :

1)By steam-distillation to reach the extraction of essential oils.

2)Easy operation. One people can operate this machine easily .

3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100C high temperature

  under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction

  speed of essential oils  will be  ore faster.

4)Compact structure. It covers only about 1.5 square meter.



3.Main datas of  Citronella Oil Distillation Plant :



model	EC10	EC20	EC30	EC50	EC100	EC150	EC200	EC300
distilling pot	10L	20L	30L	50L	100L	150L	200L	300L
power	4kw	4.5kw	5.5kw	9kw	12kw	14kw	25kw	25kw
Specifications	1. Steam extraction part is popular with the structure of basket-in-water  2. Operation part has adopted PLC or touch screen control system, this   accords to customer’s demand. 3. This unit is automatically operate. 4. All kinds of plants can be the material of automatic rose oil extraction equipment .
Note: Bigger capacity (500L,1000L,1500L,2000L,3000L)  available according to requirements.

We can also design according to the clients' demand



4. Raw material can be use to  Citronella Oil Distillation Plant as below for reference :

Citronella Oil Distillation Plant :kinds of plants.lemon grass,agilawood,rose,lavendor,and etc.

Flowers	Rose; jasmine; lavender; chamomile;  ylang ylang; geranium; neroli; clary sage; achillea millefolium; osmanthus; peony; marigold; laurel; honeysuckle; violets.
Leaves	Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil.
Roots	Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor.
Grasses	Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen;  evening primrose.
Wood	Sandalwood; cedar wood; rosewood; agarwood; Birch; holly; camphor; melaleuca; sassafras.
Resins	Frankincense; myrrh; benzoin; fir tree; amyris; Elemi.
Bark	Cinnamon.
Citrus	Bergamot; grapefruit; lemon; orange; lime; tangerine .
Seeds	Cloves; almonds; cardamom; carrot seed; pomegranates; pepper;  capsicum ; fennel.

5.Technical datas EC20  Citronella Oil Distillation Plant :



1) Model:  EC20    Citronella Oil Distillation Plant

2) Power: 4.5KW (3 phase, 380v/50Hz)

3) Volume of distillation pot: 20L(according to demand of customers)

4) Heating area of distillation pot: 0.4M²

5) Condensation area of condenser: 0.75M²

6) Power of heater: 4.5KW

7) Size: 1200x700x1500mm (according to demand of customers)



6.Pictures of  Citronella Oil Distillation Plant :

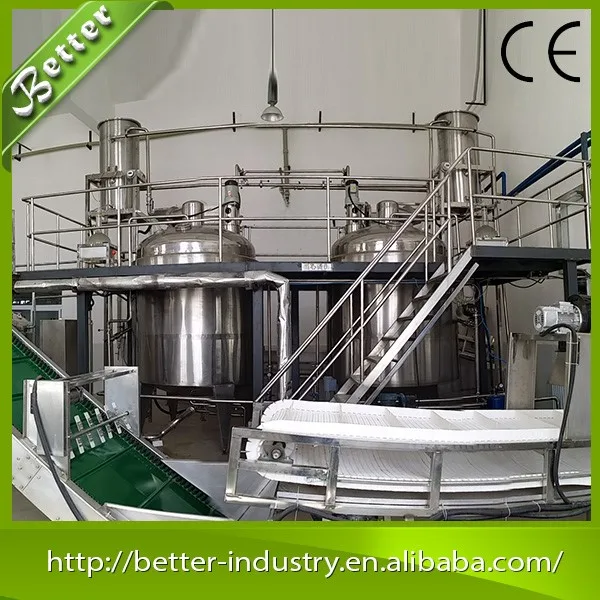

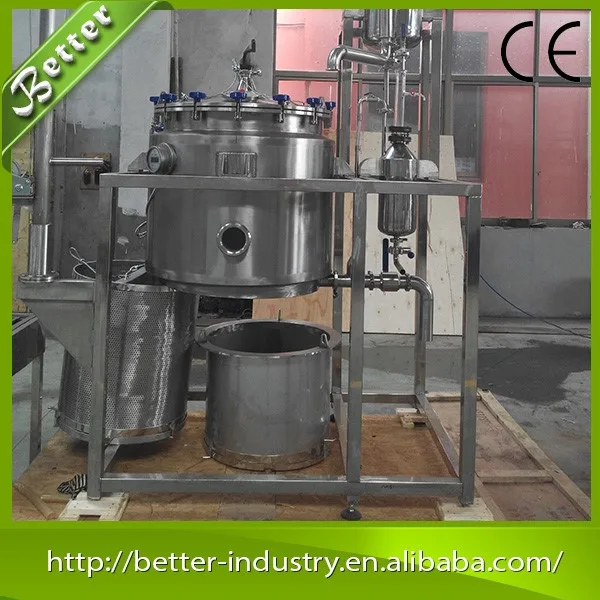

Structure of  Citronella Oil Distillation Plant

Heating Methods of  Citronella Oil Distillation Plant

 Final products of   Citronella Oil Distillation Plant





Package of Citronella Oil Distillation Plant : Plywood case package

Payment Term:

If the total amount below $5000, it should be 100% prepayment.

If the total amount above $5000, it should be 50% prepayment; the balance paid before loading.



Delivery Time:

30 working days after prepayment received



Quality guarantee:

One year after shipment excluding the wearing and tearing parts



Installation :

We will assemble and test the machine before packing. Also send English manual. If customer need,

we will send one engineer for assembling and training of workers. USD60 per person per day, food,

accommodation and air-ticket will be on clients.







Why Choose BETTER?

1.We are Alibaba Assessed 5 years Gold Supplier.

2.We are a factory manufacturing Plant Oil Distillation Equipment , best production capability, best quality control, best Service.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shippment.
5. CE listed,competitve price.

Q:What does BETTER need from me to quote a price?

1.Raw material

2.Production capacity per batch



Q:What is the oil yield?

The oil yield depends on oil content of your material.If the oil content of your material is high,you can get more essential oil.



Q:Can I use the machine to extract several kinds of raw materials?

Yes,of course.



Q:Can I do extraction test with my own raw material?

Yes,of course.We can do extraction test and send you videos and test report for your

Reference.



Q:What heating way does your machine support?

Electricity/gas/wood/steam heating.



Q:What is your material of your machine?

Stainless steel(Standard type is SUS304,it can be customized according to your request)



Q:How long does it take to produce the machine once I place my order ?

Usually the delivery time is 30 working days after prepayment received.



Q:What is the minimum quantity I must order?

We don’t technically have minimums, but if you order more than 3 sets once,we can give you

a discount.



Q:Do you have machines in stock?

No,our machine is produced according to your request.



Q:How will my order be packed, can you provide the installation service?

Packed in plywood case.

We will send English manual. If customer need, we will send one engineer for assembling and training for workers. USD80 per person per day, food, accommodation and air-ticket will be on clients.
