Product Overview
Description
Specification of echo sounder:

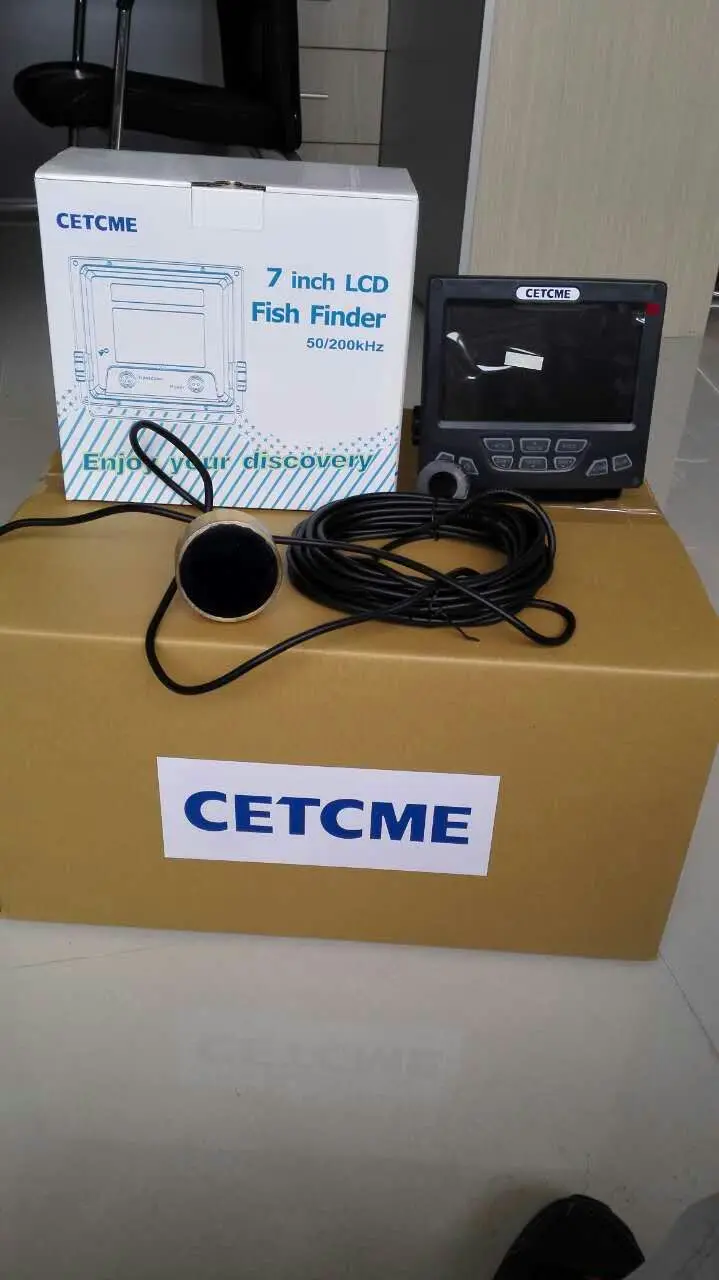

Inland river 7 inch sounder DS207 (CCS APPROVED)
DS207 is one of the most sold echo sounders used in inland river. The echo sounder graphics is continuously shown on 7 inch LCD along with complete navigational details.
2-channels realizes observation of depth detected from different locations of ship. Information from both of two transducers can be dispalyed simultaneously. Gian of the 2 channels can be set separately.
FEATURES
7 inch color TFT LCD
NMEA0183 data output
Shallow depth auto alarm
Multi-installation modes
DEPTH RANGE: 0.3m ~200m
FREQUENCY: 200 kHz & 200 kHz
CHANNEL: Dual-channels
ITEM | SPECIFICATIONS | ITEM | SPECIFICATIONS |
Display | 7 inch color TFT LCD | Time Scale | On screen 30s per second |
Night Mode | Black background &Hue for night | Signal Levels | 8 colors signal levels |
Pixel Number | 480×234 | Consumption | <20W |
Power Supply | 18VDC to DC33VDC | Alarm Types | Shallow |
Dimension | 268(H)×225(W)×106(D)mm | Alarm Beeper | Buzzer(optional), flashing |
Unit Weight | 1.25kg | Depth Output | NMEA0183 (DBT, DPT) |
Frequency | DS207: 200kHz× 2 channels | Protection | Over voltage/ current, Polarity |
Depth Range | 0.3m to 200m | Mounting | Desk/Ceiling/Flush |
Auto Range | Yes | Temperature | 0~50℃,IEC 60945 |
Ping Rate | Max 10 pings per second | Water Proof | IP52,IEC 60529 |
Output Power | 300W | Options | Transducer |
Picture Speed | Stop,1/16,1/8,1/4,1/2,1/1,2/1,4/1 |
| Depth Repeater IR261 |
