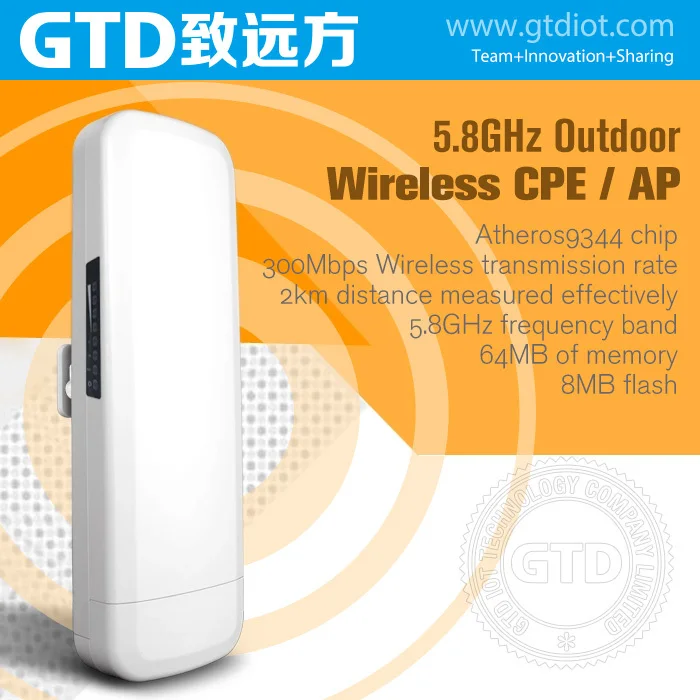

5.8GHz Wireless bridge monitoring CPE wireless outdoor AP high power router universal relay waterproof

Product Overview

Description

5.8GHz Wireless bridge monitoring CPE wireless outdoor AP
high power router universal relay waterproof

Standard	IEEE802.3af, IEEE 802.11n, IEEE 802.11a
Frequency	5.180 - 5.825 GHz
Channel	CH36 ~CH165
Modulation	802.11n/802.11a: OFDM (64-QAM, 16-QAM, QPSK, BPSK
Data Rate	11n: up to 300Mbps(dynamic) 11a: up to 54Mbps(dynamic)
Protocol	CSMA/CA,CSMA/CD,TCP/IP,ICMP,NAT,PPPoE, DHCP , Wired static , Wifi Client , UDP, DDNS,
Operation Mode	Station, Client AP, AP
Security	64/128bit WEP  WPA(AES,TKIP with IEEE 802.1x)  WPA2(AES,TKIPwith IEEE 802.1x)  WPS
RF Output Power	802.11n: 25±2dBm, OFDM module 802.11a: 27±2dBm, OFDM
Receive Sensitivity	11n : -72±2dBm@10% PER 11a : -75±2dBm@10% PER
Antenna	15dBi MIMO Panel antenna
Size(mm)	L: 257mm, W: 87mm, H: 38 mm
Weight	0.4KGS
Working Temperature	-40°C ~ 70°C
Storage Temperature	-40°C  ~ 70°C
Humidity	10% ~ 90% (Non-condensing)

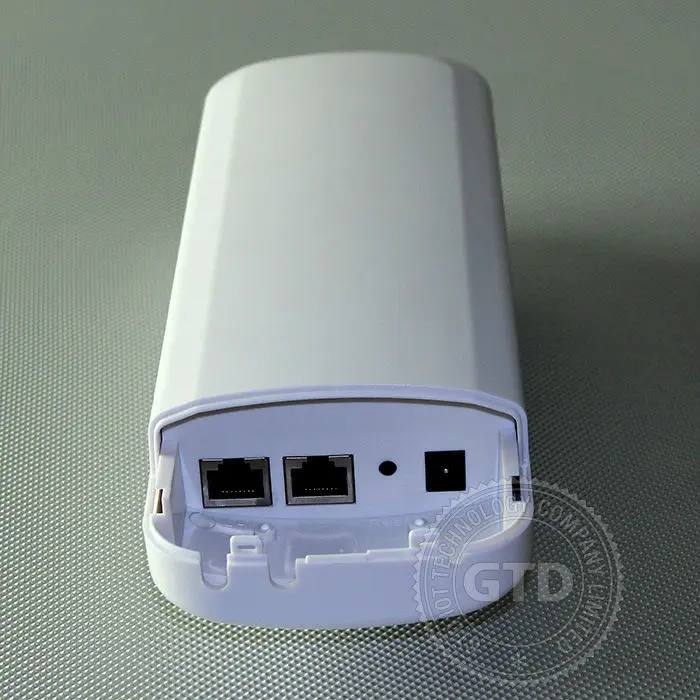

Interface	1  RJ-45 WAN Port 1  RJ-45 LAN Port 1  Reset Button 1  DC Jack
Power	Output: DC12V(POE 24V/48V), 1A; Input: 110V/220V

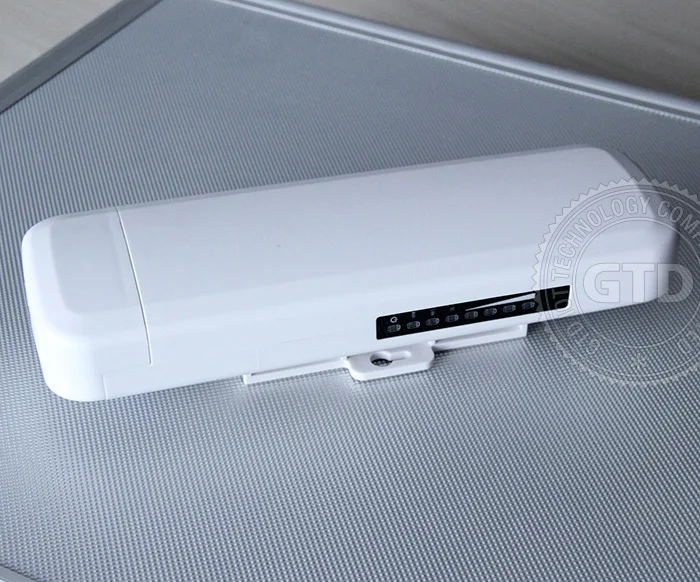

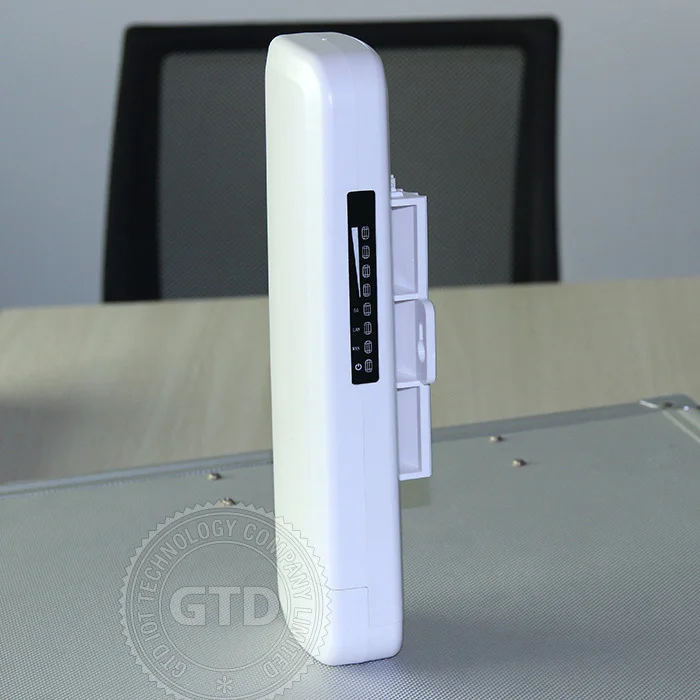

LED Light	Power, WiFi, WAN, LAN,Signal Strength



Description:
G48OA is an 5.8G outdoor CPE/WiFi Bridge with 300Mbps data rate. Comply with IEEE802.11a/n standard,

Atheros chipset, it supply you a stable and freely wifi networking. What’s more, with 15dBi high gain antenna,
27dBm high power output power, the wifi distance more than 2000 meters.



G48OA with wonderful RF performance, receive sensitivity can be -95dBm, then data rate can be 300Mbps,
improved hardware wifi interference, it is best choice for video and security industrial.



Meantime, it support Power over Ethernet, support passive / 802.3af PoE, easy in setup even no power
socket nearby. With LED light show signal strength, easy to find a suitable place for outdoor CPE, save much
human work and cost. With water proof case, it is best choice for outdoor wifi projects.





Special:
ABS waterproof, dustproof and sunscreen shell, temperature adaptive and board protective .
G48OA with ABS waterproof, dustproof and sunscreen shell, avoid the damage from dust, thunderstorm
weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to
70℃. Suit for any country.

300Mbps high speed, Atheros industrial chipset, wider application
G48OA comply with IEEE 802.11a/n standard, 300Mbps high speed, with Atheros industrial solution, it is a wifi
bridge with low power consumption, strong security. With PTP, PTMP, bridge operation mode, widely be used
in voice, video, data transmission in long range wireless monitor industrial.


1W High Power, 15dBi High Gain Antenna, Long Range wifi Device in market.
G48OA with external power amplifier,1W true power, 15dBi high gain antenna, the wifi range is more than
2000 meter, it is the device with most stable performance in long range, max load users, longest wifi range.


5.8GHz frequency, faster, lower latency, higher stability
G48OA with frequency of 5.180~5.825GHz, with wireless backbone channel of Europe, Japan, China, it avoid
the same frequency interference problem, full meet with data transmission in fast speed, low delay, high
stability requirement in wireless monitor.


Multi operation mode: Station, Bridge, WDS, AP Client
With operation model of bridge, it is a wifi device to bridge the exist wifi signal and transmission out the
Ethernet.
With operation of AP, it can expand the wifi signal, then share with others.


Support Power over Ethernet, cost save
The device has integrated Power over Ethernet (PoE) for easy installation and lower cost, with 24V/48V PoE,
it can be installed in areas where power outlets are not readily available, eliminating the mess of altering
existing network infrastructure.


Easy configure, multi function, remote control
G48OA with humanized configuration steps, simple to complete the entire system configuration, supply more
efficient service for your networking.
G48OA support IP bandwidth control, DDNS, firewall, traffic statistics, watchdog, restart in a limited time,
together with remote control in restart device and restore to default.


Main Function:

• Comply with IEEE802.11a/802.11n standard. 300Mbps data rate


• Support Station, AP, Bridge operation mode.


• Support bridge and routing mode data forwarding and PPPoE two layer data packet transmission


• Support automatic power adjustment and channel selection


• Support multi security mode


• Support users and traffic flow control


• Support 802.1Q VLAN


• Support WLAN QoS function, support WMM protocol


• Support MAC access control and WLAN interface


• Support local management, access log and security log.


• Support 10/100Base-T interface, meet with IEE802.3-2005 standard, and MDI/MDI-X auto connection
  function.


• Wide working temperature: -40℃~70℃, can be used in any country.


• Support Passive / IEEE 802.3af PoE


• ESD Protection and Lighting protection support
