10' LCD 360 Degree Pan/Tilt Sewer Inspection Camera with 100m cable ,wireless keyboard, HD DVR 720P video V10 3288PTN 1
- Category: >>>
- Supplier: Shenzhen Vicam Mechatronics Co. Ltd.
Share on (60246138599):
Product Overview
Description
10'' LCD 360 Degree Pan/Tilt Sewer Inspection Camera with 100m cable ,wireless keyboard, HD DVR 720P video
V10-3288PTN-1
Product Description
Vicam Waterproof sewer inspection camera

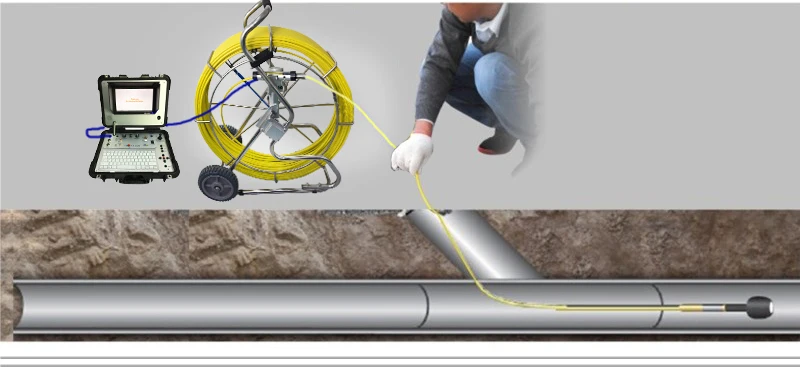

Know about Pan Tilt Pipe Inspection camera system
Pipe Cameras are used in a lot of different fields and are specifically designed to make it easier for plumbers, contractors, inspectors, engineers, municipal workers and other professionals to inspect the areas that are normally hard to reach. These inspection devices can reach and explore difficult spots in waste water systems, storm water systems, pipelines of different kind, drains, ducts and other hard-to-see areas.
Our PT camera with Pan 180 degree rotation and Tilt 360 degree rotation, can check any corner of applications.The camera waterproof features is up to 10bars(underwater 100m). 60m to 150m fibergalss cable reel with different diameter opion(Dia.7mm/9mm/11mm). 10inch IPS LCD screen with 1280*720 resolution.Wireless keyboard and big capacity Li-ion battery.
Main features: |
| 1. 360 degree rotation camera head, Pan 360°,Tilt 180° |
| 2. 1/3 CMOS,1.3MP pixel HD camera head, waterproof up to 10 bars |
| 3. 10 inch IPS lcd screen, 1280*720 resolution |
| 4. DVR control box with audio ,video recording and photography function |
| 5.100m Dia.9mm fiberglass copper axis cable , it can make good camera image for long cable . |
| 6. USB wireless keyboard to typewrite the words |
| 7. Camera video resolution is 720P,AVI format |
| 8. Built in 8800mA li-ion battery inside ,support uint working more than 6 hours |
| 9. Digital meter counter function, error is less than 1% |
Detail Specification for Pan Tilt rotation pipe camera system

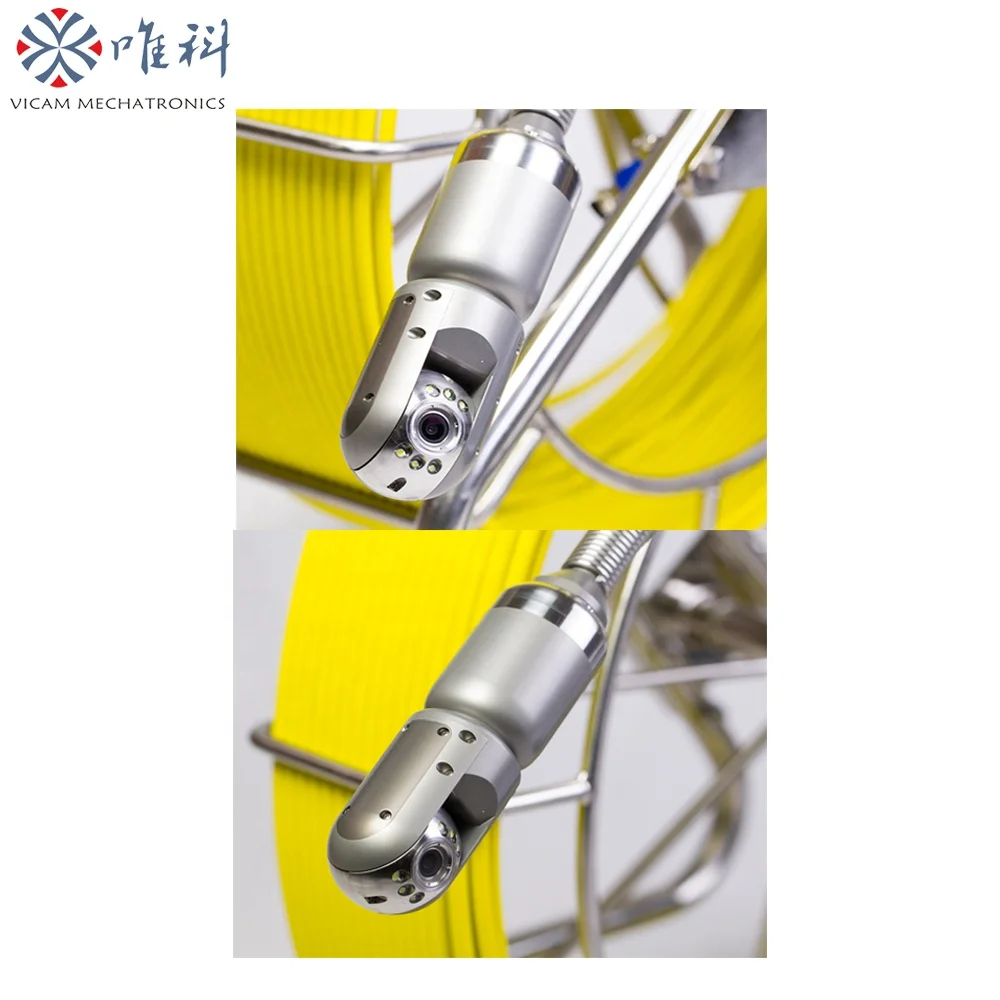

| Part1: 360 degree rotation AHD camera head | |
| * Camera size Ø50mm x 154mm, sensor 1/3" CMOS , 1.3MP pixel |

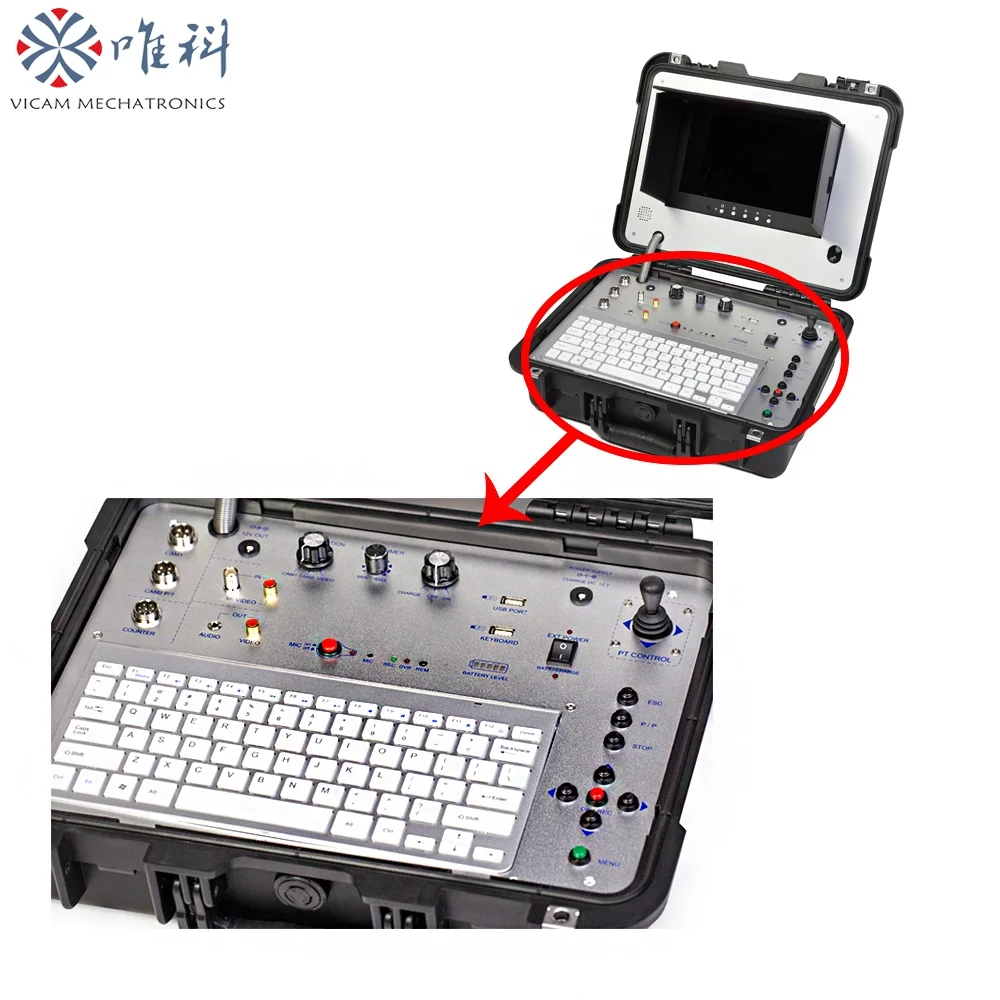

| Part2: AHD DVR control unit | |

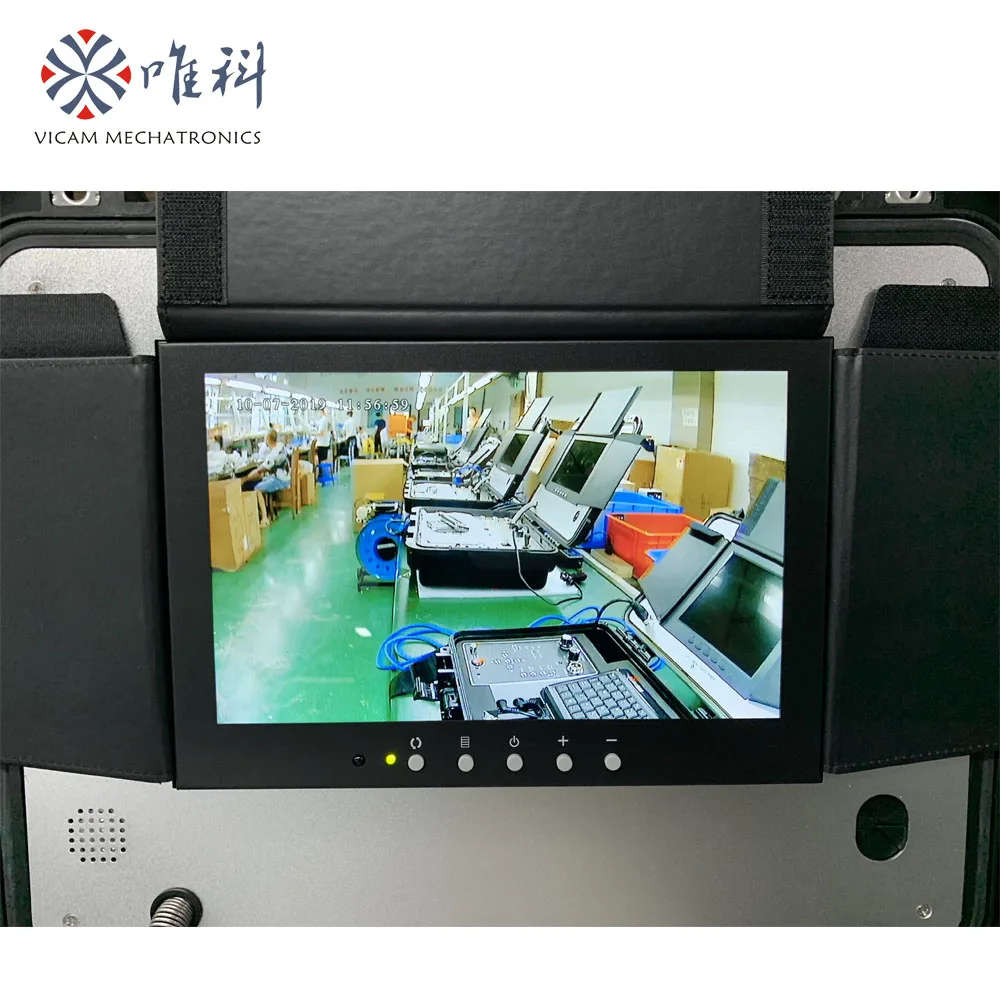

 | *10"HD IPS LCD Screen, 1280X720 resolution * Zoom in/Zoom out function on the DVR control box |

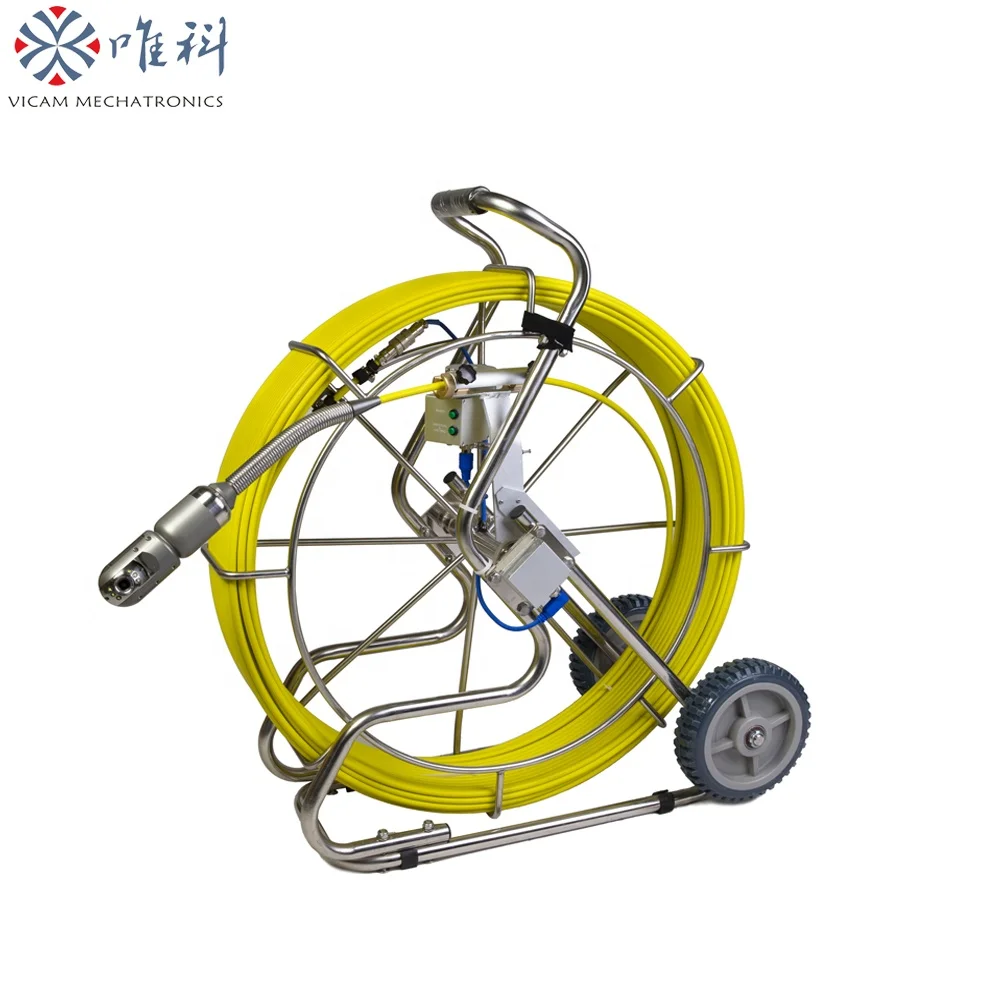

| Part3:60m to 150m cable reel with meter counter(Dia.7mm/9mm/11mm) | |
 | * Fiberglass push rod cable * Cable diameter ø9mm * Cable length from 60m to 150m optional * Reel size 70 x 28 x 84cm |

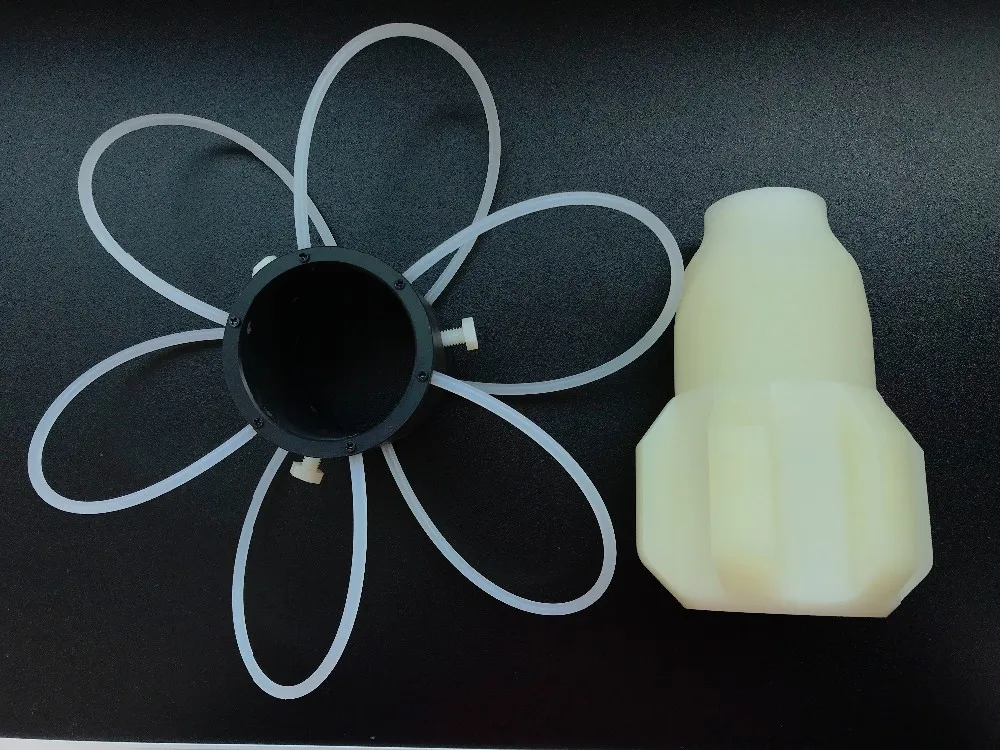

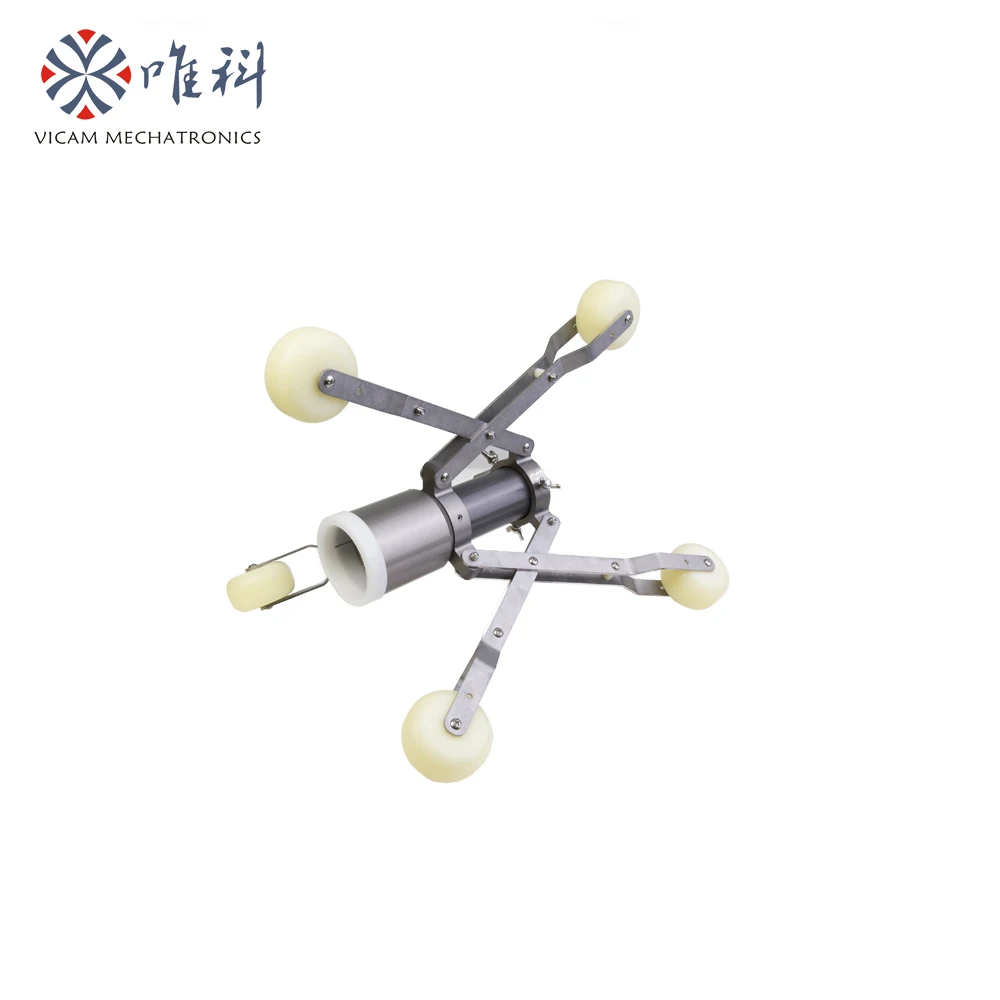

| Camera Skid:Different size for choosen | |
 | |

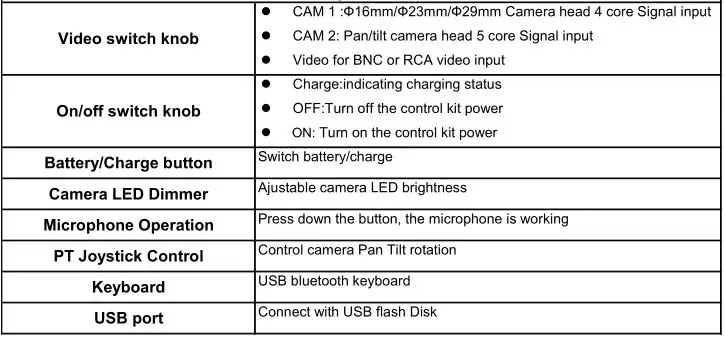

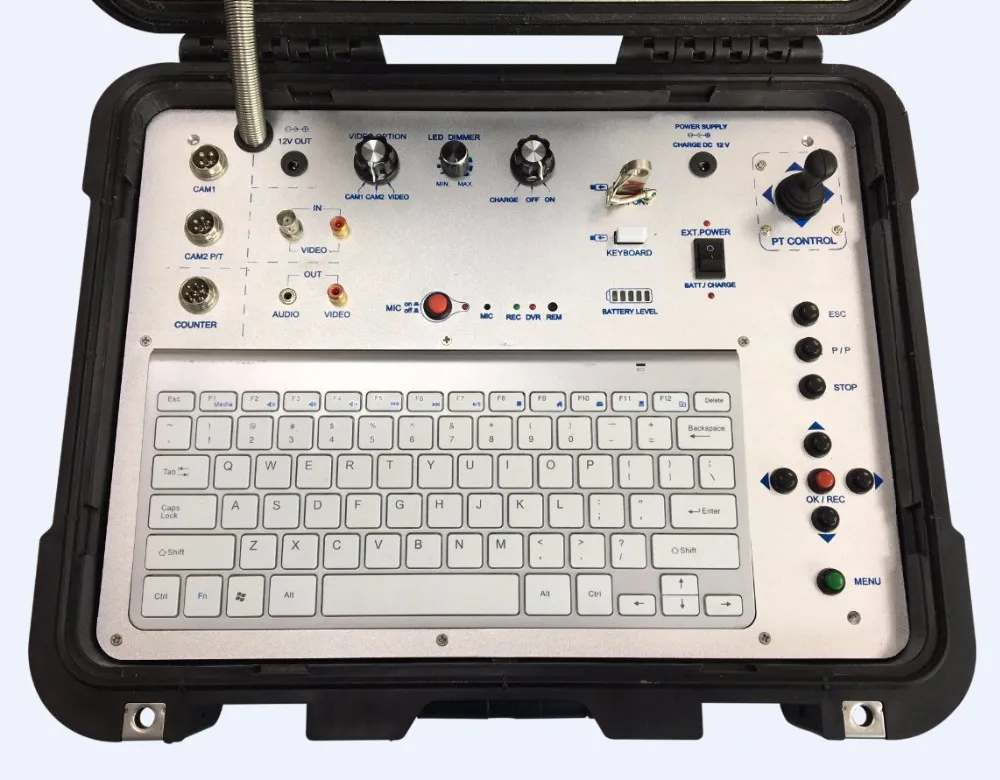

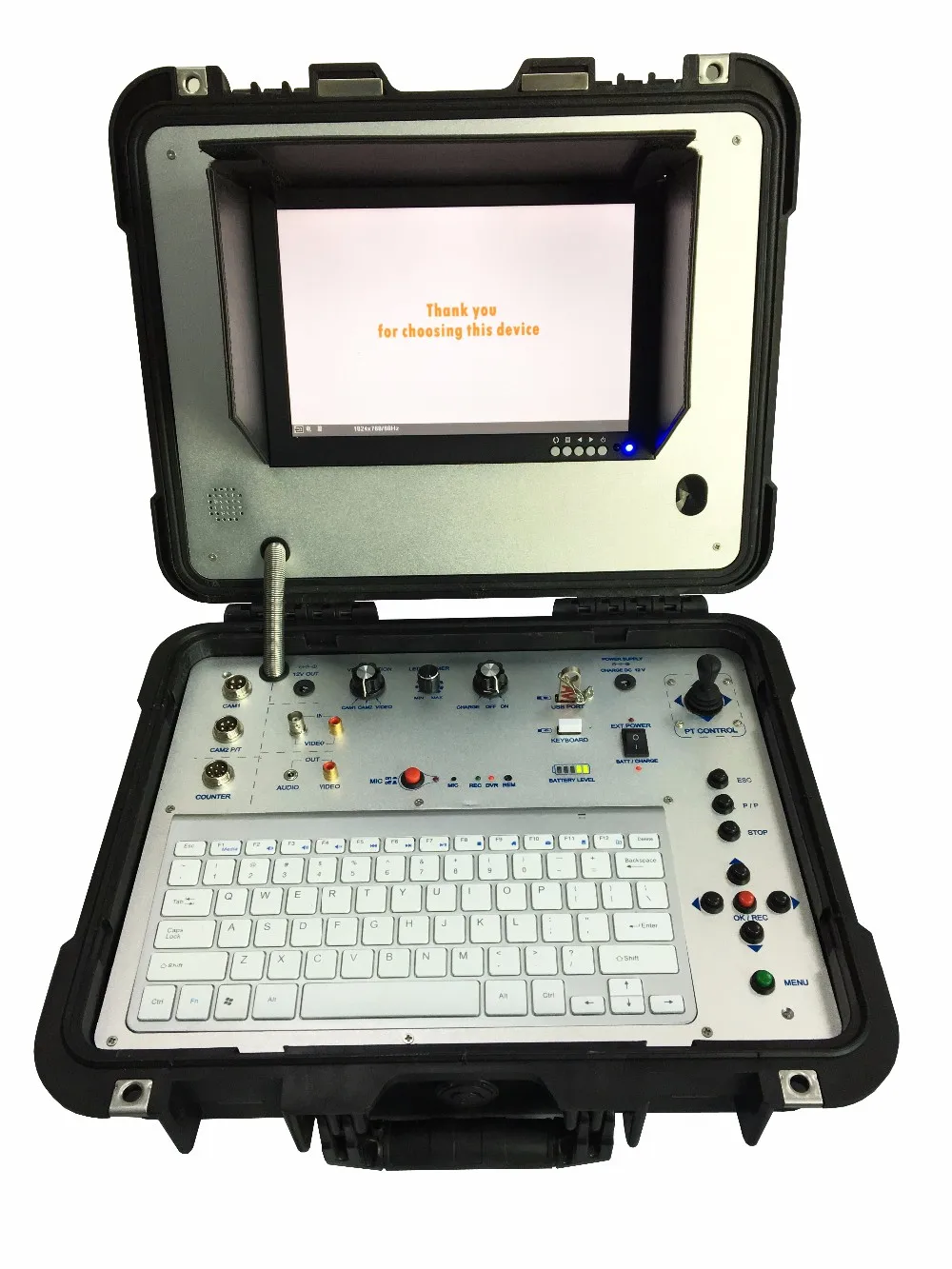

********Multifunction AHD DVR control box panel and button*******
This model is our NEW analog high definition (AHD )camera head. The camera image is clearer than our nomral Pan tilt camera system.(Pictures for reference)

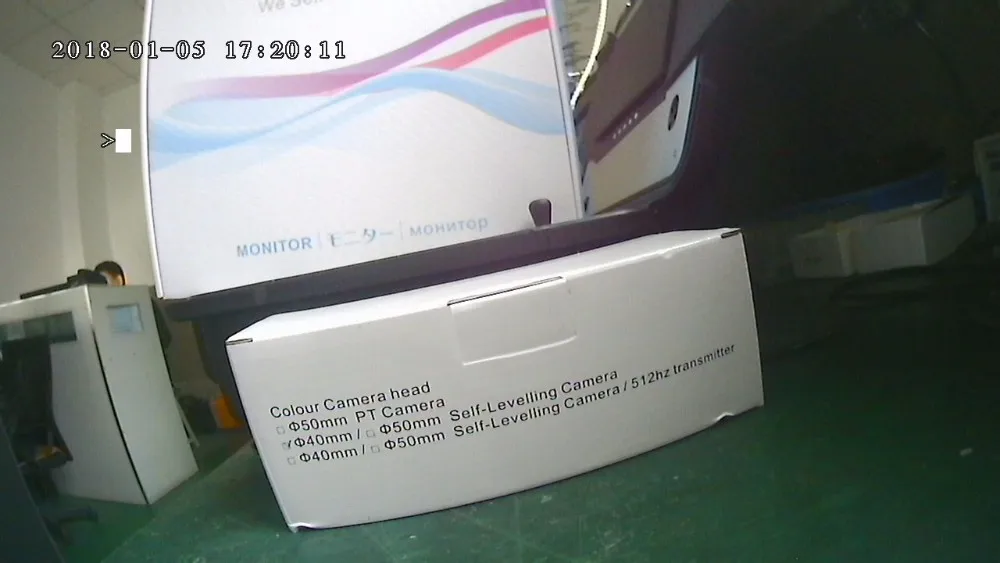

New AHD PT camera system
|

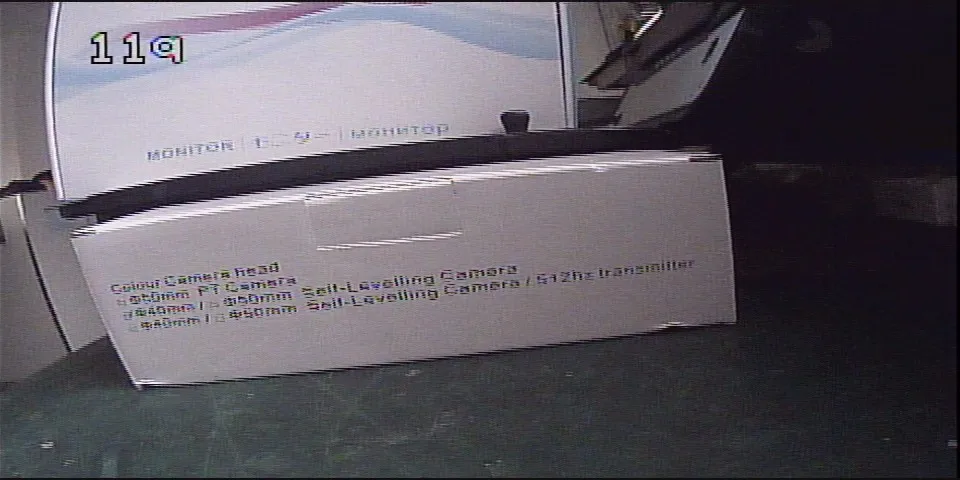

Old normal PT camera system |

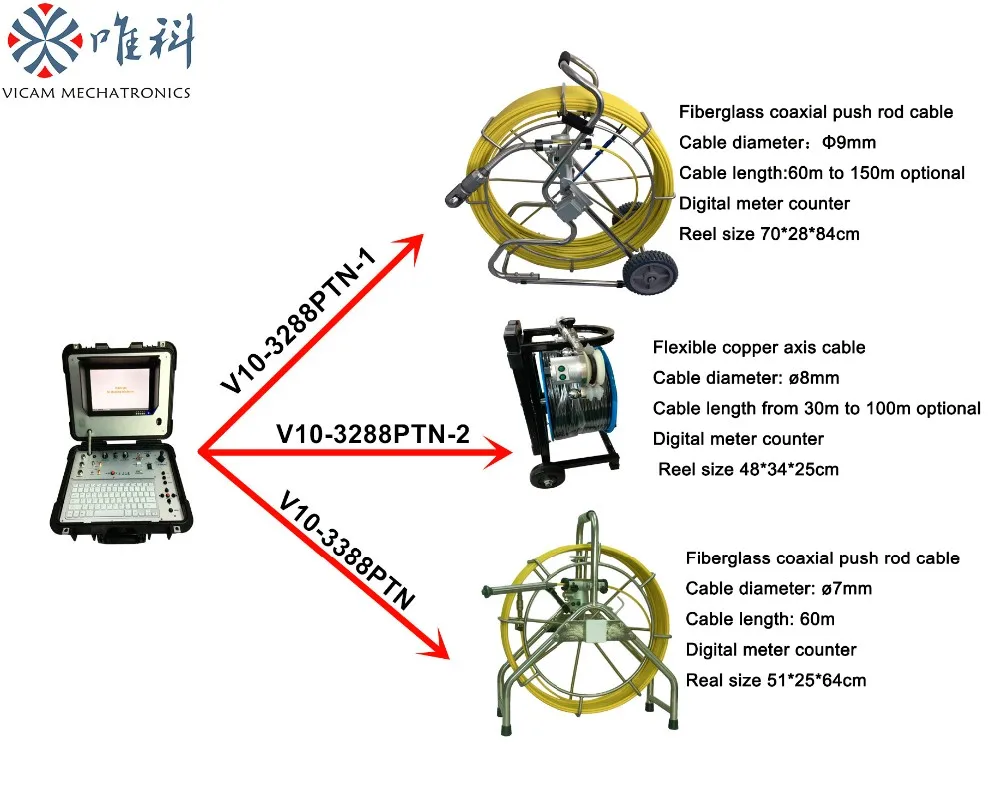

******Different Cable reel for option*********
Packaging & Shipping
The goods will package with safety carton box.
Company Information
About VICAM
Vicam Mechatronics Co., Ltd is located at Shangxue Industrial Park in Shenzhen, South of China. Specialising in the design, manufacture and assembly of video inspection systems, we have introduced the international advanced technology, designed and produced various video inspection cameras. Most of our products sold to Europe, America, Australia, Middle East, South Africa and South America market. In the process of Vicam growing up, we have got very important technical support from CYBERIA SAS, and Shenzhen Institutes of Advanced Technology.
Our main product range include portable pipeline video inspection system, industrial and city underground pipe video inspection system, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environment.
Vicam hot sale products as below:
- 50mm pan tilt rotation sewer pipe inspection camera
- 38mm dual rotation sewer camera
- 200m to 500m 63mm dual rotation borehole camera
- Telescopic pole inspection camera
- 23mm to 50mm self level image push rod inspection camera

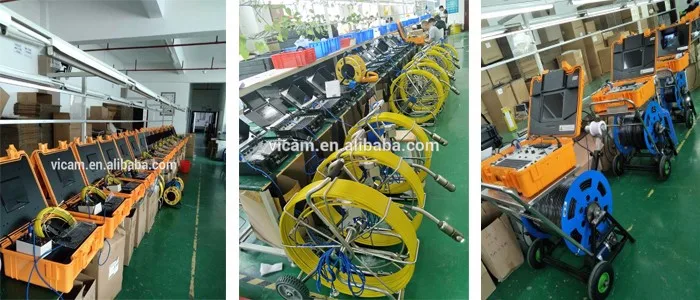

Vicam Factory and Booth Exhibition
