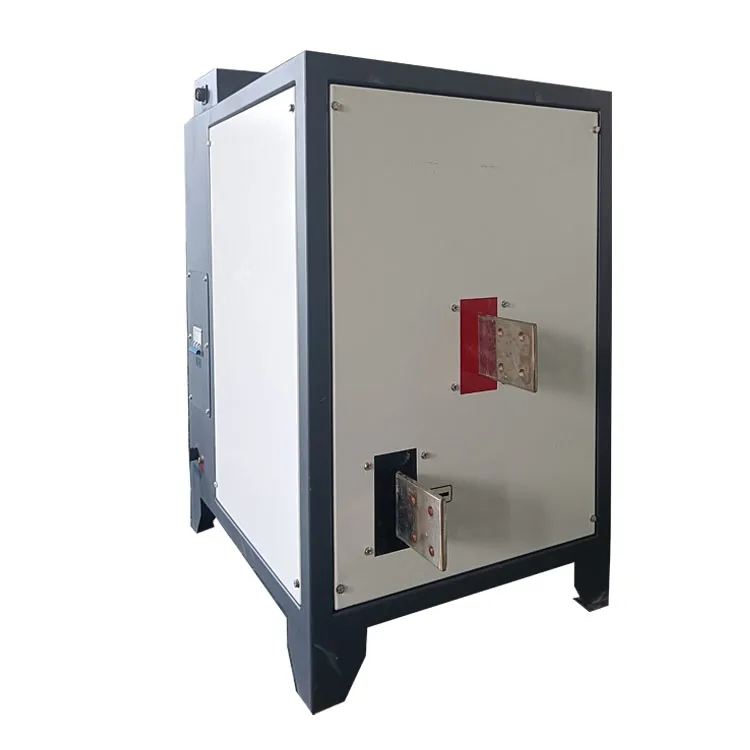

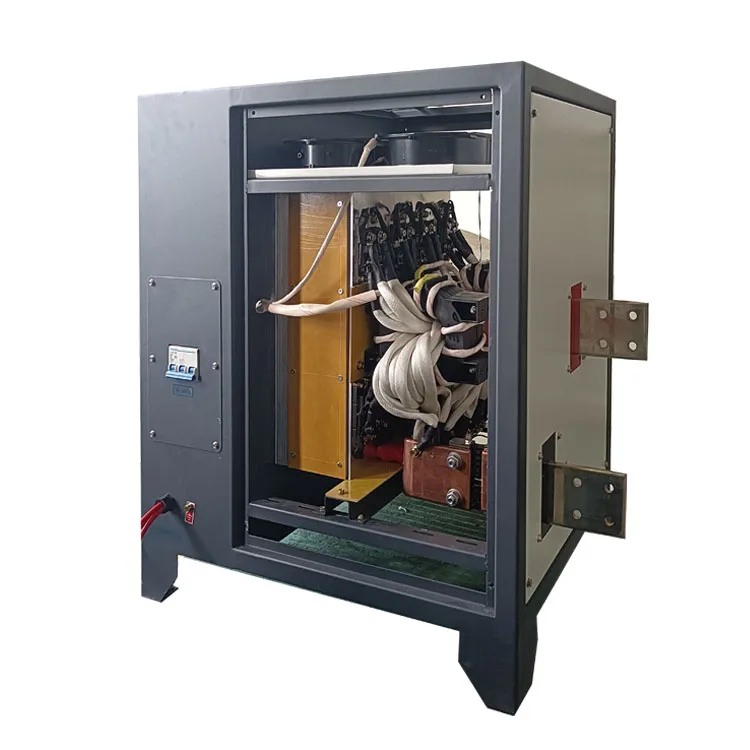

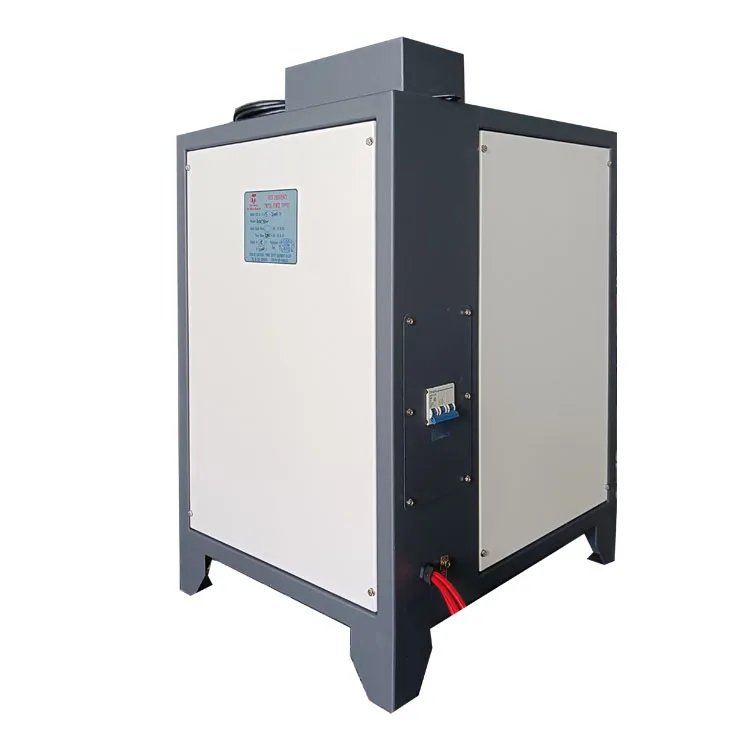

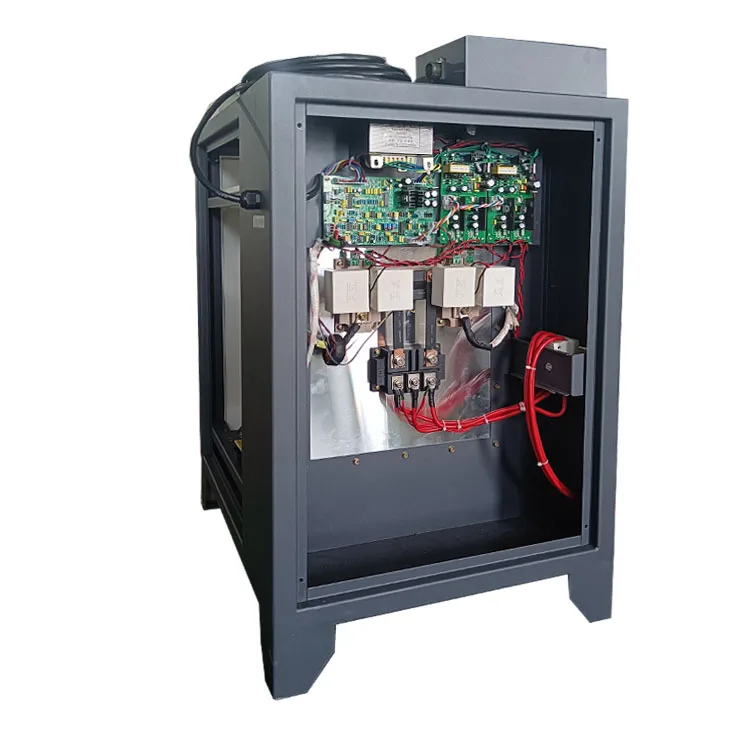

High Frequency 15V 2000A Switching Mode Power Supply for Electroplating
- Category: >>>
- Supplier: Chengdu Xingtongli Power Supply Equipment Co. Ltd.
Share on (60246141689):
Product Overview
Description
SPECIFICATION OF XTL(F)15V-2000CVC
| |
AC input(V)
|
AC 220V± 10% 3ø 50/60HZ AC 380V± 10% 3ø 50/60HZ AC 415V± 10% 3ø 50/60HZ
|
DC output(V)
| 0~15V digital display, adjustable
|
DC output(A)
| 0~2000A digital display, adjustable
|
Output power
| 30KW
|
Power factor | ≥0.93 |
Output efficiency
| ≥ 85%
|
Constant-current precision (%)
| 0.01% |
Constant-voltage accuracy (%) | 0.5% |
Switching frequency
| 20KHZ |
Protection function
| Short circuit protection/ overheating protection/ phase lack protection/ input over/ lowvoltage protection
|
Environment temperature
| -10°c ~ 45°c
|
Control mode | Local control/Remote control/ Local & Remote control
|
Working mode
| Constant current/voltage
|
Cooling way
| water-cooling
|
Size L*W*H(mm)
| 480*600*740
|
Weight(kg) | 80 |
Remark
| Acousto-optical alarm can be provide when u selected
|
485/PLC communication interface can be provide when u selected
| |
working pricinple
- Plating: Chrome, Zinc, Nickel, Copper, Gold, Silver
- Electrolysis: Copper, Zinc, Tin, Lead Aluminum foil, copper foil production
- Electrochemical machining
- Anodizing: anodizing, hard anodizing
Company Information
CHENGDU XINGTONGLI Power Supply Equipment Co., Ltd. was set up in 1995. We are a high technology company dedicating to the design and manufacture of switched-mode power supply(rectifier). We are experienced in the field of power electronics, energy transforming technology and industry control system. The performance of switching power supply we designed is excellent. It is safe, green and reliable. With these advantages, our products are widely used in aerospace, military industry, railway transportation, electric power industry, automobile manufacturing, shipbuilding, petroleum industry and some other industries. Now we have already held a big market share of the power supply in metal surface finishing field. We are one of the main vendors of electroplating power supply in China.
Company advantage:
- The rectifier is designed and developed by ourselves, patents approve
High quality, quality control follows ISO9001:2008 and Chinese military standard.
- Full load testing ability
- Technical service available before sale and after sale
FAQ
1. Q: Are u factory or tranding company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL and FeDex four transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex. If there is no transporting way you want to choose, plz tell me.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
