MOS 2307 A7 sot 23 smd transistor
- Category: >>>
- Supplier: Jinan HFZT Electronic Co. Ltd.
Share on (60246336022):
Product Overview
Description
Product Description

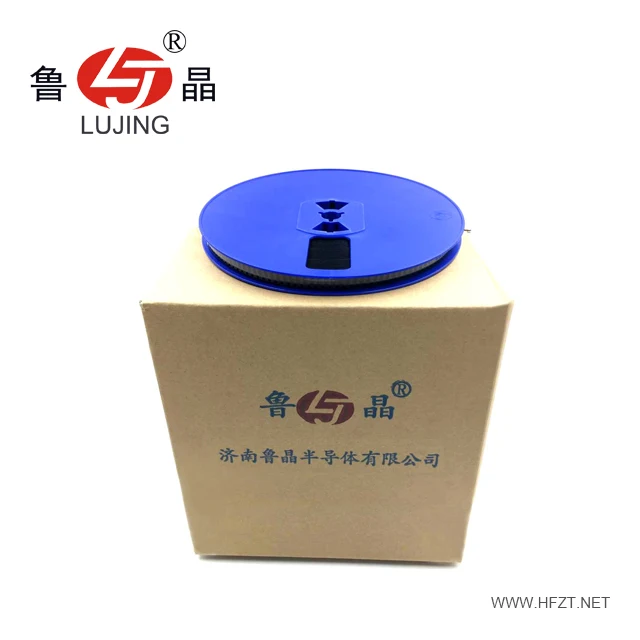

MOS 2307 A7 sot-23 smd transistor
We set all the products price between USD0.002 to USD0.1/Piece for convenience, if you want to get the best price, pls contact us directly. THANK YOU!
The brief introduction
| Field Effect Transistors | ||||||||||||||||||
| PD | ID | V(BR)DSS | RDS(ON)(max) | VGS(th) | gfs(min) | ||||||||||||
| TYPE | PIN ARRAY | W | A | V | Ω | ID (A) | VDS (V) | V | ID (μA) | (S) | VDS (V) | ID (A) | Case Style | TYPE | Marking | |||
| 2301 | GSD | 0.35 | -2.3 | -20 | 0.112 | -2.8 | -4.5 | -0.4~-1 | -250 | 6.5+ | -5 | -2.8 | SOT-23 | P | A1 | |||
| 2302 | GSD | 0.35 | 2.1 | 20 | 0.06 | 3.6 | 4.5 | 0.65-1.2 | 50 | 8+ | 5 | 3.6 | SOT-23 | N | A2* | |||
| 2303 | GSD | 0.35 | -1.9 | -30 | 0.19 | -1.9 | -10 | -1~-3 | -250 | 1 | -5 | -9 | SOT-23 | P | A3 | |||
| 2304 | GSD | 0.35 | 3.3 | 30 | 0.06 | 3.2 | 10 | 1.2~2.2 | 250 | 3 | 4.5 | 2.5 | SOT-23 | N | A4 | |||
| 2305 | GSD | 1.25 | -3.5 | -8 | 0.044 | -3.5 | -4.5 | -0.45~-0.8 | -250 | 8.5 | -5 | -3.5 | SOT-23 | P | A5 | |||
| 2306 | GSD | 1.25 | 3.5 | 30 | 0.046 | 3.5 | 10 | 1~3 | 250 | 6.9 | 4.5 | 3.5 | SOT-23 | N | A6 | |||
| 2307 | GSD | 1.25 | -3.20 | -30 | 0.078 | -3.2 | -10 | -1~-3 | -250 | 5.0 | -10 | -3.2 | SOT-23 | P | A7 | |||
| 2309 | GSD | 1.25 | -1.25 | -60 | 0.034 | -1.25 | -10 | -1~-3 | -250 | 1.9 | -4.5 | -1 | SOT-23 | P | A9 | |||
Shipment
1.- We can ship the products all the world.
2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.
5.- You can track the situation of your product on website after they are shipped out.
Our Services
Warranty
1.- One year guarantee.
2.- If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).
3.- We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost( from us to your location); After 1 month of purchase, the buyer need to pay two ways of shipping cost.
4.- One we get the returned items, we will send the replaced ones back as soon as possible.
5.- Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts.
Company
Certification
Contact us
JINAN HFZT ELECTRONIC CO.,LTD
TEL:+86-531-88726825
Mobile:+86-13256402809
Skype ID:libby.hfzt
FAX:+86-531-88726830
What you need is our best transistor MOS 2301
