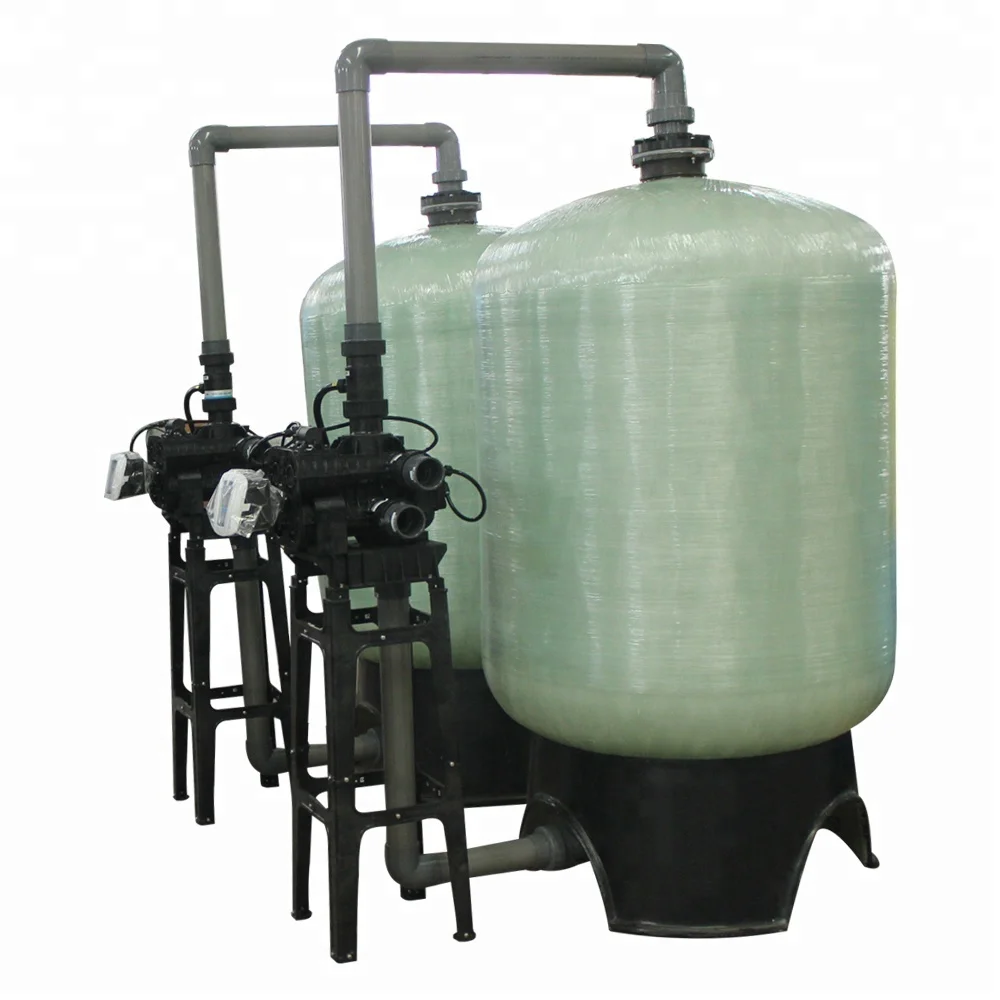

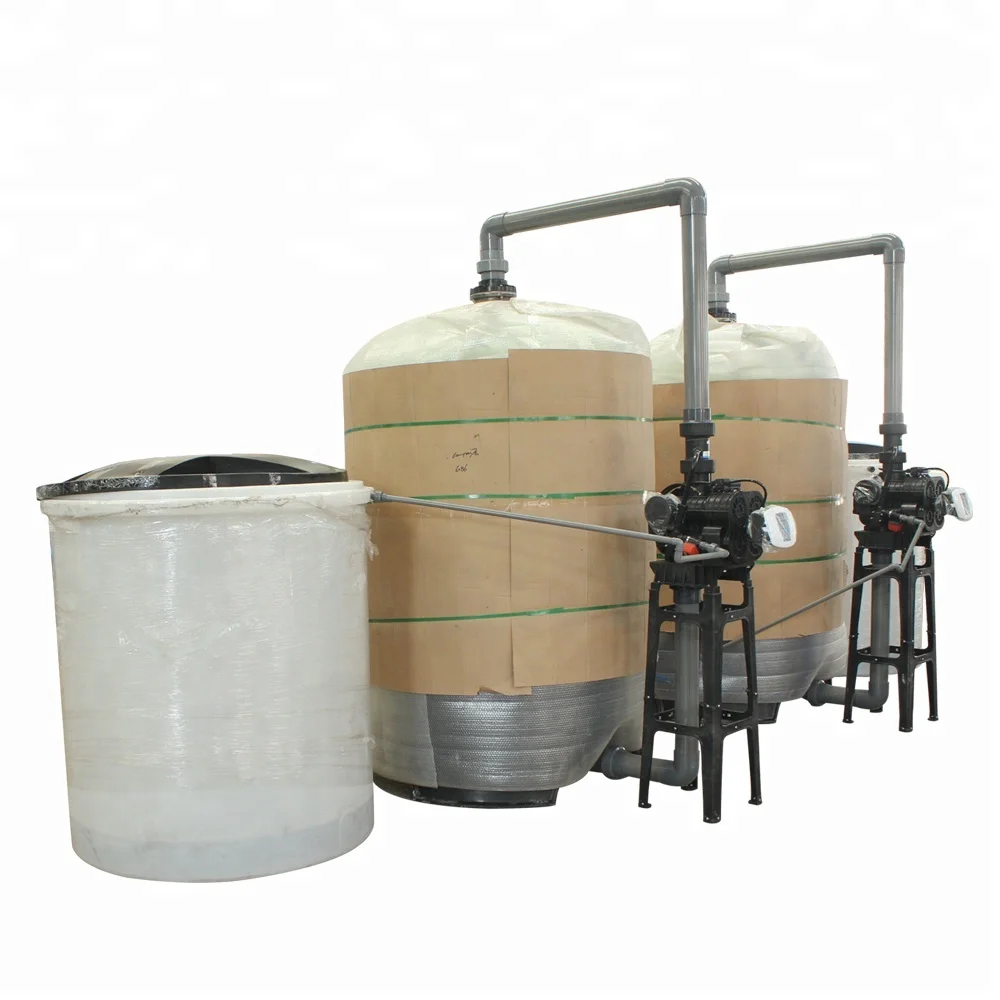

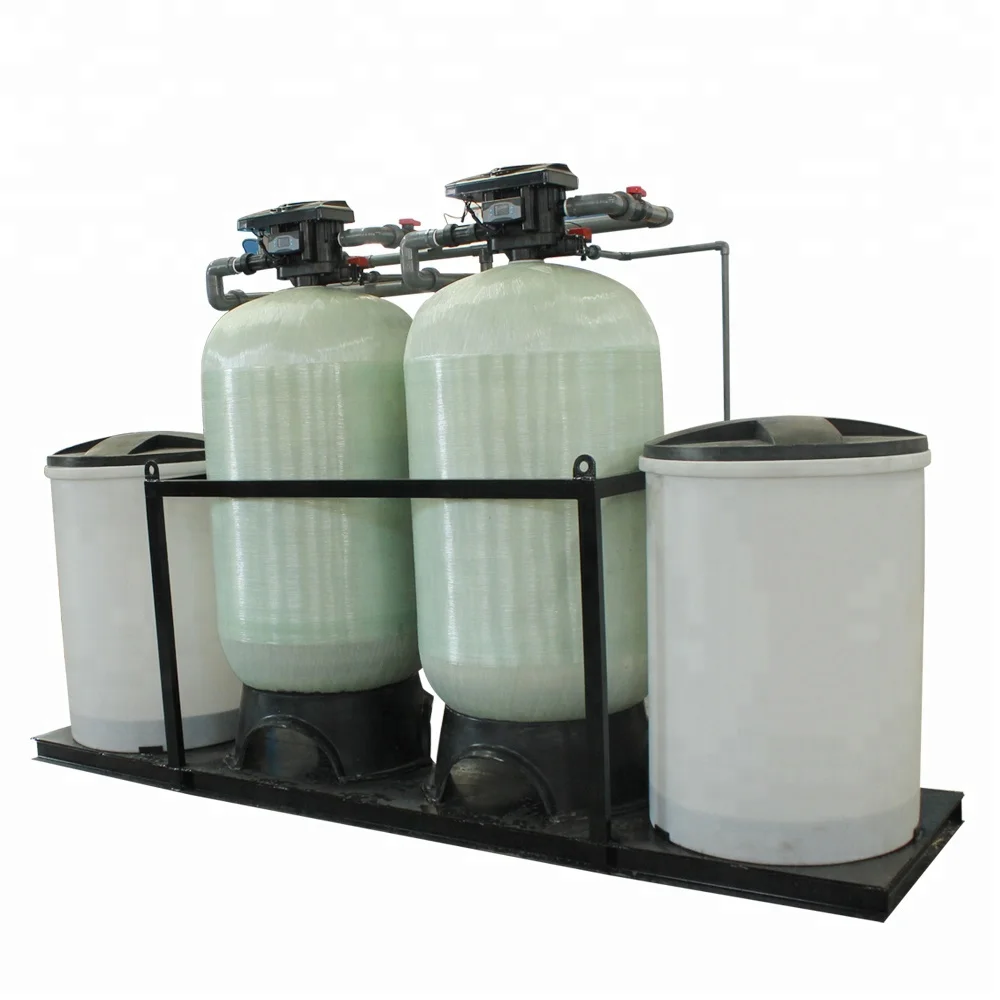

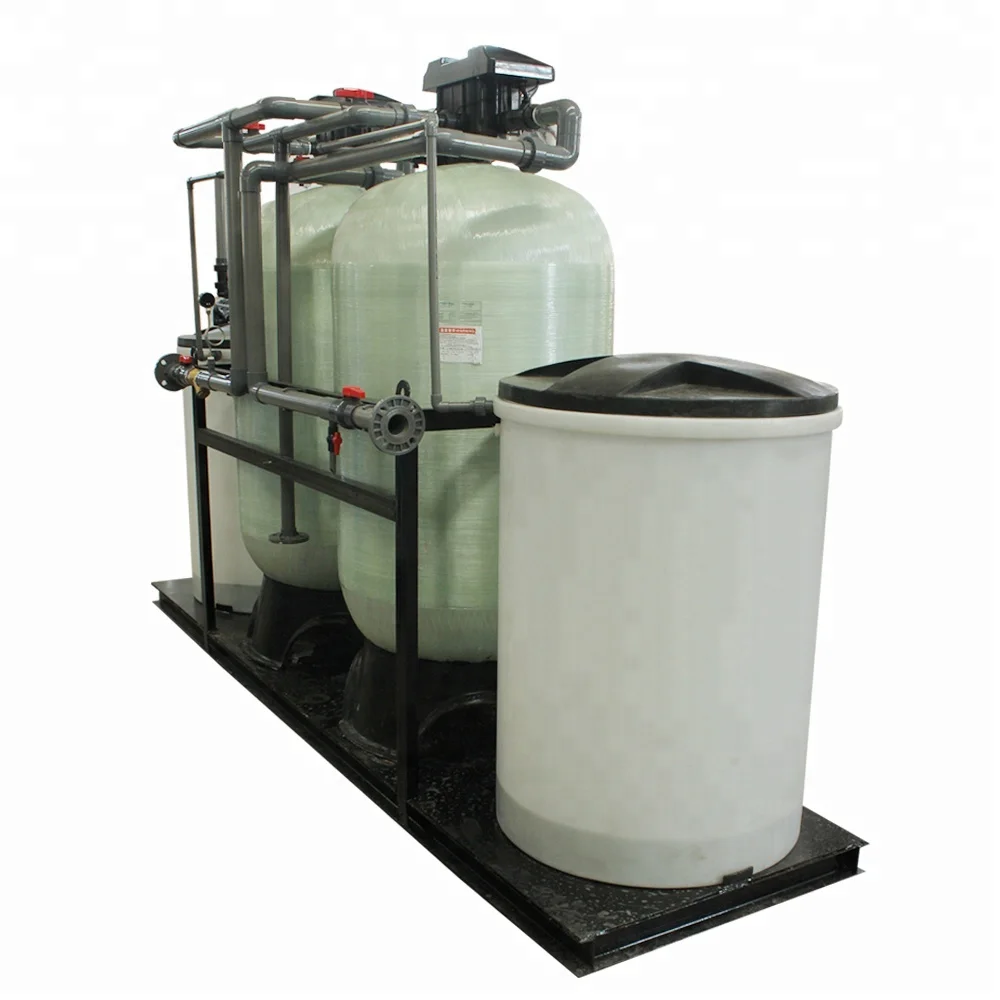

Ion Exchange Resin water softener For Heat Exchanger System

Product Overview

Description



Ion Exchange Resin water softener For Heat Exchanger System







01.As the water hardness is mainly composed of calcium and magnesium, cation exchange resin (softener) is used to replace Ca2+, Mg2+ (main ingredients for scale) in water by absorbing the calciumand magnesium ions in water with resin.But with the increase of Ca2+ and Mg2+ in resin, removing performance on Ca2+, Mg2+ of resin will be gradually weakened.

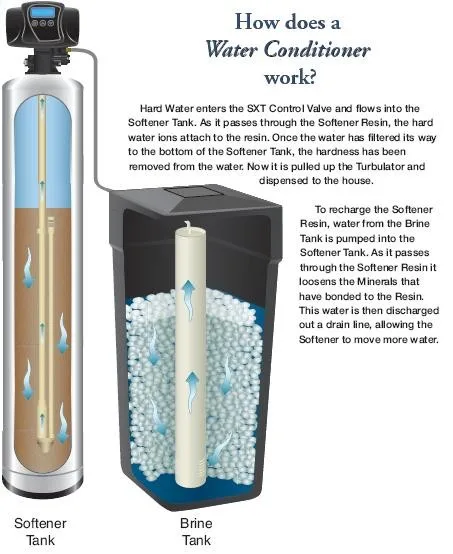

02. When the resin has absorbed a certain amount of calcium and magnesium ions, it must be regenerated, the regeneration process is that flushing resin layer with the salt water from salt case, replacing hardness ion out of the resin again, and discharging wastewater out of the tank by regeneration, then resin recover the function of softening and exchanging.



03. working principle of sodium ion exchange and softening treatment is to exchange sodium cation with resin to soften the raw water , hardness content Ca2+and Mg2+ in water will be exchanged with Na+ in the resin to absorb the Ca2+and Mg2+ to make the water to be softened.

2RNa + Ca2+ = R2Ca + 2Na+

2RNa + Mg2+ = R2Mg + 2Na+

After the water treated by sodium ion exchanger, the Ca+ and Mg+ were superseded by Na +.







Application scope of softener



It is widely used in industrial water and civil water softening treatment, such as water supply for boiler feeding water and air conditioning system water, heat exchanger, power plant, chemical, textile, printing and dyeing, bio-pharmaceutical, Electronic system and water pretreatment.



Function



1.Softener equipment applies cation resin for softing raw water,its main target is to use cation resin to adsorp (main parts of ),decreasing the hardness of raw water.



2. manual operation control system is very economical.



3. Uses can choose according to water quality requirement:

a.first grade multi-media filter,which can remove mud,rust,colloid and suspension in water.

b.Second grade activated carbon filter,which can remove color,olfactory,biochemistry organic in water and encrease the left oxygen value and pollution in water.

c.Third grade equiped softener equipment.



4. Effluent water capacity achieves the water supply of national low-pressure bioler.

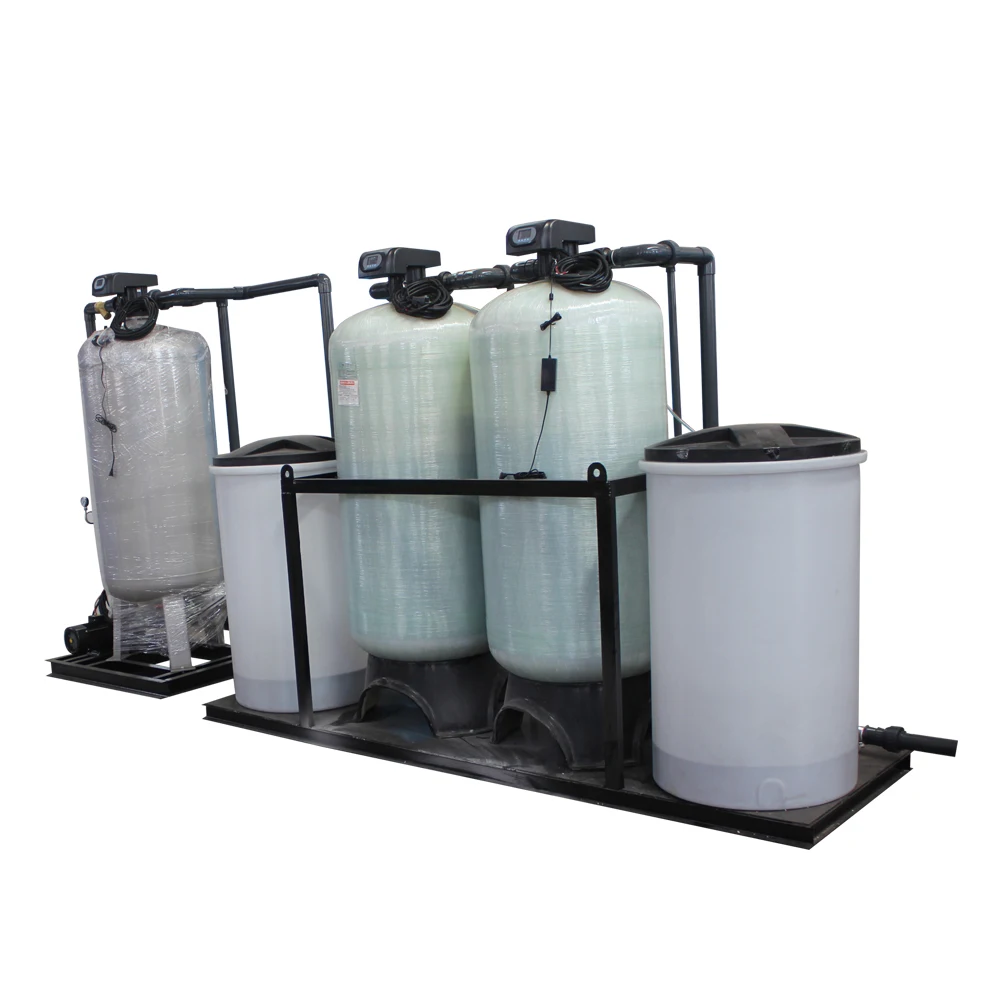

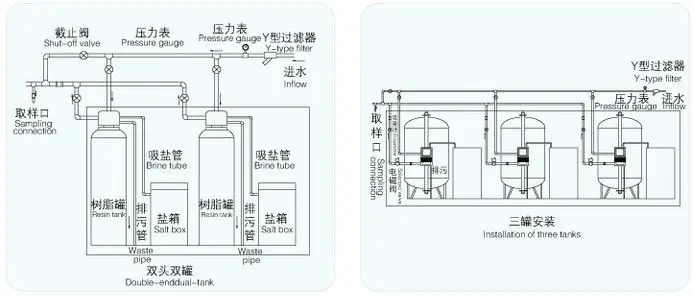

5. Time control- type;flow control- type.In working ,apply single-tank,double-tank and multi-tank etc. other varied combination method.When choosing,users can choose as their needs.In operation,it has not only automatic function,but also is manual operation.



Specifications:



Water pressure:0.18-0.6Mpa

Working temperature:1°c-55°c

Hardness of raw water: <8mmol/L

Operation method:manual/automatic

Hardness of effluent water: ≤0.03mmol/L

water flow: 0.3-100 m3/hour

Control method: time or flow

Working electric: 220V/50Hz
