concrete and cement mixer machine JS500

Product Overview

Description

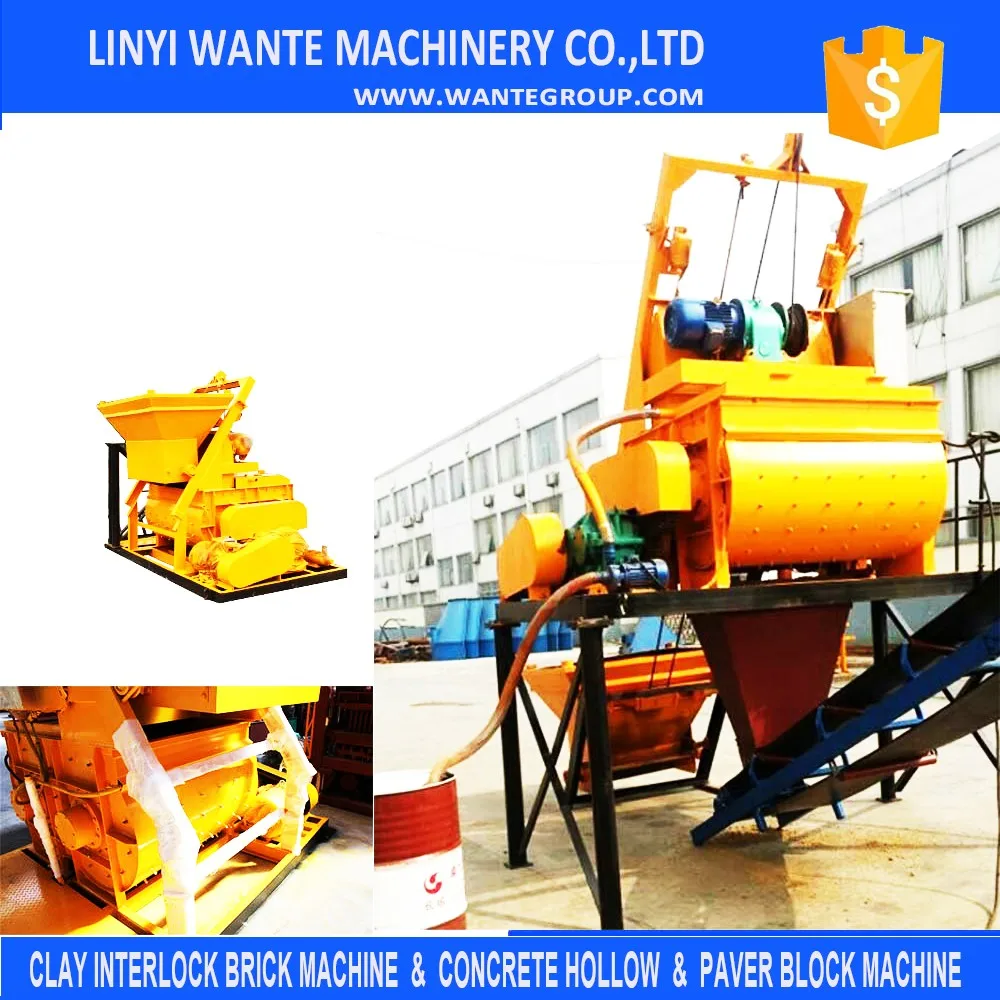

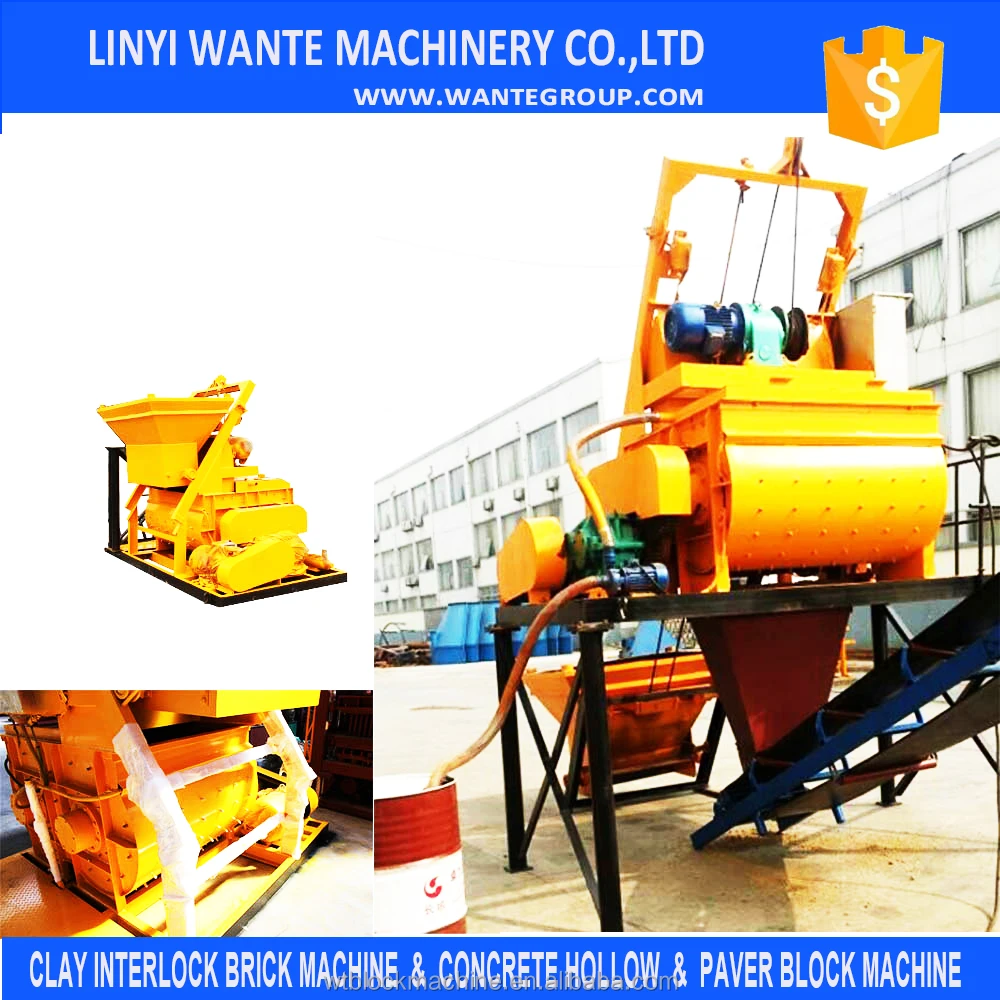

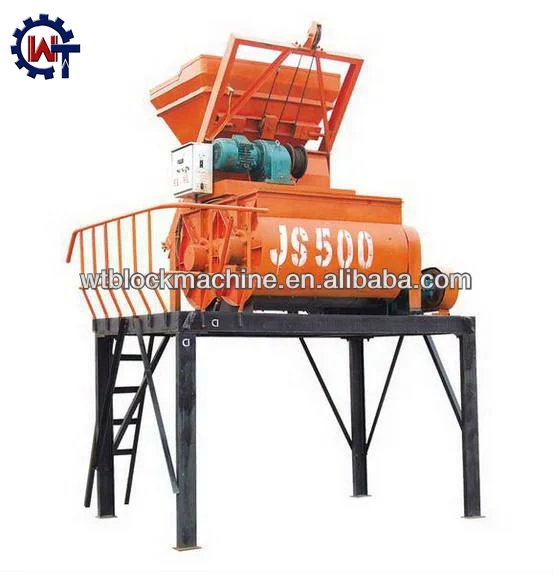

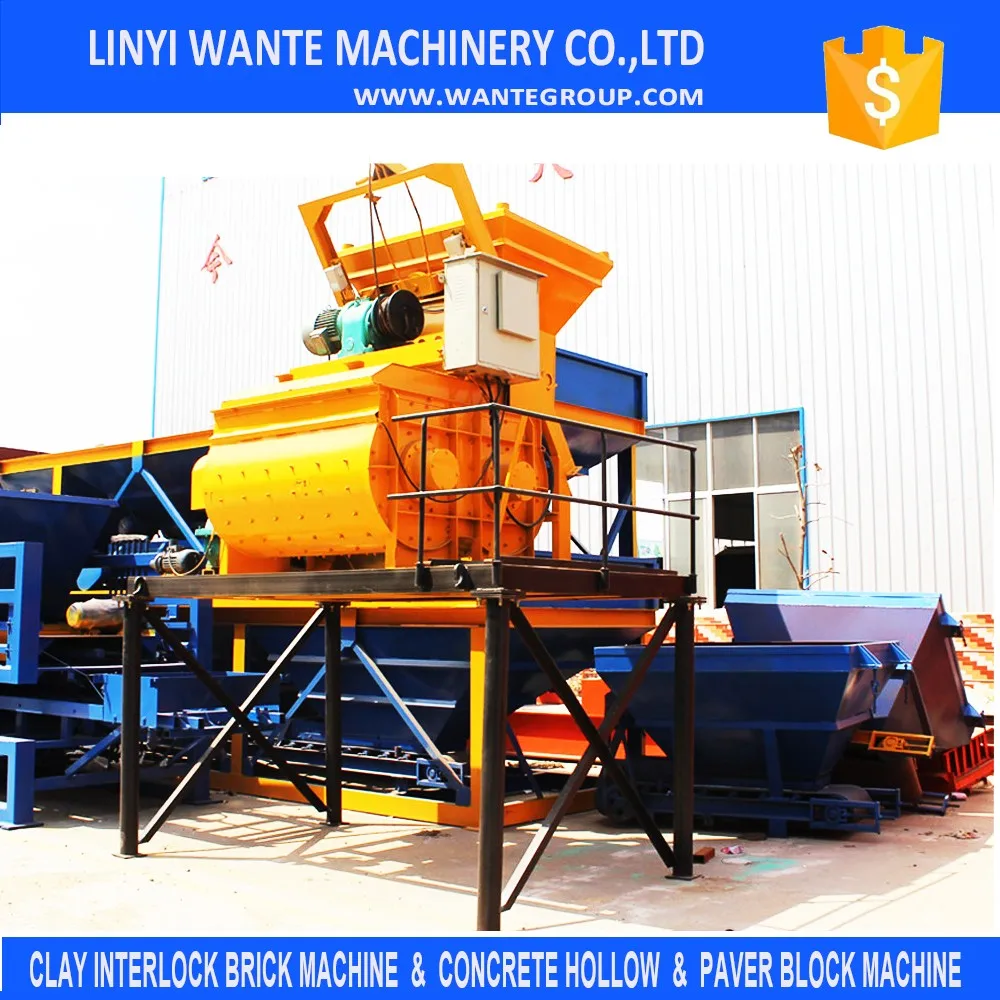

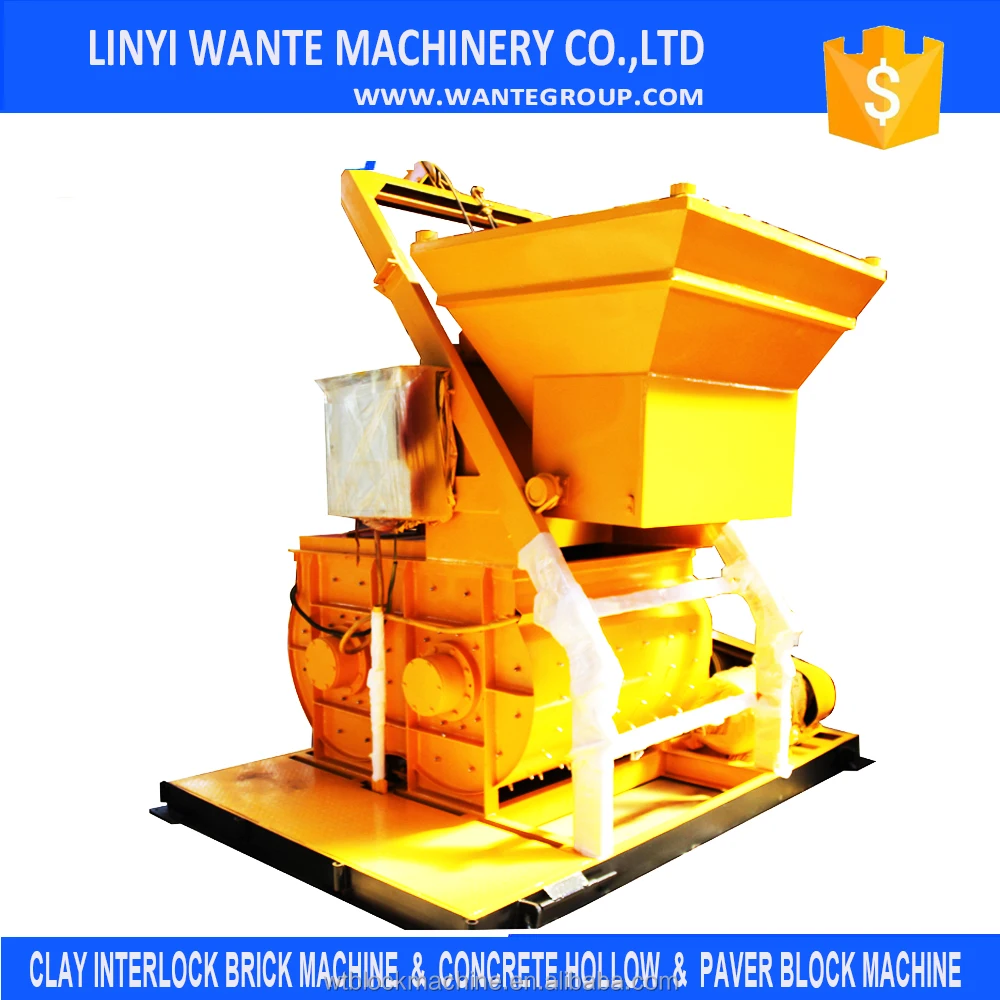

concrete and cement mixer machine JS500

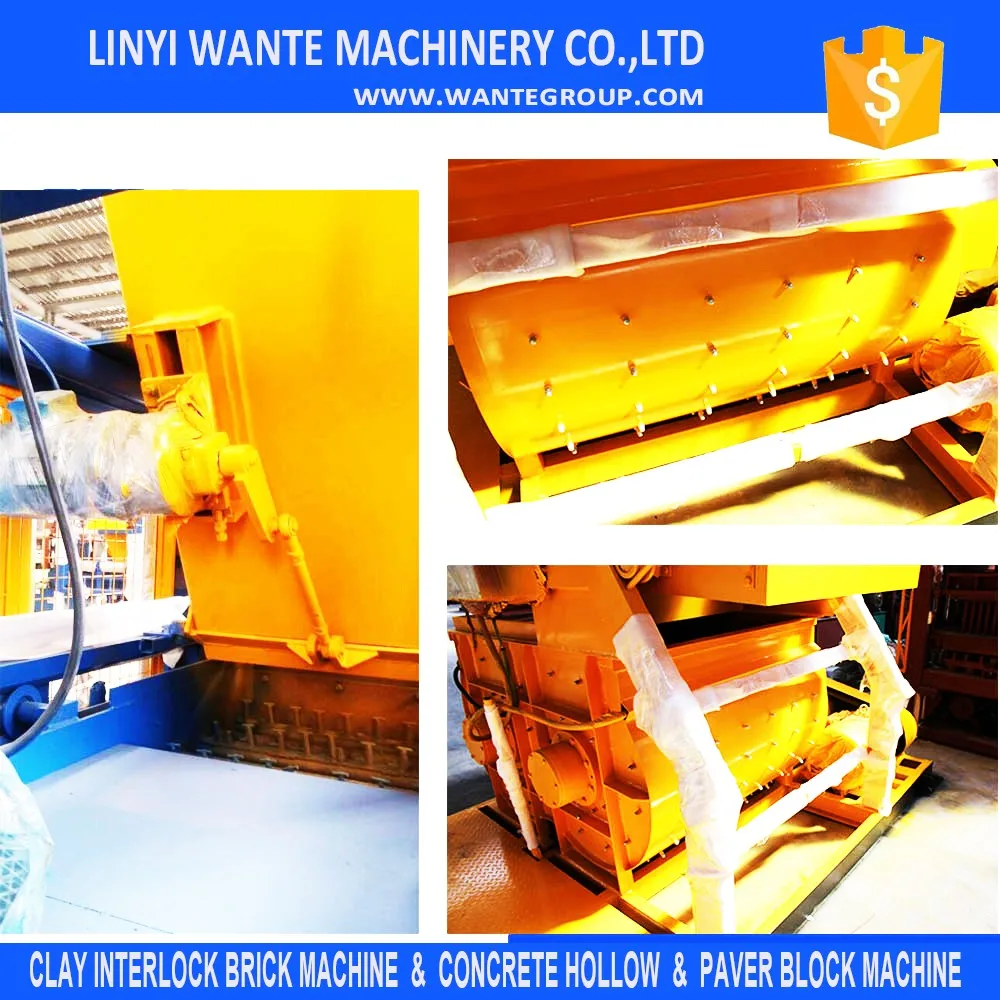

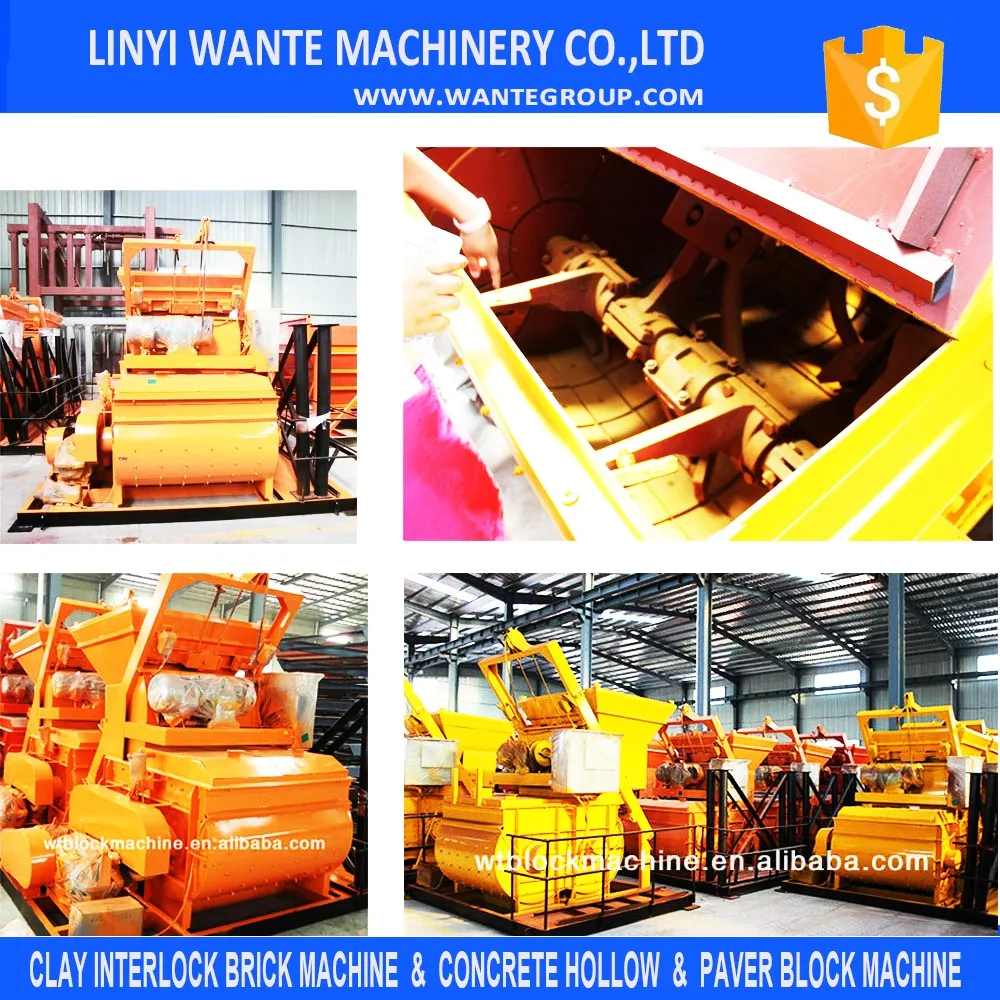

concrete and cement mixer machine JS500 is twin-shaft compulsory concrete mixer, which can mix subarid rigid concrete, plasticility concrete, flolwability concrete, light aggregate concrete and various mortar. Drum sets with wear resistant cast liner and mixing blade, which is durable and easy to replace. Once JS500 concrete mixer is combined with various models batching machine, batching plant will come into being, which applies to various kinds of large & medium scale prefabricated factories and all kinds of construction sites.



Features of concrete and cement mixer machine JS500:

1 Easy to install and move

2 Fully automatic operation .

3 Low price and golden service

4 Short mixing time,  good homogeneity .

5 The shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace

Parameters of concrete and cement mixer machine JS500:



We also have other types for you choose excepnt for small and portable electric cement and concrete mixer machine :



Double horizontal shafts forced concrete mixer   JS 500/750/1000/1500
Model	JS 500	JS 750	JS 1000	JS 1500
Discharge capacity	500 L	750 L	1000 L	1500 L
Charge capacity	800 L	1200 L	1600 L	2400 L
Mixing time	35-45 S	35-45 S	35-45 S	35-45 S
Rated output	25-30m3/h	37-45m3/h	over 50m3/h	65-75m3/h
Main motor power	18.5KW	30KW	2x18.5/37KW	2x30KW
Hoisting	5.5KW	7.5KW	18.5KW	22KW
Water pump power	1.1KW	1.1KW	3KW	3KW
Maximum size of aggregate	60/80mm	60/80mm	60/80mm	60/80mm
Overall dimension  (mm)            ( L x W x H )	(T) 2786x3003x2151	3636 x 2805 x 2630	4500 x 2400 x 2165	5200 x 2480 x 3150
	(W)4448x3003x5634	4950 x 3636 x 6260	9500 x 3800 x 8605	11700 x3880 x 9010
Total weight	4100 Kg	6400 Kg	11000 Kg	12000 Kg
