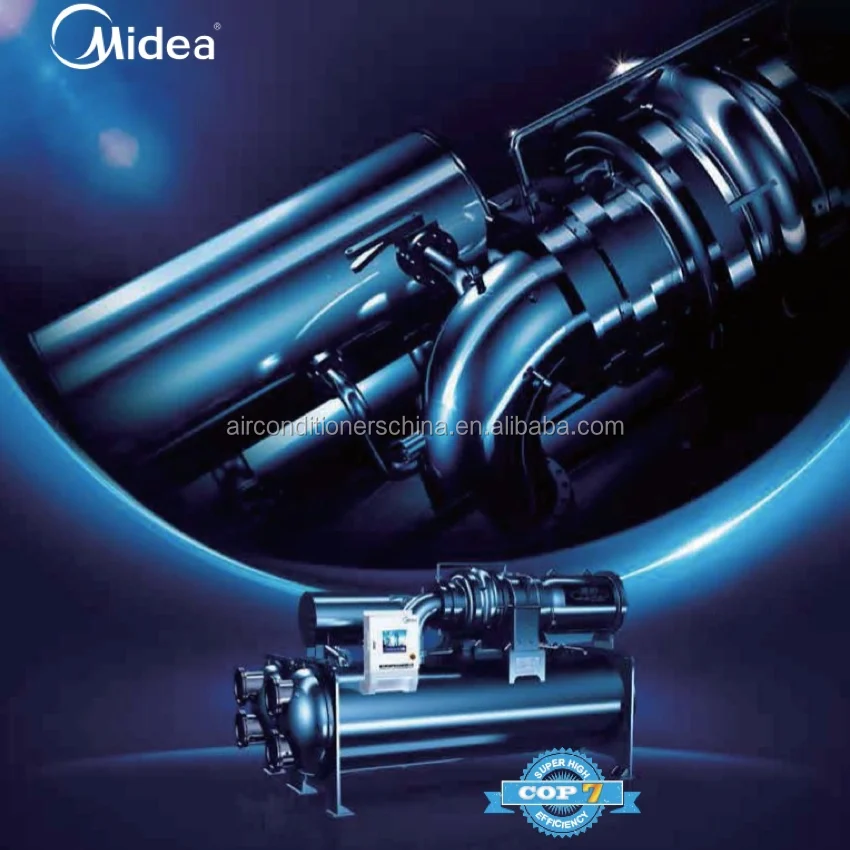

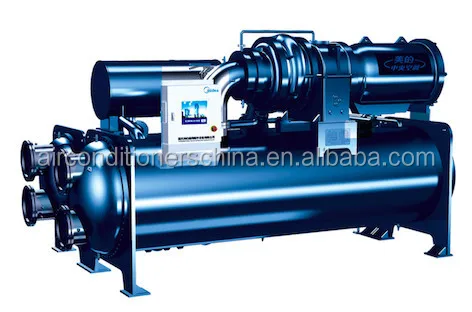

Midea Centrifugal chiller R134a

Product Overview

Description

 Highest industry efficiency COP 7 full falling film centrifugal chiller R134a

Midea centrifugal chiller free cooling technology - industrial chillers for big projects



In the central air-conditioning industry, Midea Central Air-conditioner has been committed to the air-conditioning technology R & D and innovation. From the Chinese first centrifugal chiller to the first full falling-film dual stages centrifugal chiller, Midea has been trying for creating comfortable, energy-saving and environment friendly equipment to the world.





The new ultra-efficient two-stage compression falling-film centrifugal chiller can be applied to a variety of energy-saving projects. It is the ideal choice for urban building and makes a significant contribution to the city building energy saving.



free cooling technology, Highest industry efficiency COP 7, R134a



Under the AHRI conditions, it has a COP up to 7.06 W/W and IPLV up to 11.6 W/W.





Core Advantage

Super high efficiency falling film centrifugal chiller, aerodynamic design from CFD aircraft engine, leading the industry COP to 7.1 era. full falling film technology 40% reduction of refrigerant charge.

• The unique full falling-film evaporaing technology in the industry


• Full range of products won the AHRI certification


• Leading intelligent group control technology


• R134a environmentally friendly refrigerant

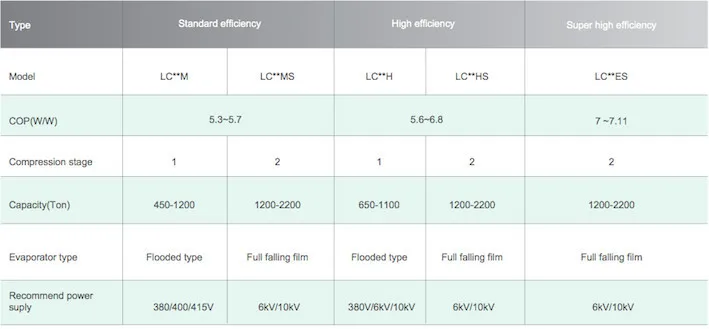

Specification ( Centrifugal chiller R134a )

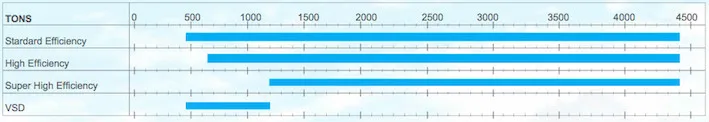

In order to cater to different efficiency requirement and consider the cost-effective for various investments, Midea provides three class efficiency for the clients. Dual compressors can be customized for big capacity up to 4400Ton.







Features and Benefits ( Centrifugal chiller R134a )



1. High Efficiency

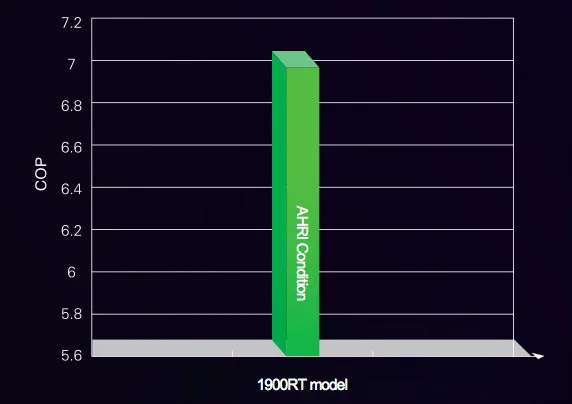

Under  the AHRI conditions, Midea Dual-stage Falling-film Centrifugal Chiller has a COP up to 7.06 W/W.

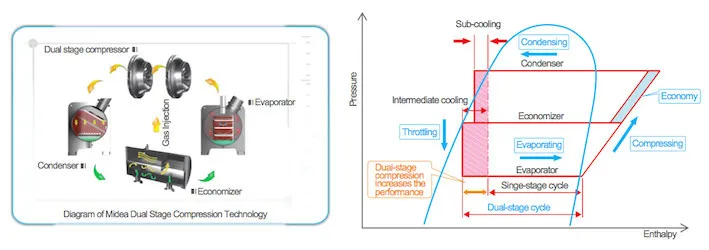

2. Dual Stage Compression Technology

• Enhances the heat absorption capacity of refrigerant, and lowers the power consumption, which increases 6% of efficiency over the single stage compressor.


• Dual stage impeller is an equal ratio compression design, which helps to reduce the rotate speed and enhance the reliability.


• Unique three-stage separation economizer simplifies the system design





3. Creative Heat-exchanging Technology

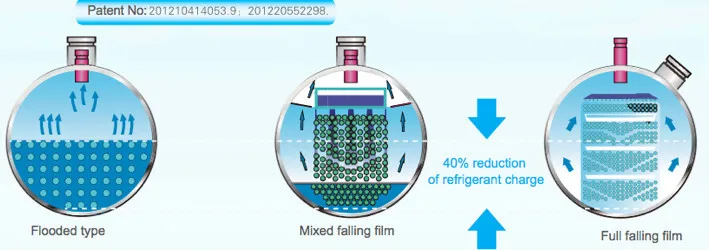

• Full falling-film evaporating technology

• Condenser

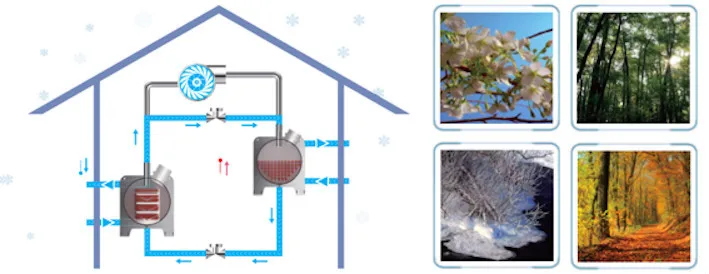

4. Free Cooling Technology-Refrigeration Migration

• Midea 3G Centrifugal Chiller features the ‘Free Cooling Technology’.

 ♦ When the outdoor temperature is low and large commercial buildings’ interior spaces may need cooling, the main unit will work on ‘Free Cooling’ mode. Free cooling is the production of chilled water Without running compressor.



♦ The relative warm, and the energy is carried directly to the low pressure condenser, where it is cooled and condensed by the water from the cooling tower. Then the low temperature liquid refrigerant flows to the evaporator driving by gravity, then naturally circulates.



♦ The cost is saved due to the compressor’s inactivity, zero power consumption of the main unit. The principle is that the refrigerant tends to move towards the coldest point in a refrigeration circuit. It can be used generally in the transition season such as late fall, winter and early spring.

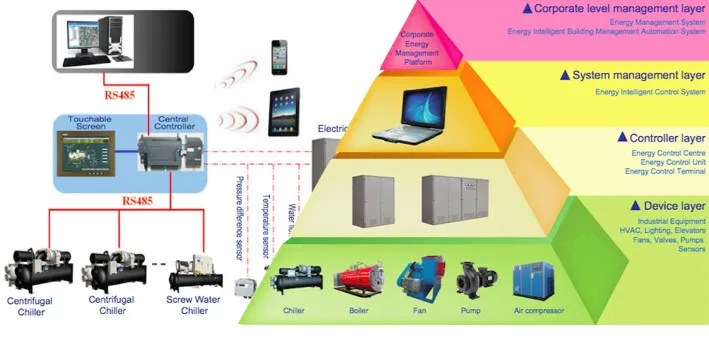

5. Centralized Control
