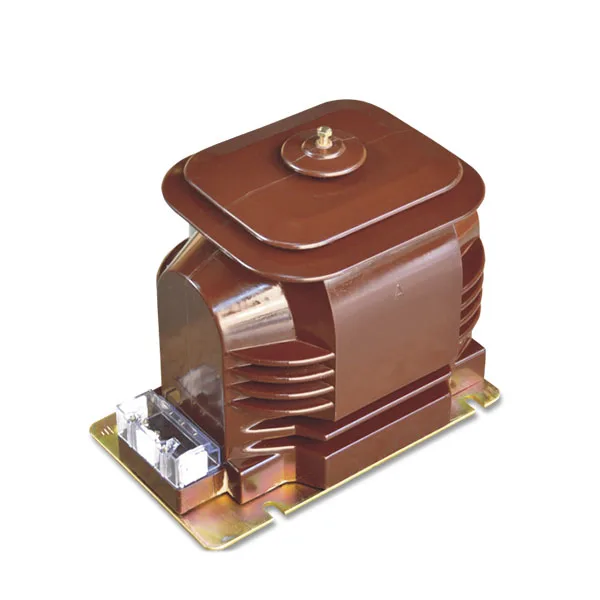

20 Kv Medium High Voltage Cast Resin Current Voltage Transformers
- Category: >>>
- Supplier: Zhejiang Dixsen Electrical Co. Ltd.
Share on (60246771683):
Product Overview
Description
Banner

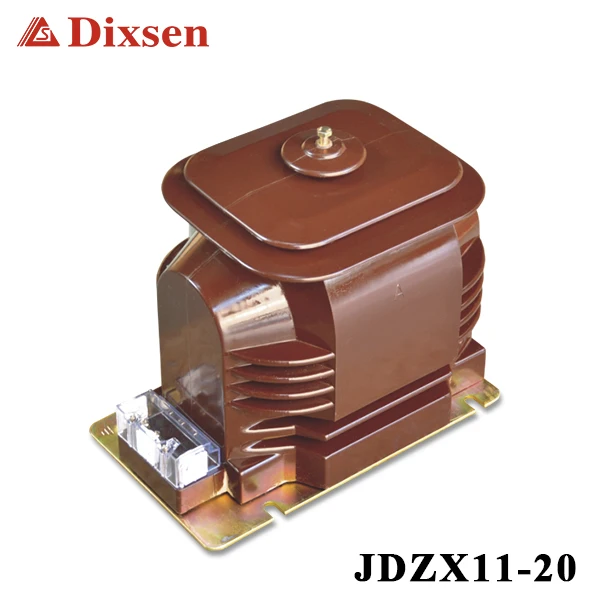

JDZX11-20 type indoor middle votlage is a range single phase, casting resin insulated and full enclosed products. They are used for metering electric energy, voltage control and relay protection in the electric non-usefrl-groundd neutral system up to rated frequency.
Ref | JDZX11-20 |
Um | 24kv |
| Test Voltge | 50kv/125kv |
| Rated primary Voltage - U PN | 20000/√3 22000/ √3 |
| Rated Secondary Voltage - U SN | 100 √3 or 110 √3 |
| Rated Secondary Voltage for the earthing core (en) | 100 √3 or 110 √3 |
| Thermal Limiting Output | 500VA |
| Rated Burden In Accuracy Class(IEC) | 0.2: 30VA |
| 0.5: 80VA | |
| 3P: 100VA | |
| 6P: 100VA | |
| Frequency | 50/60Hz |
| Weight | 50 kgs |

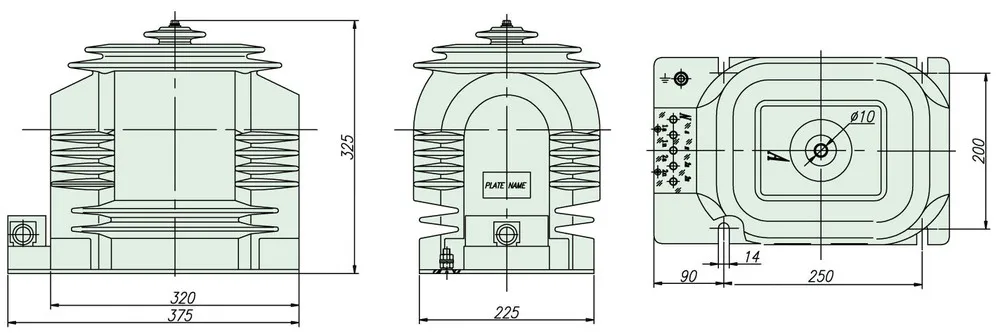

Dimension
