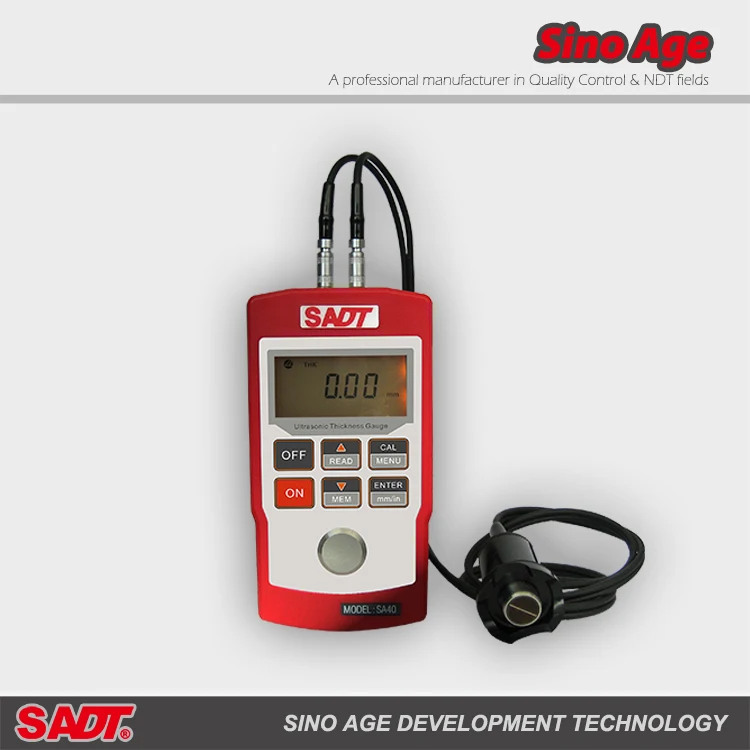

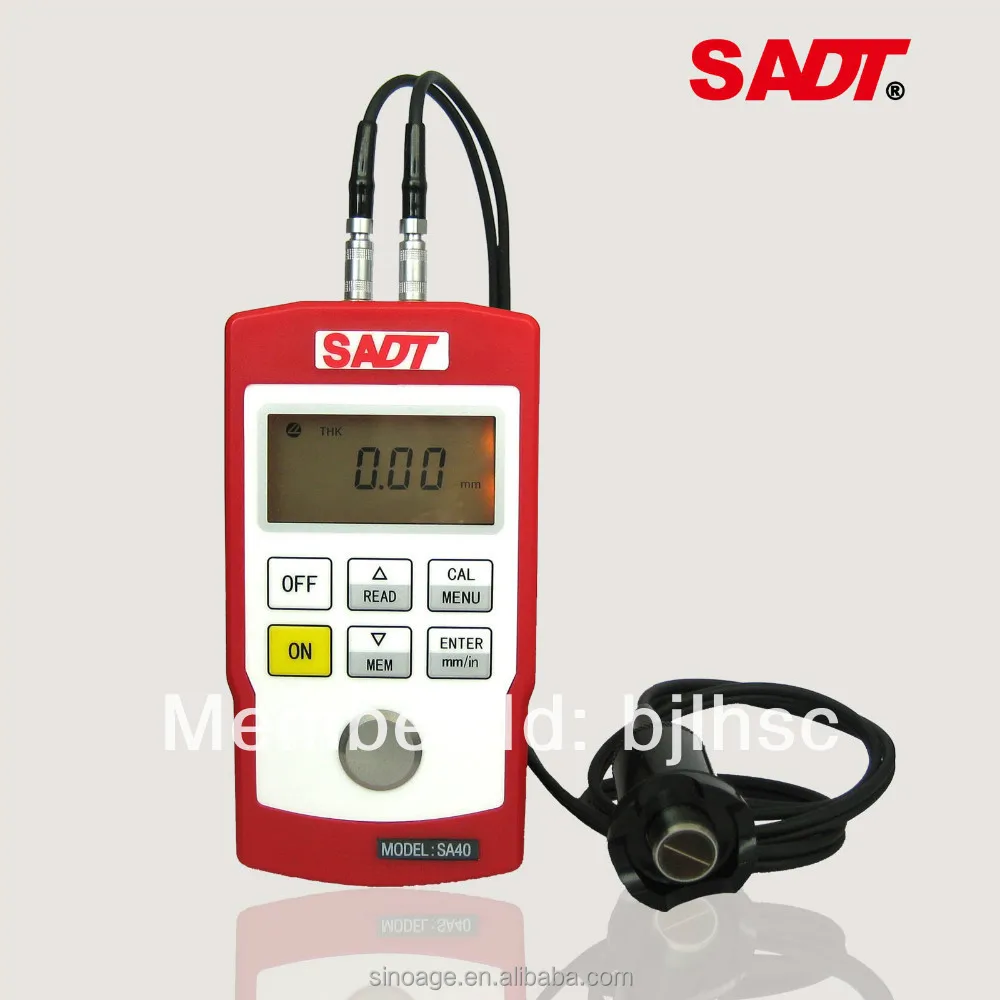

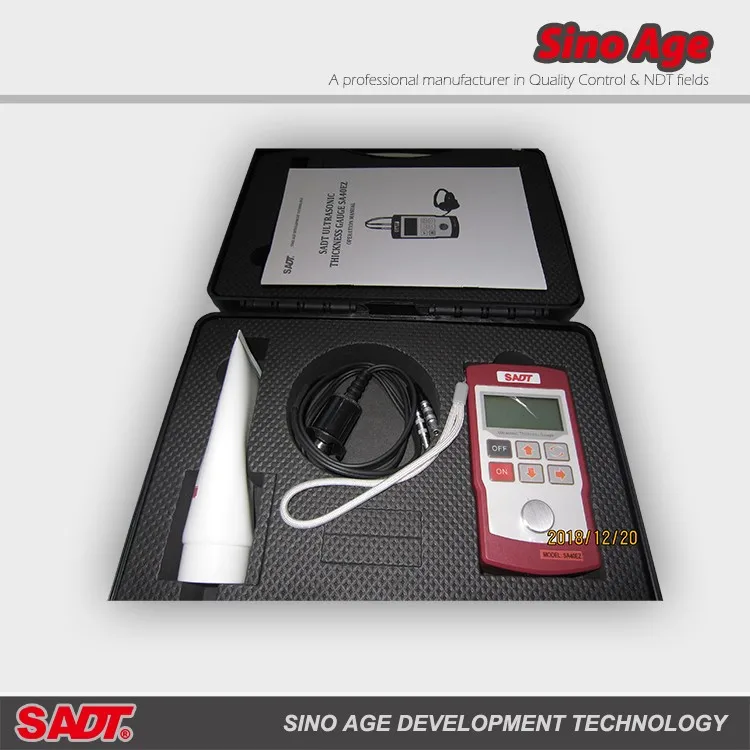

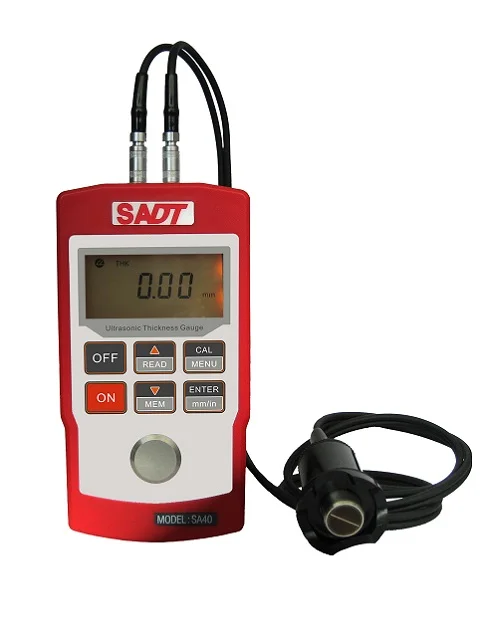

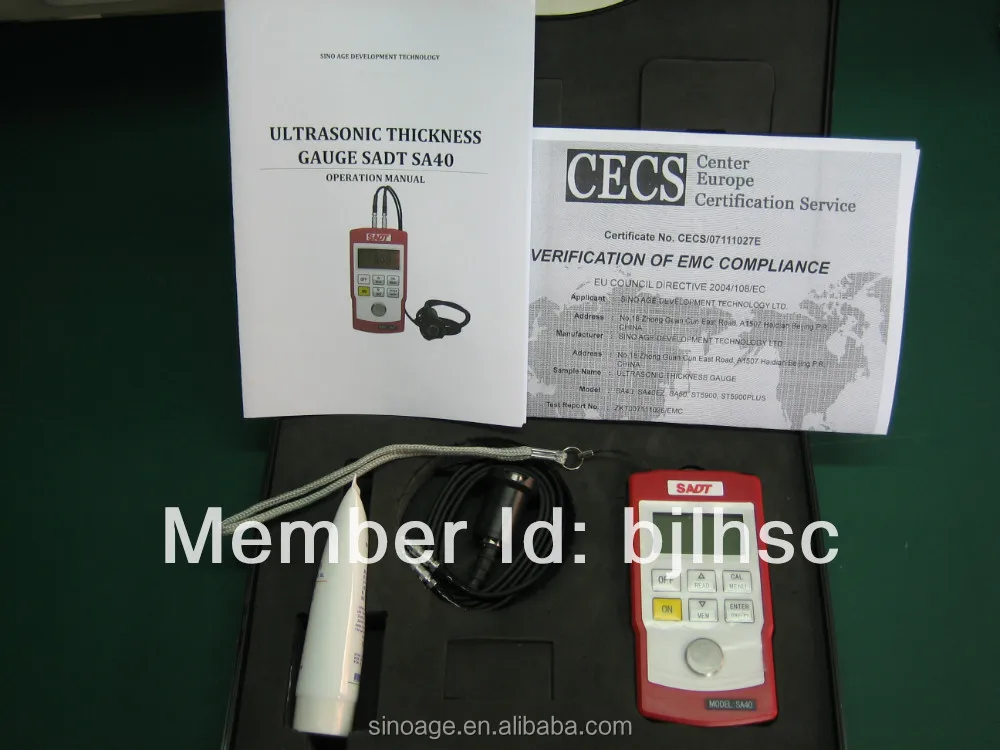

New Ultrasonic wall Thickness Gauges SA40 which can test metal thickness through coating
- Category: Width Measuring Instruments >>>
- Supplier: Sino Age Development Technology
Share on (60246974947):
Product Overview
Description
Company Information
Sino Age Development Technology, Ltd. (SADT), established in 1993, is a leading manufacturer / supplier of measuring and testing instrument, specialized in NDT and quality control fields.
Product Description
Using new technique of multiple echo(echoto- echo), SA40+ can measure wall thickness under paint. For a normal ultrasonic thickness gauge, you must remove paint on work piece, but with new SA40+, you can take measurement directly over the paint of work piece and you can get real thickness value of work piece.
SA40+ has two measuring modes: normal mode and multiple echo(ME) mode. By normal mode, SA40+ is a normal ultrasonic thickness gauge; by ME mode, SA40+ can measure over coatings.
Specification:
Specificiations
Model | SA40 |
Display | 4 Digits LCD |
Backlight | Yes |
Measuring Range | 0.7~300.0mm In Steel With PT-5 Probe |
Resolution | 0.01mm 0.70~99.99mm, 0.1mm 100.0~300.0mm |
Accuracy | 0.70~9.99mm ±0.05mm / 10.00~99.99mm ±(0.5%+0.01)Mm 100.0~300.0 ±(1%+0.1)Mm |
Unit | Mm/Inch |
Velocity | 1000~9999m/S |
Coupling Indicator | Yes |
Calibration | Auto |
Memory | 400 Data |
Low Battery Indicator | Yes |
Working Environment | 0~40oC, 20~90%RH |
Power Off | Auto |
Power Supply | AA Battery X 2 |
Dimension (Mm) | 127x66x29 |
Net Weight (G) | 240 |
Standard Probe | PT-5 |
Optional Probes | XT-5 / GT-5 / CT2.5 |
