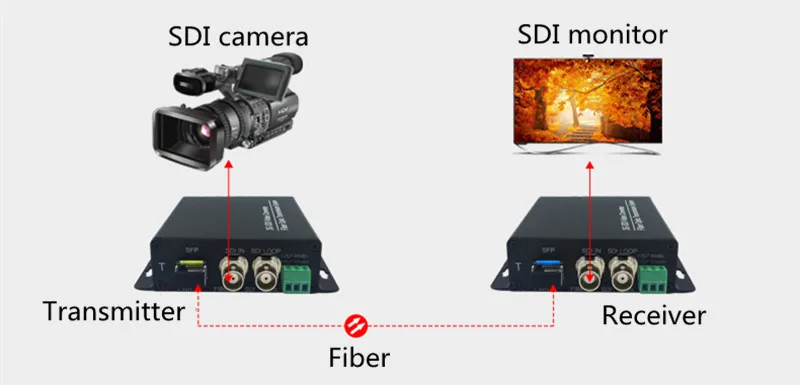

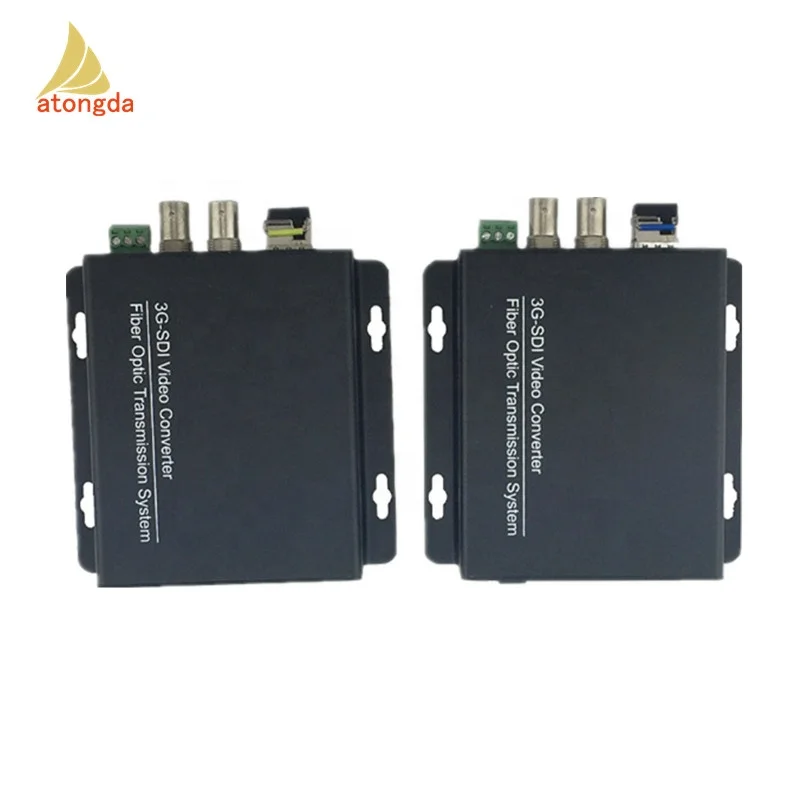

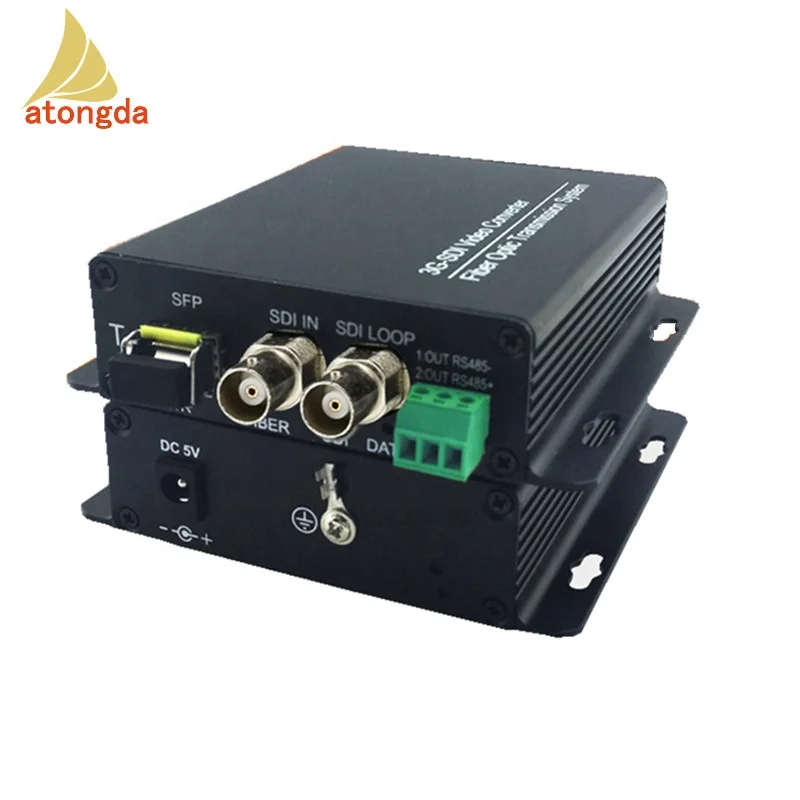

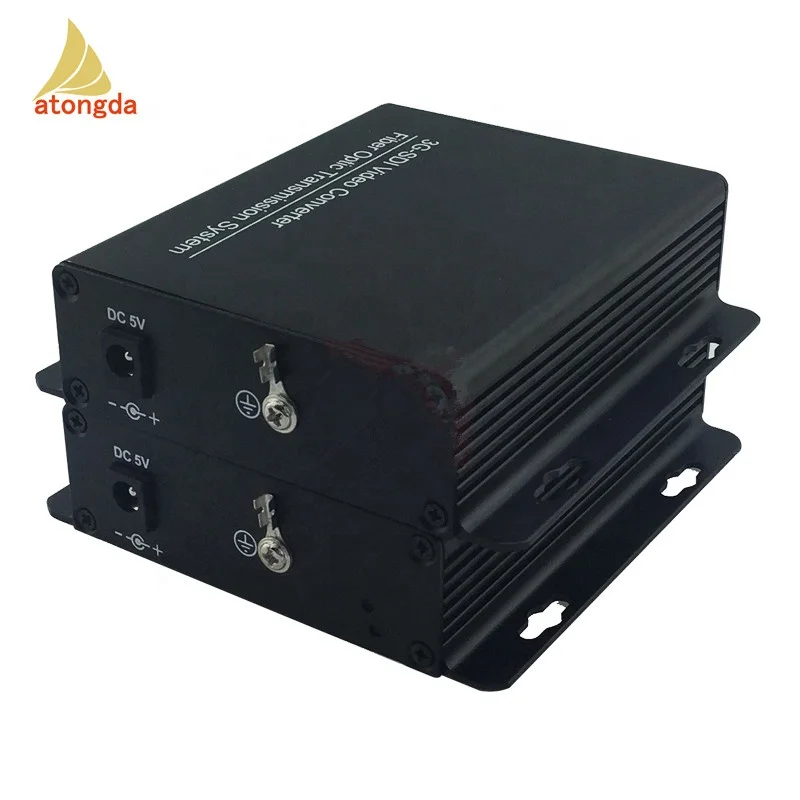

HD 3G SDI to Fiber optical Video converter 20KM fiber transmitter

Product Overview

Description

   SDI to Fiber digital 1080P 1 CH video hd sdi Video converter single mode 20KM  3g sdi fiber transmiter



 Features



1. 8-bit or 10-bit digitally encoded and non-compression video transmission

2. Directly compatible with NTSC, PAL and SECAM CCTV camera systems and support RS-232, RS-422

    and RS-482 data protocols

3. Power supply and other parameter state indication, which can monitor the operation condition of system

4. Support no-damage regenerative trunk of video

5. Constant input optical power, and large dynamic range, no electrical or optical adjustments required

6. Special ASIC design

7. Industry-grade of operating temperature from 10 to 75, which is applied to the different working environment

8. Hot-swap function

9. Stand-alone type or card-type installed in 19" 2U or 4U rack-mount chassis

10. Optical interface: FC, ST, SC(optional)

11. Abundant signal interface, such as video, data, audio, telephone, Ethernet, binary input/ output and talkback





Target Industries

-  Intelligent transportation supervisory system(ITS)
-  High-speed Way supervisory/Tele-Communication System
-  Security protection system, TV medical treatment
-  Long-distance Muti-media Schooling, Campus monitoring
-  Long-distance broadcast television transmission system
-  High-building Security Protection, Military Tele-Com projects





Order Information







Part No	Description of product	Transmission Distance
ATD-S1V-2	Multimode and 1 CH video	0-2KM
ATD-S1V-20/40/60/80	Single mode and 1 CH video	0-120KM
ATD-S1V1D-2	Multimode and 1 CH video + 1 CH reverse data	0-2KM
ATD-S1V1D-20/40/60/80	Single mode and 1 CH video + 1 CH reverse data	0-120KM





Special Specification:Video+Data+Audio+Ethernet+Phone+Alarm, Long transmission distance.
Our Multi-function products have competitive price! Can be customized according to your personal requirements !





Accessories in the package







User Manual	maintenance card	Qualified Certification	Power Adapter	Device
1 copy	1 copy	1 copy	1 pcs	1 pair





 Video Feature



Video Interface: BNC
Video input/output impedance: 75Ω (unbalanced)
Video input/output Voltage: 1VP - P (peak value),Max 1.2Vpp
Video Bandwidth: 10MHz
Video sampling: 15MHz high speed sampling
Video digit bit width: 10 bit
Differential gain: ( 10%-90%APL) DG <1%( Typical value)
Differential phase: ( 10%-90%APL) DP <0.8°( Typical value)
Video SNR: S/N ≥ 70dB (Maximum optical link path loss)



  Audio Features



Audio interface: Forward Direction, Reverse Direction or Bi-directional Audio
Interface terminal: standard industrial connecting terminals or lotus terminals
Audio input/output electric level typical: 0dBm
Audio input/output impedance: 600Ω (balanced/unbalanced)
Audio input/output amplitude: 2VP-P(peak value)
Audio bandwidth: 20Hz~20kHz
Sample rate: 58.6K
Nonlinear distortion coefficient: ≤ 1 %
Audio SNR: S/N≥85db



 Data Features

Interface:standard industrial connecting terminals
Controlling Equipments: PTZ decoder, Keyboard ,data interface of Matrix, High speed dome camera, industrial equipments
Interface Signals: RS-485(2 lines),RS232,RS422 and so on
