Пульт дистанционного управления 4,5 дюймов морской система автоматического управления полётом системы (режим автопилота) KAP 866 с CCS сертификат

Product Overview

Description

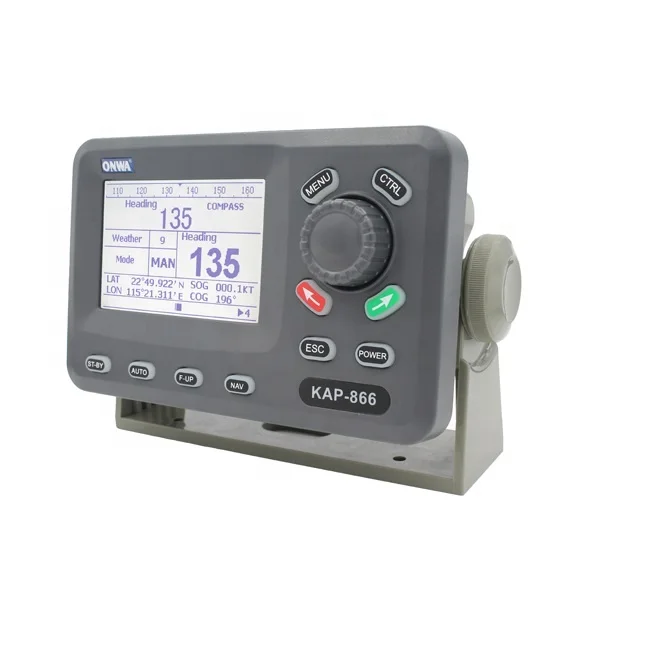

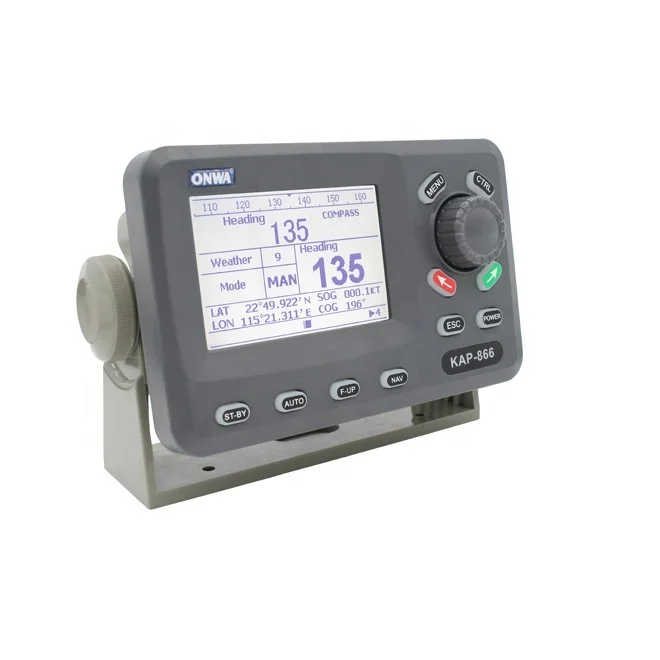

Marine 4.5” LCD Autopilot System

Model: KAP-866



Feature:

1)       Fluxgate heading sensor with high accuracy and stability

2)       Automatic correction for local magnetic variation

3)       4.5 silver bright LCD display

4)       Off course alarm warns when vessel is not responding to autopilot control

5)       Navigate with designed route of GPS Navigator

6)       Timer can be used as an adjustable watch alarm

7)       Gyro compass input with Gyro converter unit



Specification of KAP-866

Function

1)       Auto mode:

-          Change course by panel dial knob

-          Change course by fix or handheld

               Remote (optional)

2)       Standby mode

3)       GPS Navigation mode

4)       Follow UP mode



Steering system

Hydraulic or Electro-mechanical



Heading sensor

1)       Fluxgate heading sensor (standard)

2)       Gyro compass thru Gyro converter (optional)



Nav sensor

GPS Navigator: NMEA0183, APA, APB (baud rate: 4800)

Heading input: NMEA0183, HDT, HDG or HDM (baud rate: 4800)



Adjustment of parameters

Weather, Rudder and Counter Rudder from Control menu

Trim, Rudder Ratio and Rudder Limit from Function menu



Alarm

1)       Off course alarm: 0~180 degree adjustable

2)       Watch alarm: 1~60 adjustable watch alarm.

             Will trigger external alarm if not reset within 60 sec.

3)       NMEA data alarm: Trigger when lost of NMEA data from GPS Navigator in GPS



Power Supply

12V or 24VDC, Standby 0.4A, Auto mode 1.0A for control unit only

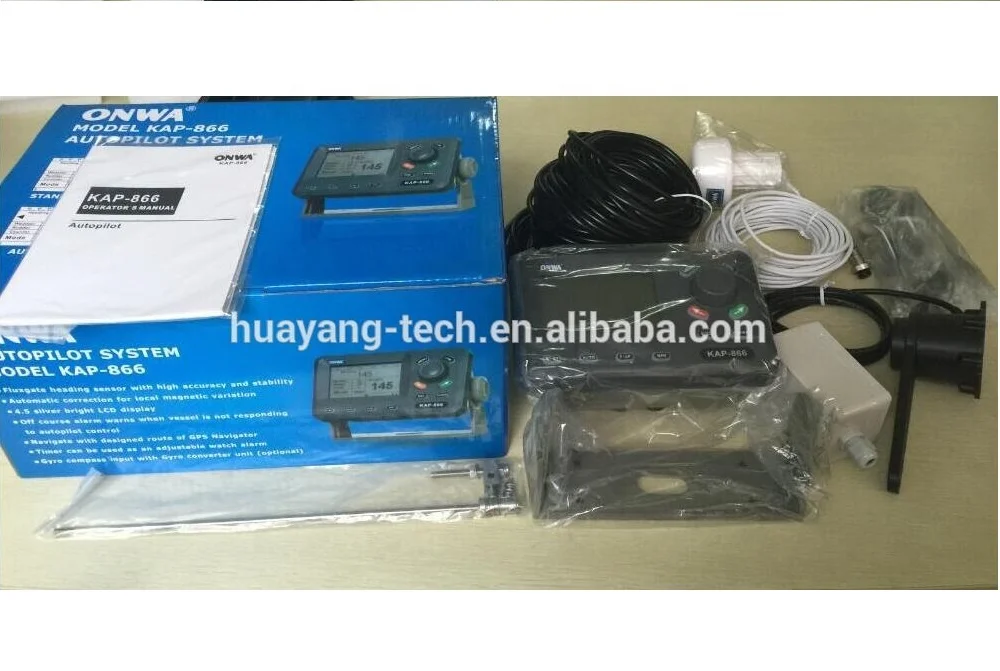

Equipment List

-          KAP-866 control unit

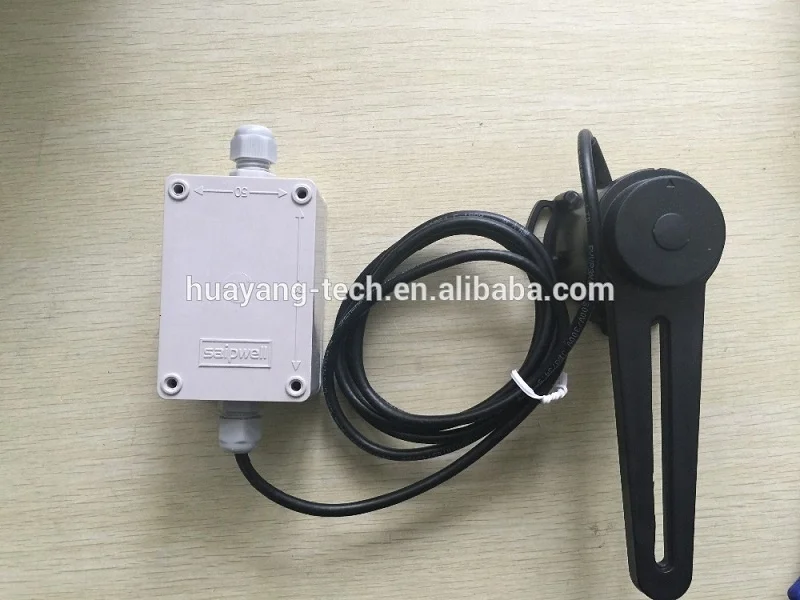

-          Rudder Feedback unit KRF-36

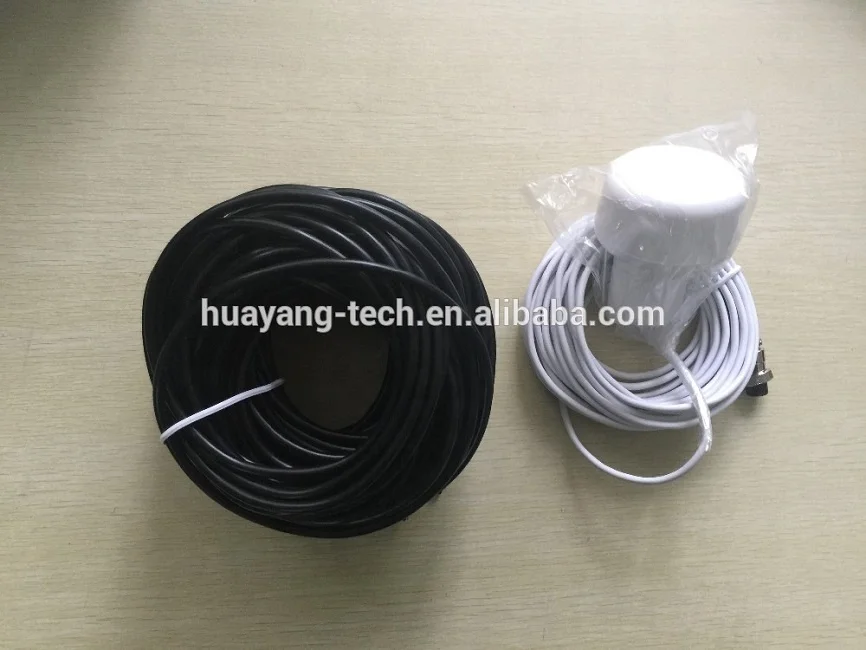

-          Fluxgate heading sensor KFG-25

-          Standard accessories

-          Standard installation kit

-          Operator manual



Optional

-          Outdoor Fluxgate Compass KFG-28

-          Rudder Indicator KRI-80

-          Hand Remote Control RT-580

-          Electric Steering Helm, ELEWHEEL

-          Compass Top Sensor KCS-20

-          Gyro to NMEA Converter KGN-100
