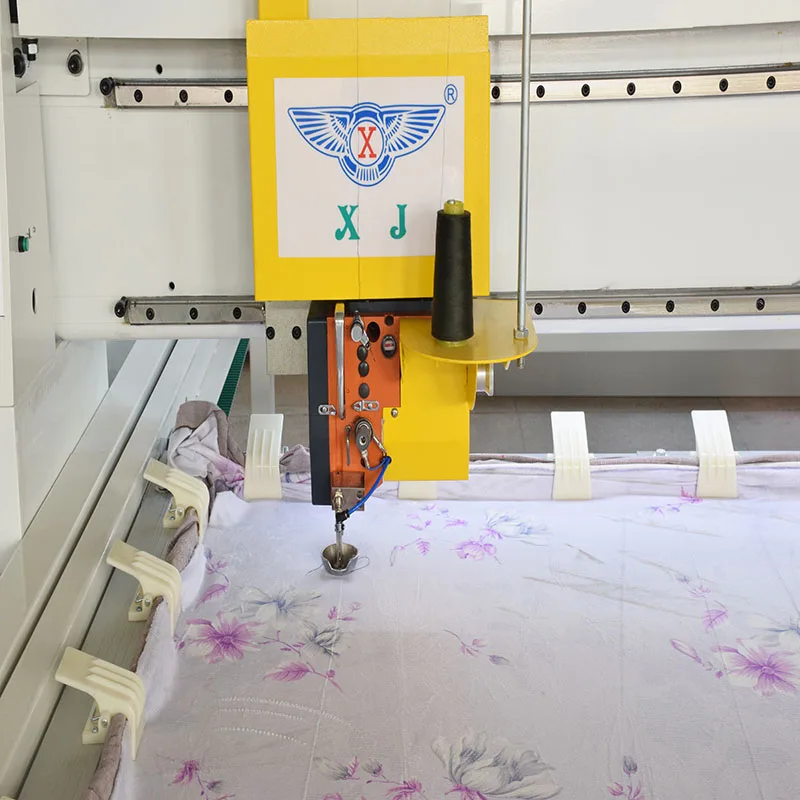

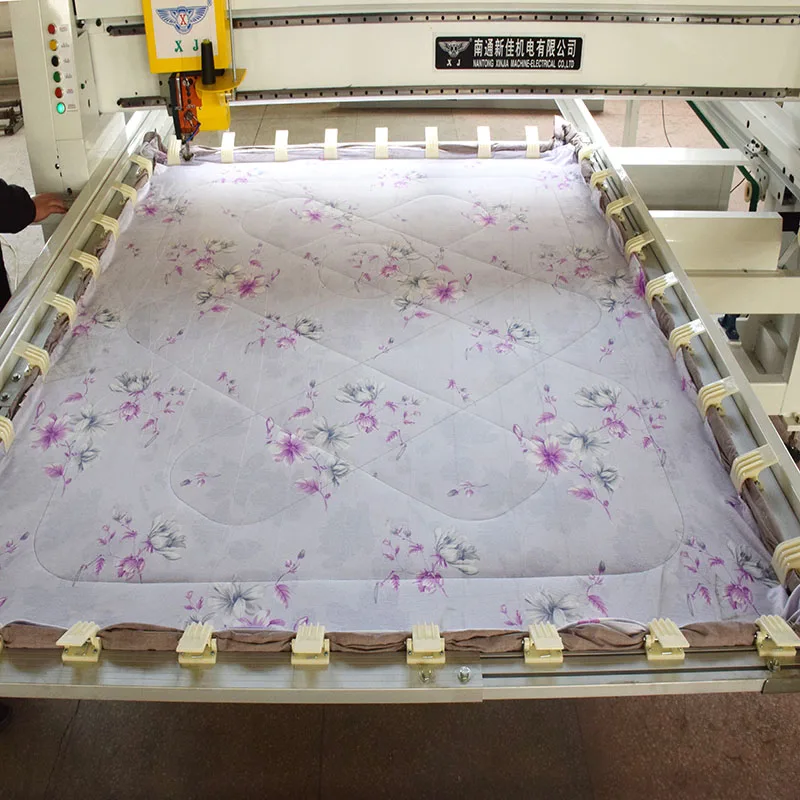

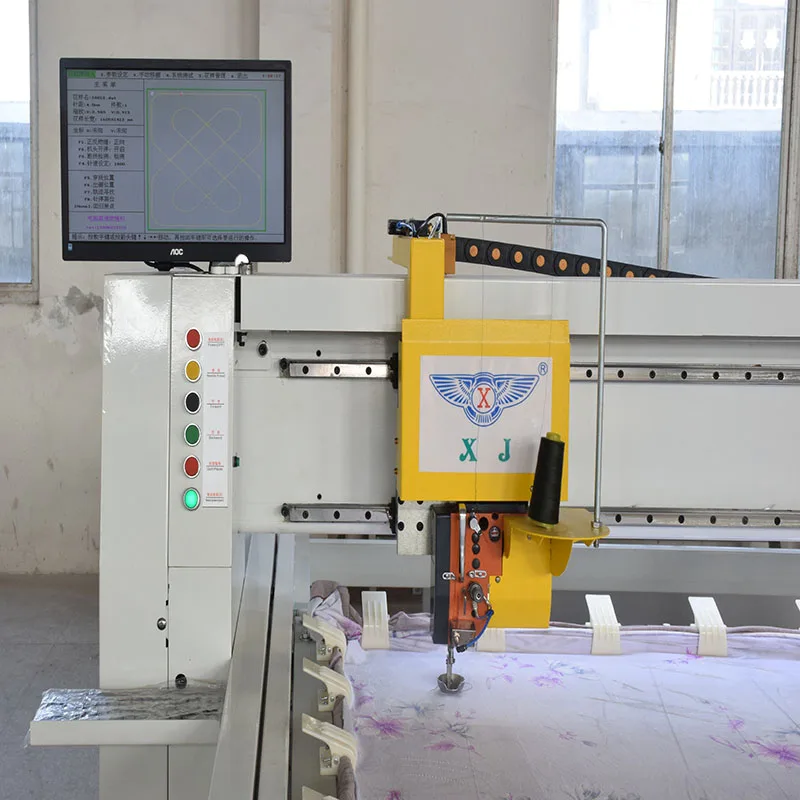

XJ series Computerized Single Needle Quilting Machine
(Full Head Moving)
Item | XJ-2023 | XJ-2225 | XJ-2528 | XJ-3032 |
Quilting Size W*L (MM) | 2000*2300* | 2200*2500 | 2500*2800 | 3000*3200 |
Needle Drop Size W*L (MM) | 1800*2100 | 2000*2300 | 2300*2600 | 2800*3000 |
Sewing Head | Single Line Style, Double Line Style, Big rotary Shuttle | |||
Max Quilt Thickness | 1200g/m2 | |||
Sewing Speed | 2000 SPM | |||
Stitch Distance | 2~7mm | |||
Needle | SINGER MR5 18-23# | |||
Power | 220V, 50HZ, 1.5KW | |||
Weight | 1800kg/2000kg | 2000kg/2200kg | 2200kg/2400kg | 2200kg/2400kg |
Machine Size (L*W*H) (mm) | 2800*2700*1400 | 3000*2900*1400 | 3200*3000*1400 | 3800*3600*1400 |
Packaging Size (L*W*H) (mm) | 3200*1200*1000 | 3400*1200*1000 | 3600*1200*1000 | 3800*1200*1000 |

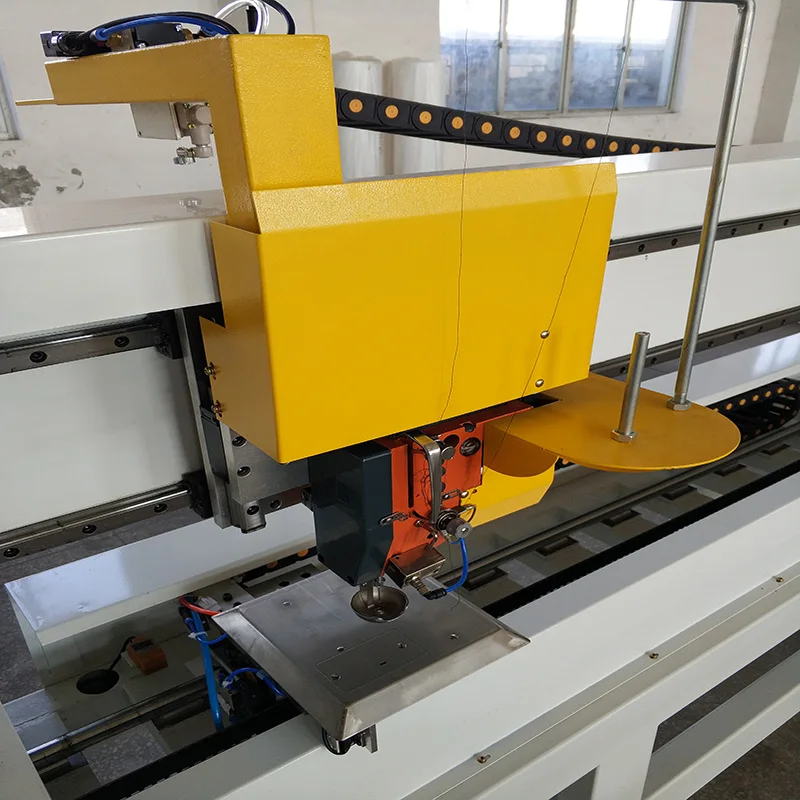

1.head used servo motors,provide powerful and accurate driving
2.Quilting patterns more than 200 Kinds kept in the computer,also can read new pattern by USB.
3.High speed running in 2800RPM, precision quilt, low-noise and long life machine, to achieve the goal of high production and high quality
4.Automatically quilting according to any pattern selected
5.Offer forward and backward movement buttons as well as threading button.
6.Koban large-size Rotary Hock to be sure low thread-breakage

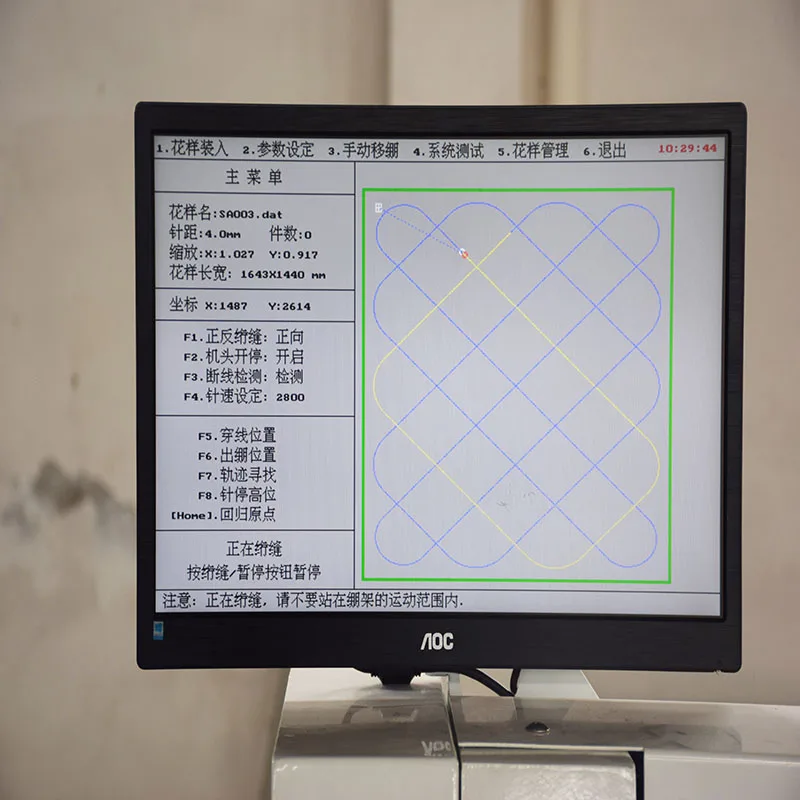

7.Power computer functions, professional computer control system, automaticality finish the quilting process
8.DST,DSB,ZSK,SWF format can be read ,compatible with different format pattern ,100,000 stitch pattern in machine computer all designs and program can read from USB.
