HD LED Video Wall System for Music concerts/ tours! Free Road Cases!
Product Description
Portable weight:The aluminum die-casting technology makes the single cabinet as light as 13KG.
Perfect connection:The aluminum die-casting technology,together white the hight-percision CNC procession,makes the precision reach±0.05mm so as to achieve seamless assembly.
Low power consumption:Combined with the brightness auto-adjusting technology and PFC power supply,Low current can save energy over 35%,which in other words is to save money.
Easy installation:No need to disassemble the whole screen for maintenance.Each component can be detached individually for that purpose.
Ghost canceling:Exquisite and clear pict quality with no ghost.Both upstream and downstream ghosts can be automatically canceled.
High refresh rate:Over 1880Hz refresh rate to ensure the picture wrinkle-less,line-less and stable.
Low brightness and High gray scale:14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.
Our portable LED displays are constructed of individual modules that can be assembled together to make LED walls in various size configurations.
For indoor we use 4 mm and 6 mm pixel pitch Video Wall.
For Outdoor we use 8 mm and 10 mm pixel pitch.
Different signal resources input are acceptable, such as TV, HDTV, S Video, NTSC/PAL, DVI, VGA, SDI and HD-SDI
Specifications
P6.9 Indoor LED Display (SMD 3528)
Pixel Distance:
6.944mm
Pixel Density:
20736 Pixels per Square Meter
Scanning Mode:
1/9 Scan
Pixel Structure:
1 Red, 1 Green and 1 Blue per Pixel
Viewing Distance:
> 7 Meters
Vertical Viewing Angle:
140,120
Horizontal Viewing Angle:
110VAC, 50/60Hz
LED Lifespan:
100,000 Hours
Working Temperature:
-30 to 50 C
Humidity Range:
0% to 90% Non-condensing
Power Requirement:
200w
Power Consumption:
800W per Square Meter
Cabinet size:
500x1000mm
Case Material:
Extruded Aluminum
Limited Warranty:
Two-year Parts Warranty
Gallery
Unique design hanging beams
Customer's Feedback
Connecting
Packaging & Shipping

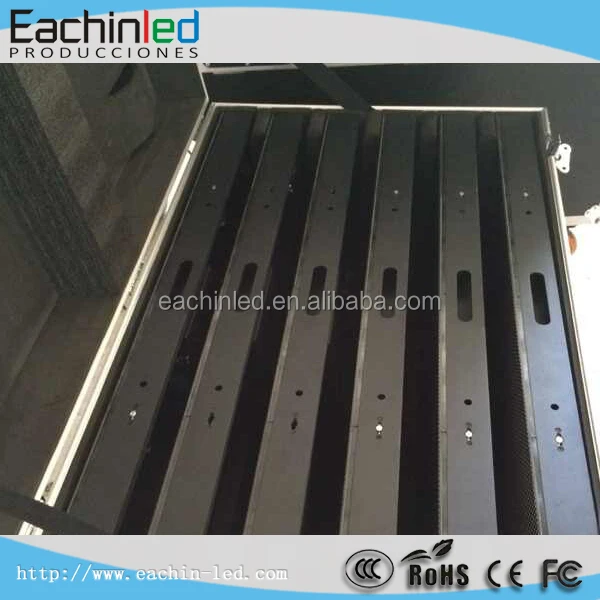

Packaging: 6 rental led display cabinets in 1 flight case
They are easy to movable or transport for different events.---------- customer
Shipping method: By air and By sea, door to door by DHL.
