Product Overview

Description

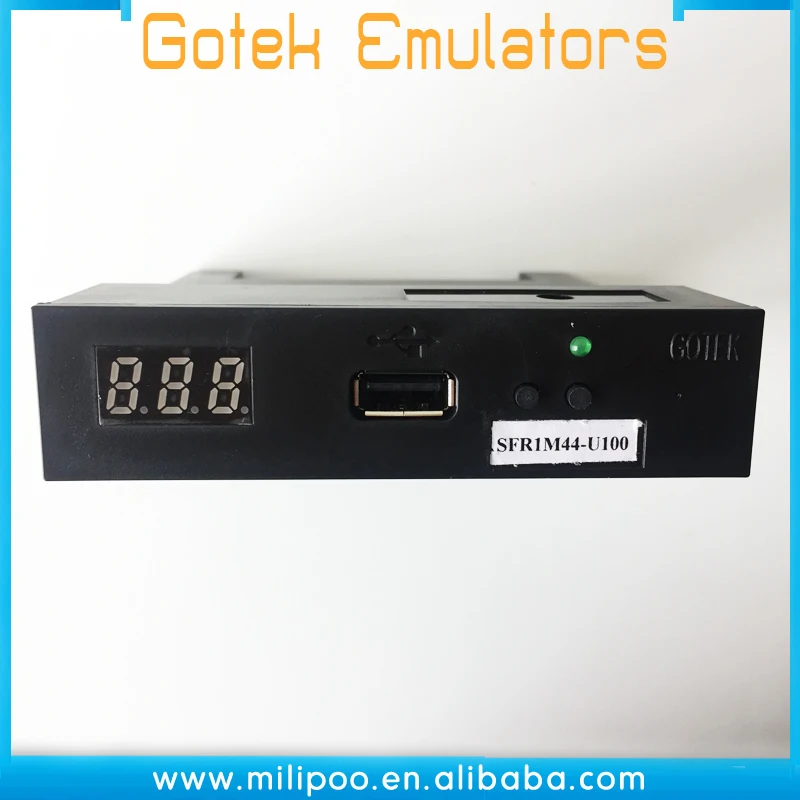

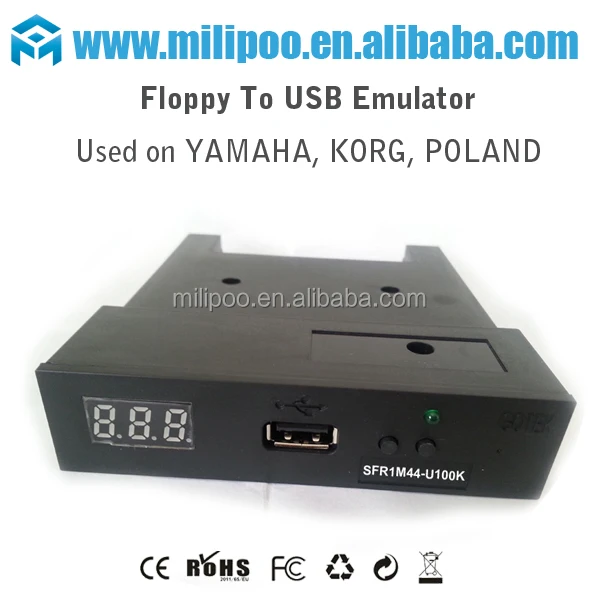

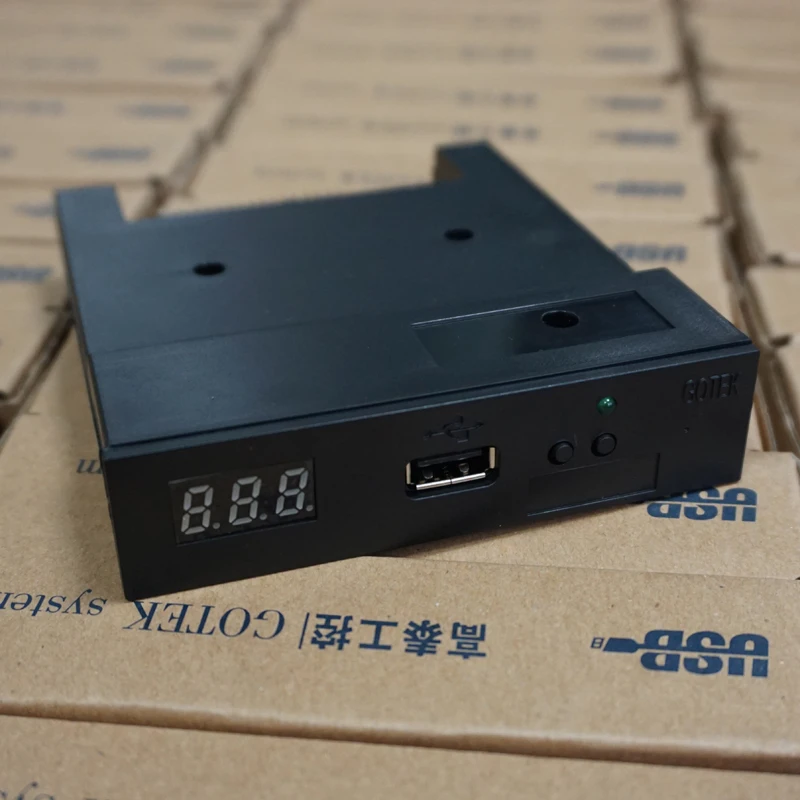

FUSB USB floppy to usb emulator SFRM44-U100K for Musical Keyboard: YAMAHA,KORG,ROLAND (Manufacturer)

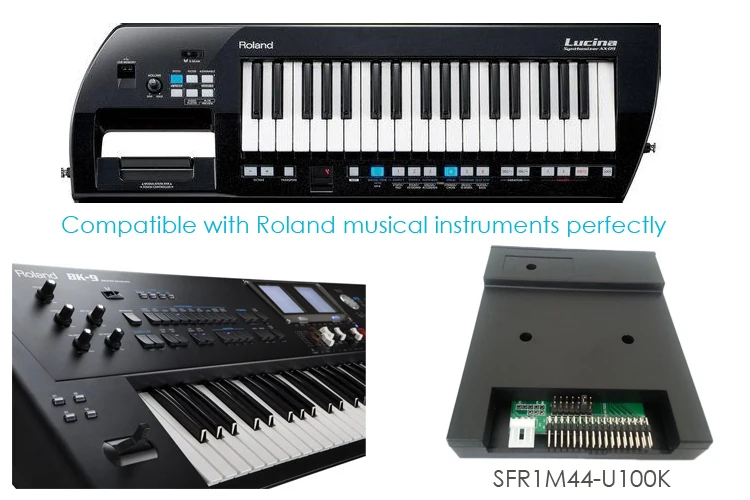

Used for Musical Keyboard: YAMAHA,KORG,ROLAND	SFR1M44-U100K	YAMAHA, KORG, ROLAND
	SFR1M44-FEL-DL	YAMAHA EL900 EL900M EL900B EL500 EL700 01C 01M

Interfaces: - USB socket to insert USB flash stick.

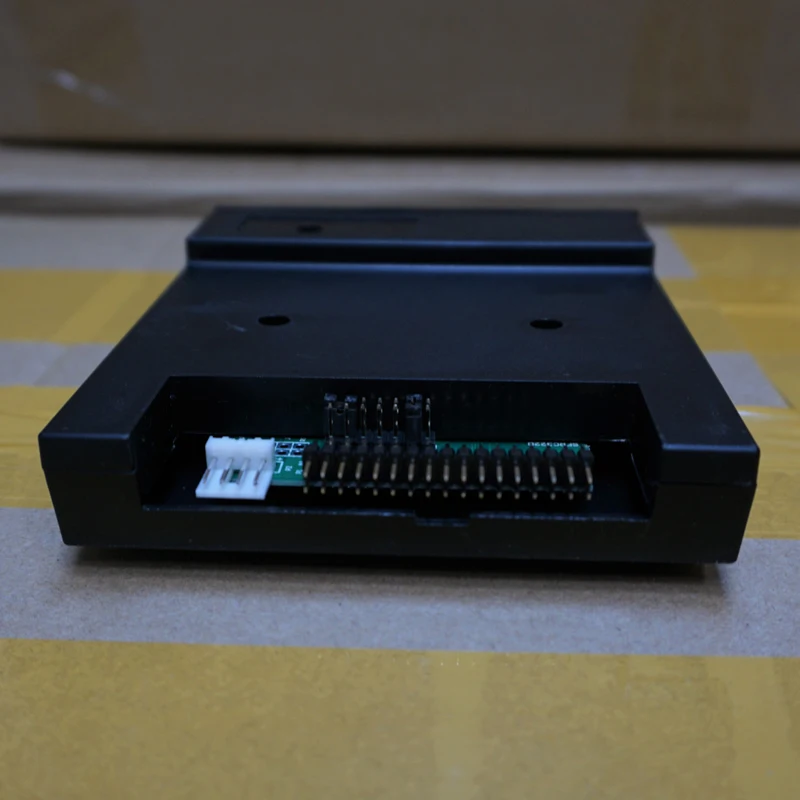

                     - 4-pin floppy socket for voltage supply

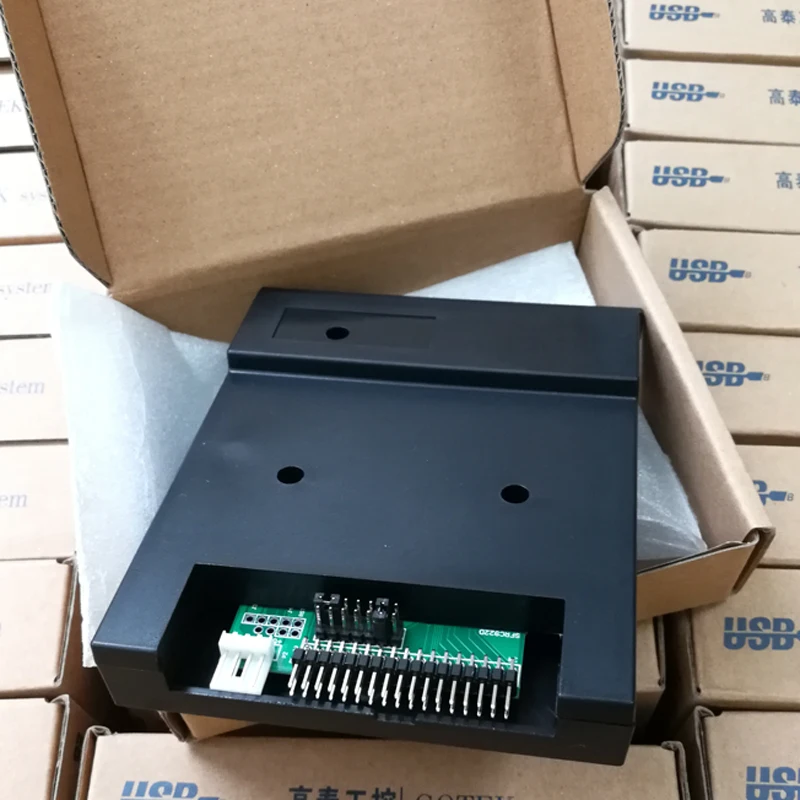

                    - 34-pin socket board for floppy controller connection

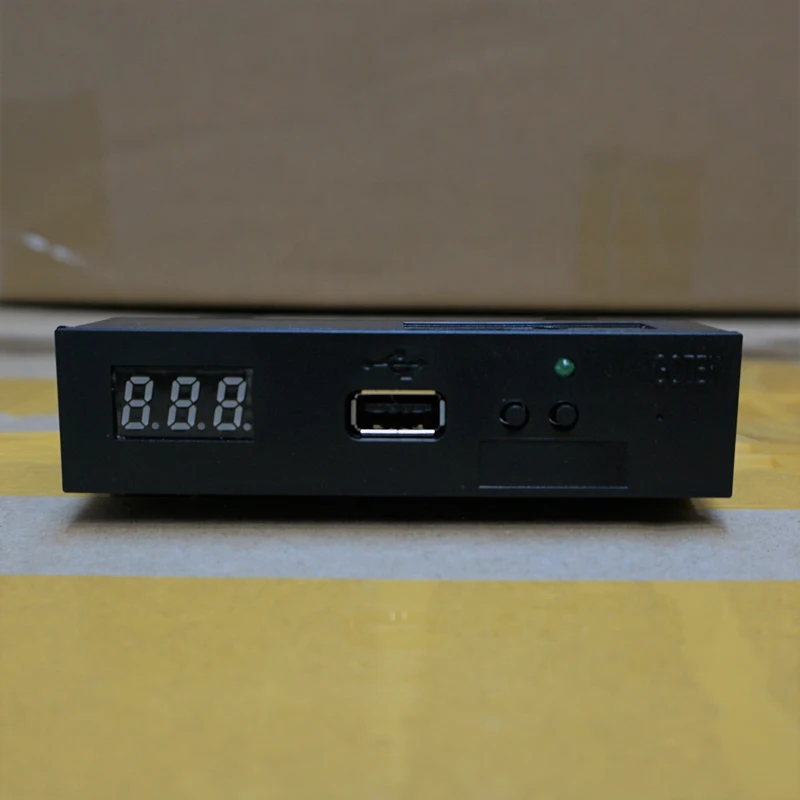

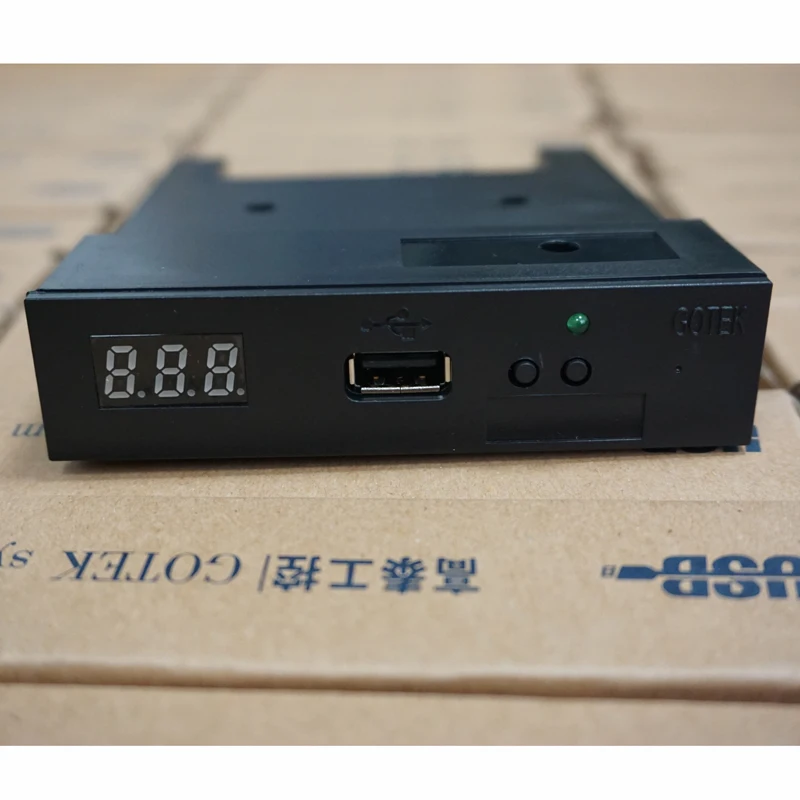

Diagnostics LED:  Red LED and Green LED.
Control-buttons: 2 buttons to control the floppy drive emulator.
1) Read_button(In_button): read data on USB memory stick into memory of the floppy drive emulator.
2) Write_button(Out_button): receive data from the mother_device(embroidery machine, ) and write to the USB memory





More other Floppy to USB emulators used on different machines:



*For Embroidery machine:

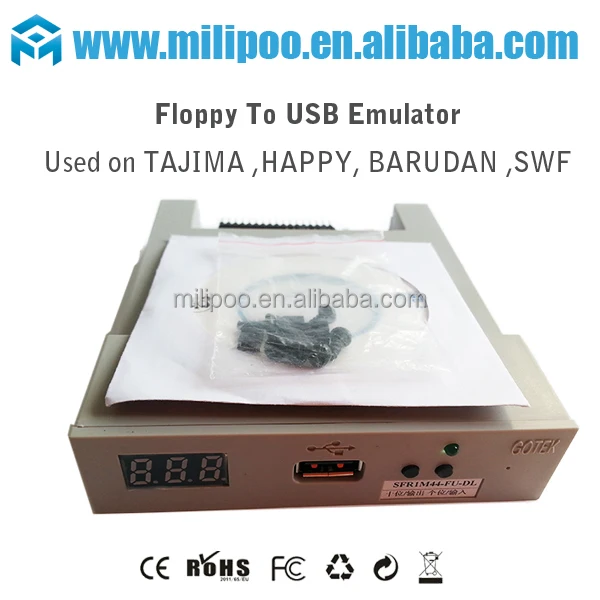

1. TAJIMA, HAPPY, BARUDAN, SWF

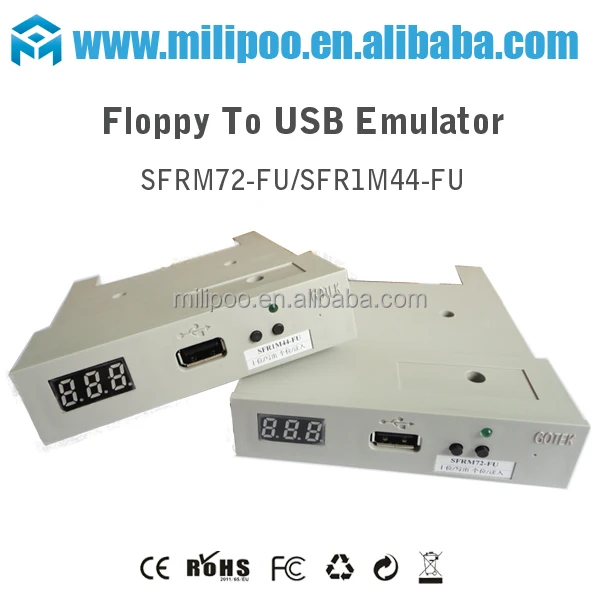

---SFR1M44-FU(used for floppy capacity is 1.44MB machine with 34pins)
---SFRM72-FU (used for floppy capacity is 720KB machine with 34pins)

2. SWF (All model),Chinese machines---SFR1M44-SUE(used for floppy capacity is 1.44MB machine with 34pins)

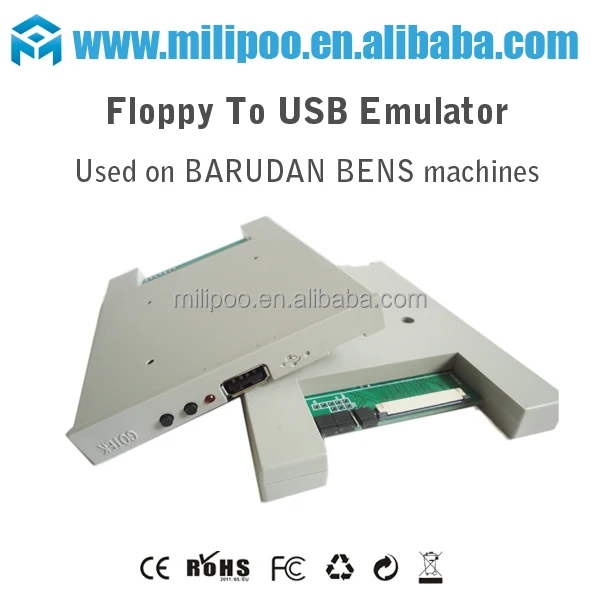

3.BARUDAN BENS machines---SFRM72-DU26(thin floppy disk Barudan low  720KB desnity 26pins)

*For Knitting machine

1.STOLL machine---SFR1M44-LUN(used for floppy capacity is 1.44MB machine with 34pins)
2.SHIMA SEIKI SES machine---SFR1M2-FU (used for floppy capacity is 1.2MB machine with 34pins)



*For Weaving machines

 MULLER3 STAUBLI-JC5 BONAS machine---SFR1M44-LUN(used for floppy capacity is 1.44MB machine with 34pins)

*For CNC machine and  injection mould machine

 CNC,injection mould machine---SFR1M44-FU(used for floppy capacity is 1.44MB machine with 34pins)



Packing info:
(CM) : 12.3 (long) * 2.5(wide) * 10.2 (high)
Weight: 140g   Material: plastic ABS

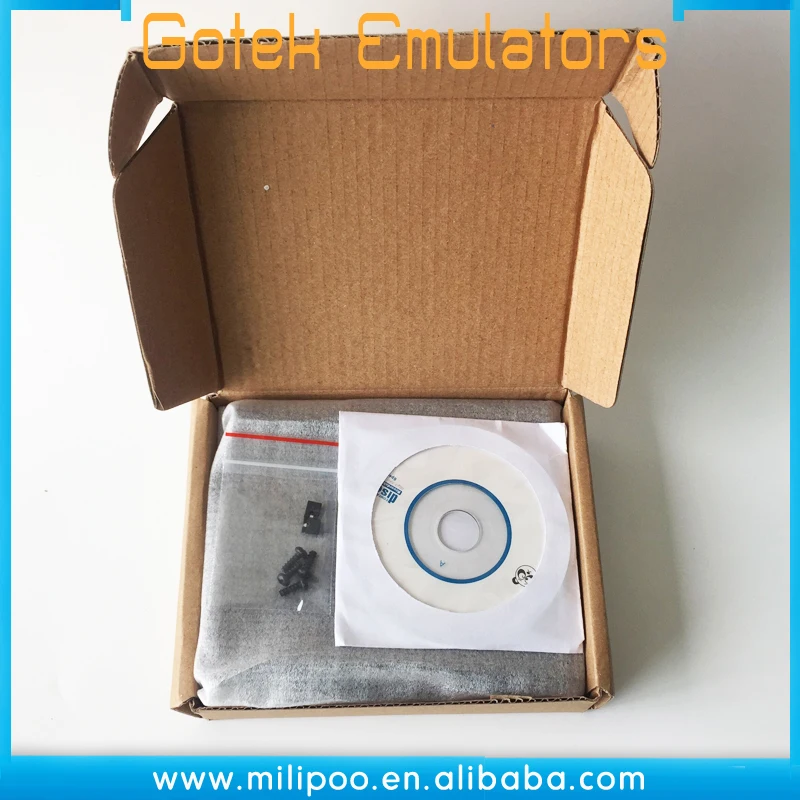

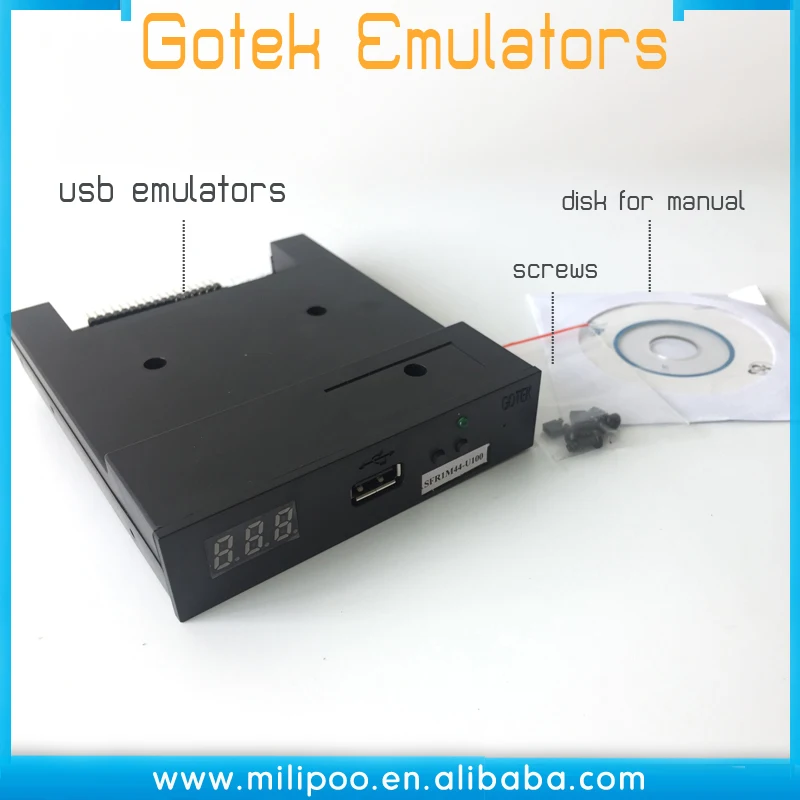

Accessaries:* 1 x floppy to USB Emulator* 1 x disk* 3 x screws
