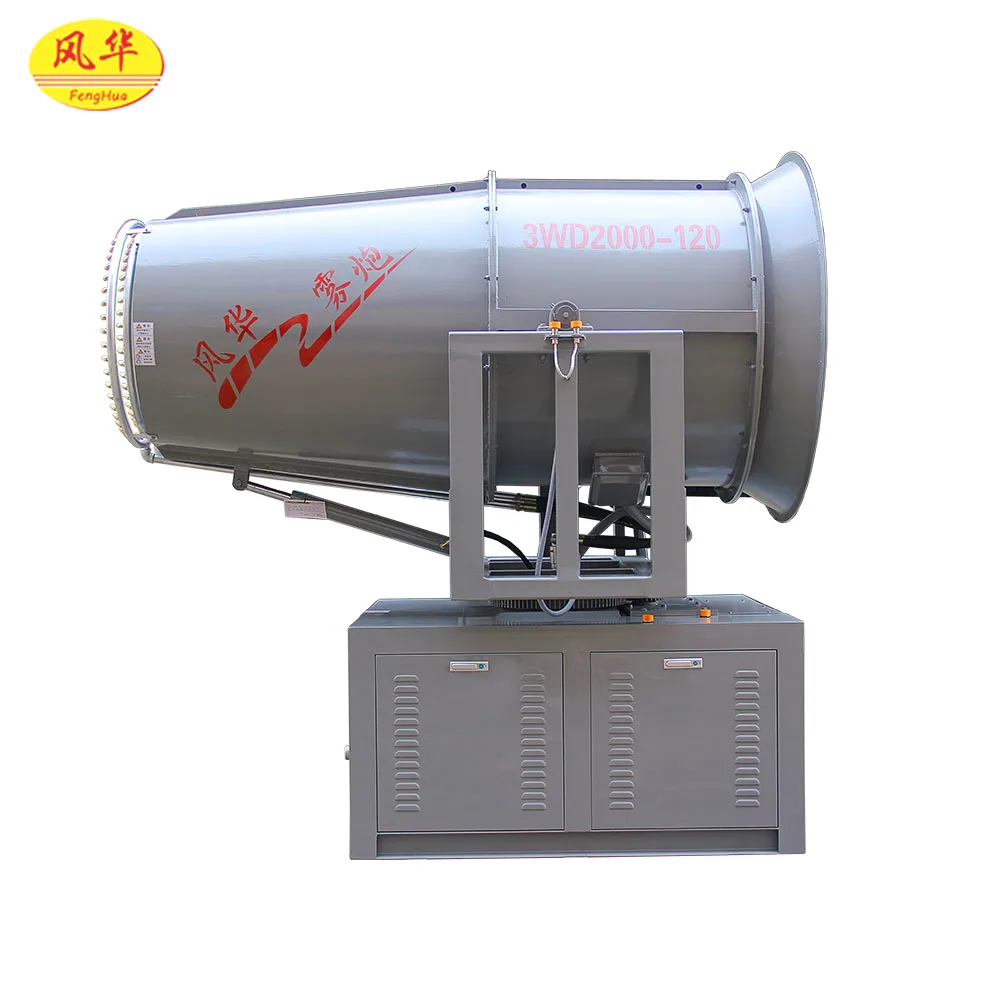

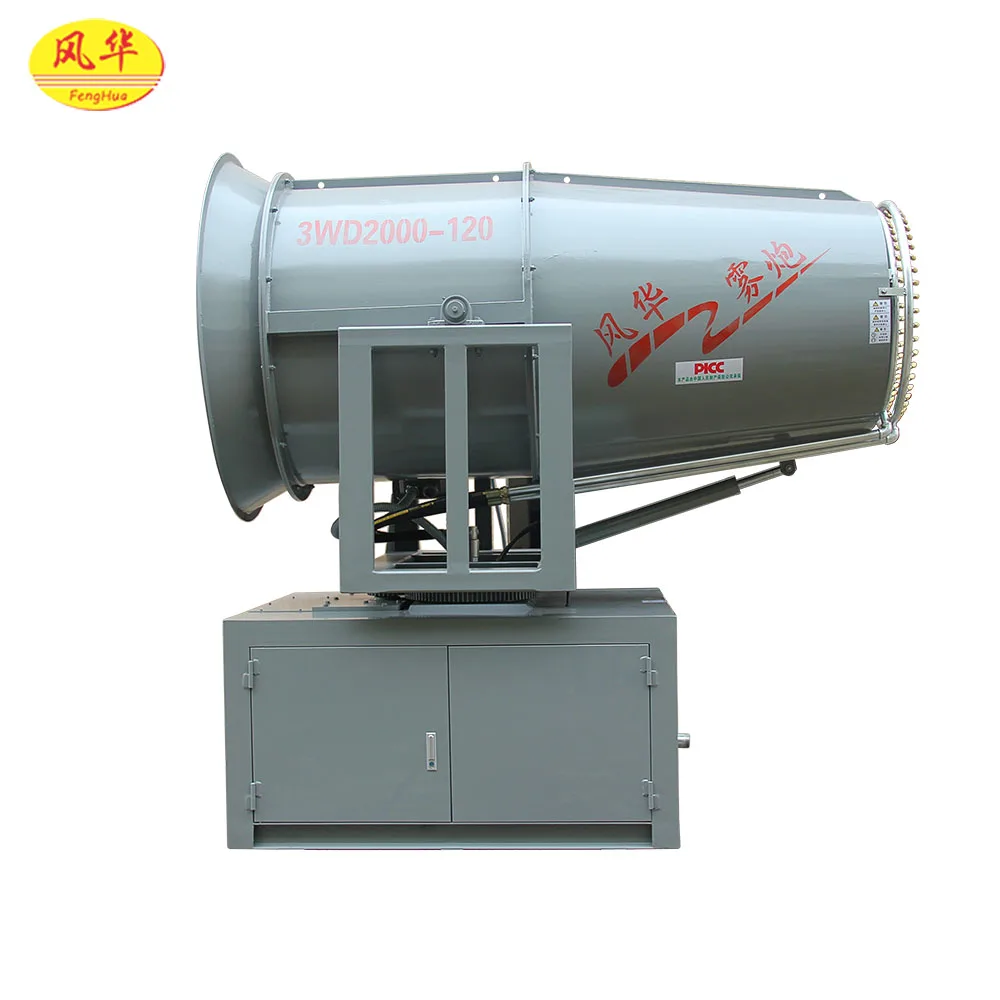

FENG HUA patent DS-120 dry fog cooling cannon system industrial fogger high pressure water mist cannon for dust control
Product Description
Our systems deliver a mist / fog of fine water droplets, produced as clouds of mist. When applied to your dust problem our high-pressure pumps can deliver atomized water droplets from 50-150 microns in size which binding them together creating a heavy mass which drops to the ground reducing dust nuisance with wetting on the surface of area. The water droplets can be dispersed across most types of material to bond with dust particles assisting in the dust suppression process.
Technical Specification
Model
DS-120
Certificates
CE, CCC, ISO9001:2008
Throw
120m
Volume Flow (Adjustable)
120L-240L/min
Fog Droplet Size (Adjustable)
30-300μm
Water Pressure (Mpa)
2.5-3.5Mpa
Horizontal Rotation Angle (Adjustable)
±160° Automatic
Pitching Angle (Adjustable)
-10°~45°
Product Size (L*W*H)
L2950*W1540*H2750 (mm)
Warranty Period
1 Year
MOQ
1
Payment Terms
Deposit received by T/T; L/C at sight, etc.
Product advantage & Feature

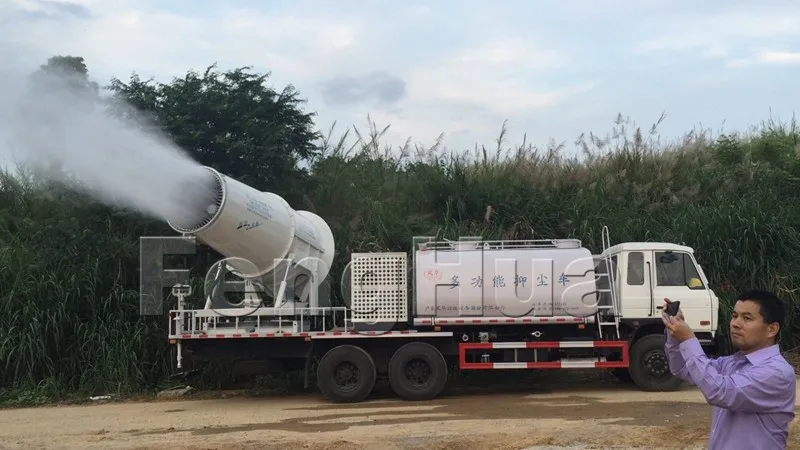

1. Professional manufacturerwith over 20 years' experience, high quality, best service and competitive price, offer multiple choices of product to meet different requirements. 2.Strong capability, high & far throw range, wide coverage area, achieve precise volume spraying, high efficiency and spray speed. 3. Micro fog droplet, form a wet mist touching the floating dust, high speed knock down the dust. 4. Flexible power: three-phase 380V and diesel generator power supply optional 5. Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional. 6. Flexible, safe & reliable to use. Remove control & manual control operation. Easily adjust the spray angle of horizontal rotation. 7. Compare to tank car, water consumption save 70% ~80%, wide coverage area.
Application Area
We provide a comprehensive technology for dust suppression and odour control for a wide range of industries. Fields of applications include building and demolition sites, recesses and inert recycling systems, cement factories and concrete production plants, construction of roads and tunnels, steel factories and compost production plants, wood processing plants, solid urban waste landfill sites and transfer, mining and quarrying, environmental remediation and ports and shipping sites.etc.
