40 60 68 pin 2.54 mm pitch round pin IC Socket

Share on (60247939704):


Price:RUB 22.96 - RUB 153.03

Quantity:


Product Overview

Description

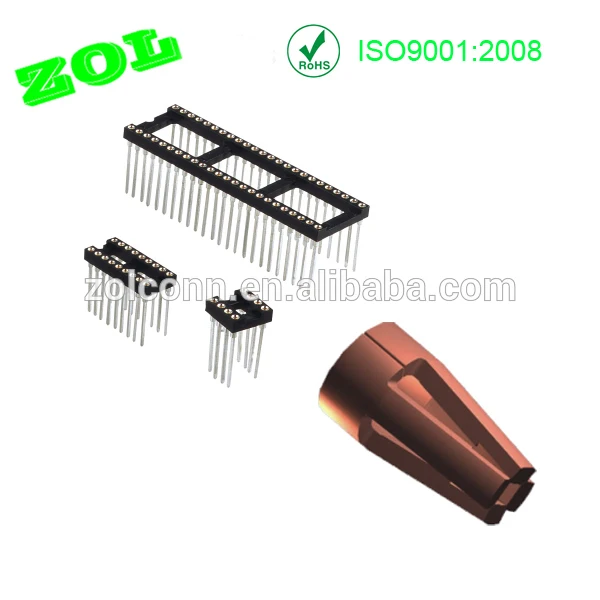

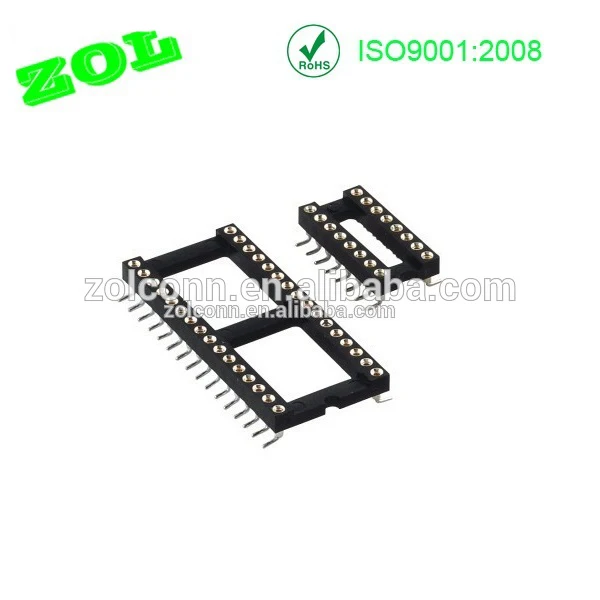

40 60 68 pin  2.54 mm pitch round pin IC Socket

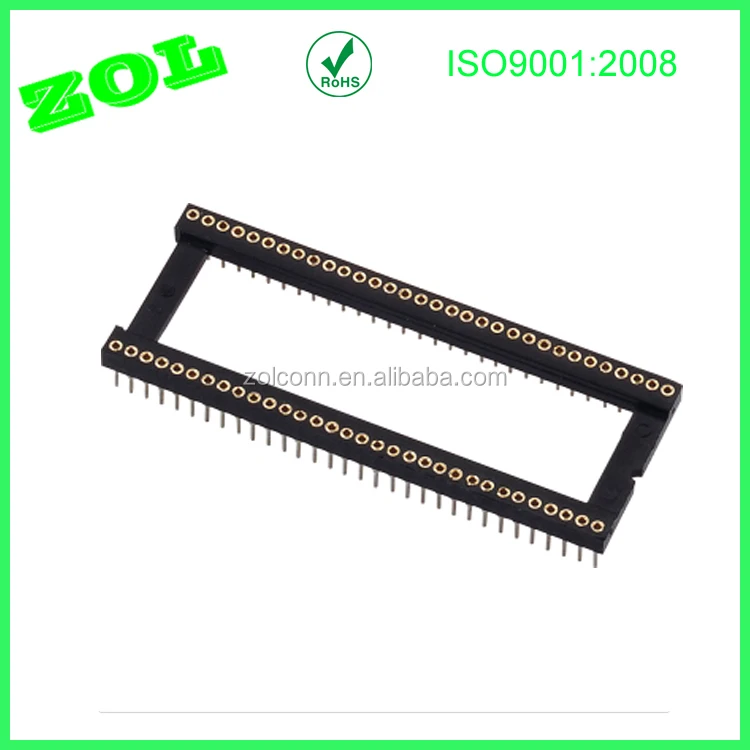

534

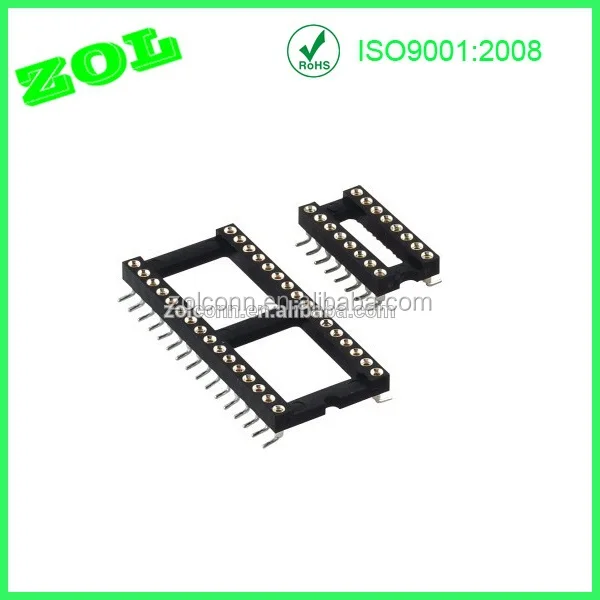

159

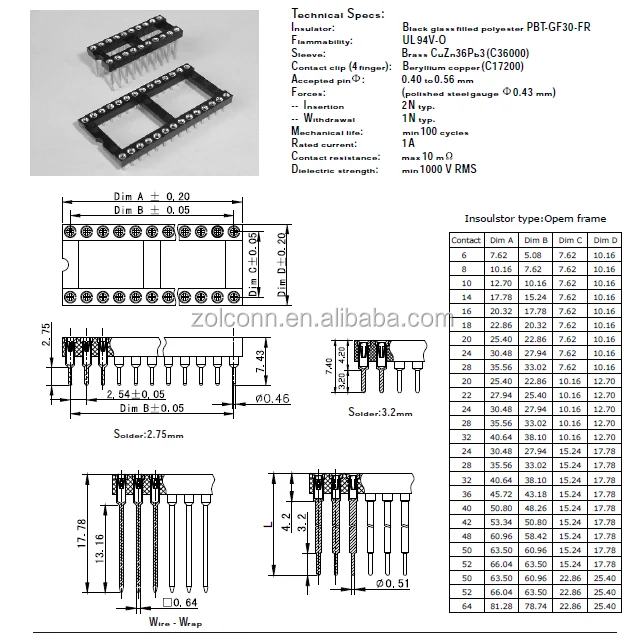

1,Specifications

InsulatorBlack glass filled polyester PBT-GF30-FR UL 94V-O
Sleeve/ContactBrass CuZn36Pb3(C36000)
Accepted pin diameter0.40 to 0.56 mm
ForcesPolished steel gauge diameter 0.43 mm
Insertion 2 N typ
Withdrawal1 N typ
Mechanical life min 500 cycles
Rated current 3A
Contact resistancemax 10 mΩ
Dieletric strengthmin 1000 V RMS
PositionsA/B/C Type
A Type6/8/10/12/14/16/18/20/22/24/28
B Type20/22/24/28/32
C Type24/28/32/36/40/42/48/60/64/68

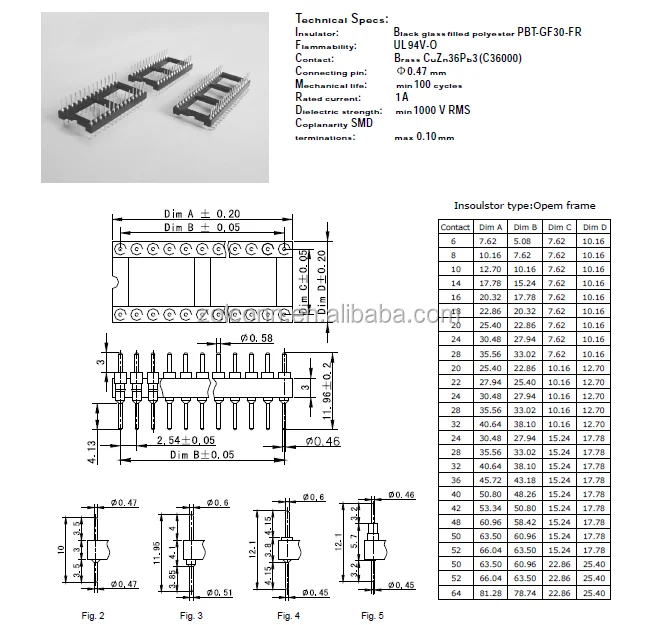

SMTH3.0



2,Packing details:







Packaging & Shipping

ZOL







3,About our company :







Company Information

Shenzhen ZhongLing Electronic ,Ltd is professional in D&R ,production,marking connector an pins ,cables ,and other electronic products.

Products mainly are D-Sub connector ,Round Pin Header ,Pin Header , Box Header,Ejector Header , IDC Socket,DIN Male/Female Connector,Sata Mele/Female connector,wire hardness and cable assembly.

We insist on " Quality,Service,Intergrity" first as the company concept.
We hope that our business partner and us become the vin-vin relationship forever.

Welcome all the clients worldwide to contact us, we will be your best partner.








4,Why choosing us :







FAQ

Q1:Why choosing our company

A:   1,We are a professional manufacturer with many years design and research experience ,and also have a  standout design and research team, we can deal with our customers'  project efficiently .



      2, Small MOQ , High quality



      3,Free sample ,

Q2:What about shipping method

 A:  1,China Post Air Mail



      2,DHL



      3,EMS



      4,UPS



      5,Fedex and so on

Q3: What is your price term & payment terms

A:  1,  Usually the price is Exw price( factory price ),but others terms are available



      2, Payment terms:T/T,Paypal ,Escrow,Western Union,Money Gram and others

Q4:What about your delivery time

A:  Usually 7-15 working days , if you are urgent ,we can negociate it





5,For the pins or other sockets can do according to your request .



Any questions,kindly contact us, we will reply you as soon as possible
