electrics cabinet low voltage distribution panel electrical box extension

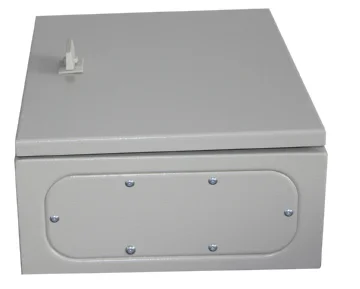

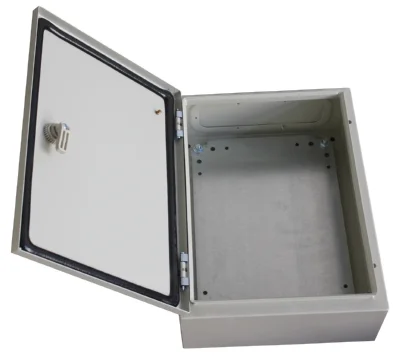

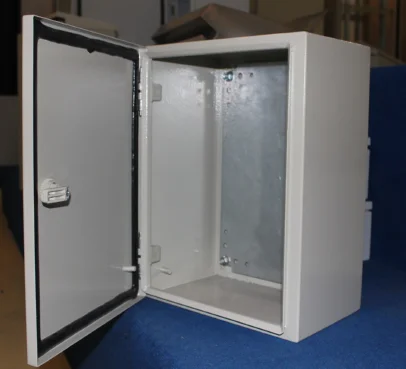

Single door wall mount enclosure:
Paint finish:Epoxy polyester powder coating textured finish.
Protection degree:IP 66
Against mechanical impacts:IK10
Enclosure & door:Sheet steel 1.2mm till size ST6-820 then 1.5mm
Mounting plate:Zinc-coated steel 1.5mm till size ST6-820 then 2.0mm
Color:RAL7032 RAL7035
Supply include:enclosure,Door with lock system,mounting plate,gland plate,sealing gasket and fixing accessories.
| NO. | W H D(mm) | Model |
| 1 | 200X200X150 | ST2 215 |
| 2 | 200X250X150 | ST2 2515 |
| 3 | 250X250X150 | ST25 2515 |
| 4 | 200X300X150 | ST2 315 |
| 5 | 250X300X150 | ST25 315 |
| 6 | 300X300X150 | ST3 315 |
| 7 | 400X300X150 | ST4 315 |
| 8 | 300X400X150 | ST3 415 |
| 9 | 400X400X150 | ST4 415 |
| 10 | 300X500X150 | ST3 515 |
More size to be request to the client......

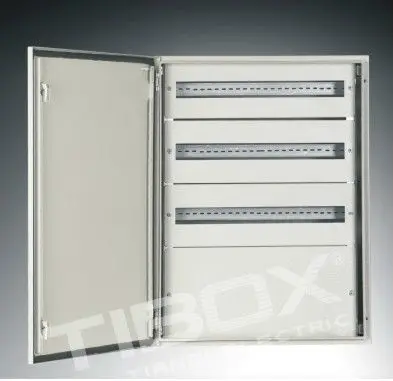

Inner door wall mount enclosure
Paint finish:Epoxy polyester powder coating textured finish.
Protection degree:IP 66
Against mechanical impacts:IK10
Enclosure & door:Sheet steel 1.2mm till size ST6-820 then 1.5mm
Mounting plate:Zinc-coated steel 1.5mm till size ST6-820 then 2.0mm
Color:RAL7032 RAL7035
Supply include:enclosure,Door with lock system,Inner door with lock systems,mounting plate,gland plate,sealing gasket and fixing accessories.
| Model | WXHXD(MM) | No. of lock |
| STI2 315 | 200X300X150 | 1 |
| STI3 415 | 300X400X150 | 1 |
| STI3 420 | 300X400X200 | 1 |
| STI4 315 | 400X300X150 | 1 |
| STI4 520 | 400X500X200 | 1 |
More size to be request to the client......
Double door wall mount enclosure:
Paint finish:Epoxy polyester powder coating textured finish.
Protection degree:IP 55
Against mechanical impacts:IK10
Enclosure & door:Sheet steel 1.5mm
Mounting plate:Zinc-coated steel 2.0mm
Color:RAL7032 RAL7035
Supply include:enclosure,Door with lock system,galvanised mounting plate,gland plate,sealing gasket and fixing accessories.
| NO. | W H D(mm) | Model |
| 1 | 800X600X200 | STD8 620 |
| 2 | 800X600X250 | STD8 625 |
| 3 | 800X600X300 | STD8 630 |
| 4 | 800X600X400 | STD8 640 |
| 5 | 1000X600X200 | STD10 620 |
| 6 | 1000X600X250 | STD10 625 |
| 7 | 1000X600X300 | STD10 630 |
| 8 | 1000X600X400 | STD10 640 |
| 9 | 1200X600X200 | STD12 620 |
| 10 | 1200X600X250 | STD12 625 |
More size to be request to the client......
Plexiglass door wall mount enclosure:
Paint finish:Epoxy polyester powder coating textured finish.
Protection degree:IP 55
Against mechanical impacts:IK10
Enclosure & door:Sheet steel 1.5mm
Mounting plate:Zinc-coated steel 2.0mm
Color:RAL7032 RAL7035
Supply include:enclosure,Door with plexiglass& lock system, mounting plate,gland plate,sealing gasket and fixing accessories.
| NO. | W H D(mm) | Model |
| 1 | 200X300X150 | STP2 315 |
| 2 | 300X400X150 | STP3 415 |
| 3 | 300X400X200 | STP3 420 |
| 4 | 400X300X150 | STP4 315 |
| 5 | 400X400X200 | STP4 420 |
| 6 | 400X500X200 | STP4 520 |
| 7 | 400X600X200 | STP4 620 |
| 8 | 500X500X200 | STP5 520 |
| 9 | 500X700X250 | STP5 725 |
| 10 | 600X400X200 | STP6 420 |
More size to be request to the client......
Plexiglass door + inner door wall mount enclosure:
Paint finish:Epoxy polyester powder coating textured finish.
Protection degree:IP 66
Against mechanical impacts:IK10
Enclosure & door:Sheet steel 1.2mm till size ST6-820 then 1.5mm
Mounting plate:Zinc-coated steel 1.5mm till size ST6-820 then 2.0mm
Color:RAL7032 RAL7035
Supply include:enclosure,out door with plexiglass & lock system,Inner door with lock systems,mounting plate,gland plate,sealing gasket and fixing accessories.
![%]1]$YRE)QZNN~97FUJGD6](http://sc01.alicdn.com/kf/HTB1xmROvgaTBuNjSszfq6xgfpXax/1902952/HTB1xmROvgaTBuNjSszfq6xgfpXax.jpg)
| NO. | W H D(mm) | Model |
| 1 | 200X300X150 | STIP2 315 |
| 2 | 300X400X150 | STIP3 415 |
| 3 | 300X400X200 | STIP3 420 |
| 4 | 400X300X150 | STIP4 315 |
| 5 | 400X400X200 | STIP4 420 |
| 6 | 400X500X200 | STIP4 520 |
| 7 | 400X600X200 | STIP4 620 |
| 8 | 500X500X200 | STIP5 520 |
| 9 | 500X700X250 | STIP5 725 |
| 10 | 600X400X200 | STIP6 420 |
More size to be request to the client......
