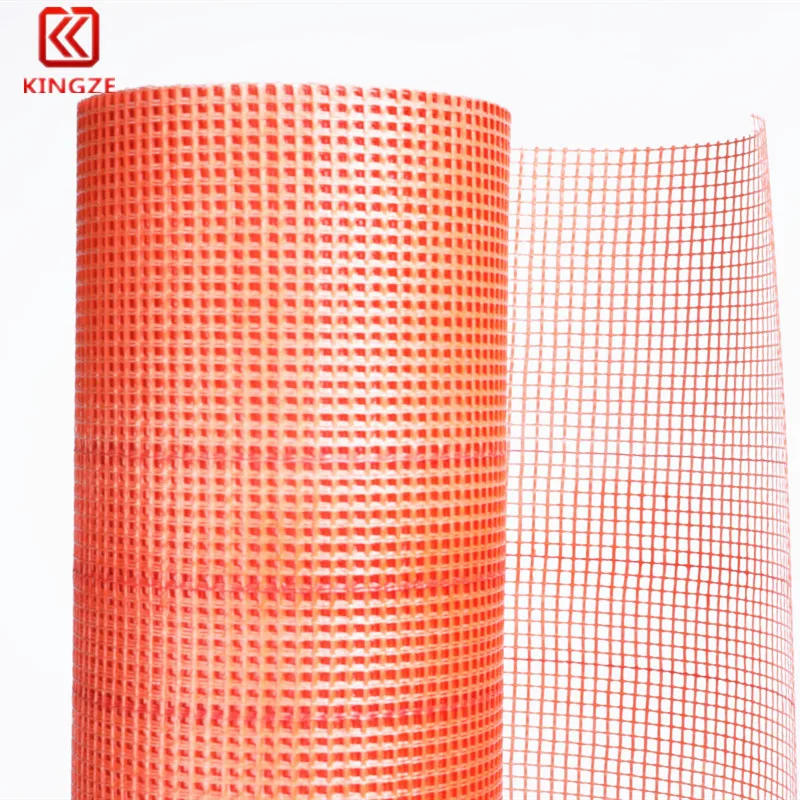

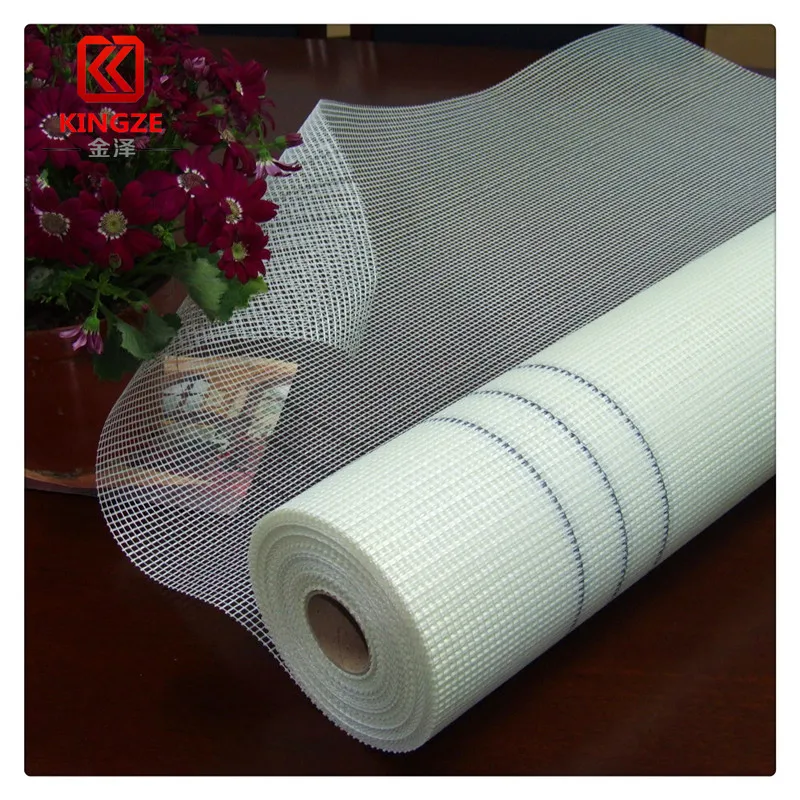

acrylic material exterior wall insulation fiberglass mesh
- Category: >>>
- Supplier: Changzhou Kingze Composite Materials Co. Ltd.
Share on (60248038350):
Product Overview
Description
Product Description

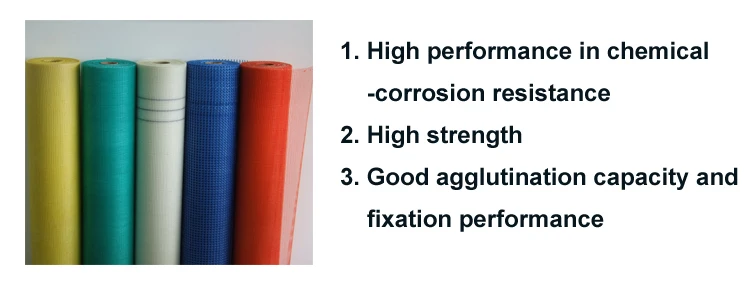

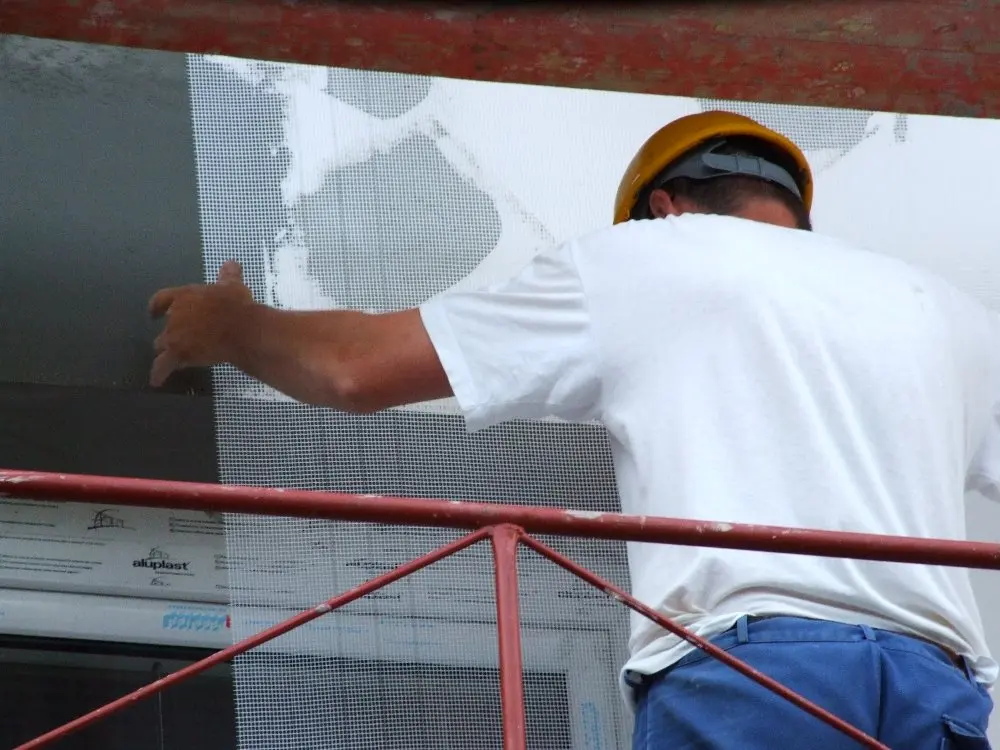

Fiberglass mesh is made from the medium-alkali fiberglass mesh, on which the alkali resistant material is coated.The product comes with high strength,excellent cohesive property,and good agglutination capacity and fixation performance.It is widely applied in wall reinforce,external wall heat preservation and roofing water release .It is also applied in reinforcing cement,pitch,marble and mosaic construction.The fiberglass mesh is an ideal engineering material in building industry. | ||||||||
Item Number | Yarn(Tex) | Mesh size(mm) | Density Count/25mm | Finished weight(g/m2) | Tensile strengthX20cm | ||||||||
Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | ||||||
CNP5X5-70 | 45X2 | 200 | 5 | 5 | 5 | 5 | 70 | 550 | 850 | ||||
CNP5X5-75 | 45X2 | 200 | 5 | 5 | 6 | 5 | 75 | 600 | 650 | ||||
CNP5X5-80 | 67X2 | 200 | 5 | 5 | 5 | 5 | 80 | 700 | 850 | ||||
CNP5X5-90 | 67X2 | 250 | 5 | 5 | 5 | 5 | 90 | 700 | 1050 | ||||
CNP5X5-125 | 134X2 | 250 | 5 | 5 | 5 | 5 | 125 | 1200 | 1300 | ||||
CNP4X4-160 | 134X2 | 300 | 4 | 4 | 6 | 5 | 160 | 1550 | 1650 | ||||

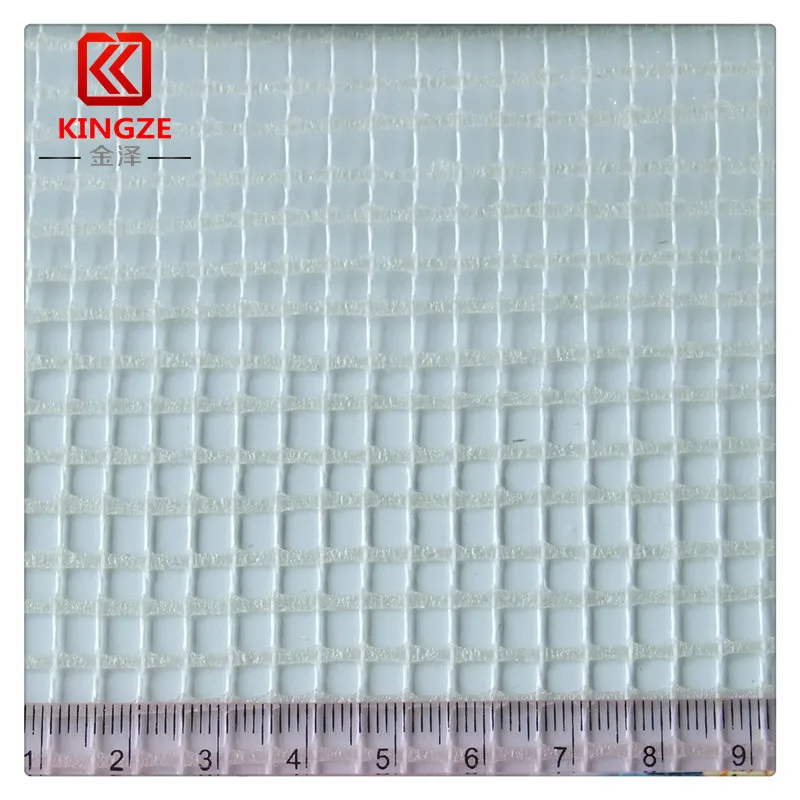

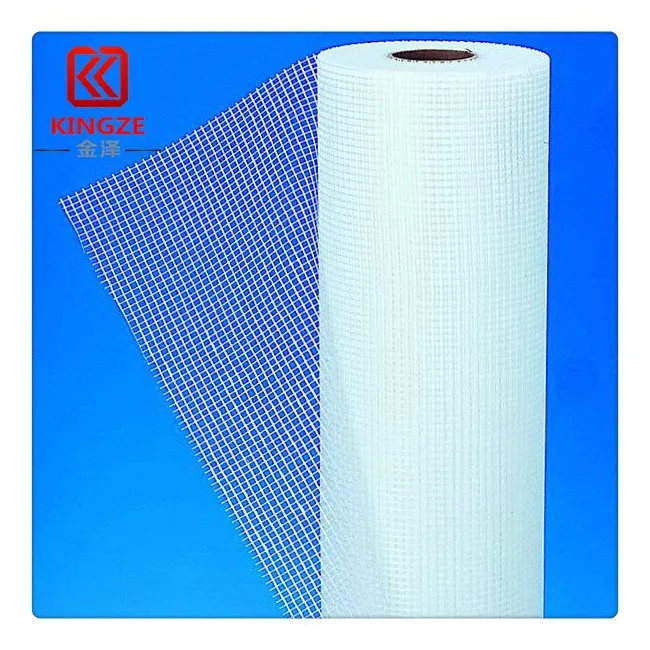

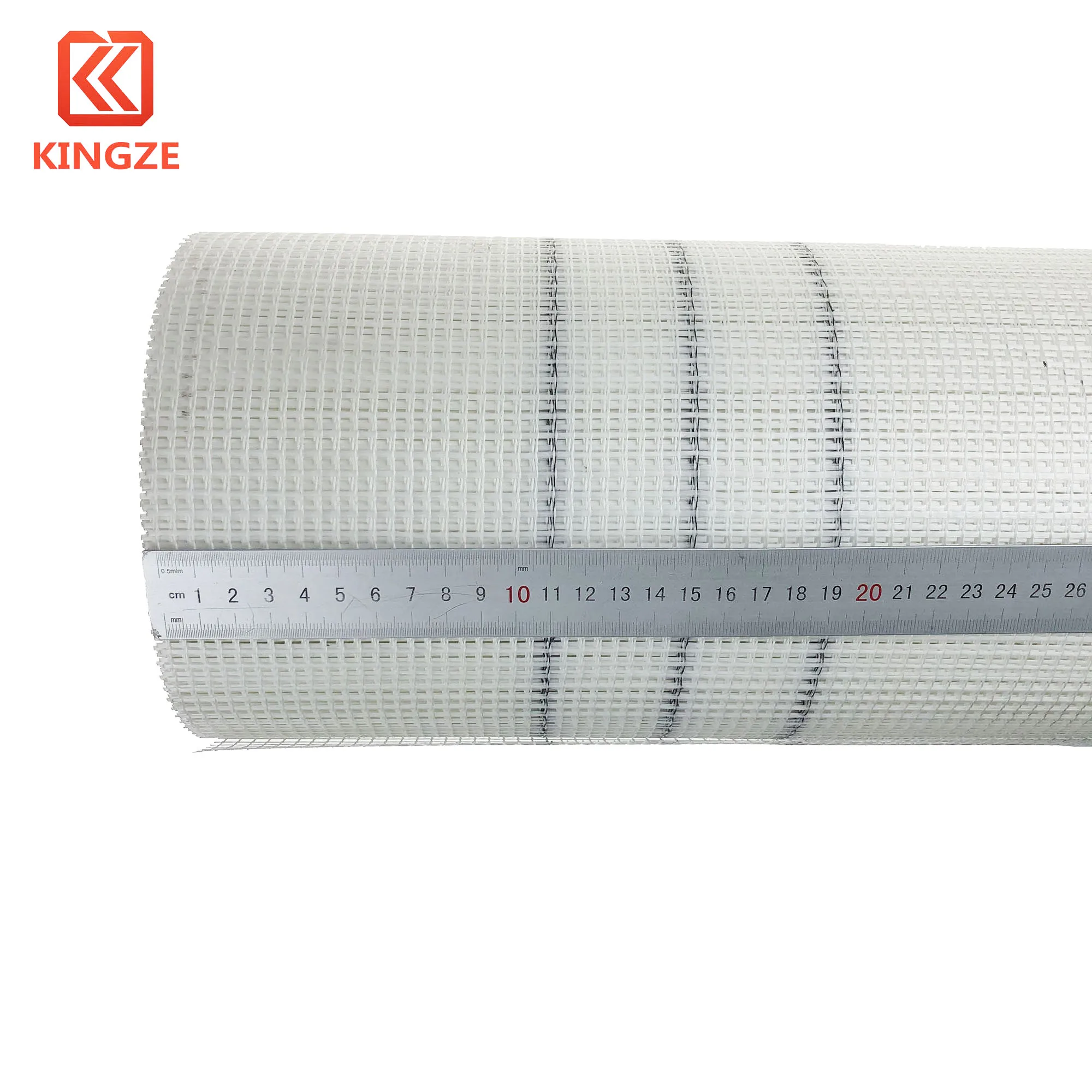

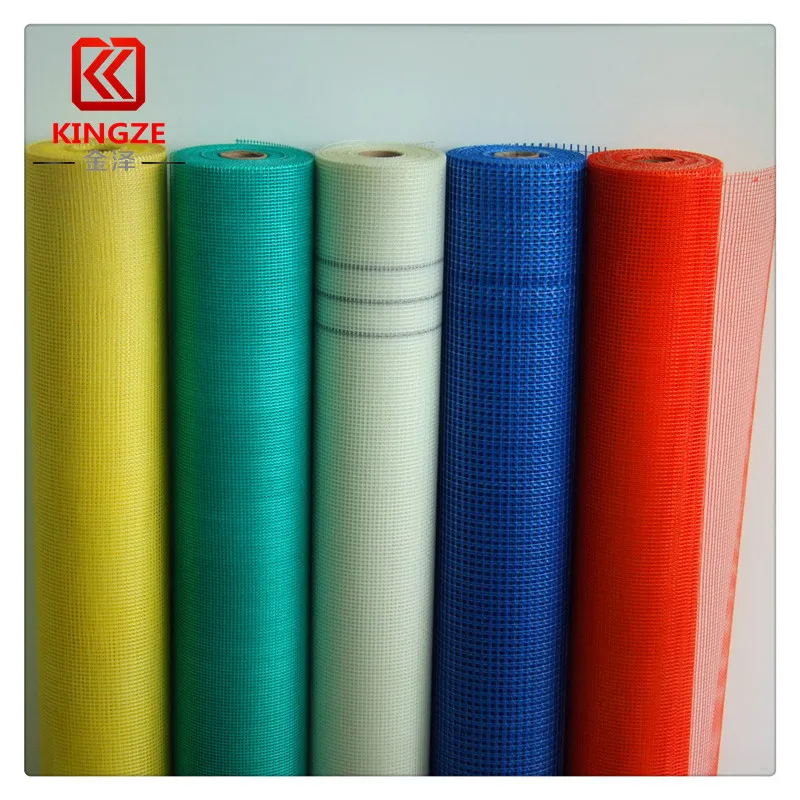

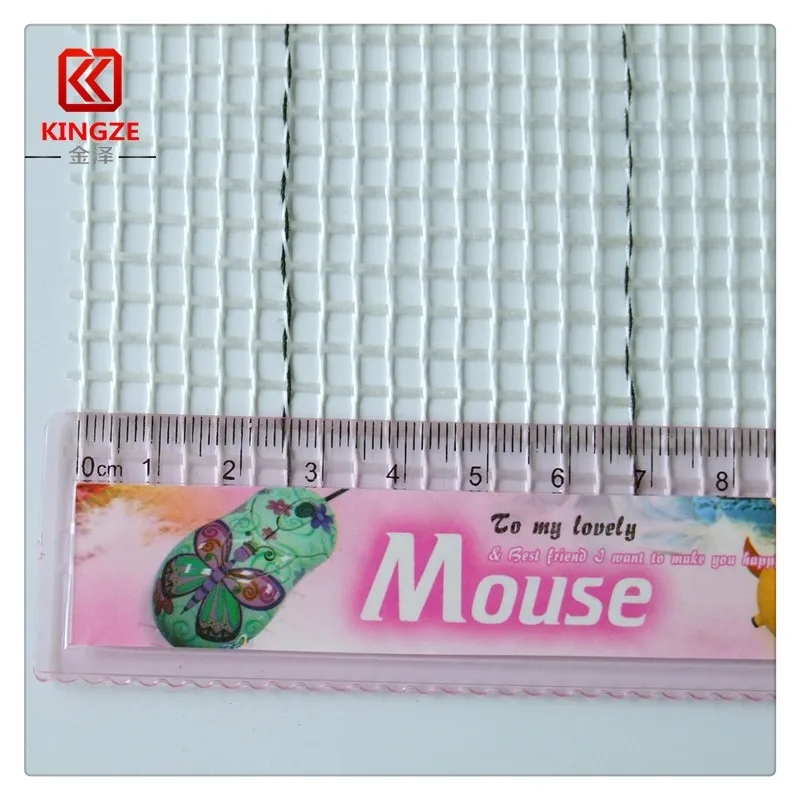

Detailed Images
Material Description
* The glue is SBR resin, good positioning, alkali resistance, soft and elastic
* The coated acrylic resin has good alkali resistance and strong tensile strength
* The hardness of fiberglass mesh cloth can be customized according to customer requirements.Soft adhesive (resin) or hard
adhesive can be made as required
Material Description
Fiberglass yarn
* Alkali yarn is a kind of glass fiber with excellent acid and alkali resistance
* Non - alkali yarn is a general - purpose glass fiber with higher initial tensile strength than medium - alkali yarn
Medium alkali is suitable for building insulation, with excellent alkali resistance. 5%NaOH solution can be soaked for 28 days
Both alkali glass fiber mesh and non - alkali glass fiber mesh are available
* Alkali yarn is a kind of glass fiber with excellent acid and alkali resistance
* Non - alkali yarn is a general - purpose glass fiber with higher initial tensile strength than medium - alkali yarn
Medium alkali is suitable for building insulation, with excellent alkali resistance. 5%NaOH solution can be soaked for 28 days
Both alkali glass fiber mesh and non - alkali glass fiber mesh are available

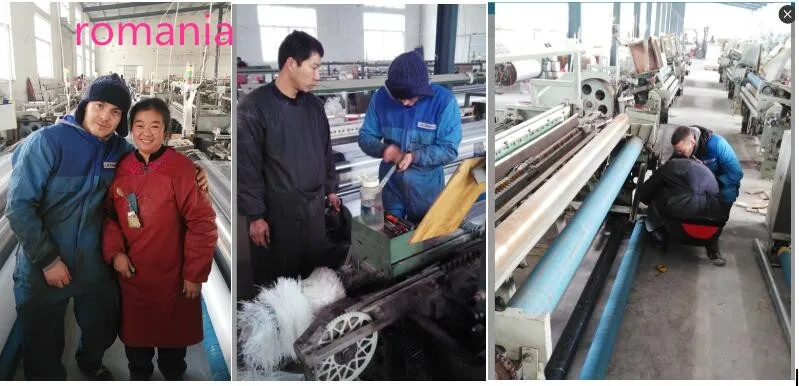

Production process and weaving method of fiberglass mesh
Woven on a rapier loom
The weaving method is Leno weaving
Related Products
Packing&Shipping

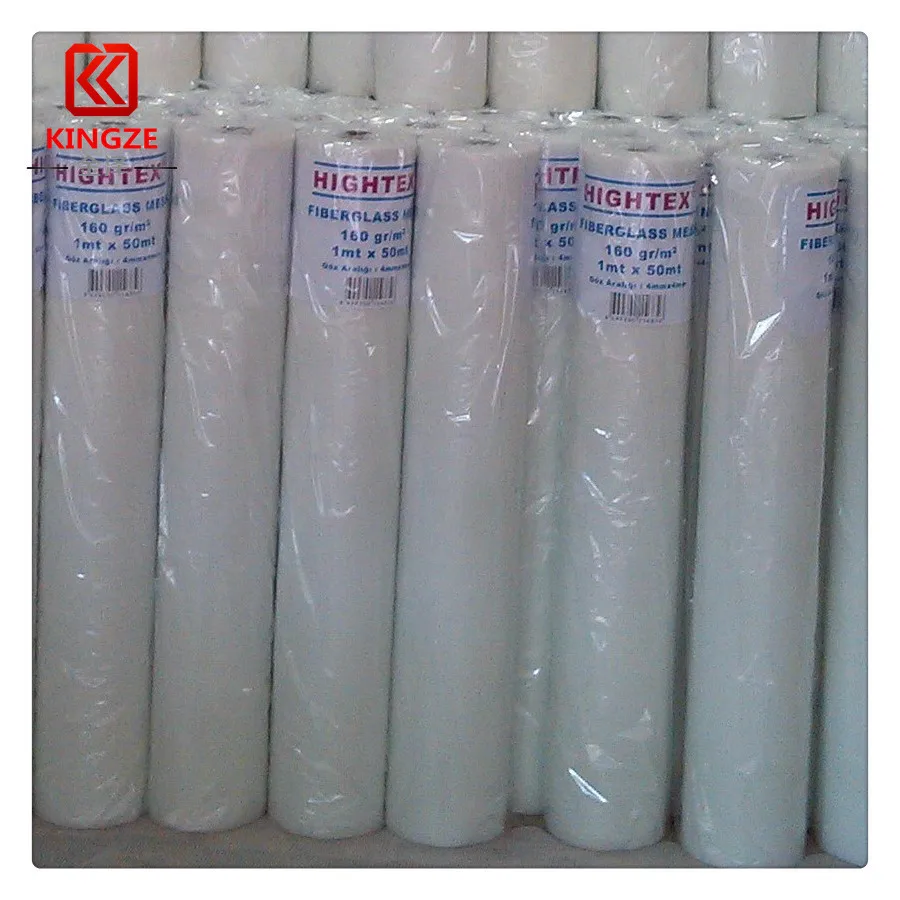

each roll with shrink-ed film,then put into the carton boxes on pallet
Company Introduction
CHANGZHOU KINGZE COMPOSITE MATERIALS CO.,LTD is a professional team for fiberglass products.We have over 15 years’ experiences in manufacturing and exporting fiberglass products. and enjoy a good reputation among clients. With 3 factories, we can provide a wide range of products. In fact our main series now include fiberglass mesh, fiberglass cloth, fiber - glass yam, fiberglass roving, fiberglass weaving machine, weaving machine spare parts, coating glue, etc. Moreover, besides standard products, we also provide an extensive range of customization services in order to cater for your special orders. We are seeking sincerely cooperation with all interested companies.The following figure shows the companies we have worked with historically. | ||||||||
