PVDF алюминиевая композитная панель, ACP, ACM гарантия 15 лет не выцветает для наружного здания

Product Overview

Description





PVDF Aluminium Composite Panel, ACP, ACM

1. Product Description



Materials:

Front side: aluminum alloy sheet coated with fluorocarbon resin (PVDF)

Core: more broken-resistant polyethylene or fire-resistant polyethylene (PE)

Rear side: aluminum alloy sheet (or coated with polyester resin)



Size:

Panel thickness:

Standard: 3mm,4mm

Others: 2mm up to 5mm



Aluminum skin thickness:

0.50 x 0.50mm

0.45 x 0.45mm

0.40 x 0.40mm

0.35 x 0.35mm

0.3 x 0.3mm

0.21 x 0.21mm

0.18 x 0.18mm

0.15 x 0.15mm

0.12 x 0.12mm

0.10 x 0.10mm



Width:

Standard width: 1,220mm

Maximum width: 1,550mm



Length:

Standard length 2,440mm

Maximum length: 5,800mm



Features:

KYNAR 500 fluorocarbon resin (PVDF) top coat.

Adoption of high- purified aluminum sheet from Southwest Aluminum Group

Surface treatment technologies from Heckle, Germany

Optimum for exterior decoration of skyscrapers

Super peeling strength

Lightweight, flat surface, Excellent in heat-insulation, sound-insulation, fire-resistance,

acid-resistance, alkali-resistance, weather-resistant and non-resonance

Can be easily processed and quickly installed





1.PVDF COATING guarantees 15-20 years.
2.Various color available
3.Get the certificate of ISO9001,CE,SGS,
4.Easy fabrication



Advantage:



 1) High temperature resistant,-40~+80 Celsius degree.



2) Weathering resistant



3) Scrubbing resistant



 4) Sound insulation



5) Acid or alkali proof



6) Fireproof



7) Light weight material is easy to construct and install



2.Factory

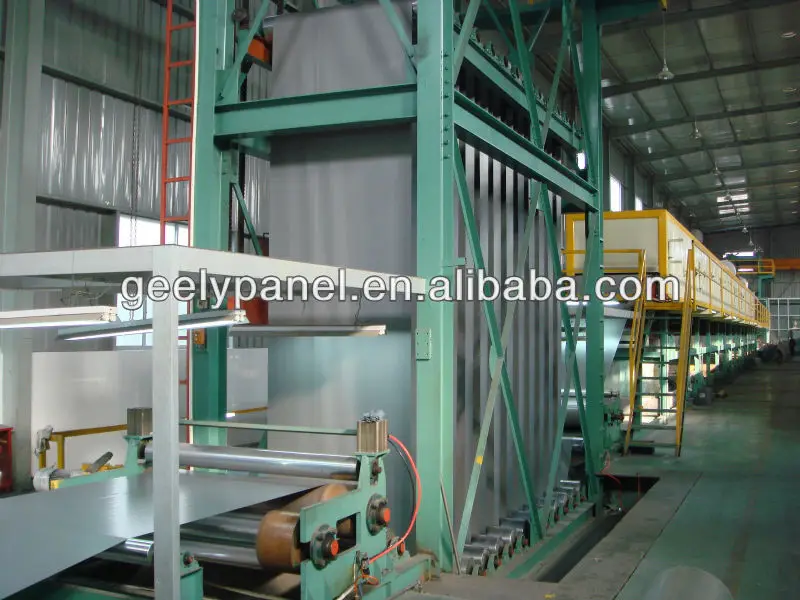

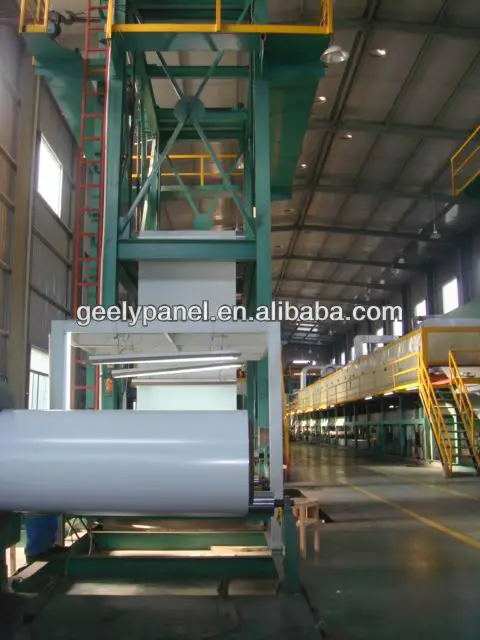

3.Machine

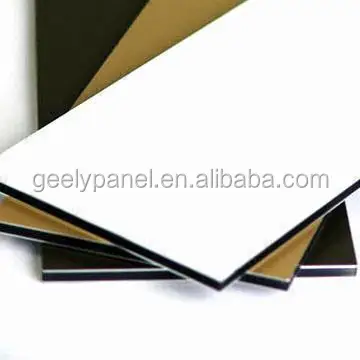

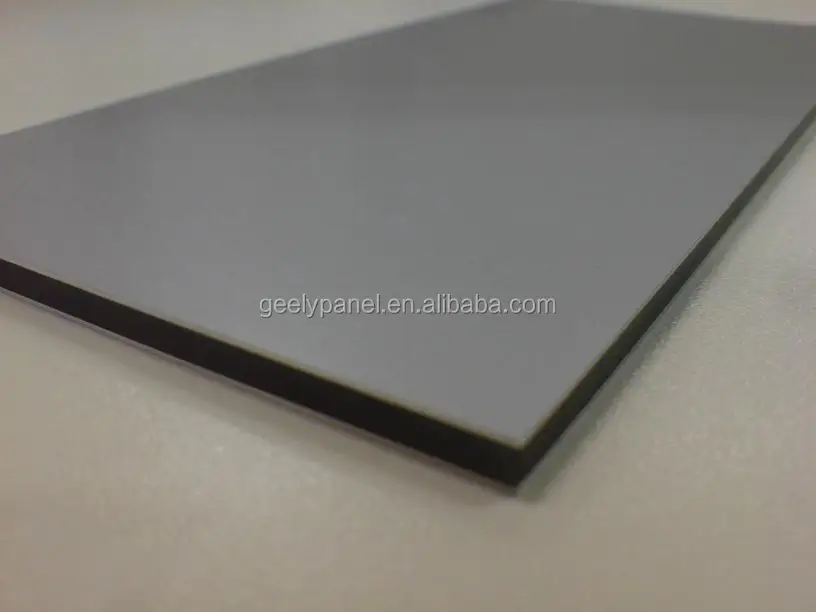

 4.Aluminum composite panel

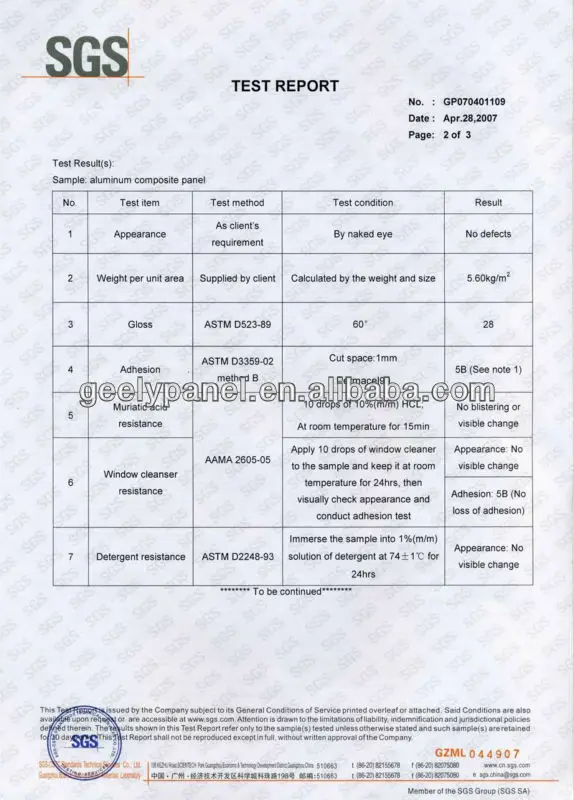

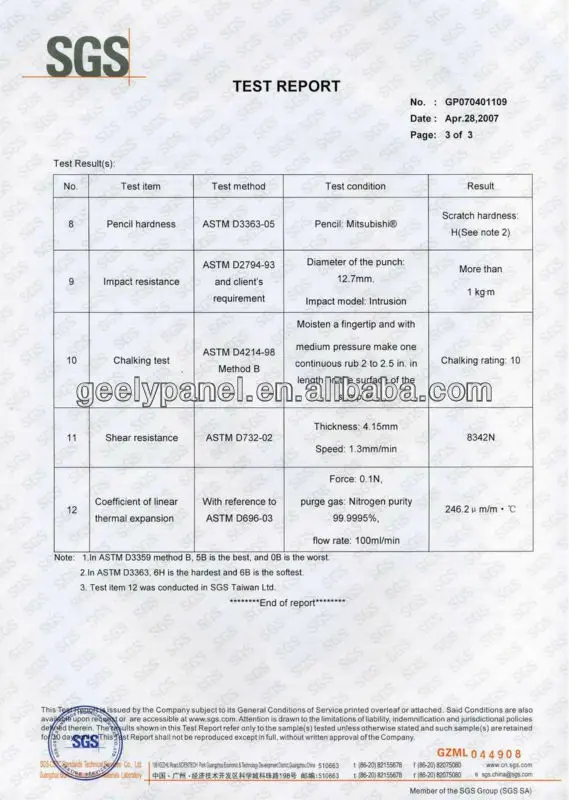

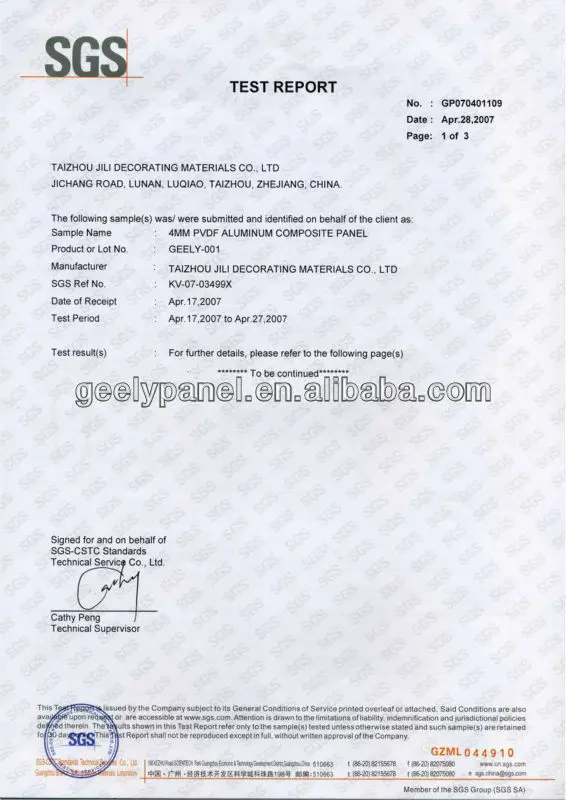

5.Certificate

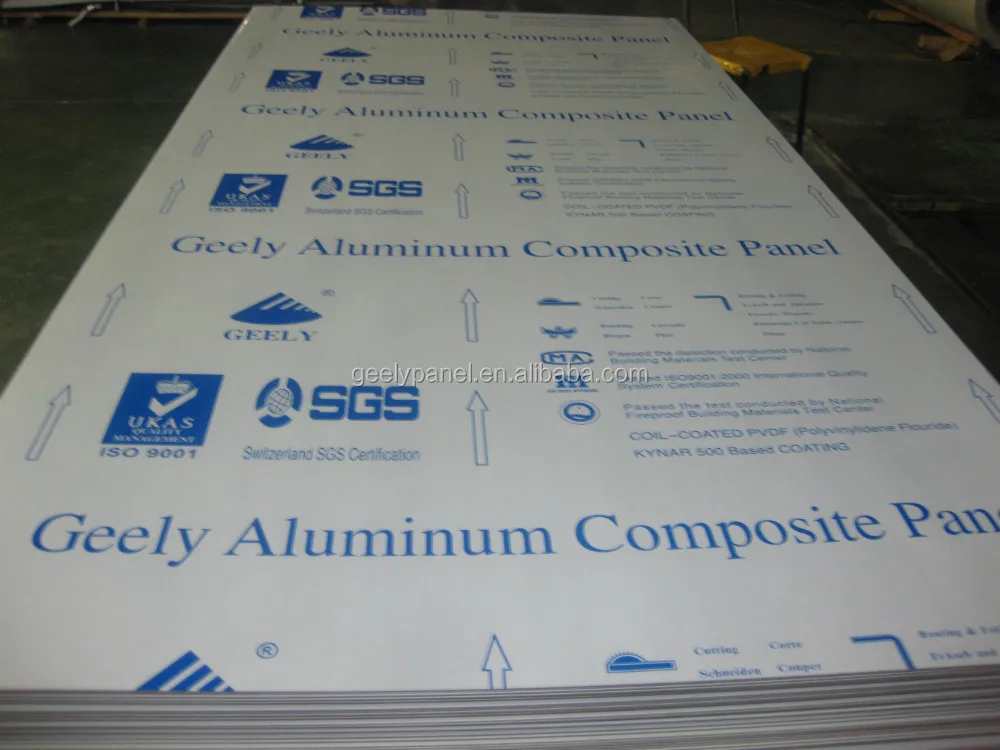

 6.Our packing :

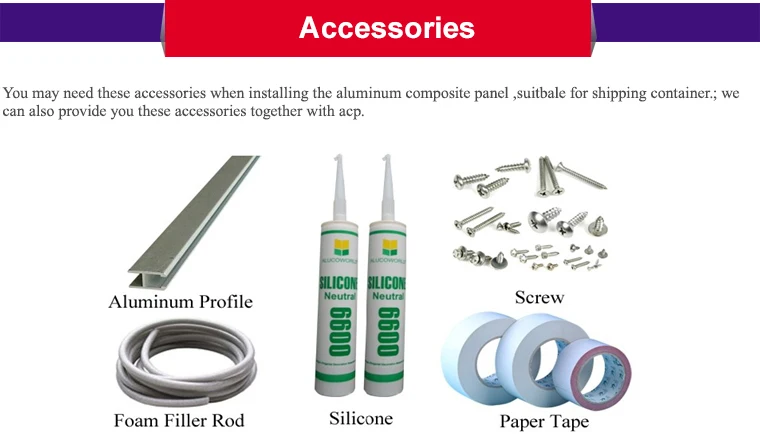

7.ACP installation accessories
