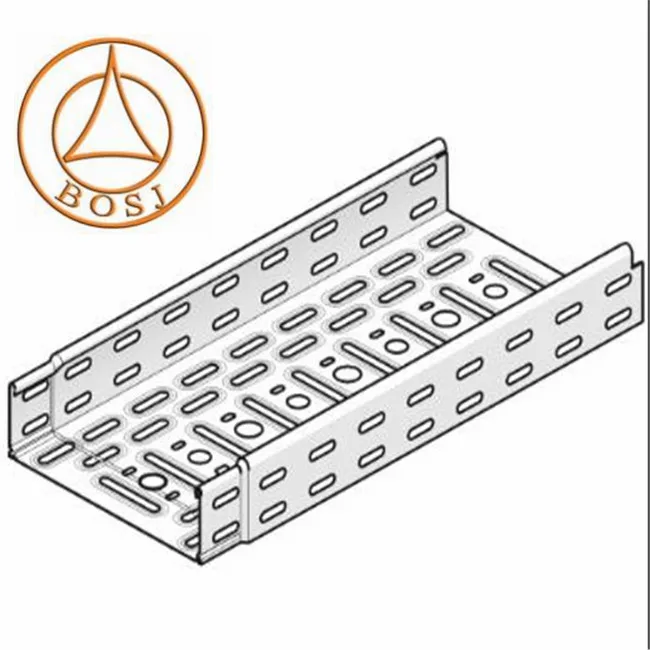

Cable Tray Roll Forming Machine

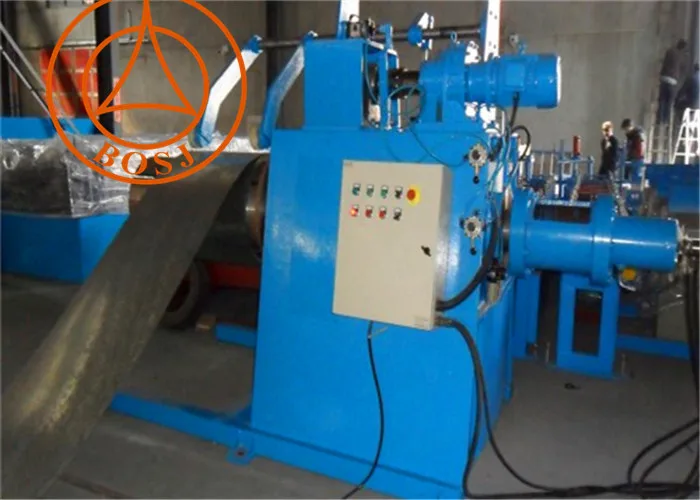

a) Automatic Hydraulic decoiler with expansion type

 1. Width of coil:70~350mm,thickness:1.8mm

   2. Inner  Diameter:508mm;Out Diameter:480-520 mm;

   3. Max. OD:φ1200mm;Capacity:≤2.0T

   4. Hydraulic expansion with brake and loading car(optional)

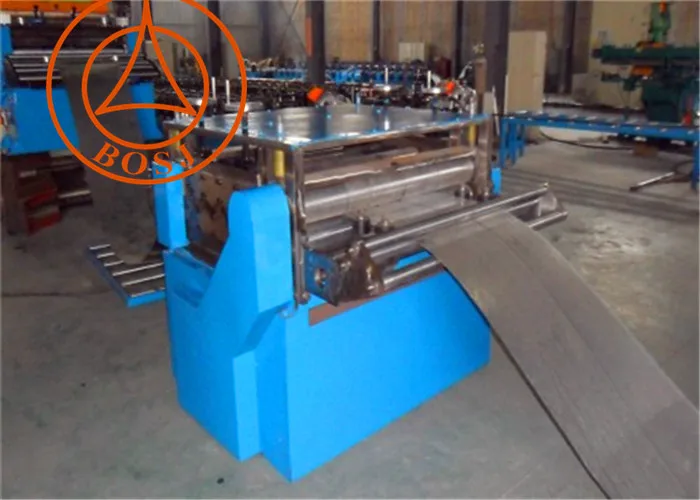

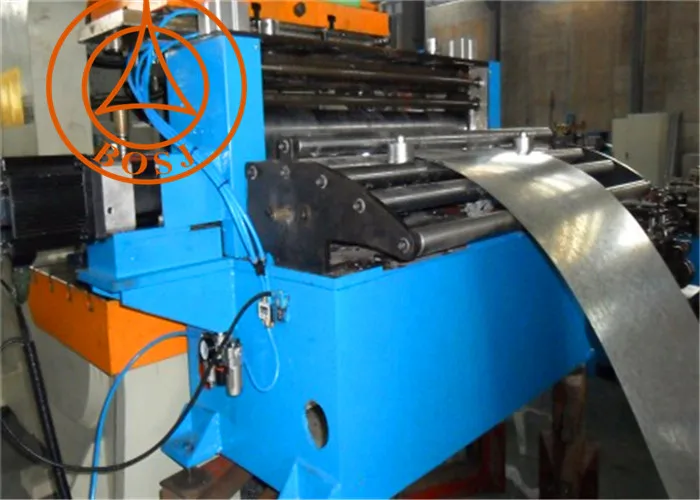

b) Seven Rollers Straightner

 1.Thickness of processed material: 2.0mm
 2. Width of processed material: 700mm
 3.  Leveling shaft: 9 pcs,  pinching shaft: 2 pcs
4.  Diameter of shaft: 90mm
5.  Material: 40Gr steel
6. Rigidity: HRC25°-27°
7. Power : 5.5KW motor
8. Transmit by girth gear and chain
9. Speed : 8m/min

c) Servo Feeder

1.       width of feeder: 700mm
2.      thickness of process material: 2.0mm
3.       quantity of roller: 4 pcs
4.      material of roller: GCr15 steel
5.       hot treatment rigidity of roller: HRC55°-57°
6.       servo motor: 2 KW (Brand: Japan)
7.      speed of feeding: 0-10m/min
8.      transmit by girth gear

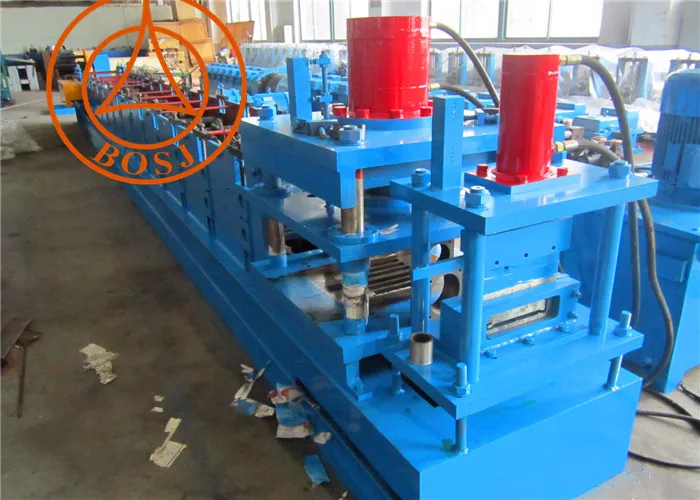

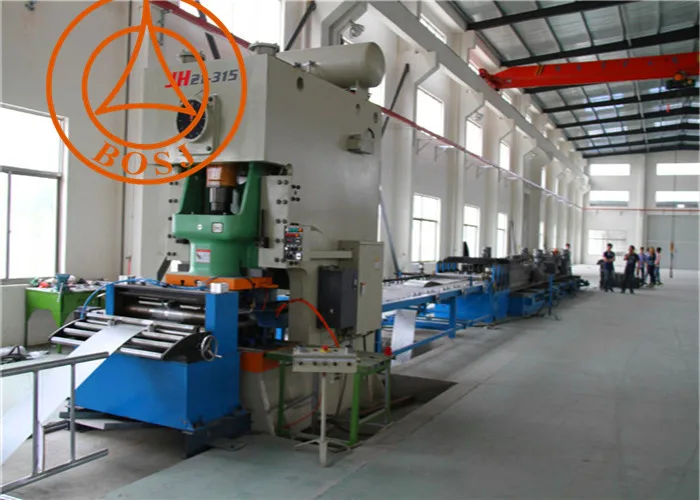

d) Punching Press with punching mould

Die require: Cr12 quench/SKD11
It finishes punching and cutting in one time.

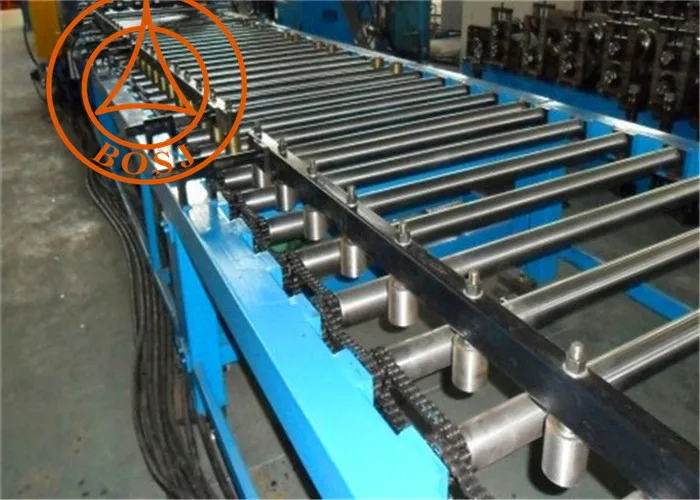

e) Conveying Table

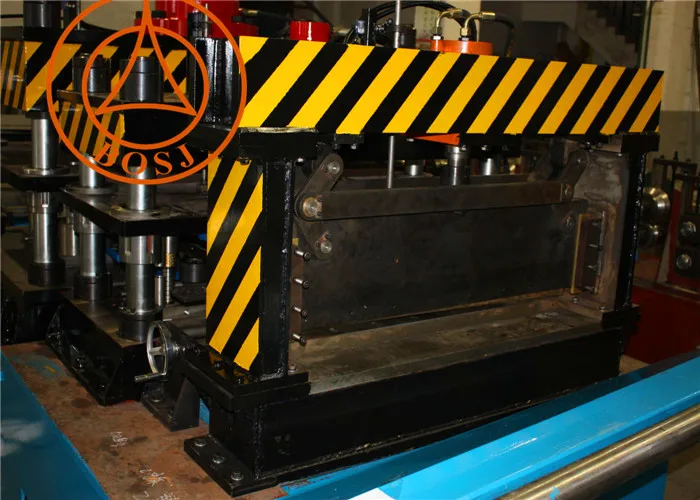

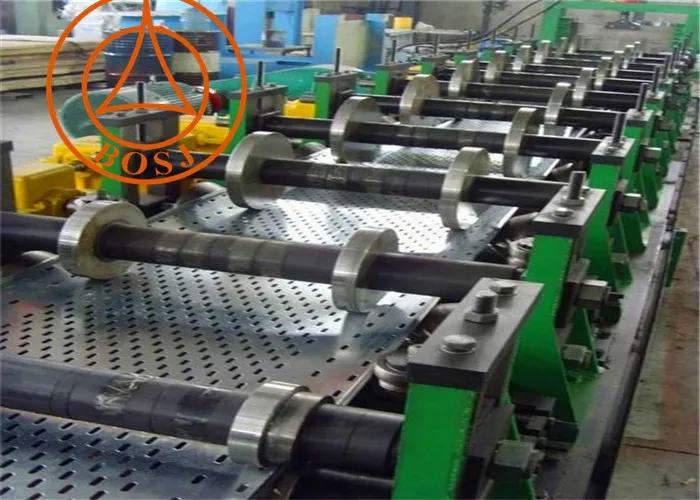

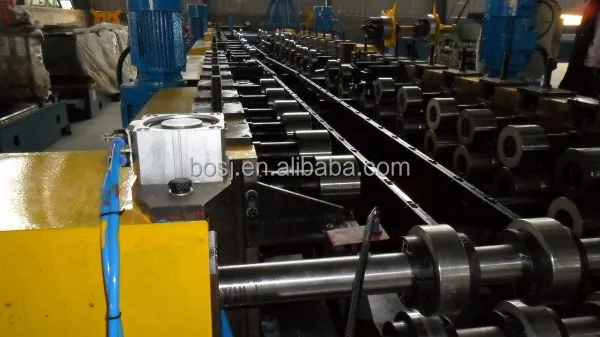

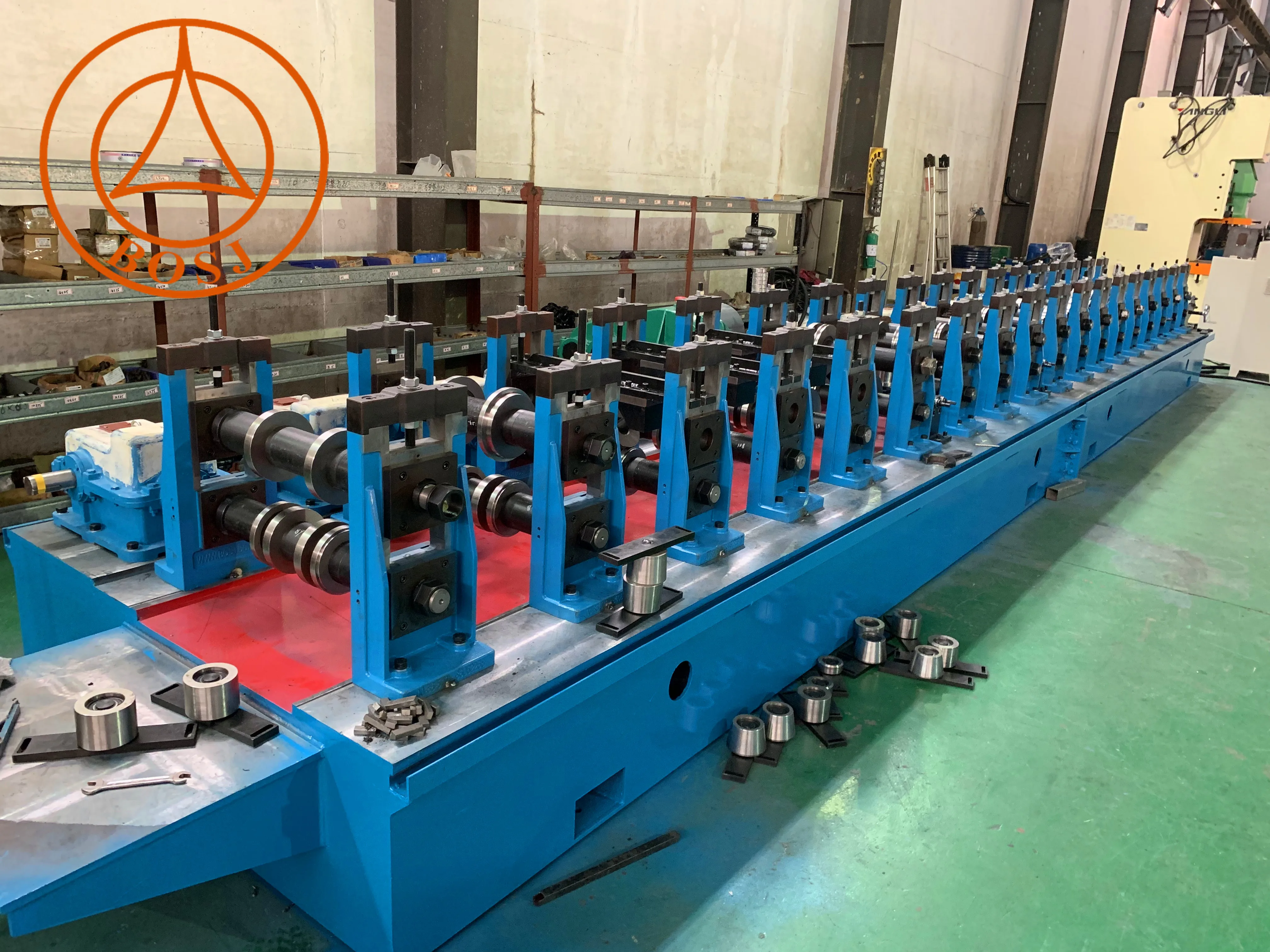

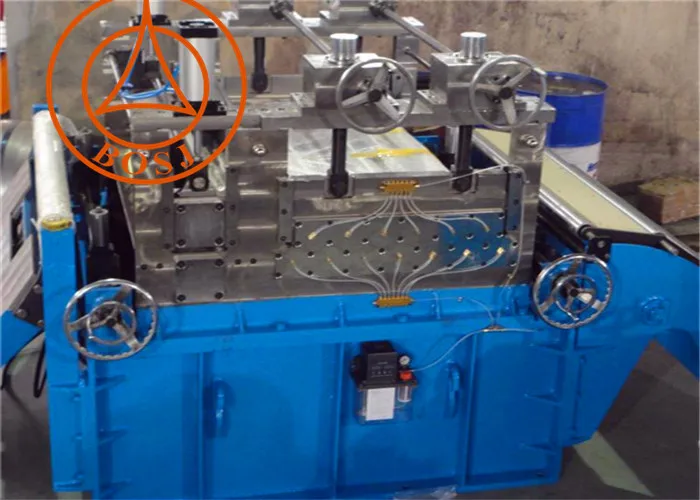

f) Main Adjustable Roll Forming Machine

Rack structure:Dragon Gate type memorial arch frame
forming frame: 22 sets

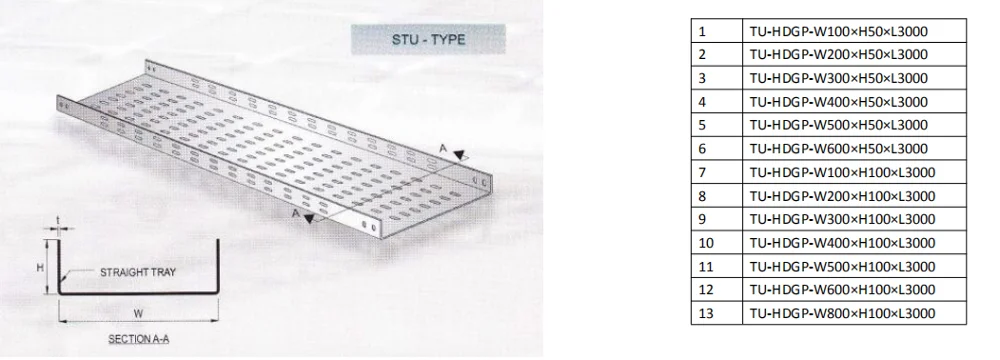

Forming variety: bridge frame
material max width:860mm
material max thickness:≤2.0mm

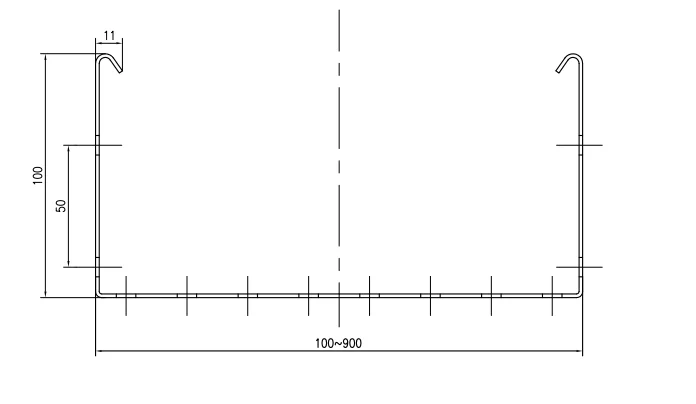

forming width: 75-600mm
forming height: 50-100mm
The diameter of the roller axis: 85mm
Roll mould material: Gcr15,quenching treatment:HRC58-62°
Drive type:30kw frequency conversion electromotor, ZQ500 Main speed  reducer

g) Collection Table

Delivery Time & Packing Type & Payment Type

a) delivery time: 60 days after buyer confirm the drawings

b) packing type: plastic bag to prevent the moisture and tigthen all parts with wooden cases

c)payment type:30% advance payment
