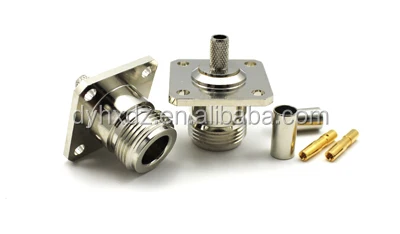

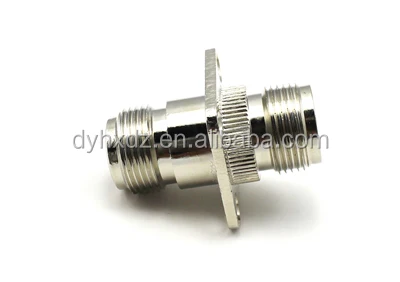

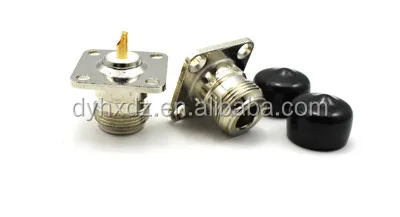

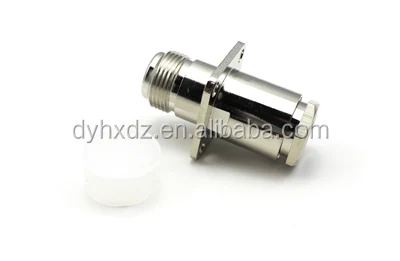

RF Coaxial Connector N Square Flange Jack Receptacle/4-Hole Panel Mount





1.reasonable price





2.manufacturer factory





3.We are able to supply various types of connector according to clients’ requirement





4.Samples can be supplied for testing (for free)





5.Tried order is available





6.in stock






Product Description




RF Coaxial Connector N Square Flange Jack Receptacle/n type coaxial connectors 4 holes mount panel


















































































Temperature Range -55 to +155°c(PE cable-40-+85 °c )
Vibration 100m/s (10-500Hz)
Impedance 50Ω
Frequency Range DC to 11GHZ
Working Voltage 1000V r.m.s  at sea level
Withstanding Voltage 2500V r.s.m  at sea level
Contact ResistanceCenter contact≤1m Ω
 Outer contact≤1m Ω
Insertion Loss 0.24dB/6GHz
Insulation resistance ≥5000M Ω
Center Conductor Retention Force ≤ 0.56N
Voltage Standing Wave RatioStraight≤ 1.15/6GHz
 Right angle≤ 1.25/6GHz
Durability(mating) ≤ 500cycles
Coupling nut retention force 450N
